Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector

Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector - 23HS22-1504S-C14 | StepperOnline UK
23HS22-1504S-C14
Output Shaft TypeD
No. of Lead4
Single Shaft/Dual ShaftSingle Shaft
Holding Torque(Ncm)116
Question
Same series
ModelOutput Shaft TypeNo. of LeadSingle Shaft/Dual ShaftHolding Torque(Ncm)PriceStock
23HS16-0884SD4Single Shaft60£12.07In stock
23HS16-2804DD4Single Shaft55£10.82In stock
23HS18-2004HHollow4Dual Shaft78£17.55In stock
23HS20-2004SD4Single Shaft90£13.53In stock
23HS21-0446SD6Single Shaft60£12.36In stock
23HS22-1006DD6Dual Shaft90£12.36In stock
23HS22-1006SD6Single Shaft90£12.36In stock
23HS22-1504SD4Single Shaft116£10.56In stock
23HS22-1504S-C14D4Single Shaft116£7.06In stock
23HS22-2804DD4Dual Shaft120£13.97In stock
23HS22-2804SD4Single Shaft124£10.56In stock
23HS22-2804S1D4Single Shaft126£10.56In stock
23HS22-3008DO8Dual Shaft126£12.36In stock
23HS26-2004HHollow4Dual Shaft145£20.21In stock
23HS30-1006SD6Single Shaft135£17.52In stock
23HS30-2694DD4Dual Shaft185£14.95In stock
23HS30-2694SD4Single Shaft185£14.95In stock
23HS30-2804DD4Dual Shaft185£19.20In stock
23HS30-2804SD4Single Shaft200£14.43In stock
23HS30-2804S-RVKeyway4Single Shaft190£20.58In stock
23HS30-2804S-USEDD4Single Shaft190£6.05In stock
23HS30-2804S1D4Single Shaft185£17.52In stock
23HS30-2804S2D4Single Shaft190£14.43In stock
23HS30-2904SD4Single Shaft190£14.43In stock
23HS30-3004SD4Single Shaft189£14.43In stock
23HS30-3006DO6Dual Shaft135£17.52Backorder
23HS32-4004SD4Single Shaft240£14.95In stock
23HS32-4004S-C8-USEDD4Single Shaft240£13.65In stock
23HS33-4008DD8Dual Shaft283£21.16In stock
23HS33-4008SD8Single Shaft283£22.29In stock
View all in category

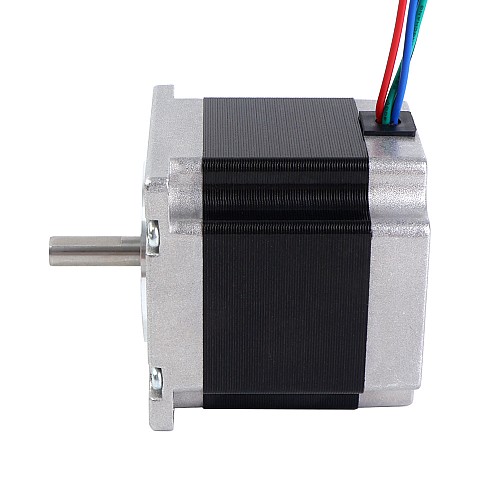

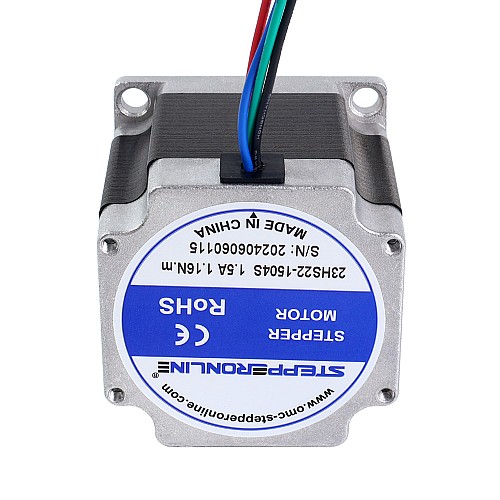

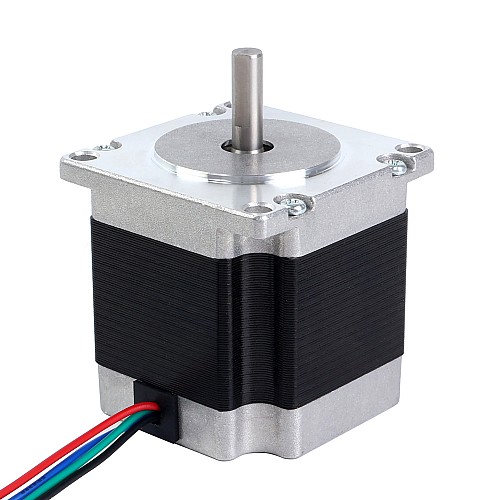

Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 165mm Cable & Molex Connector
This bipolar Nema 23 stepper motor features a 1.8° step angle and delivers a holding torque of 1... Read More
0 reviews • Write a review
from Save -33%
£7.06
£10.56
5 + £6.86
10 + £6.66
50 + £6.48
100 + £6.30

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

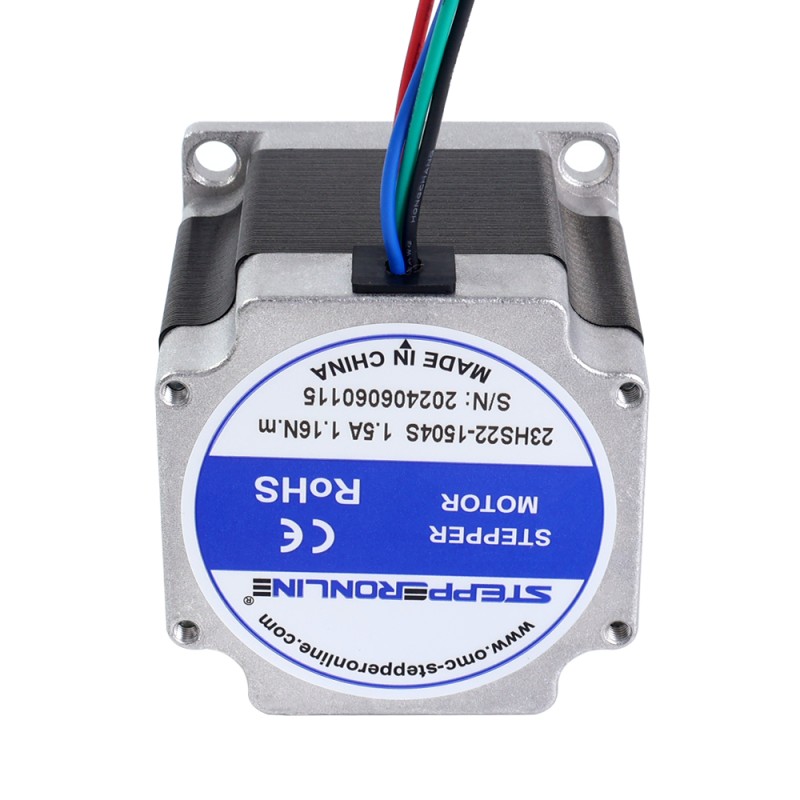

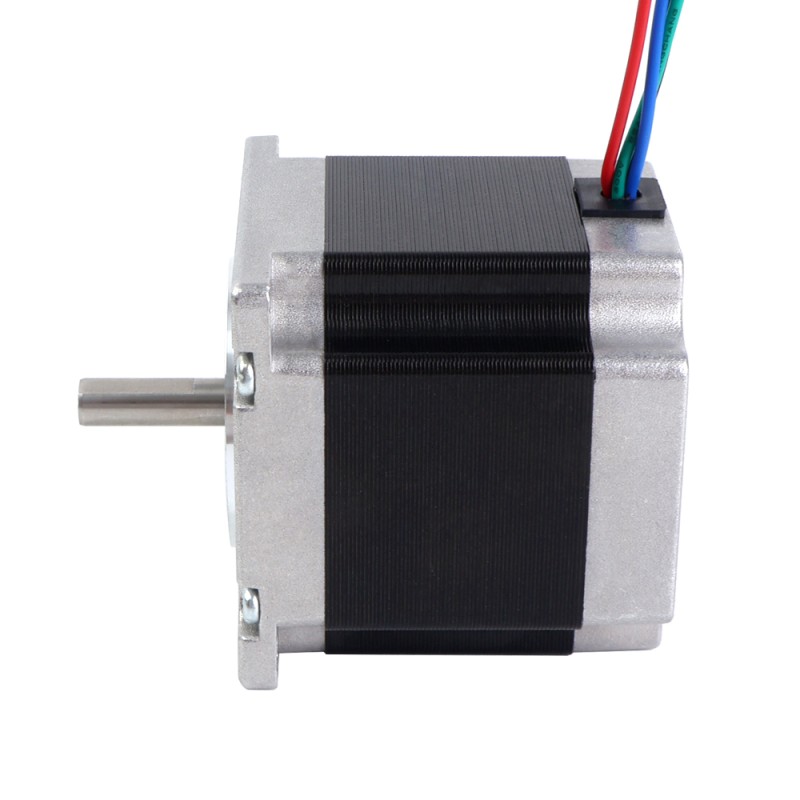

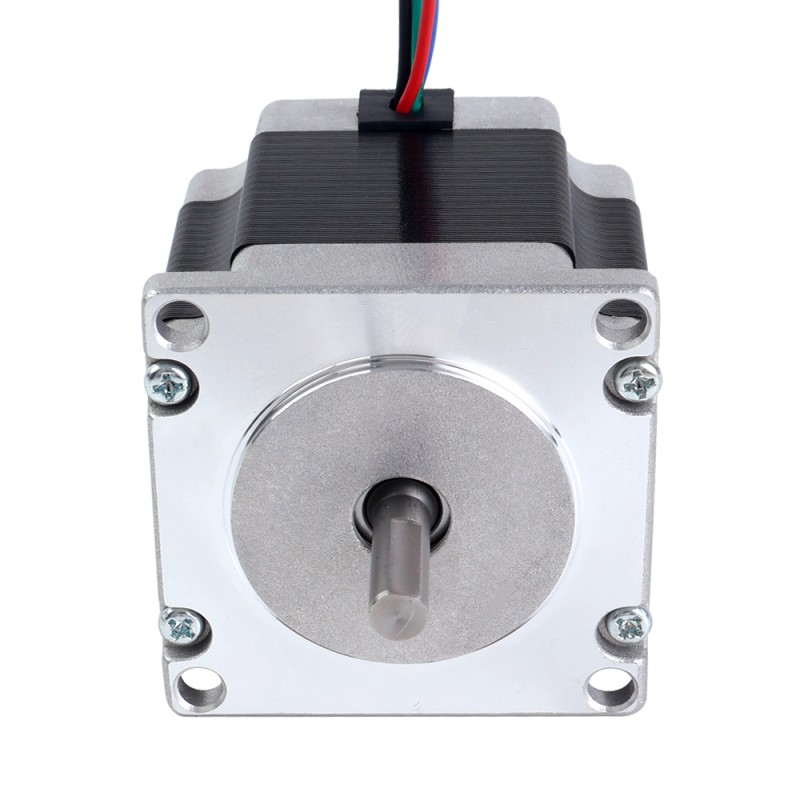

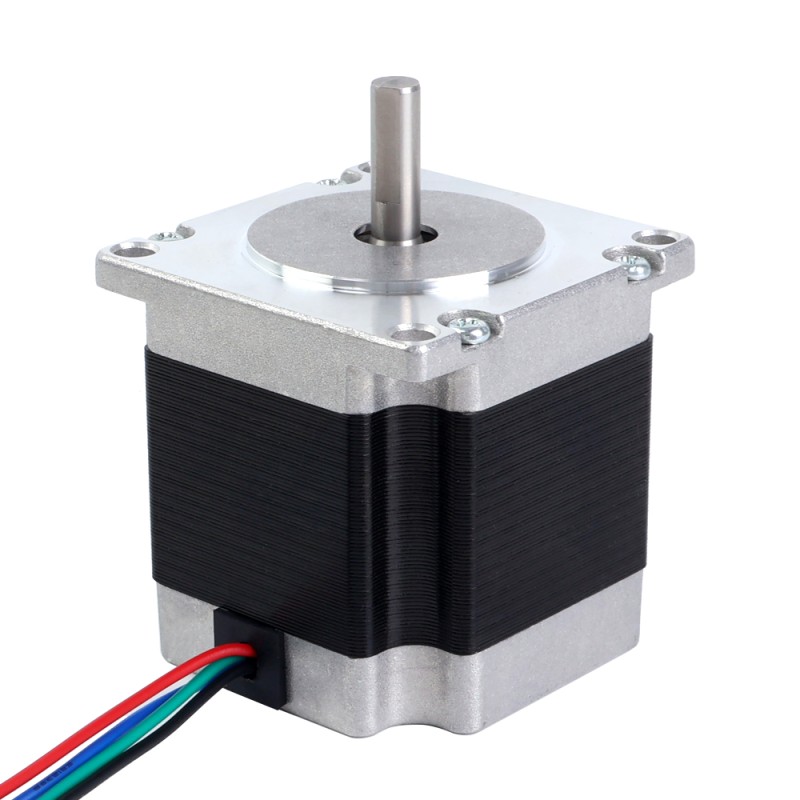

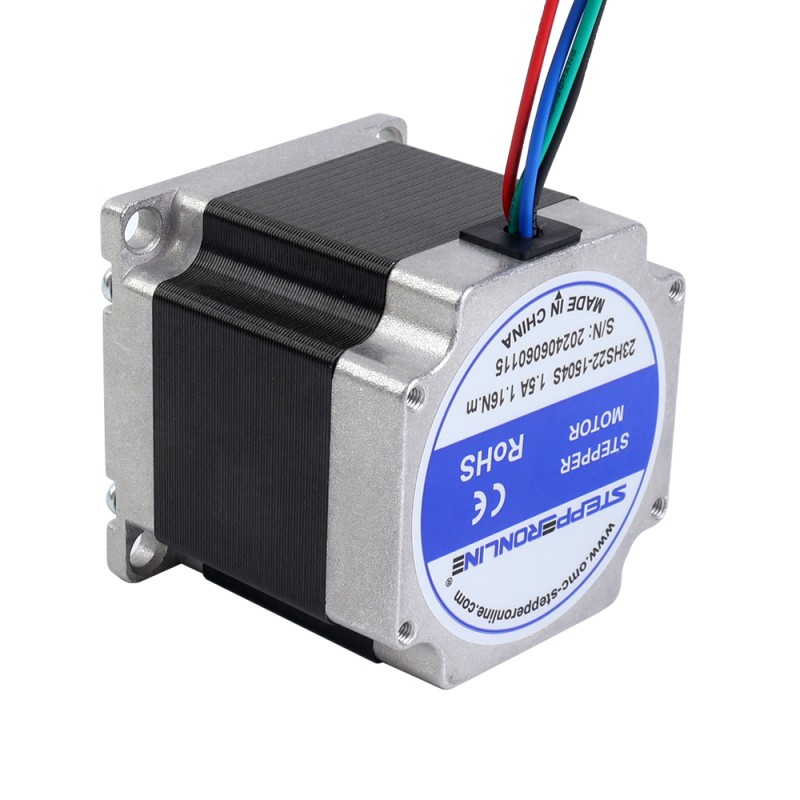

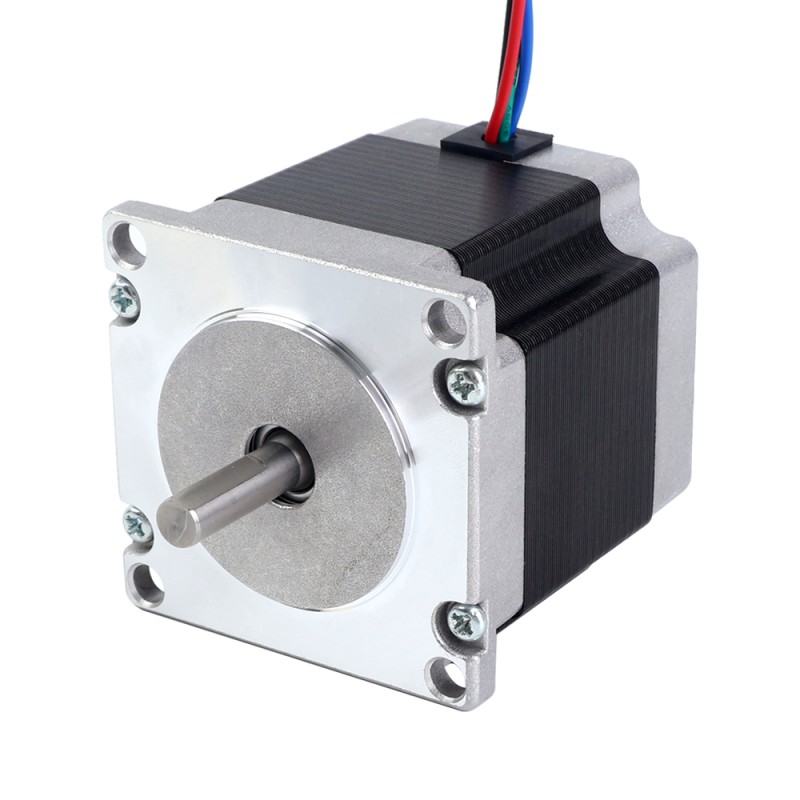

This bipolar Nema 23 stepper motor features a 1.8° step angle and delivers a holding torque of 1.16Nm (164.3oz.in), with each phase drawing 1.5A.

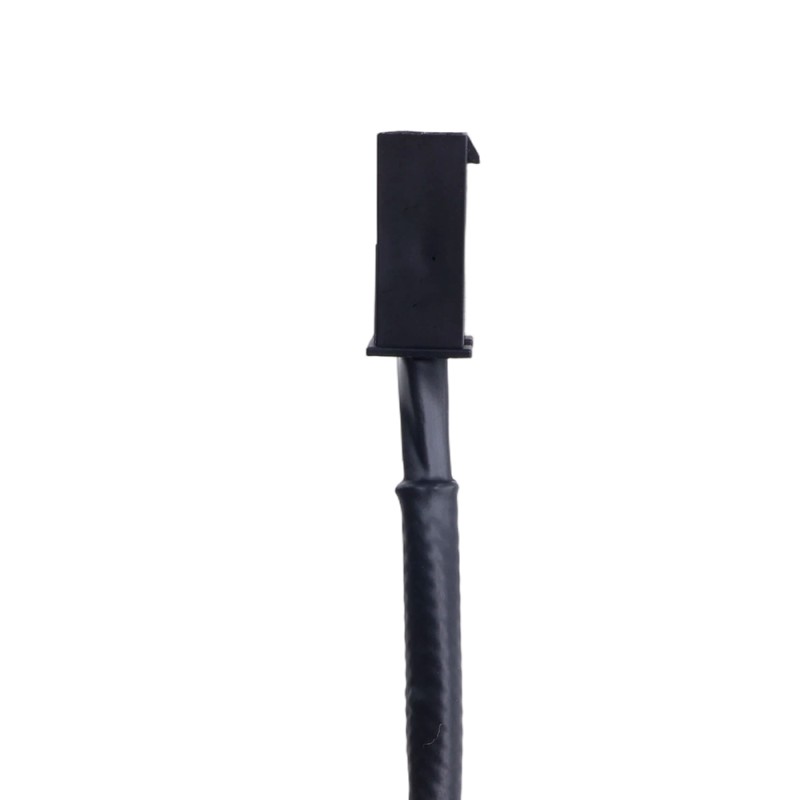

This motor features an additional MOLEX 39013046 connector compared to the standard 23HS22-2804S model, but the cable length is shortened to 165mm.

Electrical Specification

  • Manufacturer Part Number: 23HS22-1504S-C14
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 1.16Nm(164.3ozin)
  • Rated Current/phase: 1.5A
  • Phase Resistance: 3.6ohms
  • Inductance: 13mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Cable Length: 165mm
  • Weight: 0.68kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 116
Holding Torque(oz.in) 164.3
Inductance(mH) 13
Phase Resistance(ohms) 3.6
Rated Current(A) 1.5
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 40
Lead Length(mm) 165
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Single Shaft/Dual Shaft Single Shaft

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
