A6-RS1000H2A1-M17
Encoder Resolution17bit
Encoder TypeMagnetic Absolute
Rated Torque(Nm)3.18
Peak Torque(Nm)11.13
Question

Downloads

A6M80-1000H2A1-M17_Full_Datasheet.pdfPDF · 165.11KBAS7-C-PWR075-3.0.pdfPDF · 110.05KBAS7-C-ENC076-3.0_Full_Datasheet.pdfPDF · 108.54KBA6-1000RS.stpSTP · 24.66MBLog in to downloadA6M80-1000H2A1-M17.STEPSTEP · 10.78MBLog in to downloadA6-RS_series_servo_drive_manual.pdfPDF · 24.54MB
Same series
ModelEncoder ResolutionEncoder TypeRated Torque(Nm)Peak Torque(Nm)PriceStock
A6-EC1000H2A1-M1717bitMagnetic Absolute3.1811.13£130.72In stock
A6-EC1000H2A1-M17-STO17bitMagnetic Absolute3.1811.13£169.58In stock
A6-EC1000H2B1-M1717bitMagnetic Absolute3.8111.13£152.53In stock
A6-EC1000H2B1-M17-STO17bitMagnetic Absolute3.8111.13£195.46In stock
A6-PN1000H2A1-M1717bitMagnetic Absolute3.1811.13£204.82In stock
A6-PN1000H2A1-M17-STO17bitMagnetic Absolute3.1811.13£231.49In stock
A6-PN1000H2B1-M1717bitMagnetic Absolute3.8111.13£231.10In stock
A6-PN1000H2B1-M17-SALE17bitMagnetic Absolute3.8111.13£213.88In stock
A6-PN1000H2B1-M17-STO17bitMagnetic Absolute3.8111.13£260.12In stock
A6-RS1000H2A1-M1717bitMagnetic Absolute3.1811.13£116.25In stock
A6-RS1000H2B1-M1717bitMagnetic Absolute3.8111.13£136.35In stock
T6-RS1000H2A1-M2323bitMagnetic Absolute, Magnetic Incremental3.189.54£228.16Backorder
T6-RS1000H2A3-M17S17bitMagnetic Incremental3.199.56£210.78Backorder
T6-RS1000H2B1-M2323bitMagnetic Absolute, Magnetic Incremental3.189.54£282.38Backorder
T6-RS1000H2B3-M17S17bitMagnetic Incremental3.199.56£260.87Backorder
A6 Series 1000W RS485 AC Servo Motor Kit 3000rpm 3.18Nm 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor and a single/t... Read More
0 reviews • Write a review
from
£116.25
5 + £113.29
10 + £110.47
50 + £107.80
100 + £105.24

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

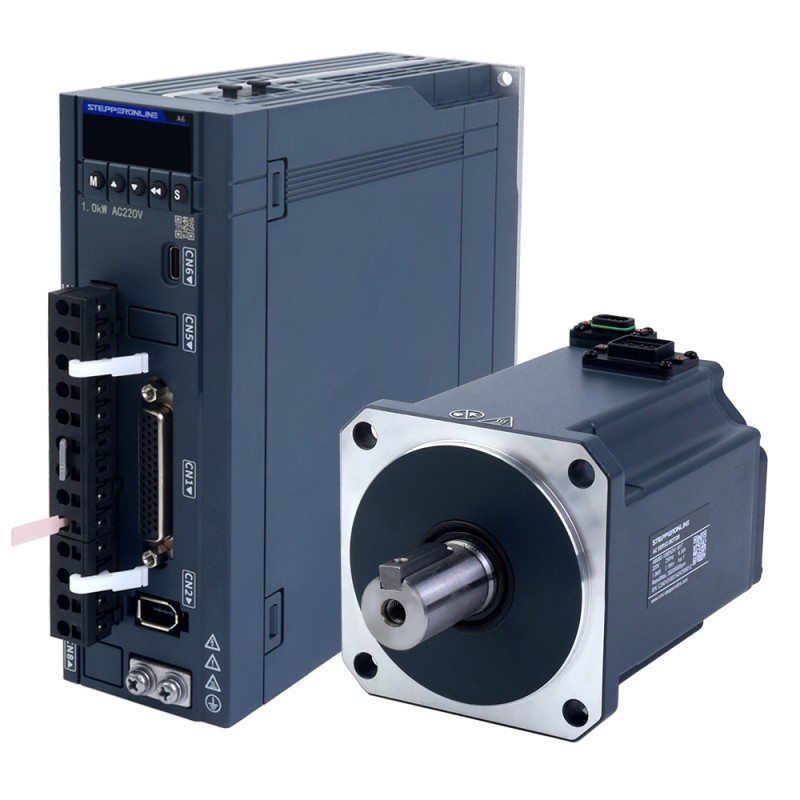

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor and a single/three-phase 220V 1000W servo driver that supports Pulse/RS485/Analog communication. With the built-in 17-bit multiturn absolute encoder, the motor provides excellent servo control performance.
This series of servo products is easy to operate, economical and efficient with optimal balance between performance and costs.
The A6-RS series servo products feature in high response, hight accuracy and cost-efficiency, providing efficient and convenient motion control solutions for various industries.

Items in Kit

  • 1 x A6-1000RS: 1000W Pulse/RS485/Analog AC Servo Motor Driver
  • 1 x A6M80-1000H2A1-M17: 1000W AC Servo Motor 3000rpm 3.18Nm 17-Bit Encoder IP67
  • 1 x AS7-C-PWR075-3.0: 3.0m Motor Cable
  • 1 x AS7-C-ENC076-3.0: 3.0m Encoder Cable

Servo Driver Specification

  • Part Number: A6-1000RS
  • Pulse/RS485/Analog communication
  • 2KHz speed loop bandwith
  • 17-bit absolute encoder
  • Rated voltage single/three-phase 220VAC
  • Rated power 1000W
  • Dimension: 170*174*55mm

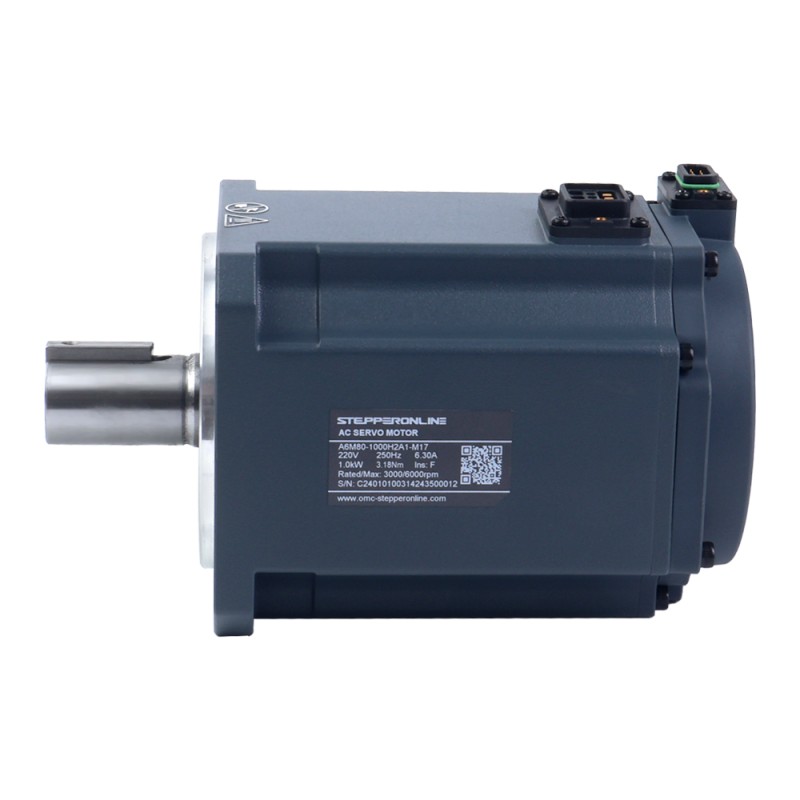

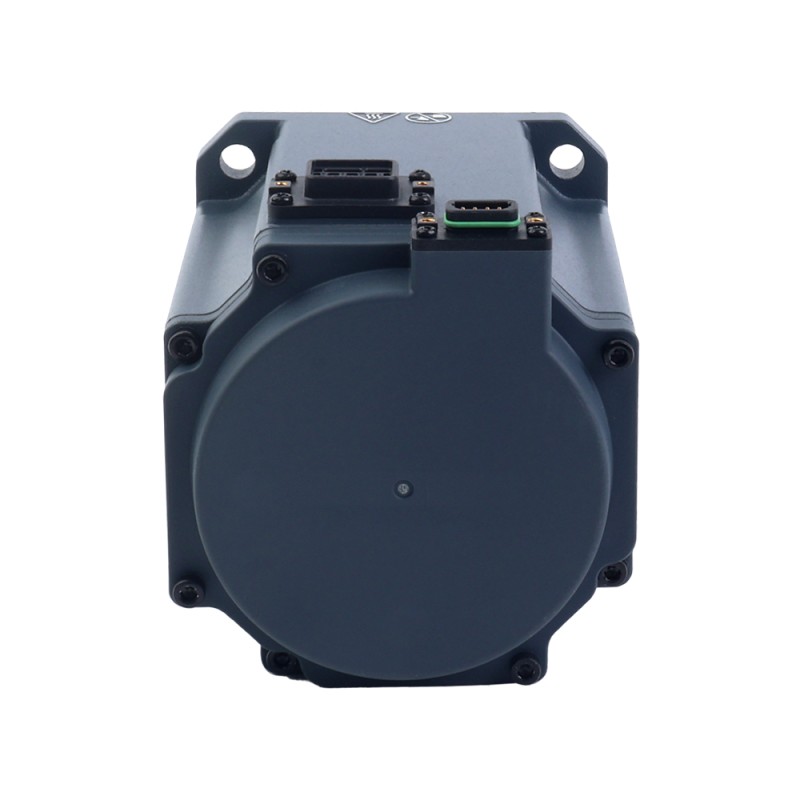

Servo Motor Specification

  • Part Number: A6M80-1000H2A1-M17
  • Rated Voltage: 220VAC
  • Rated Power: 1000W
  • Rated Torque: 3.18Nm
  • Peak Torque: 11.13Nm
  • Rated Speed: 3000rpm
  • Peak Speed: 6000rpm
  • Rated Current: 6.30A
  • Peak Current: 20.90A
  • Torque Const: 0.50N.m/A
  • Back EMF Const: 33.90V/krpm
  • Resistance: 0.35ohms
  • Inductance: 2.04mH
  • Inertia: 2.23kg*m2*10-4
  • Poles: 10
  • Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
  • IP Rating: IP67
  • Shaft diameter: 19mm
  • Axial Load: Max.147N
  • Radial Load @ Shaft Length 35mm: Max.392N
Electrical Specification
Control Modes Pulse/RS485/Analog
Encoder Resolution 17bit
Encoder Type Magnetic Absolute
Input Voltage(V) 220VAC
Integrated STO or not? No
Peak Speed(rpm) 6000
Peak Torque(Nm) 11.13
Rated Power(W) 1000
Rated Speed(rpm) 3000
Rated Torque(Nm) 3.18
With Brake No
Physical Specification
Aviation Plug or Not No
Frame Size(mm) 80 x 80
Integrated or Not No
IP Rating 67
Shaft Diameter(mm) 19
