A6 Series 750W STO Safe Torque Off PROFINET AC Servo Motor Kit 3000rpm 2.39Nm 17-Bit Absolute Encoder IP67

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 750W motor and a single-phase 220V 750W servo driver that supports PROFINET communication. With the built-in 17-bit multiturn absolute encoder, the motor provides excellent servo control performance.
A key safety enhancement is the integrated Safe Torque Off (STO) function. This safety-critical feature prevents unexpected motor start-ups by securely disabling the torque output, significantly reducing the risk of injury to personnel or damage to equipment during installation, maintenance, or emergency stops.
This series of servo products is easy to operate, economical and efficient. It has the characteristics of high response, high precision, high speed, high synchronization, etc., supporting one-button self-tuning and automatic inertia detectionetc.
The A6-PN series servo products feature in high cost-efficiency and are compatible with popular PLCs from brands such as Beckhoff and Omron, providing efficient and convenient motion control solutions for various industries.

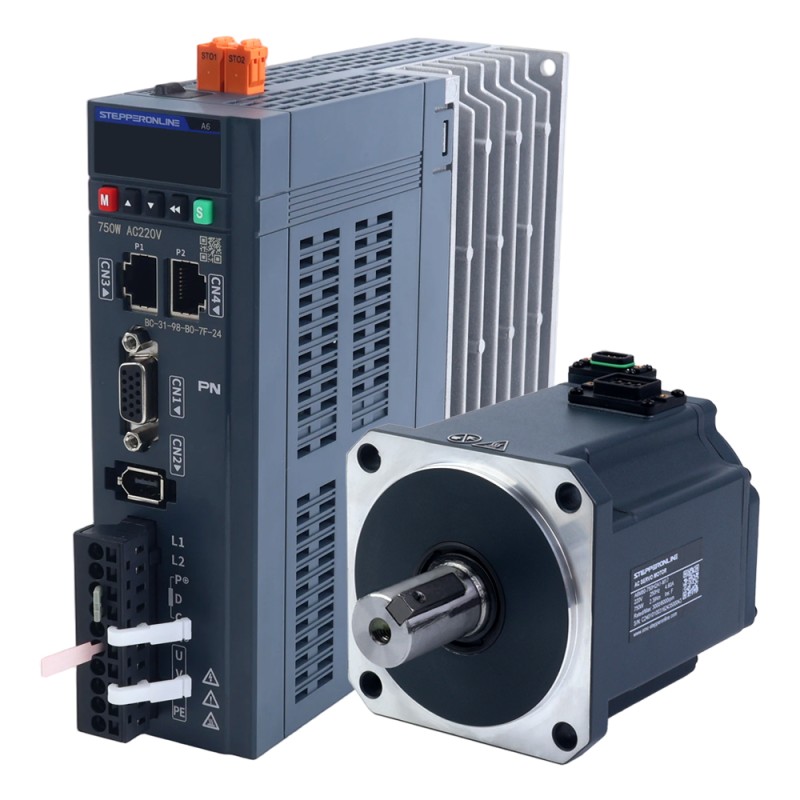

Items in Kit

• 1 x A6-750PN-STO: 750W PROFINET AC Servo Motor Driver
• 1 x A6M80-750H2A1-M17: 750W AC Servo Motor 3000rpm 2.39Nm 17-Bit Encoder IP67

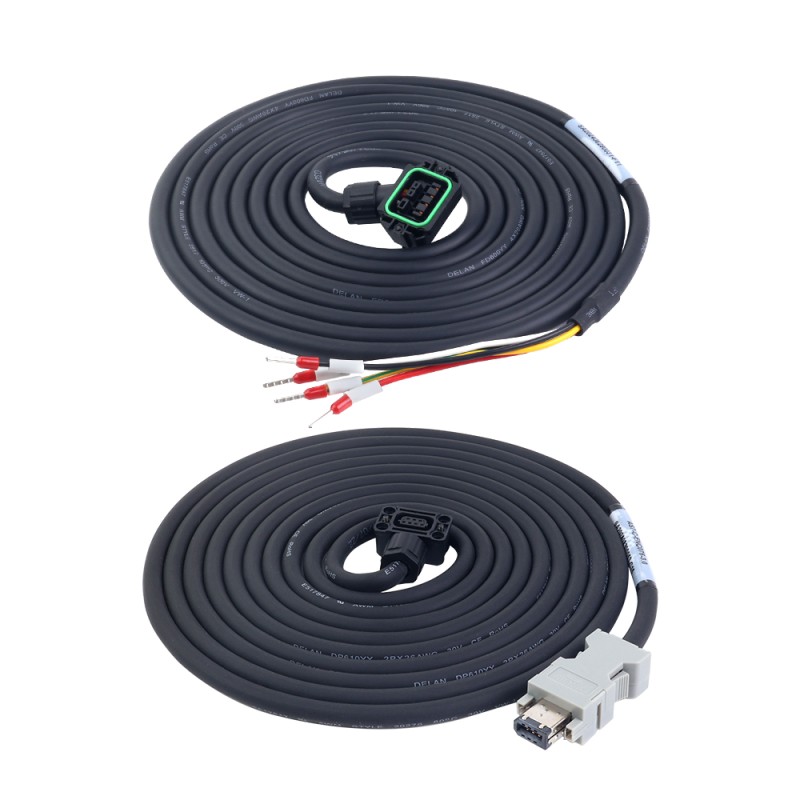

• 1 x AS7-C-PWR075-3.0: 3.0m Motor Cable
• 1 x AS7-C-ENC076-3.0: 3.0m Encoder Cable

Servo Driver Specification

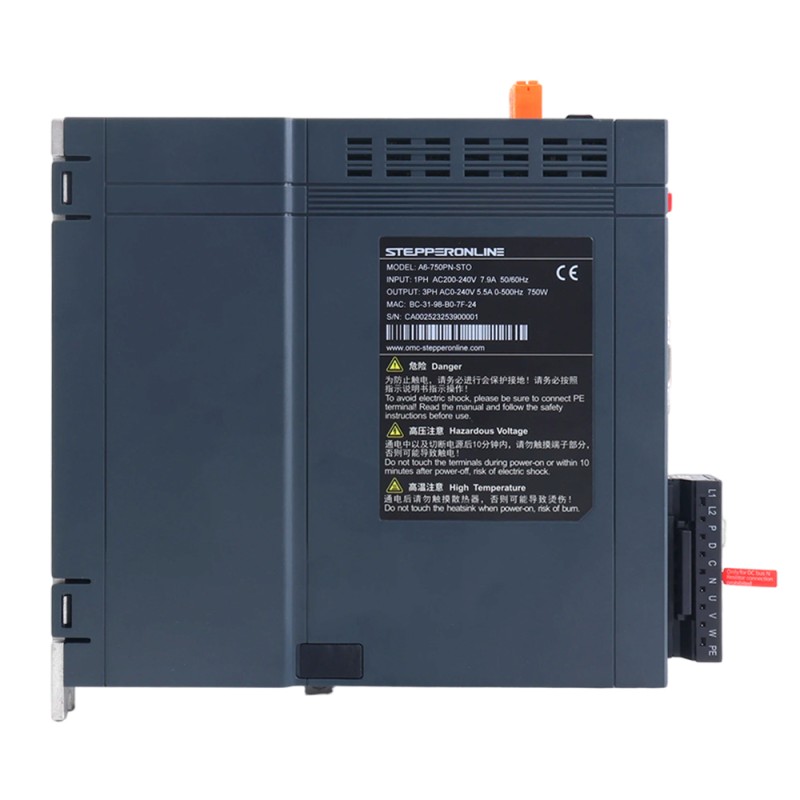

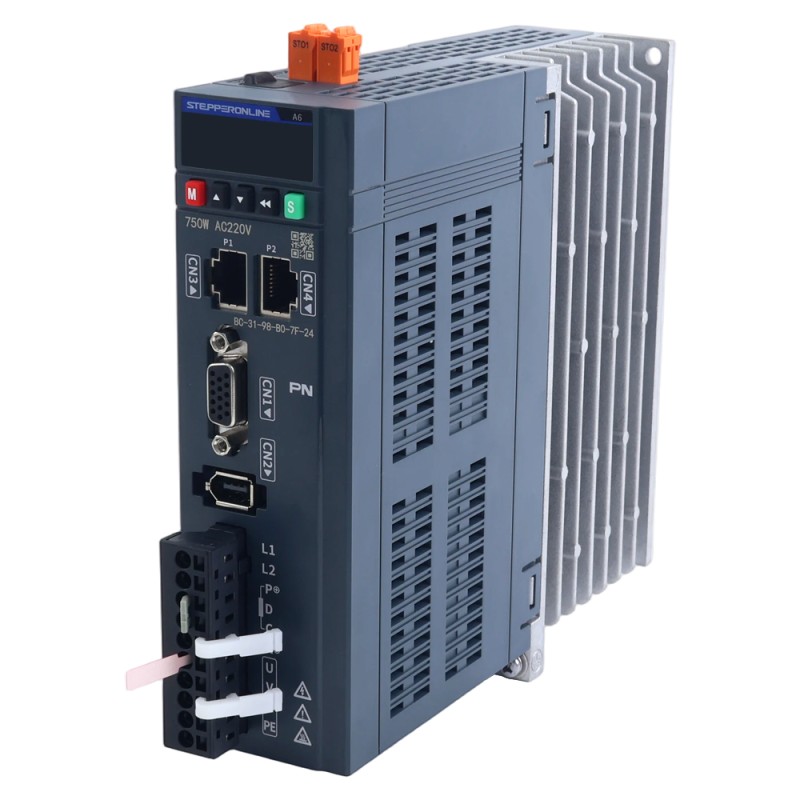

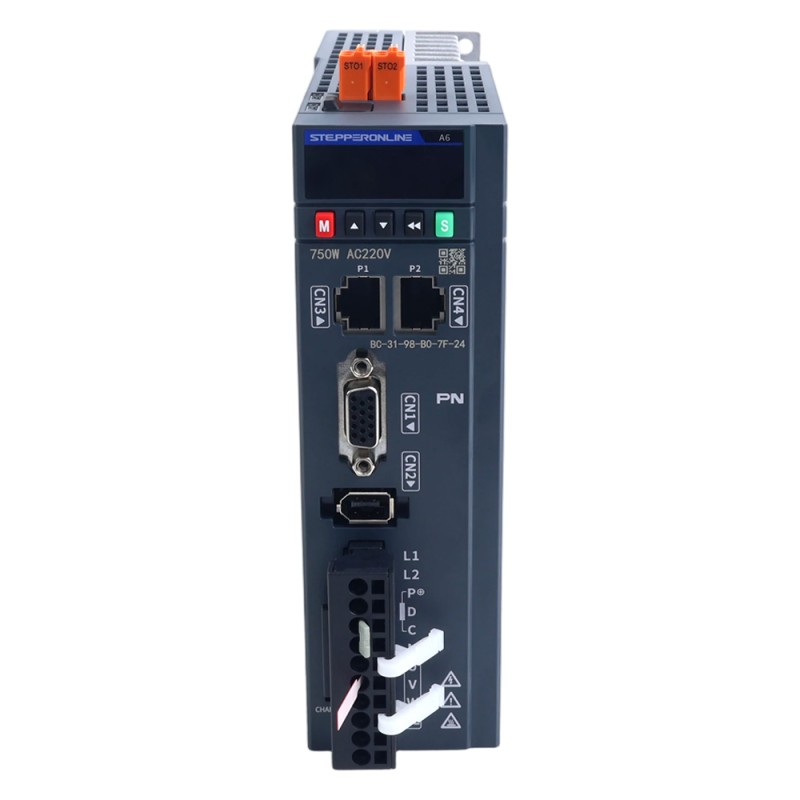

• Part Number: A6-750PN-STO

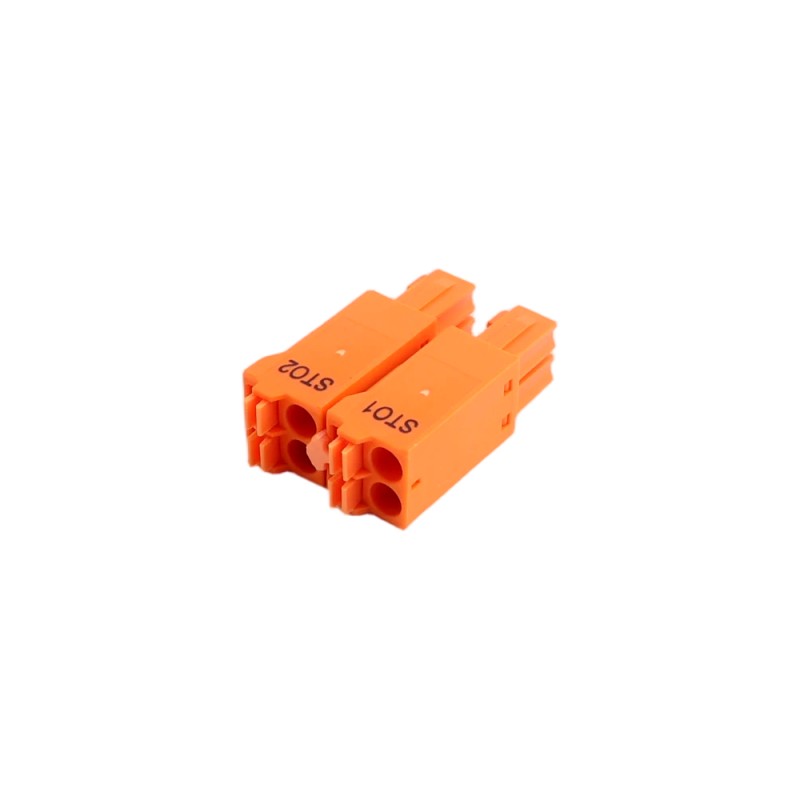

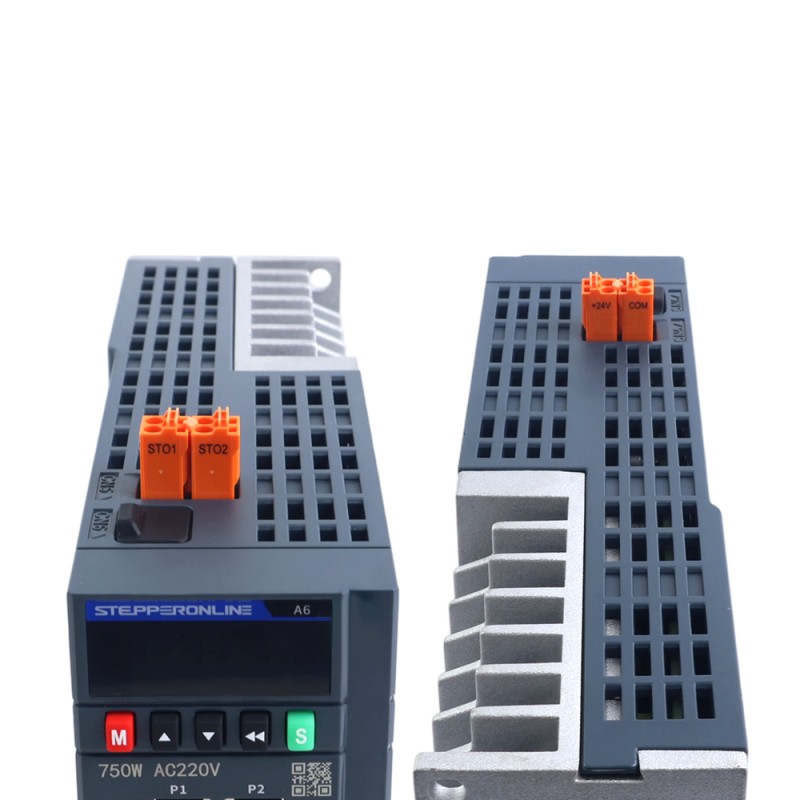

• Integrated with STO Safe Torque Off emergency stop function
• 2KHz speed loop bandwith
• 17-bit absolute encoder
• Rated voltage single phase 220VAC
• Rated power 750W
• Automatic motor identification
• Dimension: 170*174*50mm
• Standard PROFIDRIVE protocol, mainstream PROFINET communication PLCs

Servo Motor Specification

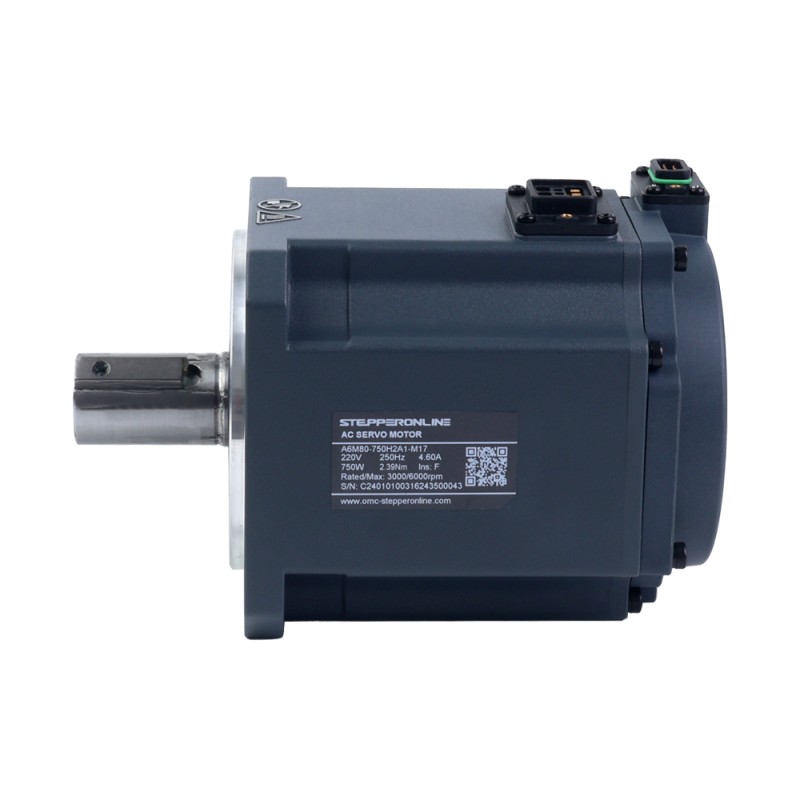

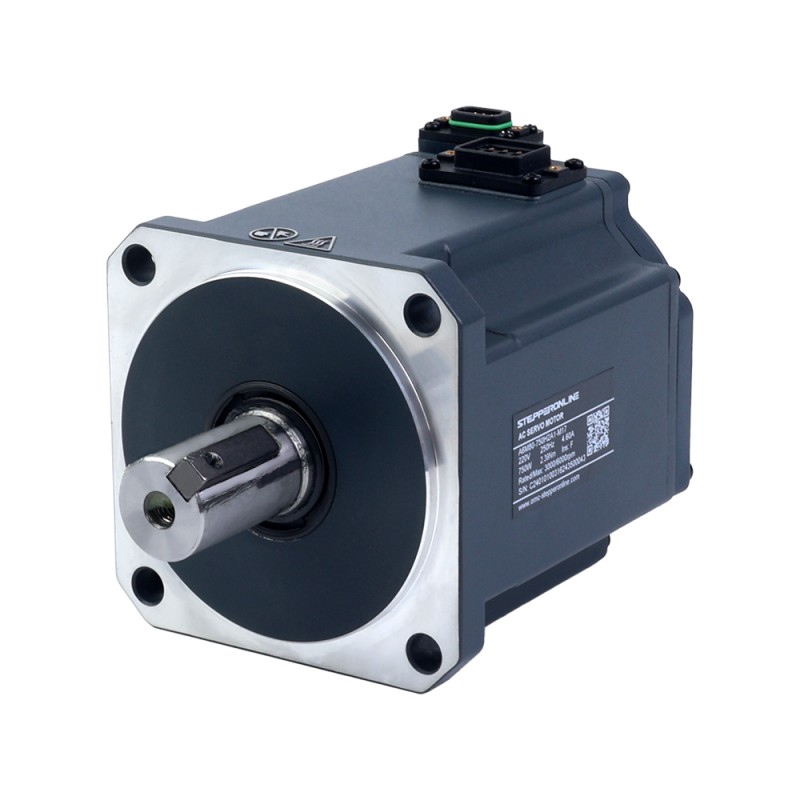

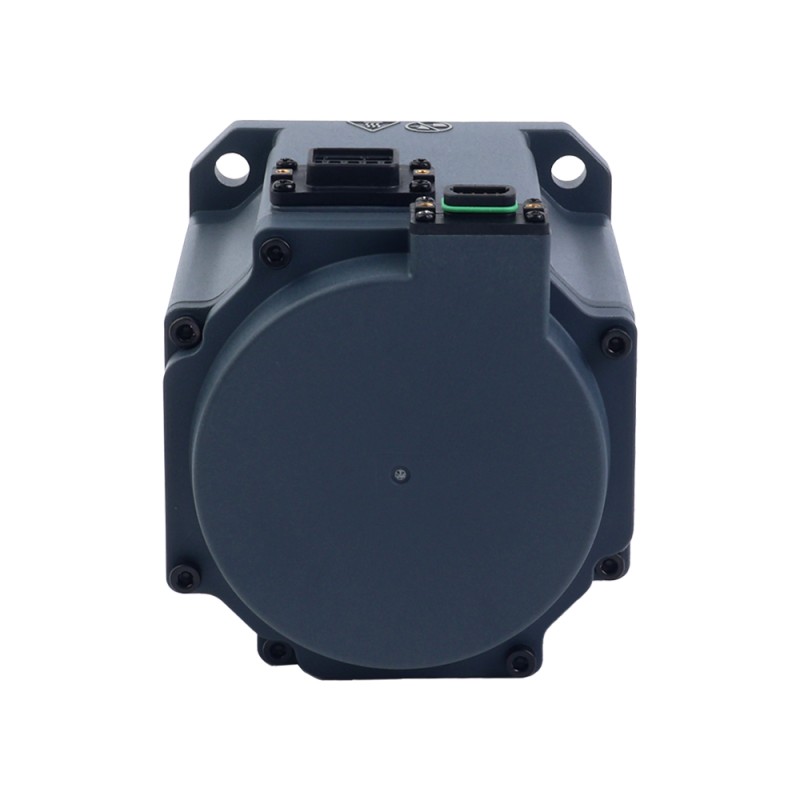

• Part Number: A6M80-750H2A1-M17
• Rated Voltage: 220VAC
• Rated Power: 750W
• Rated Torque: 2.39Nm
• Peak Torque: 8.36Nm
• Rated Speed: 3000rpm
• Peak Speed: 6000rpm
• Rated Current: 4.60A
• Peak Current: 16.30A
• Torque Const: 0.52N.m/A
• Back EMF Const: 34.40V/krpm
• Resistance: 0.47ohms
• Inductance: 2.80mH
• Inertia: 1.72kg*m²*10^-4
• Poles: 10
• Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
• IP Rating: IP67
• Shaft diameter: 19mm
• Axial Load: Max.147N
• Radial Load @ Shaft Length 35mm: Max.392N
