7" 800x480px RS-485 Serial port & USB 128MB/FLASH 128MB/Memory HMI Touch Screen LED Display
This high-end 7-inch HMI touch screen display boasts an LED screen with 800x480 pixel resolution an... Read More
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

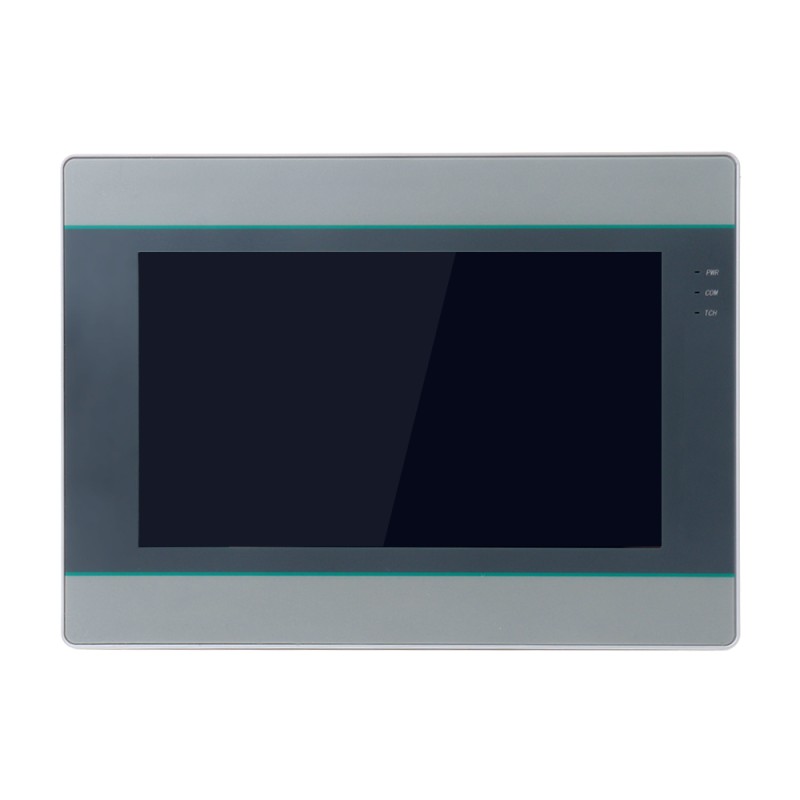

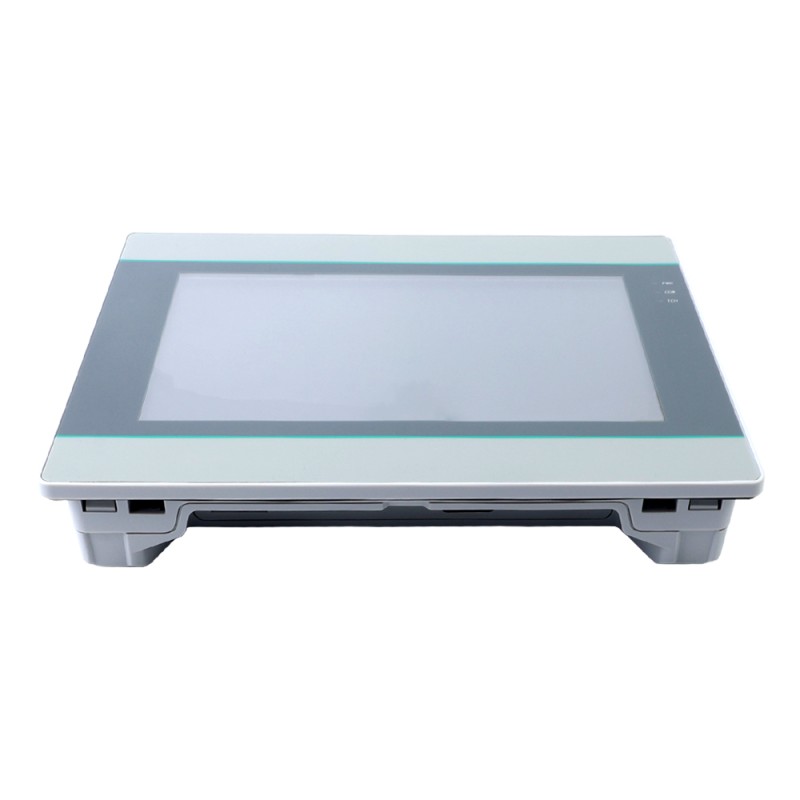

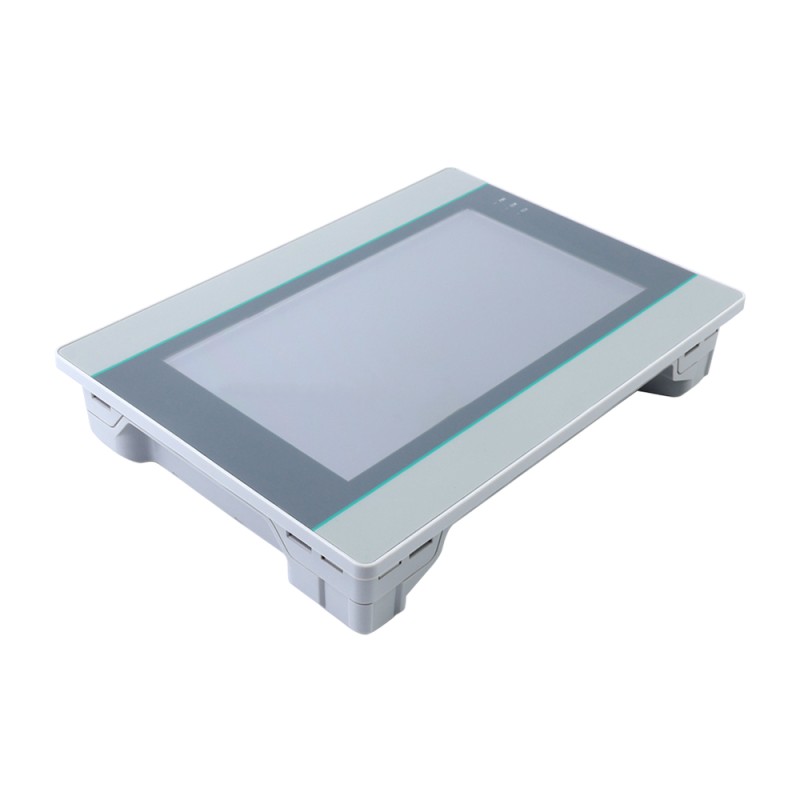

This high-end 7-inch HMI touch screen display boasts an LED screen with 800x480 pixel resolution and 250cd/m² brightness. The backlit LED display offers excellent visibility, with a lifespan exceeding 20,000 hours. Enhancing functionality, this touchscreen includes USB HOST and two USB CLIENT interfaces for streamlined debugging and control. Powered by a high-performance processor, it delivers exceptional touch accuracy. Primarily designed for integration with various PLCs or intelligent controllers equipped with communication ports, this HMI enables users to rapidly create programs through intuitive and powerful software.

Specifications

  • Part Number: I3070ig-O
  • Display Type: HMI Display
  • Processor: 4-core high-performance CPU
  • Storage: 128MB NAND FLASH + 128MB Memory
  • Operating Voltage: 24VDC
  • Display Resolution: 800x480px
  • Display Brightness: 250cd/m²
  • Display Backlight: LED
  • Display Size: 7"
  • Panel Cut-out: 192.0x138.0mm
  • Backlight Lifetime: 20,000 hours

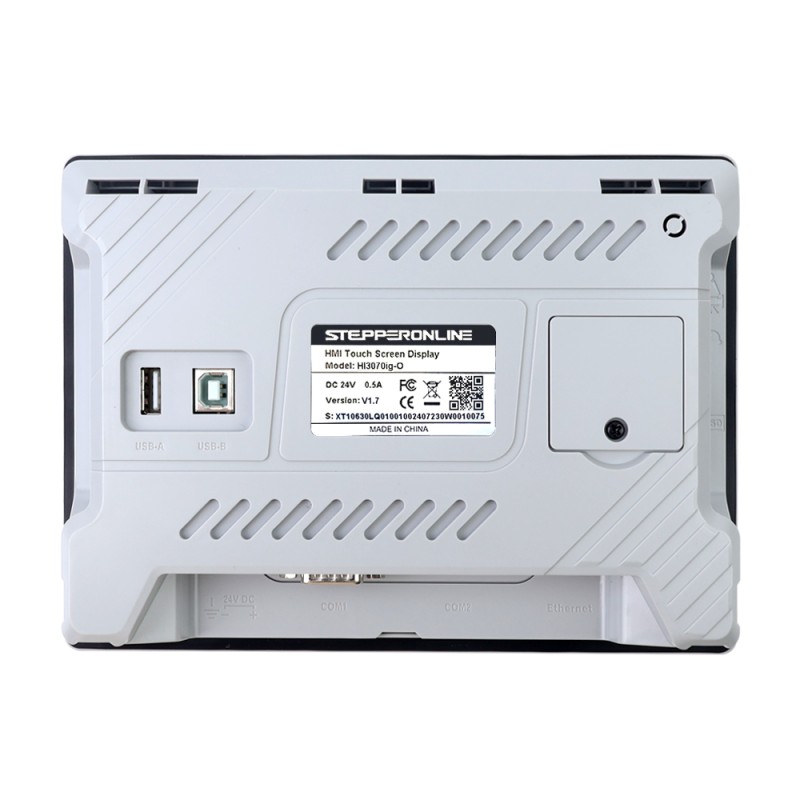

  • USB Port: USB Host/USB CLIENT Note: Two USB ports cannot be used simultaneously.
  • Ethernet: Yes
  • I/O Port: Serial port(9): (RS-232, RS-422/RS-485, RS-485)

Downloads

Electrical Specification
Has Ethernet? Yes
Has IIoT? No
Operating Voltage(V) 24
WiFi Enabled No
Physical Specification
Backlight Lifetime(h) 20000
Display Brightness(cd/m²) 250
Display Resolution(Pixels) 800x480
Display Size(inch) 7
Panel Cut-out(mm) 192.0x138.0
Processor 4-core high-performance CPU
Storage 128MB NAND FLASH + 128MB Memory

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
The DM860I is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achiev..
from
£26.44
Add to Cart

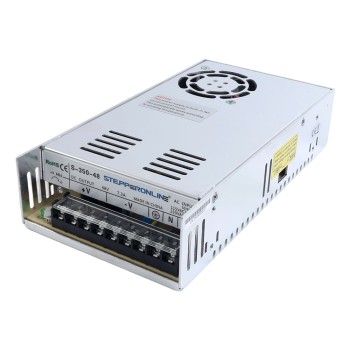

This professional CNC switching power supply 48V 350W 7.3A can be widely used in Industrial Automation and CNC Stepper/Servo System. 115V and 230V ca..
from
£20.32
Add to Cart

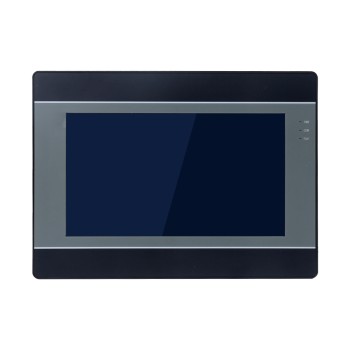

This cost-effective HMI touch screen features a 7-inch LED display with a resolution of 800x480px and a brightness of 250cd/m², with a backlit LED di..
from
£0.00
Add to Cart
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor and a single/three-phase 220V 1000W servo driver that supports P..
from
£116.25
Add to Cart

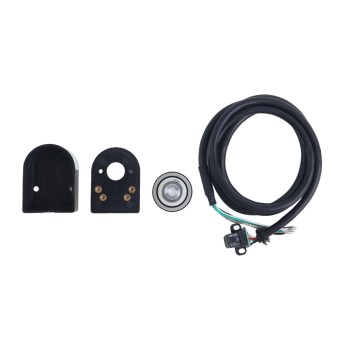

Encoder Specification Output Circuit Type: Push-Pull (Single-Ended) Controlled By: Encoder Interface Encoder Resolution: 1000PPR Output Signal C..
from
£16.74
Add to Cart
This is Modbus RS485 stepper driver 0.1-5.6A 24-48VDC for Nema 17, 23, 24 stepper motor.DMRS Series are stepper driver based on standard Modbus RS485 ..
from
£56.55
Add to Cart

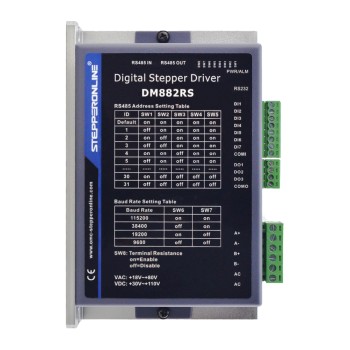

This is Modbus RS485 stepper driver 2.1-8.2A 18-80VAC or 30-110VDC for Nema 34 stepper motor. DMRS Series are stepper driver based on standard Mo..
