2IK6RGN-C/2GN200K
Output Shaft TypeD
Input Voltage(V)1PH 220VAC
Frame Size(mm)60 x 60
Current(A)0.13
Question

Downloads

2IK6RGN-C_2GNXXK_manual.pdfPDF · 1.15MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
2IK6RGN-A/2GN100KD1PH 110VAC60 x 600.21£19.72In stock
2IK6RGN-A/2GN10KD1PH 110VAC60 x 600.21£17.70In stock
2IK6RGN-A/2GN15KD1PH 110VAC60 x 600.21£17.70In stock
2IK6RGN-A/2GN200KD1PH 110VAC60 x 600.21£19.72In stock
2IK6RGN-A/2GN20KD1PH 110VAC60 x 600.21£18.71In stock
2IK6RGN-A/2GN30KD1PH 110VAC60 x 600.21£18.71In stock
2IK6RGN-A/2GN30K-SALED1PH 110VAC60 x 600.21£19.01In stock
2IK6RGN-A/2GN3KD1PH 110VAC60 x 600.21£17.70In stock
2IK6RGN-A/2GN50KD1PH 110VAC60 x 600.21£18.71In stock
2IK6RGN-A/2GN5KD1PH 110VAC60 x 600.21£17.70In stock
2IK6RGN-C/2GN100KD1PH 220VAC60 x 600.13£19.72In stock
2IK6RGN-C/2GN10KD1PH 220VAC60 x 600.13£17.70In stock
2IK6RGN-C/2GN15KD1PH 220VAC60 x 600.13£17.70In stock
2IK6RGN-C/2GN200KD1PH 220VAC60 x 600.13£19.72In stock
2IK6RGN-C/2GN20KD1PH 220VAC60 x 600.13£18.71In stock
2IK6RGN-C/2GN30KD1PH 220VAC60 x 600.13£18.71In stock
2IK6RGN-C/2GN3KD1PH 220VAC60 x 600.13£17.70In stock
2IK6RGN-C/2GN50KD1PH 220VAC60 x 600.13£18.71In stock
2IK6RGN-C/2GN5KD1PH 220VAC60 x 600.13£17.70In stock
6W 220VAC 50Hz 0.45-6.75RPM 3.00Nm(424.83oz.in) Flange 60mm Spur Gearbox Single-phase AC Variable Speed Motor
This 60x60mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has a s... Read More
0 reviews • Write a review
from
£19.72
5 + £19.19
10 + £18.68
50 + £18.21
100 + £17.76

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This 60x60mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has a speed range of 0.45-6.75rpm and a gearbox with a gear ratio of 200. Designed for simple and easy wiring through quick connect and easy speed control through panel mounting. It is ideal for applications requiring precise speed control and is designed for easy operation and wiring. The simple brushless structure, high reliability, relatively high efficiency and long life make it an excellent and cost-effective choice for constant speed applications such as industrial equipment, home appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 2IK6RGN-C/2GN200K
  • Gearbox Type: Spur Gearbox
  • Output Power: 6W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.13A
  • Gear Ratio: 200:1
  • Speed Range: 0.45-6.75rpm
  • Maximum Torque: 3.00Nm(424.83oz.in)
  • Capacitor: 0.8μF/450VAC

Physical Specifications

  • Frame Size: 60x60mm
  • Body Length: 129mm
  • Shaft Type: D-cut
  • Shaft Diameter: Φ8mm
  • Shaft Length: 30mm
  • Weight: 1.25kg

Wiring

Electrical Specification
Current(A) 0.13
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Max. Torque(Nm) 3.00
Output Power(W) 6
Speed Range(rpm) 0.45-6.75
Physical Specification
Frame Size(mm) 60 x 60
Gear Ratio(xx:1) 200
Gearbox Type Spur Gearbox
Output Shaft Type D

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Nema 23 Stepper Motor Bipolar L=56mm w/ Gear Ratio 4:1 Planetary Gearbox
Nema 23 Stepper Motor Bipolar L=56mm w/ Gear Ratio 4:1 Planetary Gearbox
This Nema 23 stepper motor with 56mm body, step angle 0.42deg and 2.8A rated current, integrated a planetary gearbox of 4.25:1 gear ratio. It's a good..
from
£43.28
Add to Cart
Add to Wish List Compare this Product
Quickview
Stepper Controller 5-30VDC for Single Axis Stepper Motor
Stepper Controller 5-30VDC for Single Axis Stepper Motor
This small stepper motor controller is used for single-axis stepper motors. It has an operating voltage range of 5-30VDC, a wide adjustable speed rang..
from
£14.53
Add to Cart
Add to Wish List Compare this Product
Quickview
6W Single Phase 220VAC Motor Speed Controller for Variable Speed Motor
6W Single Phase 220VAC Motor Speed Controller for Variable Speed Motor
This motor speed controller comes with a voltage of single-phase 220VAC and is suitable for 6W variable speed motors. It features advanced PID control..
from
£8.03
Add to Cart
Add to Wish List Compare this Product
Quickview
TE Series Digital Stepper Driver 1.8-5.6A 24-50VDC for Nema 23, 24, 34 Motor
TE Series Digital Stepper Driver 1.8-5.6A 24-50VDC for Nema 23, 24, 34 Motor
The TE Series stepper drivers are upgraded versions based on the T Series, offering exceptional cost-effectiveness. While retaining nearly identical f..
from
£14.22
Add to Cart
Add to Wish List Compare this Product
Quickview
LRS-75-24 MEANWELL 75W 24VDC 3.2A 115/230VAC Enclosed Switching Power Supply
Pre-order
LRS-75-24 MEANWELL 75W 24VDC 3.2A 115/230VAC Enclosed Switching Power Supply
This is a 75W 24VDC 3.2A power supply. MEANWELL LRS-75 series is a 75W single-output enclosed type power supply with 30mm of low profile design. Adopt..
from
£7.01
Add to Cart
Add to Wish List Compare this Product
Quickview

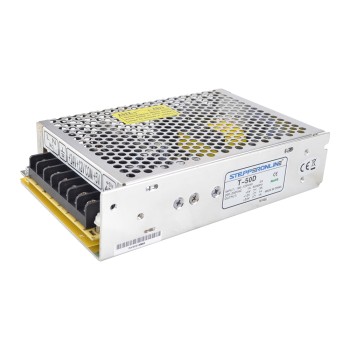

50W Triple Output 5V-3A 12V-1A 24V-1A Switching Power Supply Stepper Motor CNC Router Kits
