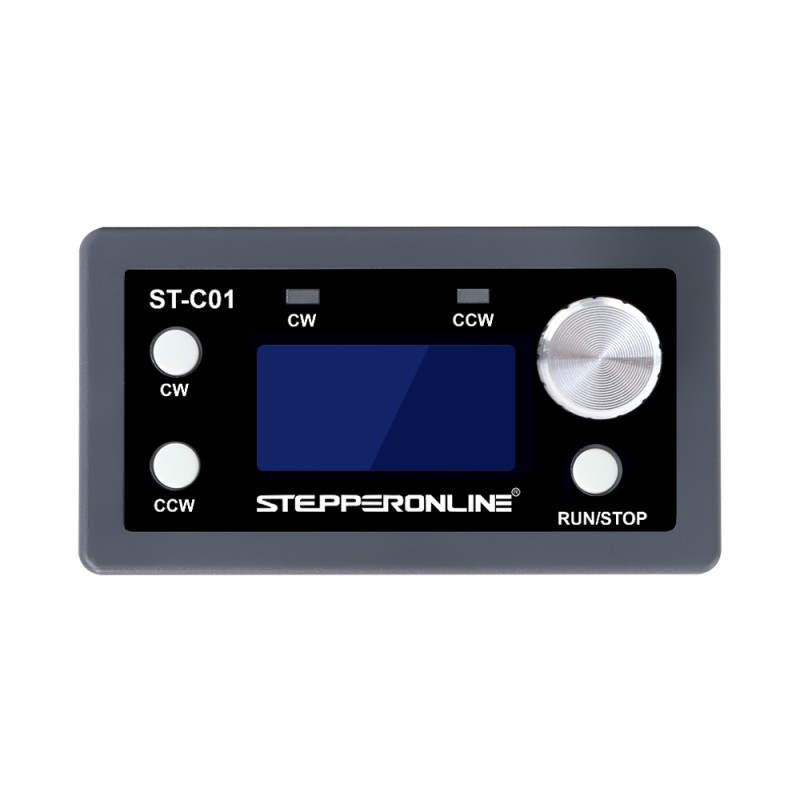

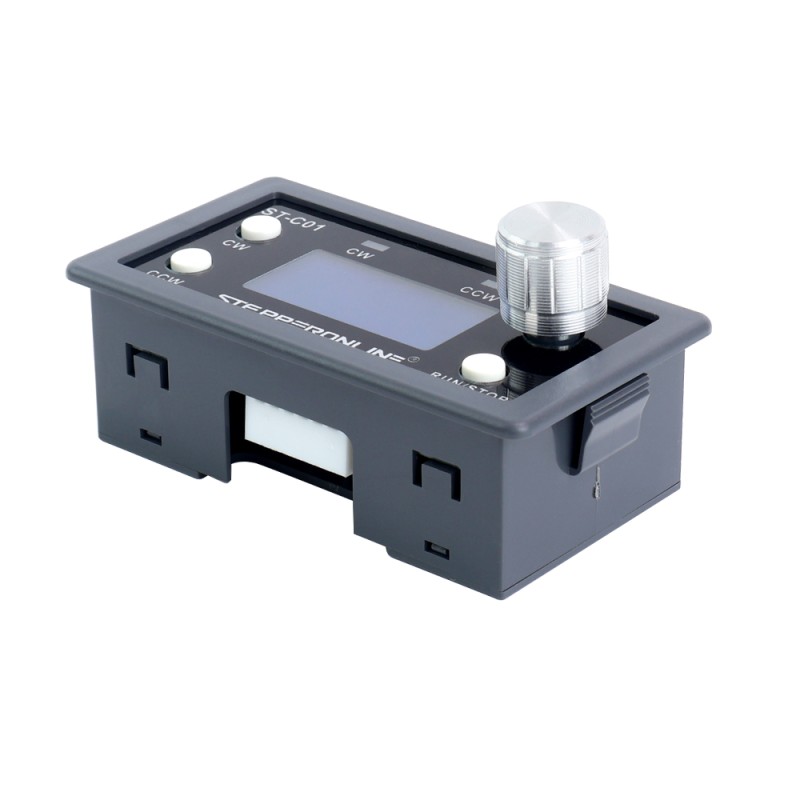

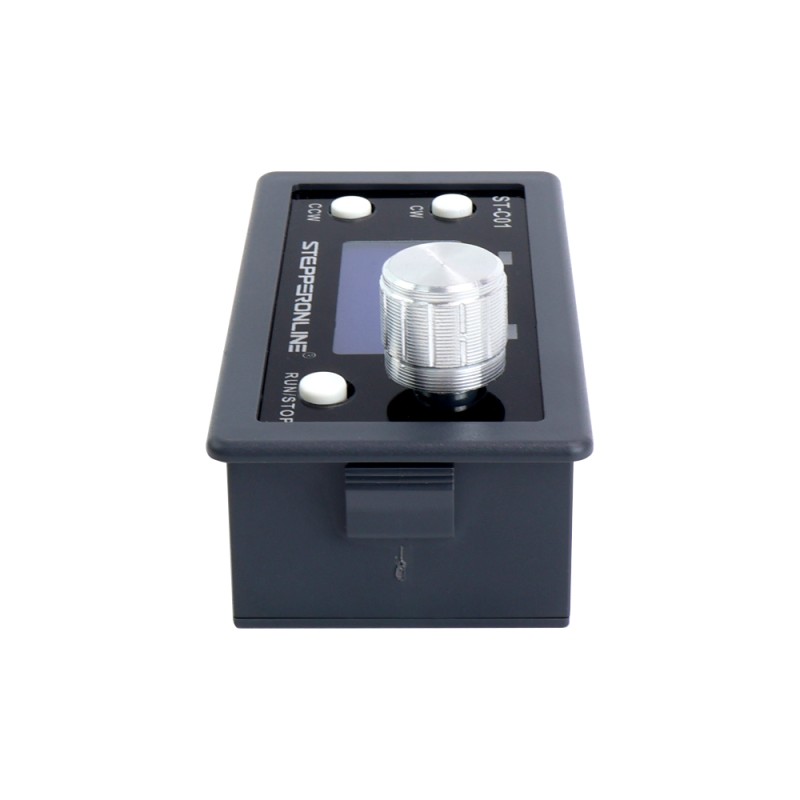

Stepper Controller 5-30VDC for Single Axis Stepper Motor
This small stepper motor controller is used for single-axis stepper motors. It has an operating volt... Read More
3 reviews • Write a review
from
£14.53
5 + £13.84
10 + £13.22
50 + £12.66
100 + £12.13

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This small stepper motor controller is used for single-axis stepper motors. It has an operating voltage range of 5-30VDC, a wide adjustable speed range, and various built-in fixed operating modes.
Users can select from these modes and set distance, speed, delay, and quantity of motion. The controller programming is simple due to clear logic and supports power-off saving.
While widely used in general industrial control, it is not recommended for medical, fire, and other critical applications.

  • Model: ST-C01
  • Adaptive Motor: Stepper motor
  • Number of Control Axis: Single sxis

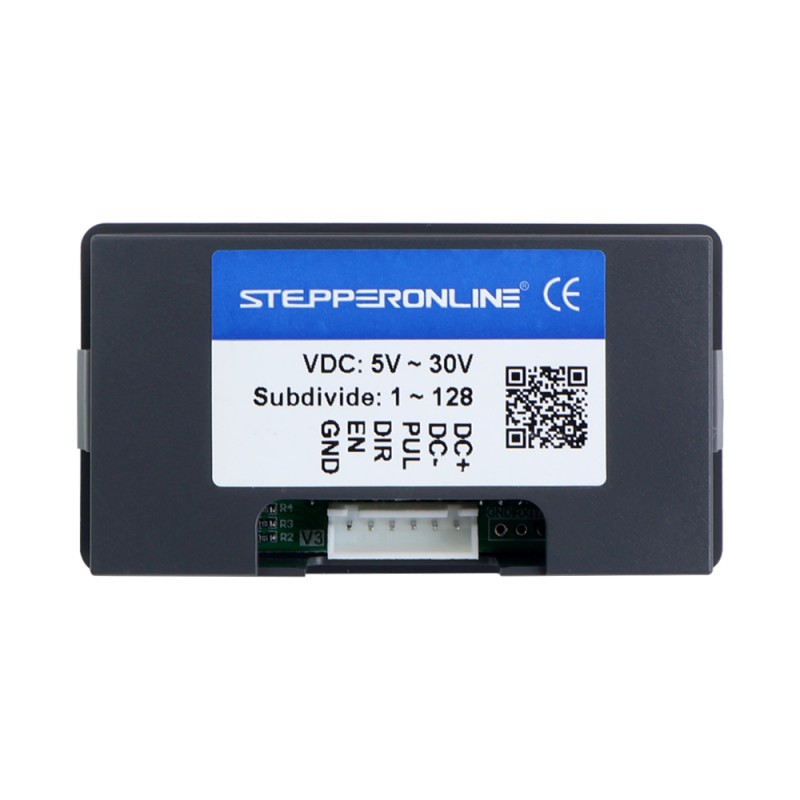

  • Motor Signal: Common cathode
  • Output Signal Voltage: 5V
  • Power Supply Range: DC 5-30V general
  • Subdivision Selection Range: 1-128 subdivision
  • Working environment: -5℃-60℃(no condensation)
  • Remote communication control: TTL serial port
  • Support acceleration and deceleration control
  • Support automation, manual, setting and serial port control
Product Type
Product Type Controller
Electrical Specification
Analog Input No
Control Modes Pulse Mode
Encoder Feedback No (Open Loop)
Input Voltage Reference(V) 12 - 24DC
No. of Axis 1
No. of Phase 2
Output Signal Voltage(V) 5
Power Supply Range 5 - 30DC
Physical Specification
Environment - 5 ℃ - 60 ℃ (no condensation)
Forward Rotation Delay Time 0.0-999.9 seconds
Input Reverse Connection Protection Yes
Installation Type Split
Integrated with Driver No
Main Functions of the System Automatic, Manual, Setting and Serial port control
Motor Signal Common Cathode
Number of Cycles 1-9999
Number of Forward Rotation Pulses 1-9999999 pulses
Number of Reverse Pulses 1-9999999 pulses
Remote Communication Control TTL Serial Port
Reverse Delay Time 0.0-999.9 seconds
Subdivision Selection Range 1-128 subdivision

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview

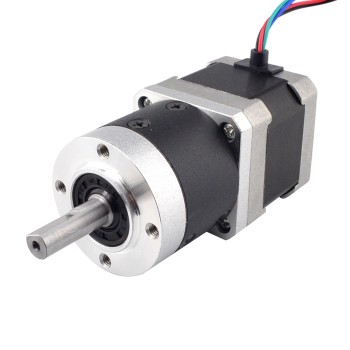

Nema 17 Stepper Motor L=39mm Gear Ratio 10:1 High Precision Planetary Gearbox
Nema 17 Stepper Motor L=39mm Gear Ratio 10:1 High Precision Planetary Gearbox
This Nema 17 stepper motor with 39mm body and 0.40A rated current, integrated with a 41mm Planetary gearbox of 10:1 gear ratio. It's a good solution t..
from
£0.00
Add to Cart
Add to Wish List Compare this Product
Quickview
150W 24V 6.5A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
150W 24V 6.5A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This professional 150W 24V 6.5A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System. 115V and 230V c..
from
£0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

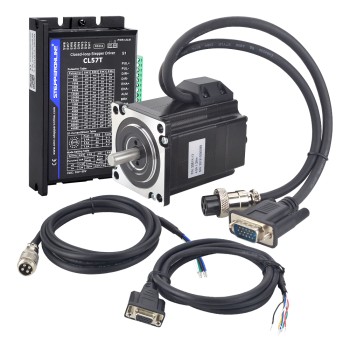

TP Series 1 Axis Closed Loop Stepper CNC Kit 1.2Nm(169.93oz.in) Nema 23 Motor & Driver
