5IK40GN-AT/5GN100K
Output Shaft TypeKeyway
Input Voltage(V)1PH 110VAC
Frame Size(mm)90 x 90
Current(A)0.66
Question

Downloads

5IK40GN-XXT_5GNXXK_manual.pdfPDF · 2.22MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
5IK120GU-CFT/5GU5KBKeyway1PH 220VAC90 x 900.87£41.74In stock
5IK120GU-S/S3FT/5GU100KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40£47.64In stock
5IK120GU-S/S3FT/5GU10KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40£43.90In stock
5IK120GU-S/S3FT/5GU15KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40£43.90In stock
5IK120GU-S/S3FT/5GU200KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40£47.64In stock
5IK120GU-S/S3FT/5GU20KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40£45.62In stock
5IK120GU-S/S3FT/5GU30KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40£45.62In stock
5IK120GU-S/S3FT/5GU3KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40£41.74In stock
5IK120GU-S/S3FT/5GU50KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40£45.62In stock
5IK120GU-S/S3FT/5GU5KBKeyway3PH 220VAC/380VAC90 x 900.60,0.70,0.42,0.40£41.74In stock
5IK40GN-AT/5GN100KKeyway1PH 110VAC90 x 900.66£36.13In stock
5IK40GN-AT/5GN10KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40GN-AT/5GN15KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40GN-AT/5GN200KKeyway1PH 110VAC90 x 900.66£36.13In stock
5IK40GN-AT/5GN20KKeyway1PH 110VAC90 x 900.66£34.69In stock
5IK40GN-AT/5GN30KKeyway1PH 110VAC90 x 900.66£34.69In stock
5IK40GN-AT/5GN3KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40GN-AT/5GN50KKeyway1PH 110VAC90 x 900.66£36.13In stock
5IK40GN-AT/5GN5KKeyway1PH 110VAC90 x 900.66£33.39In stock
5IK40GN-CT/5GN100KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40GN-CT/5GN10KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40GN-CT/5GN15KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40GN-CT/5GN200KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40GN-CT/5GN20KKeyway1PH 220VAC90 x 900.35£34.69In stock
5IK40GN-CT/5GN30KKeyway1PH 220VAC90 x 900.35£34.69In stock
5IK40GN-CT/5GN3KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40GN-CT/5GN50KKeyway1PH 220VAC90 x 900.35£36.13In stock
5IK40GN-CT/5GN5KKeyway1PH 220VAC90 x 900.35£33.39In stock
5IK40GN-S/S3T/5GN100KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£36.13In stock
5IK40GN-S/S3T/5GN10KKeyway3PH 220VAC/380VAC90 x 900.32,0.28,0.18,0.16£33.39In stock
View all in category

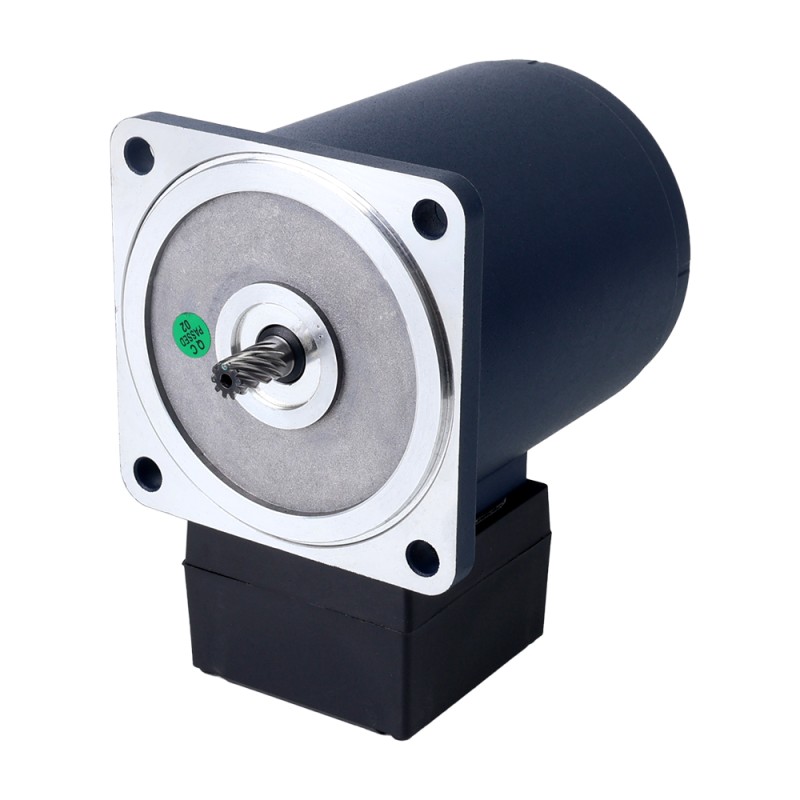

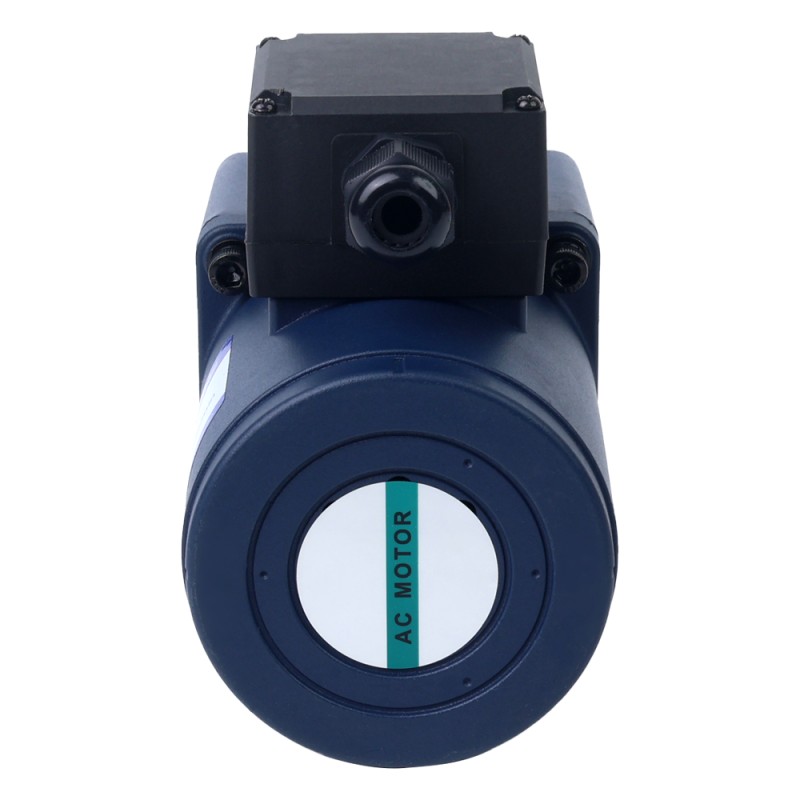

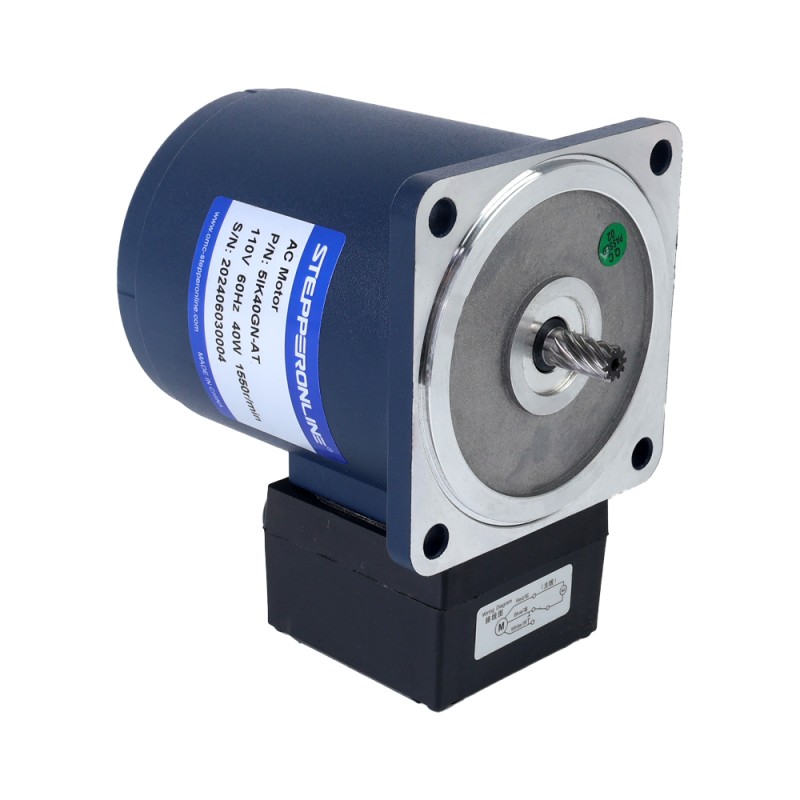

40W 110VAC 60Hz 15.5RPM 10.00Nm(1416.12oz.in) Flange 90mm Spur Gearbox Single-phase AC Induction Motor
This 40W 90x90mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 1... Read More
0 reviews • Write a review
from
£36.13
5 + £35.16
10 + £34.24
50 + £33.36
100 + £32.53

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

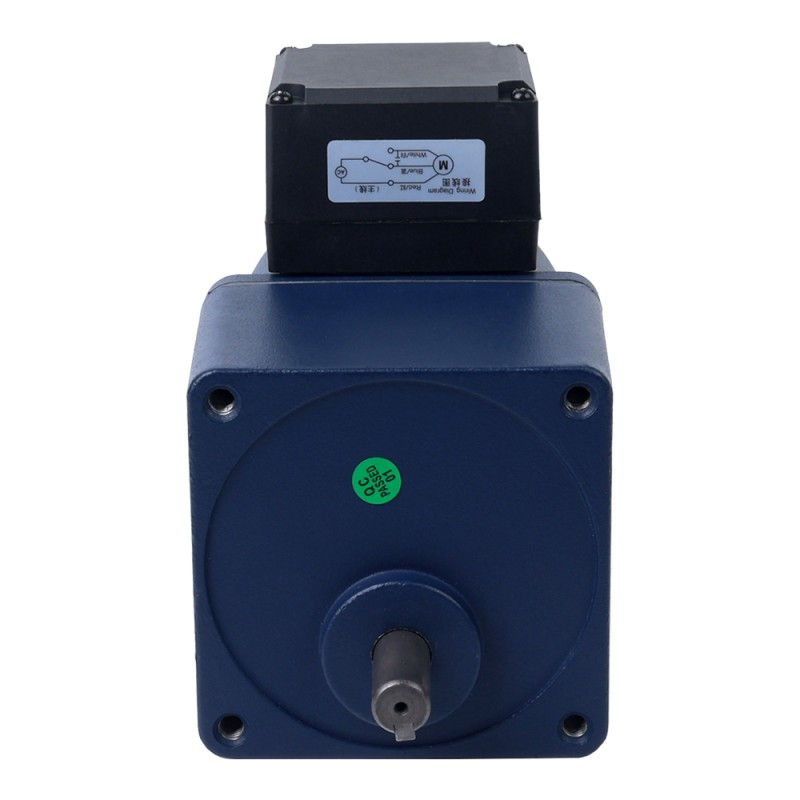

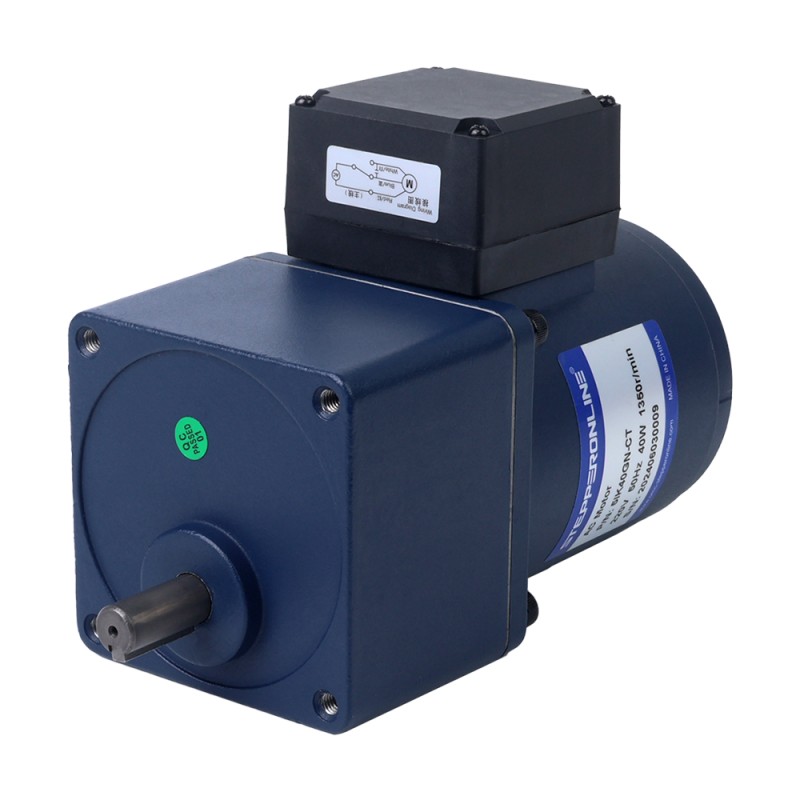

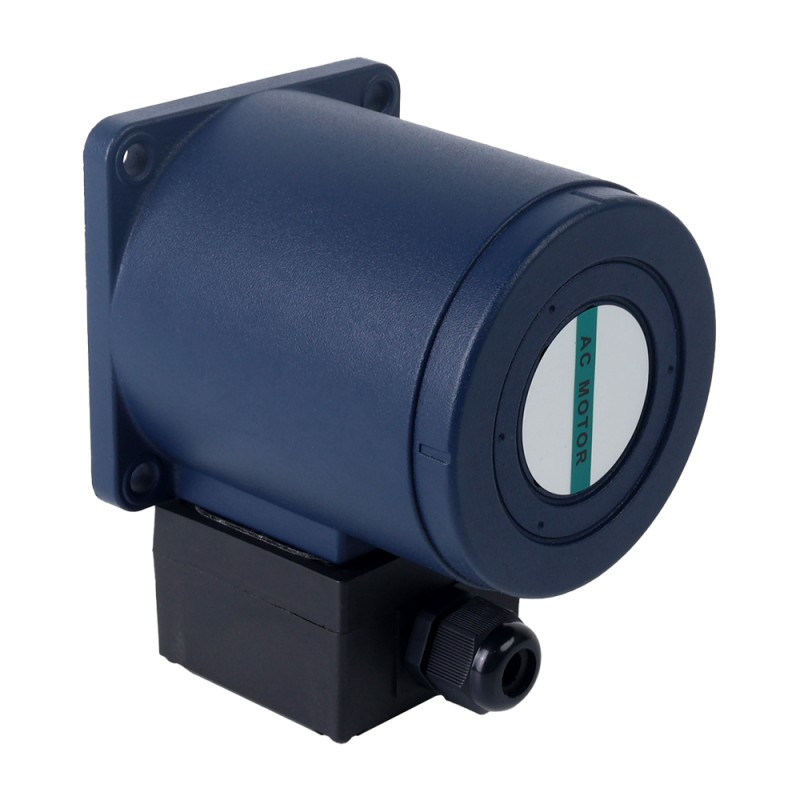

This 40W 90x90mm single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 100, a torque of 10.00Nm(1416.12oz.in) and a speed of 15.5rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 5IK40GN-AT/5GN100K
  • Gearbox Type: Spur Gearbox
  • Output Power: 40W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.66A
  • Gear Ratio: 100:1
  • Speed: 15.5rpm
  • Torque: 10.00Nm(1416.12oz.in)

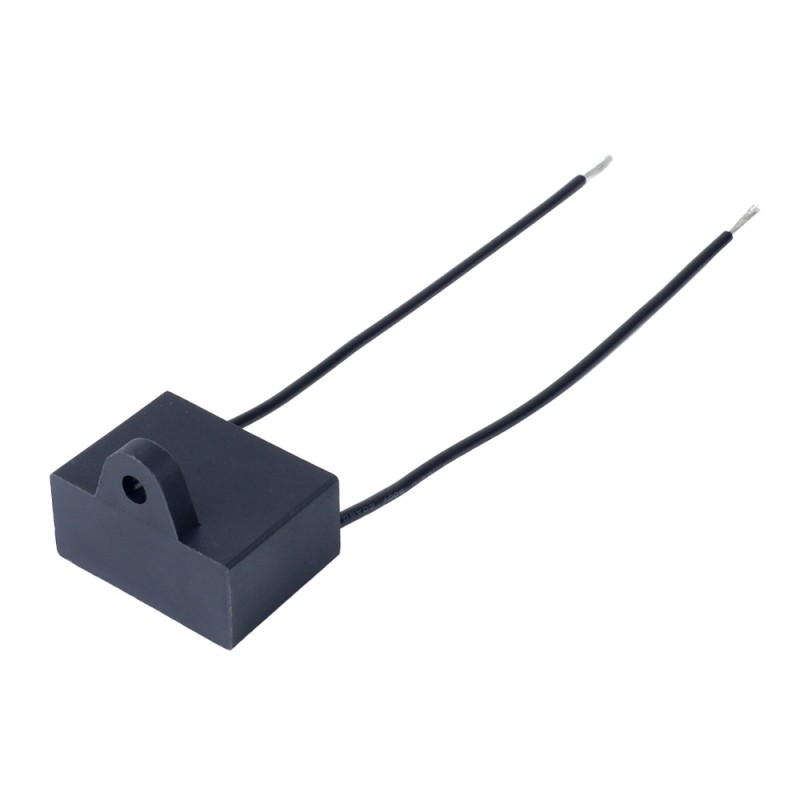

  • Capacitor: 10.0μF/250VAC

Physical Specifications

  • Frame Size: 90x90mm
  • Body Length: 165mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ12mm
  • Shaft Length: 32mm
  • Weight: 3.53kg

Wiring

Electrical Specification
Current(A)0.66
Frequency(Hz)60
Input Voltage(V)1PH 110VAC
Output Power(W)40
Speed(rpm)15.5
Torque(Nm)10
Physical Specification
Frame Size(mm)90 x 90
Gear Ratio(xx:1)100
Gearbox TypeSpur Gearbox
Output Shaft TypeKeyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Closed Loop Stepper Driver V4.1 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor
Closed Loop Stepper Driver V4.1 0-8.0A 24-48VDC for Nema 17, 23, 24 Stepper Motor
This CL57T-V41 closed-loop stepper driver offers an alternative for applications requiring high performance and high reliability when the servo was th..
from
£28.75
Add to Cart
Add to Wish List Compare this Product
Quickview

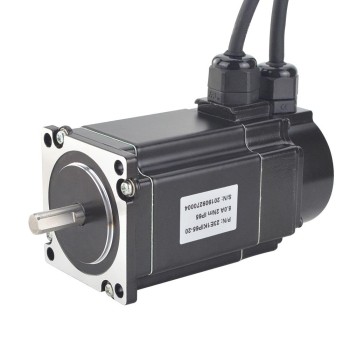

P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 2Nm(283.22oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 2Nm(283.22oz.in) with Encoder 1000PPR(4000CPR)
This P series closed loop nema 23 stepper motor with IP65 waterproof ratings and 2Nm(283.28oz.in), that meaning this IP65 stepper motor can ..
from
£50.25
Add to Cart
Add to Wish List Compare this Product
Quickview
Shaft Sleeve Adaptor 11mm to 8mm for NMRV30 Worm Gearbox
Shaft Sleeve Adaptor 11mm to 8mm for NMRV30 Worm Gearbox
This shaft sleeve is designed for NMRV30 worm gearbox. The original input shaft inner diameter is 11mm, this shaft sleeve convert 11mm to 8mm...
from
£2.73
Add to Cart
Add to Wish List Compare this Product
Quickview

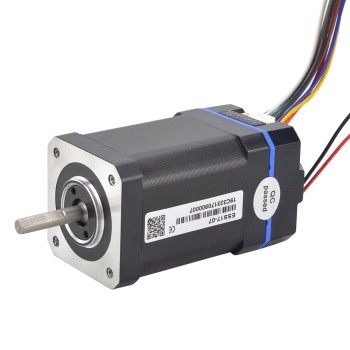

ESS Series 0.60Nm(85oz.in) Nema 17 Integrated Closed Loop Stepper Servo Motor 24-36VDC 1000PPR
ESS Series 0.60Nm(85oz.in) Nema 17 Integrated Closed Loop Stepper Servo Motor 24-36VDC 1000PPR
Electrical SpecificationsManufacturer Part Number: ESS17-07 Holding Torque: 0.6Nm(85oz.in) Input Voltage: 24 - 36VDCInsulation Class: B 130°C[26..
from
£34.78
Add to Cart
Add to Wish List Compare this Product
Quickview

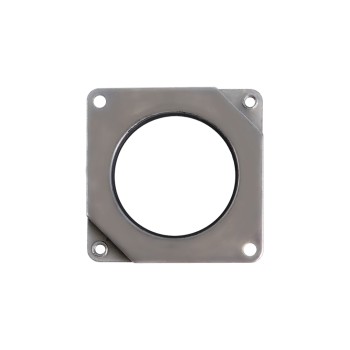

NEMA 23 Stepper Motor Vibration Damper
NEMA 23 Stepper Motor Vibration Damper
This damper is designed for NEMA 23 stepper motors. It can effectively reduce the noise and vibration generated during the operation of stepper motors..
from
£5.44
Add to Cart
Add to Wish List Compare this Product
Quickview

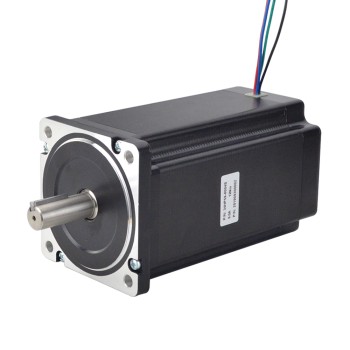

P Series Nema 34 Bipolar 1.8deg 12Nm(1699.34oz.in) 6.0A 86x86x150.6mm 4 Wires
