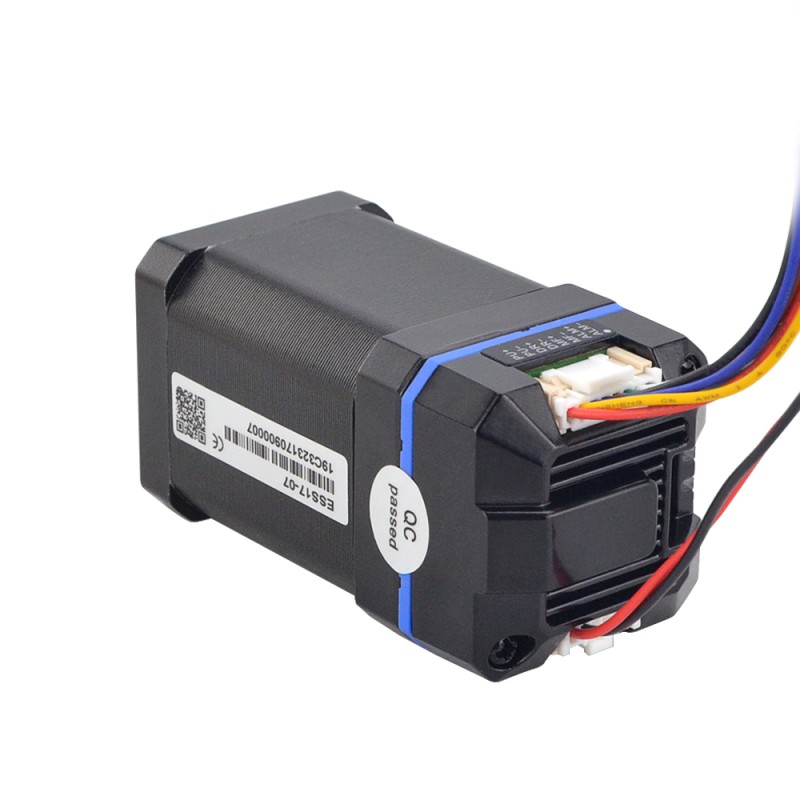

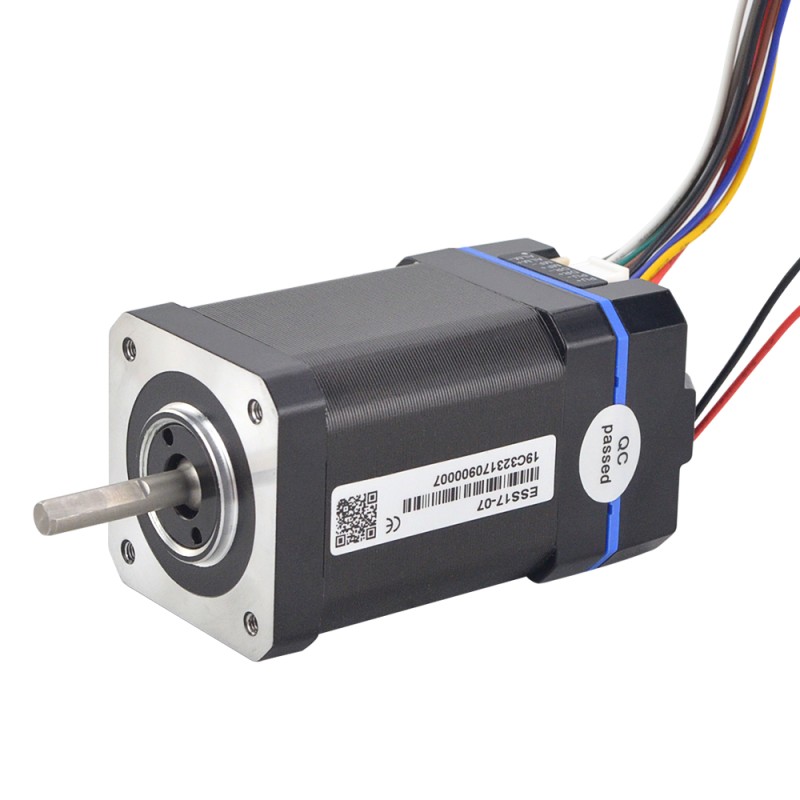

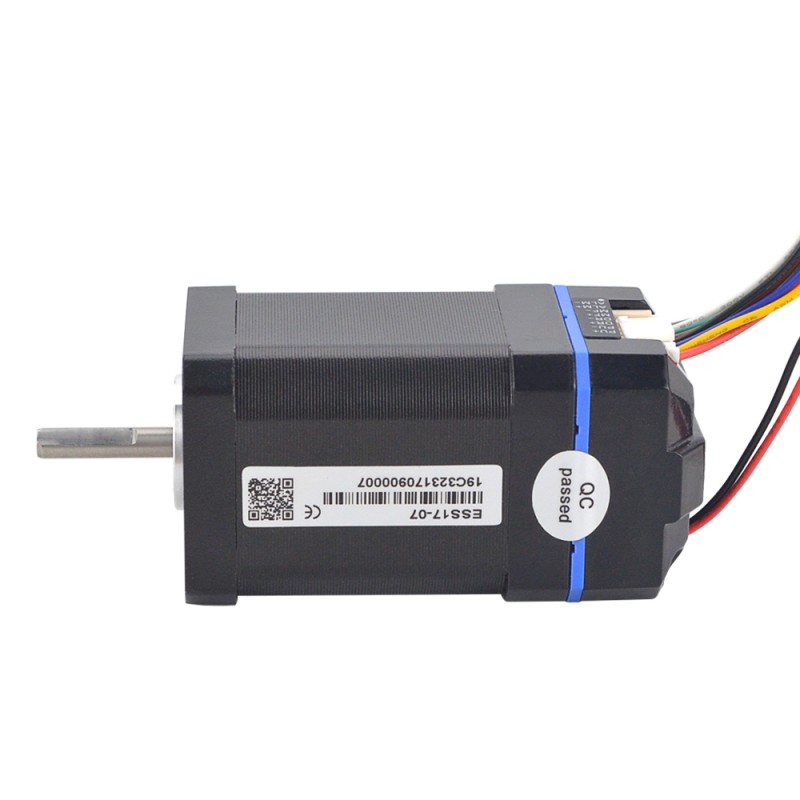

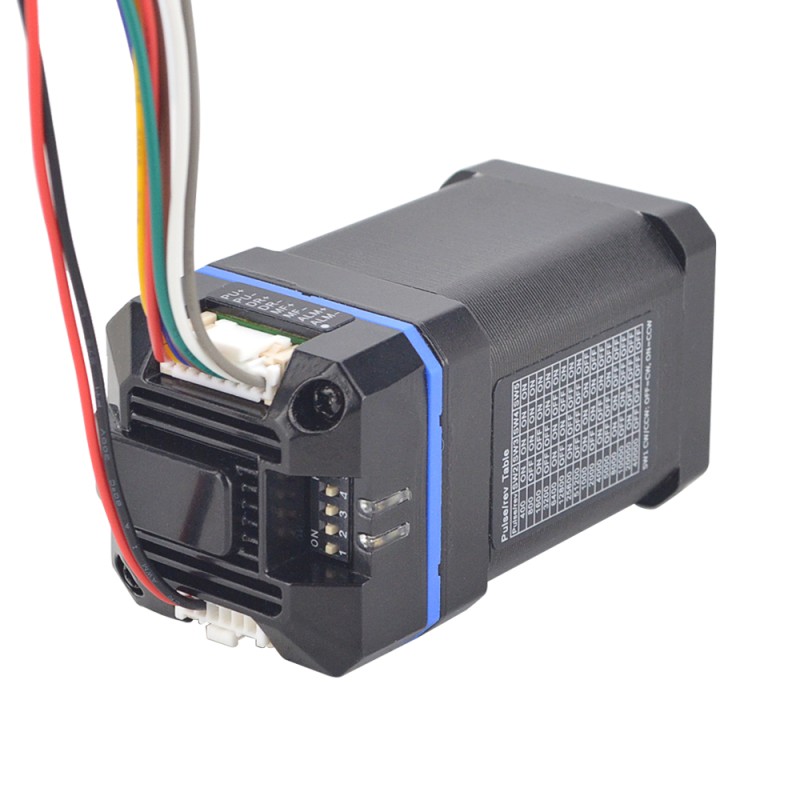

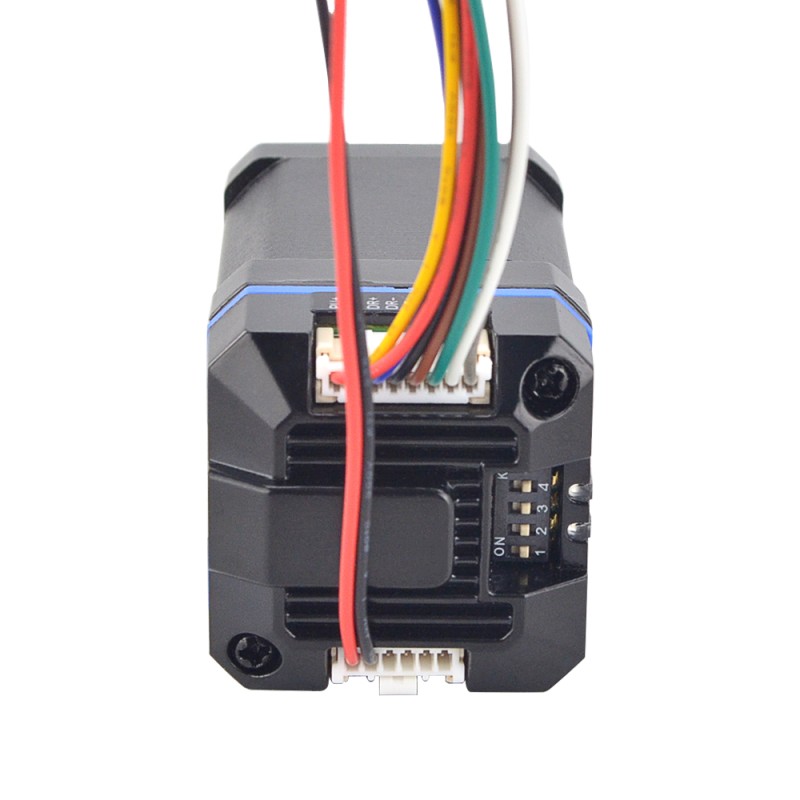

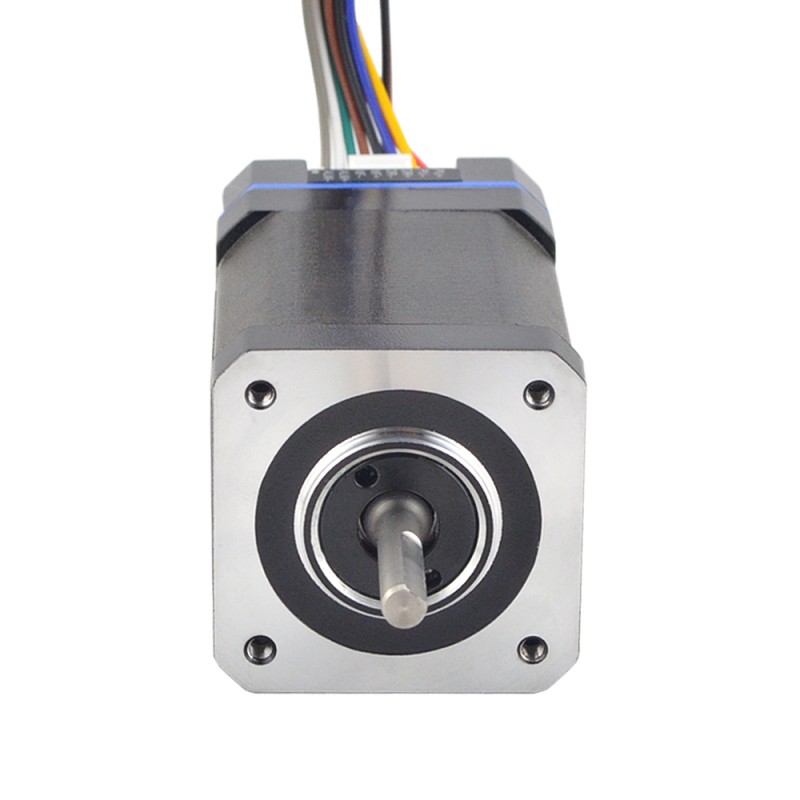

Name: ESS Series 0.60Nm(85oz.in) Nema 17 Integrated Closed Loop Stepper Servo Motor 24-36VDC 1000PPR
Brand: STEPPERONLINE
SKU: ESS17-07
Price: 34.78 GBP
Availability: InStock

ESS Series 0.60Nm(85oz.in) Nema 17 Integrated Closed Loop Stepper Servo Motor 24-36VDC 1000PPR - ESS17-07 | StepperOnline UK

ESS17-07

Shaft Diameter(mm)5

Shaft Length(mm)24

Input Voltage(V)24 - 36DC

Encoder Resolution1000

Question

Downloads

ESS17-07.IGSIGS · 7.38MBLog in to download ESS17-07_Torque_Curve.pdfPDF · 128.13KB ESS17-04_07_Manual.pdfPDF · 401.71KB

Same series

Model	Shaft Diameter(mm)	Shaft Length(mm)	Input Voltage(V)	Encoder Resolution	Price	Stock
ESS11-P01	5	15	24DC	16-bit	£49.86	In stock
ESS17-04	5	24	24 - 36DC	1000	£33.16	In stock
ESS17-07	5	24	24 - 36DC	1000	£34.78	In stock
ESS17-RS04	5	24	24DC	1000	£42.87	In stock
ESS17-RS07	5	24	24DC	1000	£44.48	In stock
ESS23-10	8	21	24 - 50DC	1000	£37.21	In stock
ESS23-20	8	21	24 - 50DC	1000	£40.44	In stock
ESS23-RS10	8	21	24 - 48DC	1000	£46.92	In stock
ESS23-RS20	8	21	24 - 48DC	1000	£50.15	In stock
ESS24-30	8	24	24 - 50DC	1000	£47.72	In stock

ESS Series 0.60Nm(85oz.in) Nema 17 Integrated Closed Loop Stepper Servo Motor 24-36VDC 1000PPR

Electrical Specifications Manufacturer Part Number: ESS17-07 Holding Torque: 0.6Nm(85oz.in) Inp... Read More

0 reviews • Write a review

from

£34.78

5 + £33.73

10 + £32.75

50 + £31.82

100 + £30.94

Click country for live stock

Dispatches from

China

Germany (+£4.67)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

Electrical Specifications

Manufacturer Part Number: ESS17-07
Holding Torque: 0.6Nm(85oz.in)
Input Voltage: 24 - 36VDC
Insulation Class: B 130°C[266°F]
Output Peak Current: 0.8 - 2.0A
Logic Input Current: 10mA
Logic Input Voltage: 5V
Encoder Type: Incremental
Encoder Output Type: Differential
Encoder Resolution: 1000PPR
Encoder Output Signal Channels: 2
Isolation Resistance: More than 100MΩ
Dielectric strength: 500VAC for 1MIN.

Physical Specifications

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
D-cut Shaft Length: 15mm
Shaft Length: 24mm
Weight: 531g

Connector Specification

Housing 1 Model: 35507-0800
Terminal 1 Model: 50212-8000
Housing 2 Model: 35507-0600
Terminal 2 Model: 50212-8000

Connection

PU+	PU-	DR+	DR-	MF+	MF-	ALM+	ALM-
Red	Yellow	Blue	Black	Brown	Green	White	Gray

Product Type
Product Type	Integrated Stepper Motor
Electrical Specification
Analog Input	No
Control Modes	Pulse Mode
Encoder Feedback	Yes (Closed Loop)
Encoder Resolution	1000
Encoder Type	Incremental
Holding Torque(Ncm)	60
Holding Torque(oz.in)	85
Input Voltage Reference(V)	24 - 36DC
Input Voltage(V)	24 - 36DC
Output Signal Channels	2
Physical Specification
Body Length(mm)	60
Frame Size(mm)	Nema 17 (42 x 42)
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	24
