Name: YS Series 4 Axis Closed Loop Stepper CNC Kit V2.0 3.00Nm(424.83oz.in) Nema 23 Motor w/ 1.5m Cables & Power Supply
Brand: STEPPERONLINE
SKU: 4-CLYS30-1M5-V20
Price: 180.59 GBP
Availability: InStock

YS Series 4 Axis Closed Loop Stepper CNC Kit V2.0 3.00Nm(424.83oz.in) Nema 23 Motor w/ 1.5m Cables & Power Supply - 4-CLYS30-1M5-V20 | StepperOnline UK

4-CLYS30-1M5-V20

Output Shaft TypeD

Shaft Diameter(mm)8

Shaft Length(mm)21

Encoder Resolution1000PPR

Question

Downloads

CL57Y-V20.STEPSTEP · 14.7MBLog in to download CL57Y(V2.0)_pulse_stepper_driver_manual_V1.0.pdfPDF · 852.7KB 23HS40-5004D-E1K-1M5_Torque_Curve.pdfPDF · 170.86KB 23HS40-5004D-E1K-1M5_Full_Datasheet.pdfPDF · 58.29KB 23HS40-5004D-E1K-1M5.STEPSTEP · 1.23MBLog in to download

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Encoder Resolution	Price	Stock
1-ACLYS120	Keyway	14	37	1000PPR	£82.43	In stock
1-ACLYS120-1M5	Keyway	14	37	1000PPR	£78.93	In stock
1-ACLYS65	Keyway	14	37	1000PPR	£89.72	In stock
1-ACLYS65-1M5	Keyway	14	37	1000PPR	£71.08	In stock
1-CL42T-P05-V41	D	5	24	1000PPR	£61.15	In stock
1-CL42T-P07-V41	D	5	24	1000PPR	£62.72	In stock
1-CL42T-S01-V41	D	5	20	1000PPR	£36.85	In stock
1-CL42T-S04-V41	D	5	24	1000PPR	£37.95	In stock
1-CL42T-S05-V41	D	5	24	1000PPR	£38.60	In stock
1-CL42T-S08-V41	D	5	24	1000PPR	£39.43	In stock
1-CL57T-P12-V41	D	8	21	1000PPR	£65.84	In stock
1-CL57T-P20-V41	D	8	21	1000PPR	£68.41	In stock
1-CL57T-P30-V41	D	10	21	1000PPR	£74.25	In stock
1-CL57T-S12-V41	D	8	21	1000PPR	£44.10	In stock
1-CL57T-S20-V41	D	8	21	1000PPR	£46.34	In stock
1-CL57T-S30-V41	D	10	21	1000PPR	£49.53	In stock
1-CL57T-S30A-V41	D	8	21	1000PPR	£50.83	In stock
1-CL57T-S40-V41	D	10	21	1000PPR	£51.34	In stock
1-CL57TE-S12	D	8	21	1000PPR	£44.41	In stock
1-CL57TE-S20	D	8	21	1000PPR	£46.82	In stock
1-CL57TE-S30	D	10	21	1000PPR	£50.14	In stock
1-CL57TE-S30A	D	8	21	1000PPR	£51.62	In stock
1-CL57TE-S40	D	10	21	1000PPR	£52.17	In stock
1-CL57Y-S12-V20	D	8	21	1000PPR	£37.72	In stock
1-CL57Y-S20-V20	D	8	21	1000PPR	£39.76	In stock
1-CL57Y-S30	D	8	22	1000PPR	£61.56	In stock
1-CL57Y-S30-1M5	D	8	21	1000PPR	£38.60	In stock
1-CL57Y-S30-1M5-V20	D	8	21	1000PPR	£38.43	In stock
1-CL57Y-S30-V20	D	8	22	1000PPR	£41.96	In stock
1-CL57Y-S30A-V20	D	8	21	1000PPR	£43.84	In stock

View all in category

YS Series 4 Axis Closed Loop Stepper CNC Kit V2.0 3.00Nm(424.83oz.in) Nema 23 Motor w/ 1.5m Cables & Power Supply

This CNC kit includes:4 x 23HS40-5004D-E1K-1M5: S Series Nema 23 Closed Loop Stepper Motor 3.00Nm(42... Read More

0 reviews • Write a review

from

£180.59

5 + £175.32

10 + £170.34

50 + £165.64

100 + £161.20

Click country for live stock

Dispatches from

China

United States (+£35.16)

Germany (+£29.16)

United Kingdom (+£37.76)

Australia (+£29.89)

Russia (+£46.68)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

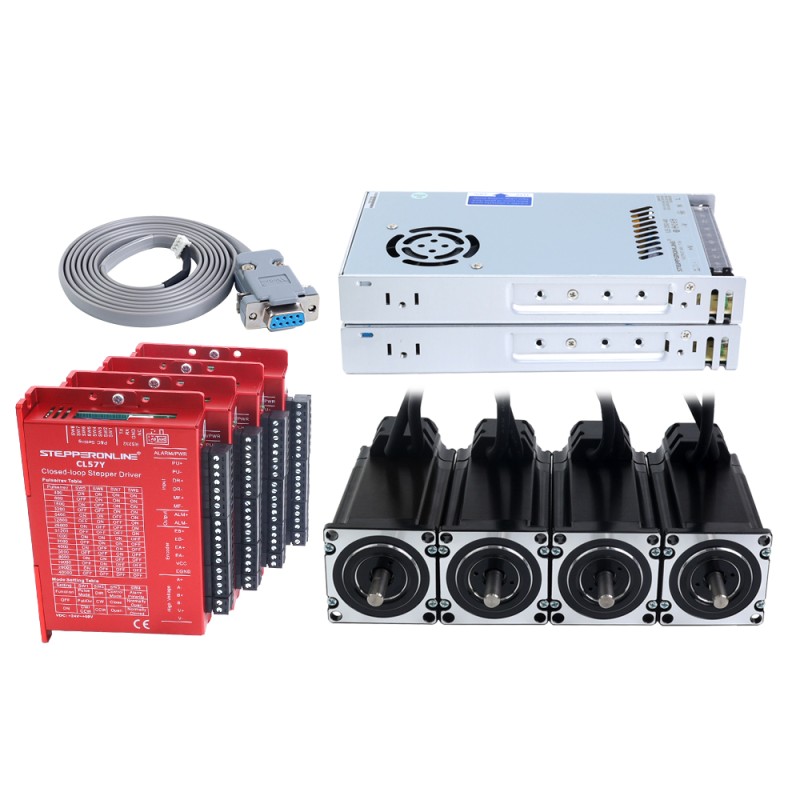

This CNC kit includes:

4 x 23HS40-5004D-E1K-1M5: S Series Nema 23 Closed Loop Stepper Motor 3.00Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
4 x CL57Y-V20: Y Series V2.0 Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor
2 x LE-350-48: 350W 48V 7.3A 115/230V Switching Power Supply
1 x CABLE-PC-2: RS232 debugging cable

Motor Specification

Manufacturer Part Number: 23HS40-5004D-E1K-1M5
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.00Nm(424.83oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.7ohms ± 10%
Inductance: 2.3mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 57 x 57mm
Body Length: 122mm
Shaft Diameter: Φ8mm
Shaft Length: 22mm
D-Cut Length: 15mm
Cable Length: 1500mm

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~7A(0~5.6RMS)
Input Voltage: +24~50VDC
Logic Input Current: 1~7.5mA
Pulse Input Frequency: 0~200kHz
Isulation Resistance: 10MΩ

Power Supply Specification

Part Number: LE-350-48
Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 48V
Output Current: 7.3A
Rated Output Power: 350W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Motor and Encoder Connection

A+	A-	B+	B-
Black	Green	Red	Blue

PIN	Black	Red	White	Yellow	Green	Blue
Encoder	EA+	VCC	GND	EB+	EB-	EA-

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	424.83
Inductance(mH)	2.3
Input Voltage Reference(V)	24 - 48DC
Number of Axes	4
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.7
Rated Current(A)	5.0
Physical Specification
Cable Length(mm)	1500
Frame Size(mm)	Nema 23 (57 x 57)
Output Shaft Type	D
Power Supply	Power Supply
Product Series	YS Series
Shaft Diameter(mm)	8
Shaft Length(mm)	21
