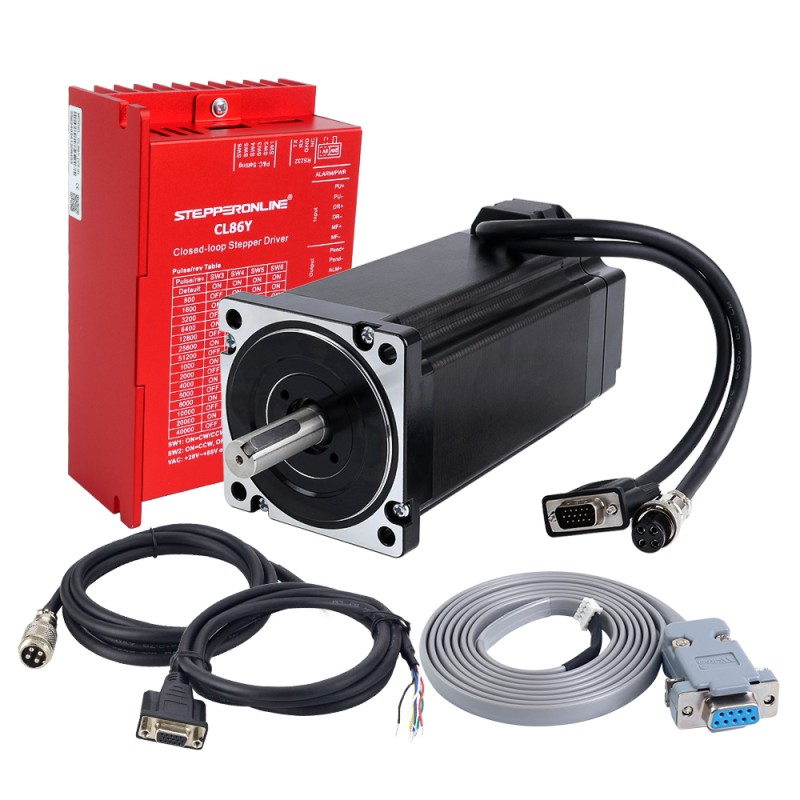

Name: YS Series 1 Axis Closed Loop Stepper CNC Kit V2.0 12.0Nm(1699.34oz.in) Nema 34 Motor w/ 2.0m Cables & Driver
Brand: STEPPERONLINE
SKU: 1-CL86Y-S120-V20
Price: 64.79 GBP
Availability: InStock

YS Series 1 Axis Closed Loop Stepper CNC Kit V2.0 12.0Nm(1699.34oz.in) Nema 34 Motor w/ 2.0m Cables & Driver - 1-CL86Y-S120-V20 | StepperOnline UK

1-CL86Y-S120-V20

Output Shaft TypeKeyway

Shaft Diameter(mm)14

Shaft Length(mm)37

Encoder Resolution1000PPR

Question

Downloads

CE2-M2-18.pdfPDF · 115.55KB Y_Series_Stepper_Driver_Debug_Software_7.4.zipZIP · 31.1MB CL86Y-V20.STEPSTEP · 20.11MBLog in to download CL86Y_V2.0_pulse_stepper_driver_manual_V1.0.pdfPDF · 858.67KB 34HS59-6004D-E1000.STEPSTEP · 7.39MBLog in to download 34HS59-6004D-E1000_Full_Datasheet.pdfPDF · 144.91KB 34HS59-6004D-E1000_Torque_Curve.pdfPDF · 101.3KB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Encoder Resolution	Price	Stock
1-ACLYS120	Keyway	14	37	1000PPR	£82.43	In stock
1-ACLYS120-1M5	Keyway	14	37	1000PPR	£78.93	In stock
1-ACLYS65	Keyway	14	37	1000PPR	£89.72	In stock
1-ACLYS65-1M5	Keyway	14	37	1000PPR	£71.08	In stock
1-CL42T-P05-V41	D	5	24	1000PPR	£61.15	In stock
1-CL42T-P07-V41	D	5	24	1000PPR	£62.72	In stock
1-CL42T-S01-V41	D	5	20	1000PPR	£36.85	In stock
1-CL42T-S04-V41	D	5	24	1000PPR	£37.95	In stock
1-CL42T-S05-V41	D	5	24	1000PPR	£38.60	In stock
1-CL42T-S08-V41	D	5	24	1000PPR	£39.43	In stock
1-CL57T-P12-V41	D	8	21	1000PPR	£65.84	In stock
1-CL57T-P20-V41	D	8	21	1000PPR	£68.41	In stock
1-CL57T-P30-V41	D	10	21	1000PPR	£74.25	In stock
1-CL57T-S12-V41	D	8	21	1000PPR	£44.10	In stock
1-CL57T-S20-V41	D	8	21	1000PPR	£46.34	In stock
1-CL57T-S30-V41	D	10	21	1000PPR	£49.53	In stock
1-CL57T-S30A-V41	D	8	21	1000PPR	£50.83	In stock
1-CL57T-S40-V41	D	10	21	1000PPR	£51.34	In stock
1-CL57TE-S12	D	8	21	1000PPR	£44.41	In stock
1-CL57TE-S20	D	8	21	1000PPR	£46.82	In stock
1-CL57TE-S30	D	10	21	1000PPR	£50.14	In stock
1-CL57TE-S30A	D	8	21	1000PPR	£51.62	In stock
1-CL57TE-S40	D	10	21	1000PPR	£52.17	In stock
1-CL57Y-S12-V20	D	8	21	1000PPR	£37.72	In stock
1-CL57Y-S20-V20	D	8	21	1000PPR	£39.76	In stock
1-CL57Y-S30	D	8	22	1000PPR	£61.56	In stock
1-CL57Y-S30-1M5	D	8	21	1000PPR	£38.60	In stock
1-CL57Y-S30-1M5-V20	D	8	21	1000PPR	£38.43	In stock
1-CL57Y-S30-V20	D	8	22	1000PPR	£41.96	In stock
1-CL57Y-S30A-V20	D	8	21	1000PPR	£43.84	In stock

View all in category

YS Series 1 Axis Closed Loop Stepper CNC Kit V2.0 12.0Nm(1699.34oz.in) Nema 34 Motor w/ 2.0m Cables & Driver

This CNC kit includes: 1 x 34HS59-6004D-E1000: S Series Nema 34 Closed Loop Stepper Motor 12.00Nm... Read More

0 reviews • Write a review

from

£64.79

5 + £62.90

10 + £61.11

50 + £59.42

100 + £57.83

Click country for live stock

Dispatches from

China

Germany (+£11.27)

Australia (+£11.59)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This CNC kit includes:

1 x 34HS59-6004D-E1000: S Series Nema 34 Closed Loop Stepper Motor 12.00Nm(1699.34oz.in)Encoder 1000PPR(4000CPR)
1 x CL86Y-V20: Y Series Closed Loop Stepper Driver V2.0 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor
1 x CE2-M2-18: 1.7m(67") Long Encoder and Motor Extension Cables
1 x CABLE-PC-2: RS232 debugging cable

Motor Specification

Manufacturer Part Number: 34HS59-6004D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 12.00Nm(1699.34oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.53ohms ± 10%
Inductance: 4.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 175mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Cable Length: 300mm

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~8.5A（0~6 RMS）
Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

Motor Extension Cable Connection

PIN	1	2	3	4
Color	Black	Green	Red	Blue

Encoder Extension Cable Connection

PIN	2	3	1	13	11	12
Color	Red	White	Black	Blue	Yellow	Green

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1699.34
Inductance(mH)	4.8
Input Voltage Reference(V)	24 - 80AC / 36 - 110DC
Number of Axes	1
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.53
Rated Current(A)	6.0
Physical Specification
Cable Length(mm)	2000
Frame Size(mm)	Nema 34 (86 x 86)
Output Shaft Type	Keyway
Power Supply	No
Product Series	YS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37
