Name: YS Series 1 Axis Closed Loop Stepper CNC Kit 12.0Nm(1699.34oz.in) Nema 34 Motor w/ 2.0m Cables & AC Transformer
Brand: STEPPERONLINE
SKU: 1-ACLYS120
Price: 82.43 GBP
Availability: InStock

YS Series 1 Axis Closed Loop Stepper CNC Kit 12.0Nm(1699.34oz.in) Nema 34 Motor w/ 2.0m Cables & AC Transformer - 1-ACLYS120 | StepperOnline UK

1-ACLYS120

Output Shaft TypeKeyway

Shaft Diameter(mm)14

Shaft Length(mm)37

Encoder Resolution1000PPR

Question

Downloads

CL86Y.STPSTP · 5.44MBLog in to download Y_Series_Closed_Loop_Driver_Debugging_Software_4.11.zipZIP · 31.09MB CL86Y_user_manual.pdfPDF · 819.26KB 34HS59-6004D-E1000.STEPSTEP · 7.39MBLog in to download 34HS59-6004D-E1000_Full_Datasheet.pdfPDF · 144.91KB 34HS59-6004D-E1000_Torque_Curve.pdfPDF · 101.3KB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Encoder Resolution	Price	Stock
1-ACLYS120	Keyway	14	37	1000PPR	£82.43	In stock
1-ACLYS120-1M5	Keyway	14	37	1000PPR	£78.93	In stock
1-ACLYS65	Keyway	14	37	1000PPR	£89.72	In stock
1-ACLYS65-1M5	Keyway	14	37	1000PPR	£71.08	In stock
1-CL42T-P05-V41	D	5	24	1000PPR	£61.15	In stock
1-CL42T-P07-V41	D	5	24	1000PPR	£62.72	In stock
1-CL42T-S01-V41	D	5	20	1000PPR	£36.85	In stock
1-CL42T-S04-V41	D	5	24	1000PPR	£37.95	In stock
1-CL42T-S05-V41	D	5	24	1000PPR	£38.60	In stock
1-CL42T-S08-V41	D	5	24	1000PPR	£39.43	In stock
1-CL57T-P12-V41	D	8	21	1000PPR	£65.84	In stock
1-CL57T-P20-V41	D	8	21	1000PPR	£68.41	In stock
1-CL57T-P30-V41	D	10	21	1000PPR	£74.25	In stock
1-CL57T-S12-V41	D	8	21	1000PPR	£44.10	In stock
1-CL57T-S20-V41	D	8	21	1000PPR	£46.34	In stock
1-CL57T-S30-V41	D	10	21	1000PPR	£49.53	In stock
1-CL57T-S30A-V41	D	8	21	1000PPR	£50.83	In stock
1-CL57T-S40-V41	D	10	21	1000PPR	£51.34	In stock
1-CL57TE-S12	D	8	21	1000PPR	£44.41	In stock
1-CL57TE-S20	D	8	21	1000PPR	£46.82	In stock
1-CL57TE-S30	D	10	21	1000PPR	£50.14	In stock
1-CL57TE-S30A	D	8	21	1000PPR	£51.62	In stock
1-CL57TE-S40	D	10	21	1000PPR	£52.17	In stock
1-CL57Y-S12-V20	D	8	21	1000PPR	£37.72	In stock
1-CL57Y-S20-V20	D	8	21	1000PPR	£39.76	In stock
1-CL57Y-S30	D	8	22	1000PPR	£61.56	In stock
1-CL57Y-S30-1M5	D	8	21	1000PPR	£38.60	In stock
1-CL57Y-S30-1M5-V20	D	8	21	1000PPR	£38.43	In stock
1-CL57Y-S30-V20	D	8	22	1000PPR	£41.96	In stock
1-CL57Y-S30A-V20	D	8	21	1000PPR	£43.84	In stock

View all in category

YS Series 1 Axis Closed Loop Stepper CNC Kit 12.0Nm(1699.34oz.in) Nema 34 Motor w/ 2.0m Cables & AC Transformer

This CNC kit includes: 1 x 34HS59-6004D-E1000: S Series Nema 34 Closed Loop Stepper Motor 12.00Nm... Read More

0 reviews • Write a review

from

£82.43

5 + £80.02

10 + £77.75

50 + £75.60

100 + £73.57

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

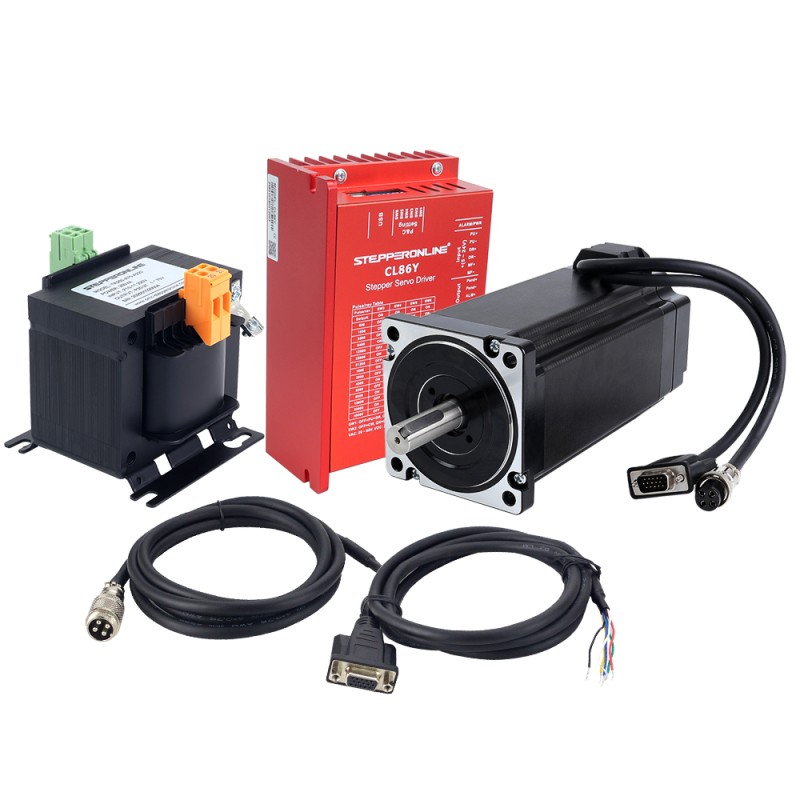

This CNC kit includes:

1 x 34HS59-6004D-E1000: S Series Nema 34 Closed Loop Stepper Motor 12.00Nm(1699.34oz.in)Encoder 1000PPR(4000CPR)
1 x CL86Y: Y Series Closed Loop Stepper Driver 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor
1 x CE2-M2-18: 1.7m(67") Long Encoder and Motor Extension Cables
1 x TR250-A70-A220: 250VA Single-phase Square Control Transformer 220VAC to 70VAC 50/60Hz

Motor Specification

Manufacturer Part Number: 34HS59-6004D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 12.00Nm(1699.34oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.53ohms ± 10%
Inductance: 4.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 175mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Cable Length: 300mm

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

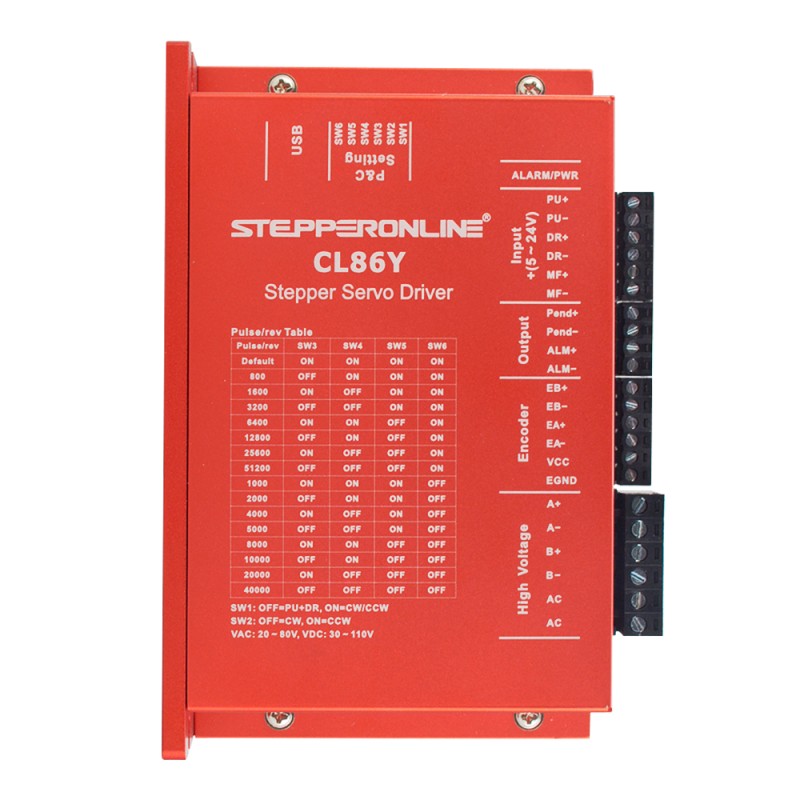

Driver Specification

Output Peak Current: 0~8.5A（0~6 RMS）
Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

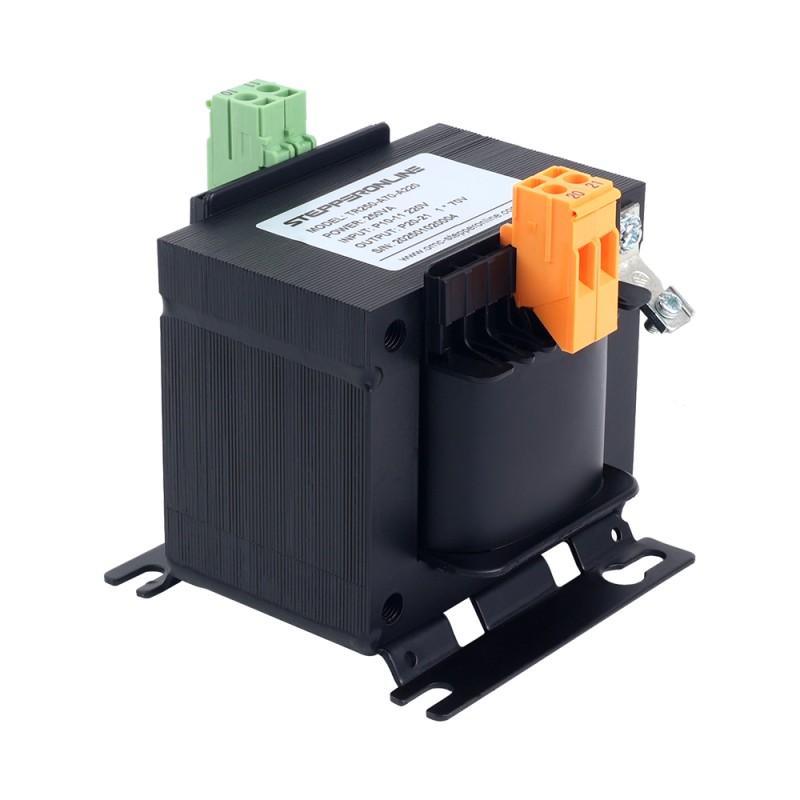

Transformer Specification

Part Number: TR250-A70-A220
Phase: Single Phase
Power: 250VA
Primary Rated Voltage: 70VAC
Loading Voltage: 220VAC ± 5%
Frequency: 50/60Hz
Coil Structure: Square
Insulation Class: Class B(130℃)
Frame Size: 97x104x106mm
Installation hole distance: 80x84mm

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1699.34
Inductance(mH)	4.8
Input Voltage Reference(V)	24 - 80AC / 36 - 110DC
Number of Axes	1
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.53
Rated Current(A)	6.0
Physical Specification
Cable Length(mm)	2000
Frame Size(mm)	Nema 34 (86 x 86)
Output Shaft Type	Keyway
Power Supply	Transformer
Product Series	YS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37
