Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor

Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor - CL57EC | StepperOnline UK
CL57EC
Control ModesEtherCAT
Encoder FeedbackYes (Closed Loop)
Input Voltage Reference(V)24 - 50DC
Max. Output Current RMS(A)4.0
Question

Downloads

CL57EC.stpSTP · 5.14MBLog in to downloadEtherCAT_Bus_Function_Manual(V1.0).pdfPDF · 2.69MBCL57EC_user_manual_V1.0.pdfPDF · 604.59KBBohign_MS_ECAT_V2.5.xmlXML · 1.48MB
Same series
ModelControl ModesEncoder FeedbackInput Voltage Reference(V)Max. Output Current RMS(A)PriceStock
CL42T-V41Pulse ModeYes (Closed Loop)24 - 48DC2.0£28.75In stock
CL42Y-V20Pulse ModeYes (Closed Loop)24 - 50DC2.2£28.63In stock
CL57ECEtherCATYes (Closed Loop)24 - 50DC4.0£47.09In stock
CL57PRModbus RS485Yes (Closed Loop)20 - 50DC5.0£43.40In stock
CL57PR-USEDModbus RS485Yes (Closed Loop)20 - 50DC5.0£36.89In stock
CL57RSModbus RS485Yes (Closed Loop)24 - 48DC4.9£70.69In stock
CL57T-V41Pulse ModeYes (Closed Loop)24 - 48DC5.0£28.75In stock
CL57TEPulse ModeYes (Closed Loop)24 - 50DC6.0£25.34In stock
CL57YPulse ModeYes (Closed Loop)24 - 48DC5.0£24.01In stock
CL57Y-V20Pulse ModeYes (Closed Loop)24 - 50DC5.6£26.48In stock
CL57Y-V20-USEDPulse ModeYes (Closed Loop)24 - 50DC5.6£30.71In stock
CL86ECEtherCATYes (Closed Loop)20 - 80AC / 30 - 110DC6.0£59.10In stock
CL86RSModbus RS485Yes (Closed Loop)24 - 80AC / 36 - 110DC5.7£98.96In stock
CL86T-V41Pulse ModeYes (Closed Loop)18 - 80AC / 24 - 110DC5.7£36.58In stock
CL86T-V41-USEDPulse ModeYes (Closed Loop)18 - 80AC / 24 - 110DC5.7£21.44In stock
CL86YPulse ModeYes (Closed Loop)24 - 80AC / 36 - 110DC6.0£31.39In stock
CL86Y-V20Pulse ModeYes (Closed Loop)24 - 80AC / 36 - 110DC6.0£35.46In stock
Y Series EtherCAT Closed Loop Stepper Driver 0-7.2A 24-50VDC for Nema 17, 23, 24 Stepper Motor
The CL57EC is a high-performance, stability, low noise, and vibration closed-loop driver with 32-bit... Read More
0 reviews • Write a review
from
£47.09
5 + £45.48
10 + £43.98
50 + £42.57
100 + £41.25

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

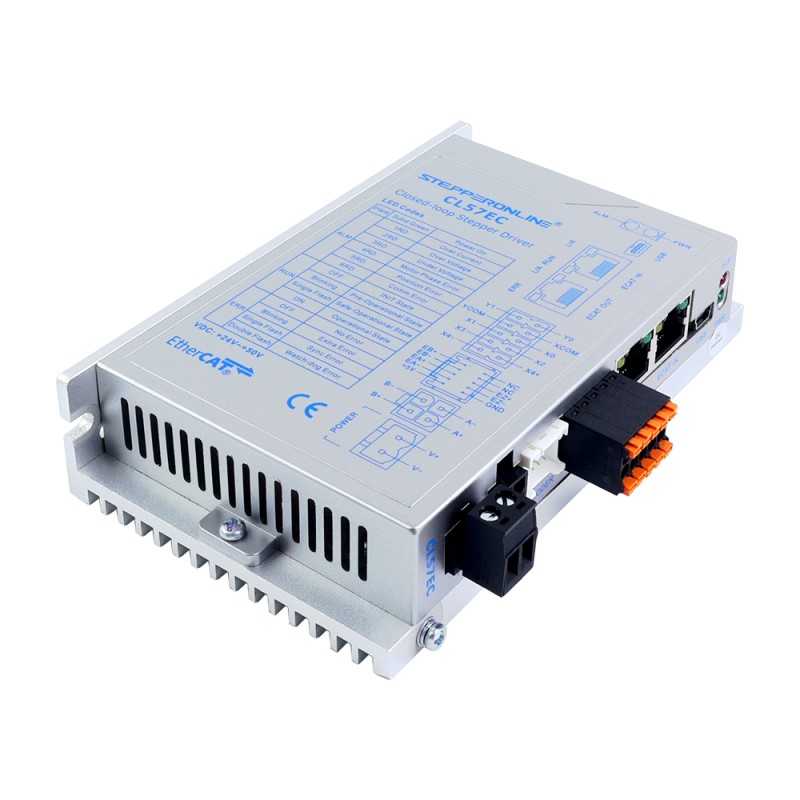

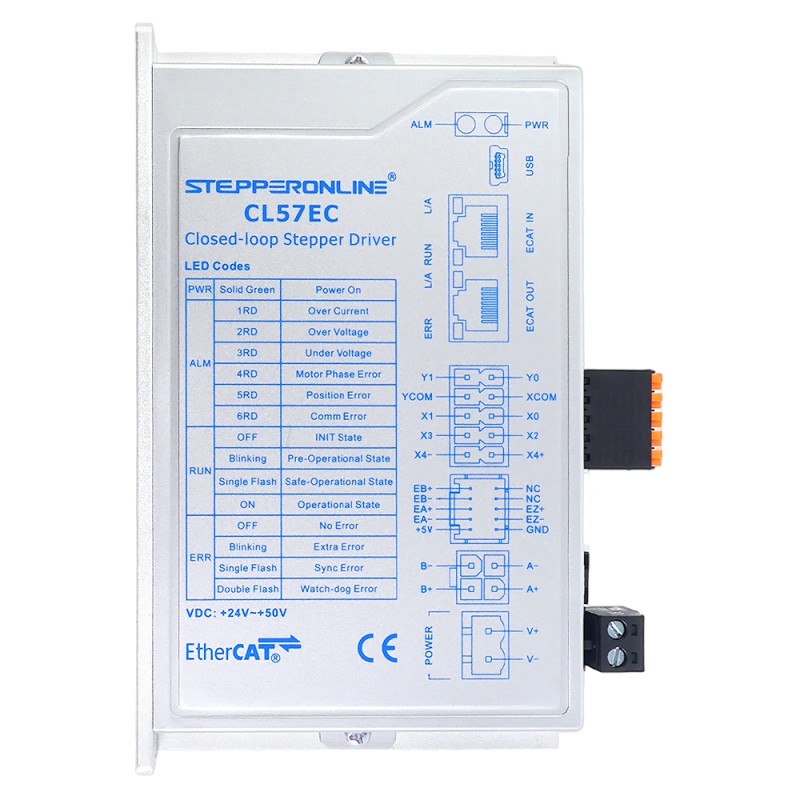

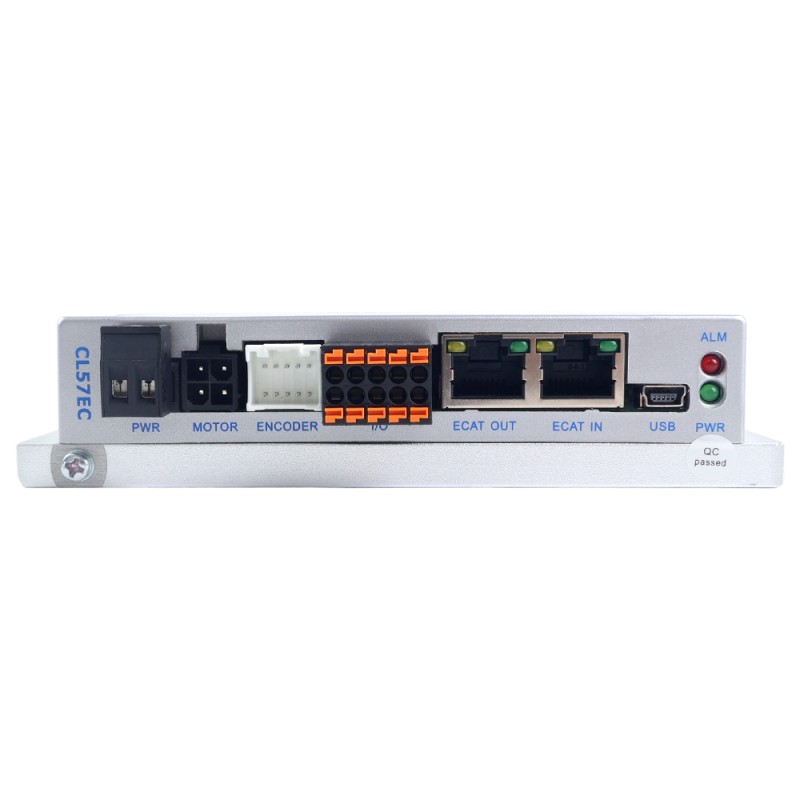

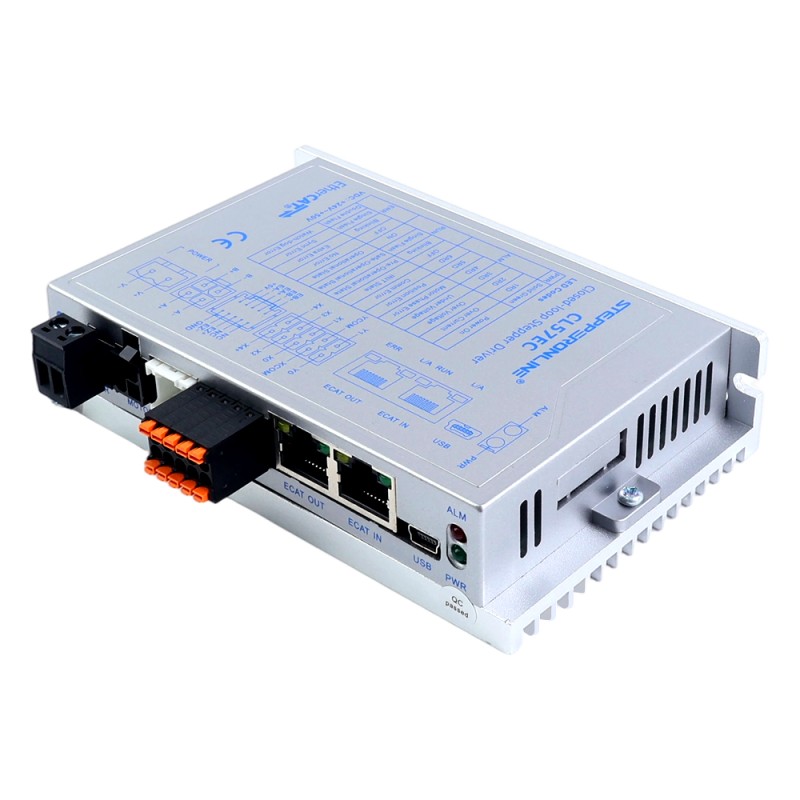

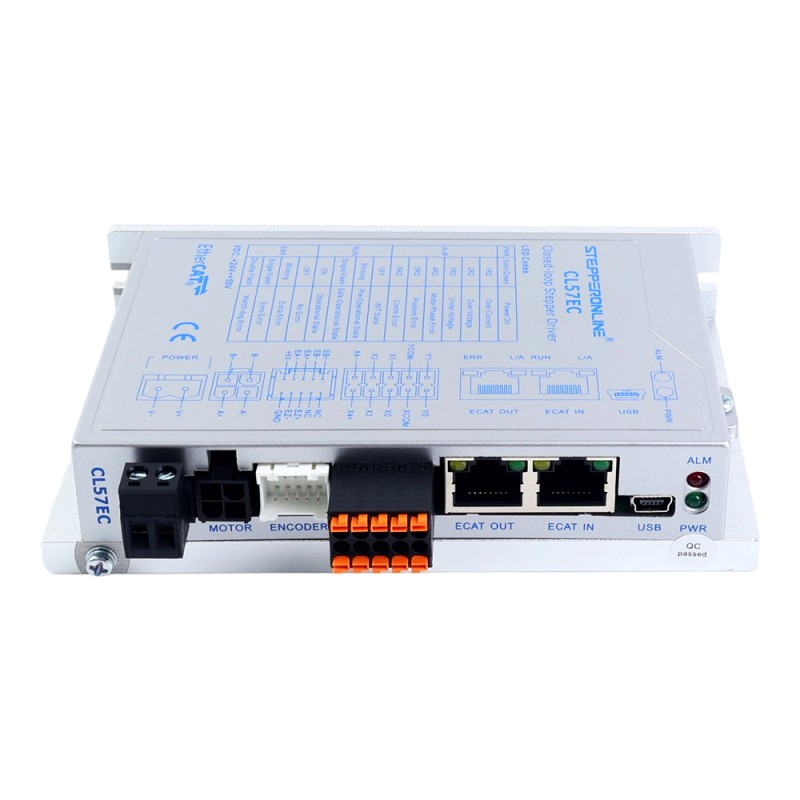

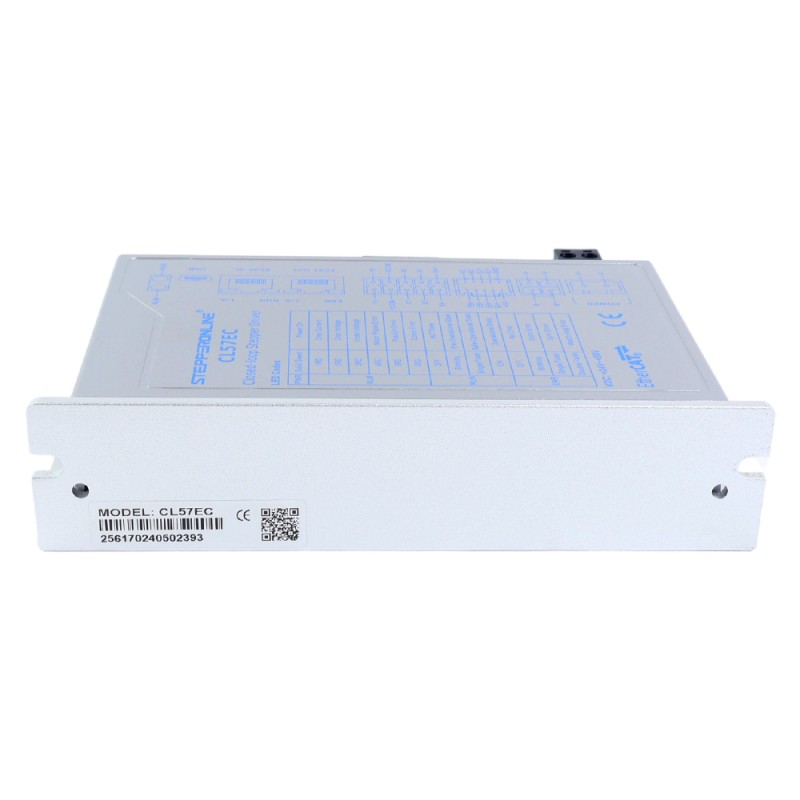

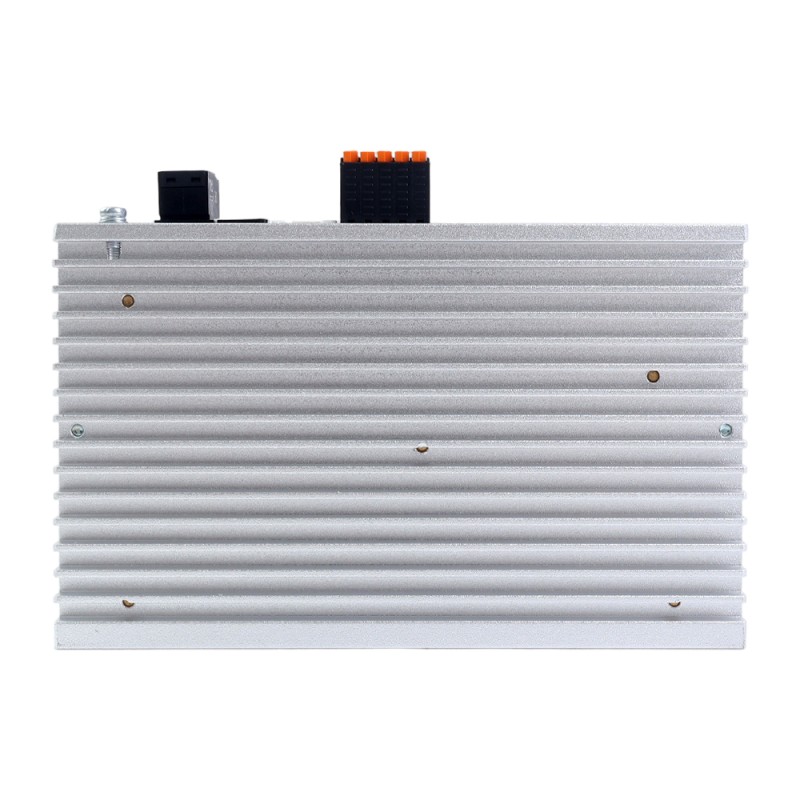

The CL57EC is a high-performance, stability, low noise, and vibration closed-loop driver with 32-bit DSP technology. Supports 24-50VDC input, adjustable current up to 7.2A. Features isolated EtherCAT bus with COE protocol and four motion control modes (CSP, PP, PV, HOME). Includes multiple digital inputs/outputs for control and status signals. Fine subdivision from 400 to 51200. Offers over-voltage, under-voltage, over-current, and phase error protection. Compatible with major EtherCAT master controllers. Ideal for battery, photovoltaic, semiconductor, automation, robotics, medical, and laser equipment.

Key Features

  • New generation 32-bit DSP technology, high cost performance, good stability, low noise, low vibration
  • Based on 100BASE-TX Ethernet transmission standard, transmission rate up to 100Mbps, full- duplex communication
  • Supports CANopen over EtherCAT (CoE) and complies with CiA 402 standards
  • Cyclic Sync Position,Profile Position,Profile Velocity, Homing and other working modes are supported
  • A double-port RJ45 connector is used for EtherCAT communication
  • Four optical isolation input ports with 12V to 24V input
  • Two optical isolation output ports
  • Subdivision 400~51200 arbitrary Settings, support electronic gear
  • Smooth and accurate current control, low motor heat
  • Has over voltage, under voltage, over current and other protection functions

Electrical Specifications

  • Output Peak Current: 0 - 7.2A
  • Continuous Output Current: 0 - 5.0A(Typical 2.0A)
  • Input Supply Voltage: 24 - 50VDC
  • Logic input current: 5 - 50mA(Typical 10mA)
  • Logic input voltage: 5 - 24V
  • Insulation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

  • Cooling: Natural Cooling or Forced cooling
  • Environment: Stay away from other heating equipment, avoid dust, oil mist, corrosive gas, strong vibration places, flammable gas and conductive dust are prohibited
  • Ambient Temperature: 0 - 50℃
  • Humidity: 40% - 90%RH
  • Operating Temperature: 50℃ MAX
  • Vibration: 10-50Hz/0.15mm
  • Storage Temperature: -20 - 70℃
  • Weight: Approx.376g(13.26oz)

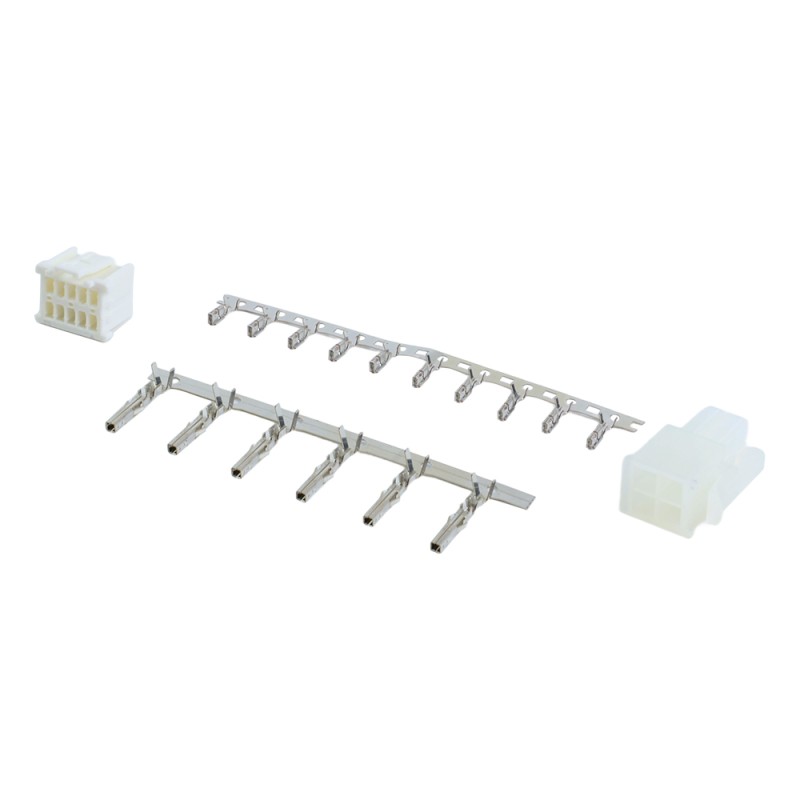

Packing List

  • 1 x CL57EC Driver

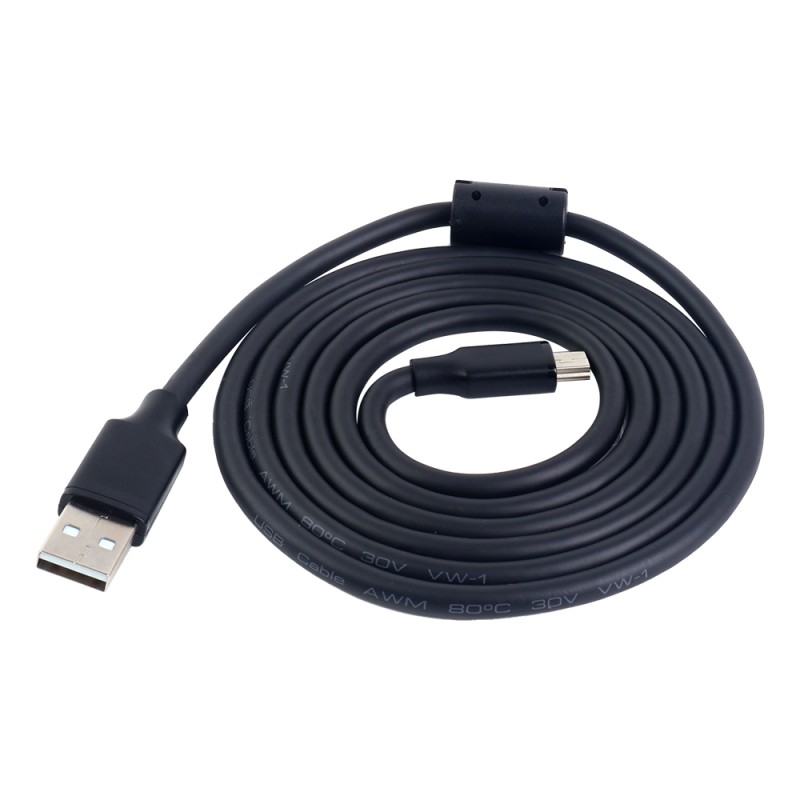

  • 1 x RS232-6
Product Type
Product Type Driver
Electrical Specification
Analog Input No
Control Modes EtherCAT
Encoder Feedback Yes (Closed Loop)
Input Voltage Reference(V) 24 - 50DC
Max. Output Current RMS(A) 4.0
No. of Phase 2
Output Current(A) 0 - 7.2
Physical Specification
Installation Type Split

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
