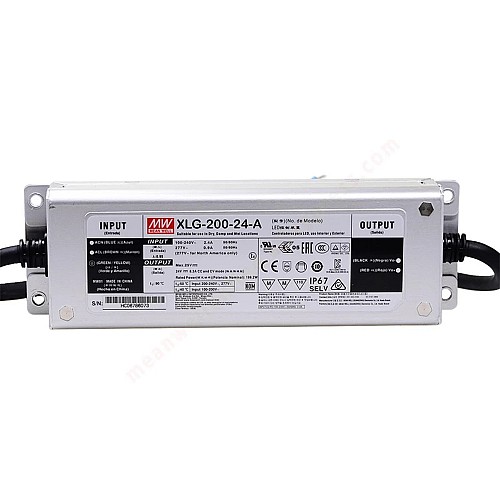

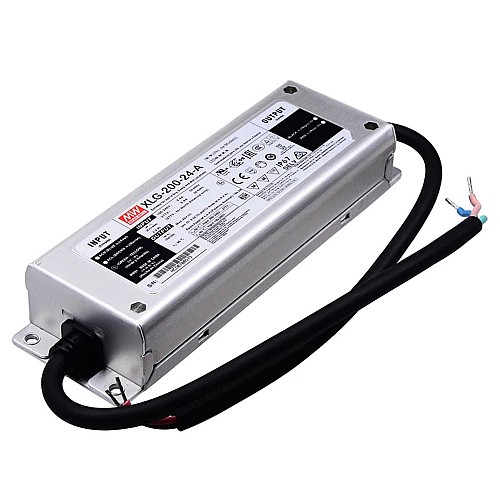

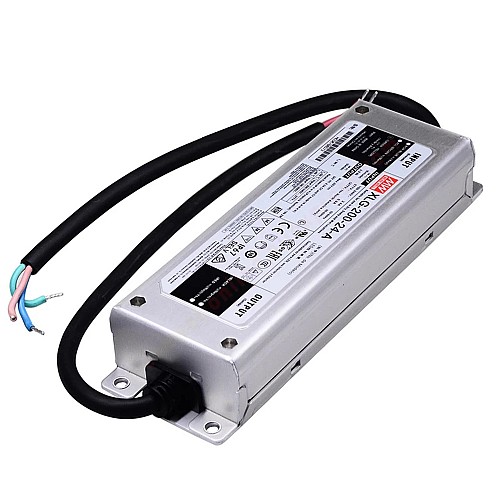

XLG-200-24-A MEANWELL 199.2W 24VDC 8.3A 115/230VAC Constant Power Mode LED Driver

XLG-200-24-A MEANWELL 199.2W 24VDC 8.3A 115/230VAC Constant Power Mode LED Driver - XLG-200-24-A | StepperOnline UK
XLG-200-24-A MEANWELL 199.2W 24VDC 8.3A 115/230VAC Constant Power Mode LED Driver - XLG-200-24-A | StepperOnline UK
XLG-200-24-A MEANWELL 199.2W 24VDC 8.3A 115/230VAC Constant Power Mode LED Driver - XLG-200-24-A | StepperOnline UK
Pre-order
XLG-200-24-A MEANWELL 199.2W 24VDC 8.3A 115/230VAC Constant Power Mode LED Driver - XLG-200-24-A | StepperOnline UK
XLG-200-24-A MEANWELL 199.2W 24VDC 8.3A 115/230VAC Constant Power Mode LED Driver - XLG-200-24-A | StepperOnline UK
XLG-200-24-A MEANWELL 199.2W 24VDC 8.3A 115/230VAC Constant Power Mode LED Driver - XLG-200-24-A | StepperOnline UK
XLG-200-24-A
Max. Output Current(A)8.3
Output Voltage(VDC)24
Efficiency(%)94%
Question

Pre-order: A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Downloads

Same series
ModelMax. Output Current(A)Output Voltage(VDC)Efficiency(%)PriceStock
DR-RDN2020——£20.35In stock
DRA-40-123.341285%£16.79Backorder
DRA-40-241.72487%£16.79Backorder
DRA-60-1251285%£18.68Backorder
DRA-60-242.52487%£18.68Backorder
DRDN40-12401298%£26.99Backorder
DRDN40-24402498%£26.99Backorder
DRDN40-48404898%£26.99Backorder
EDR-120-12101285%£15.07In stock
EDR-120-2452487.5%£15.07Backorder
EDR-120-48-SALE2.54888.5%£16.03In stock
EDR-150-246.52487%£21.18Backorder
EDR-75-126.31285.5%£17.73Backorder
EDR-75-243.22487.5%£12.71In stock
EDR-75-481.64888.5%£17.73Backorder
ELG-150-24A-3Y5.62489£21.50Backorder
ERP-200-1216.81287%£22.91Backorder
ERP-200-248.332489%£22.91Backorder
ERP-350-1226.71287%£28.87Backorder
ERP-350-2414.62489%£28.87Backorder
ERPF-400-12301289%£33.27Backorder
ERPF-400-2416.72490%£33.27Backorder
GSM120B24-R7B5240.9£37.82Backorder
GSM40A07-P1J5.347.50.855£16.16Backorder
GSM40A15-P1J2.67150.885£16.16Backorder
GSM60A05-P1J650.815£18.04Backorder
GSM60A07-P1J67.50.86£18.04Backorder
GSM60A09-P1J690.875£18.04Backorder
GSM60A24-P1J2.5240.905£18.04Backorder
GSM60A48-P1J1.25480.915£18.04Backorder
View all in category
XLG-200-24-A MEANWELL 199.2W 24VDC 8.3A 115/230VAC Constant Power Mode LED Driver
Features Brand MEANWELL 24V DC 8.3A output AC input voltage range: 100 ~ 305VAC Rated power: 1... Read More
from
£27.62
5 or more: £26.81
10 or more: £26.05
50 or more: £25.33
100 or more: £24.65

Select a country to see live stock

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

Features

  • Brand MEANWELL
  • 24V DC 8.3A output
  • AC input voltage range: 100 ~ 305VAC
  • Rated power: 199.2W
  • Full power output at 70~100% Constant power mode operation
  • Metal case with IP67, suitable for outdoor application
  • Surge protection with 6KV/4KV(10KV/6KV optional)
  • 3 in 1 dimming function (Dim to off and Isolation design)
  • India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
  • Protection functions: OVP/SCP/OCP/OTP
  • Life time >50,000 hrs. and 5 years warranty
  • Io adjustable via built-in potentiometer
  • Standard version

Applications

  • Skyscraper lighting
  • Street lighting
  • Floodlight Lighting
  • Stage lighting
  • Fishing lighting
  • Horticulture lighting
  • Bay lighting
  • DMX power supply
  • Type "HL" for use in Class Ⅰ, Divsion 2
Electrical Specification
Efficiency(%) 94%
Max. Output Current(A) 8.3
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 199 x 63 x 35.5
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 100 - 305 / 142 - 431
Output Voltage(VDC) 24
PFC Function Yes
Power Type LED Driver
Power(W) 199.2
