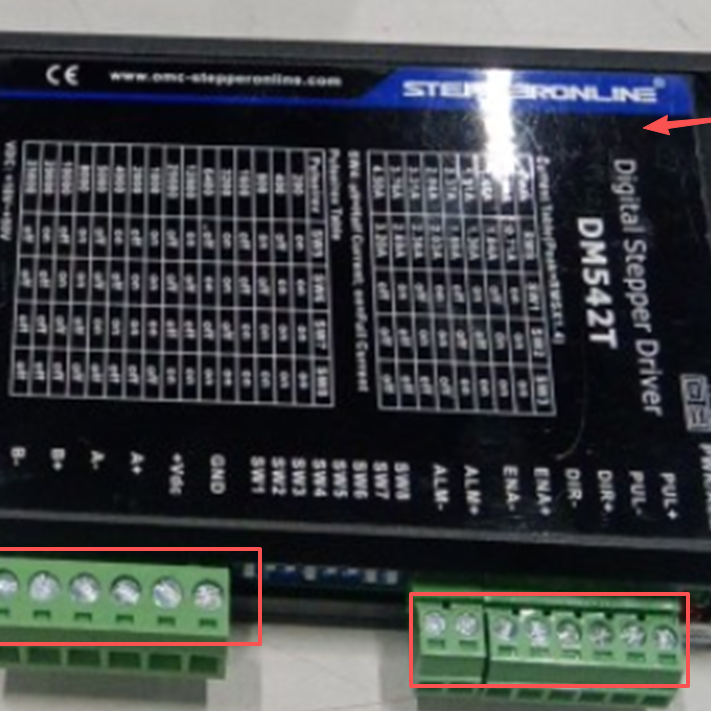

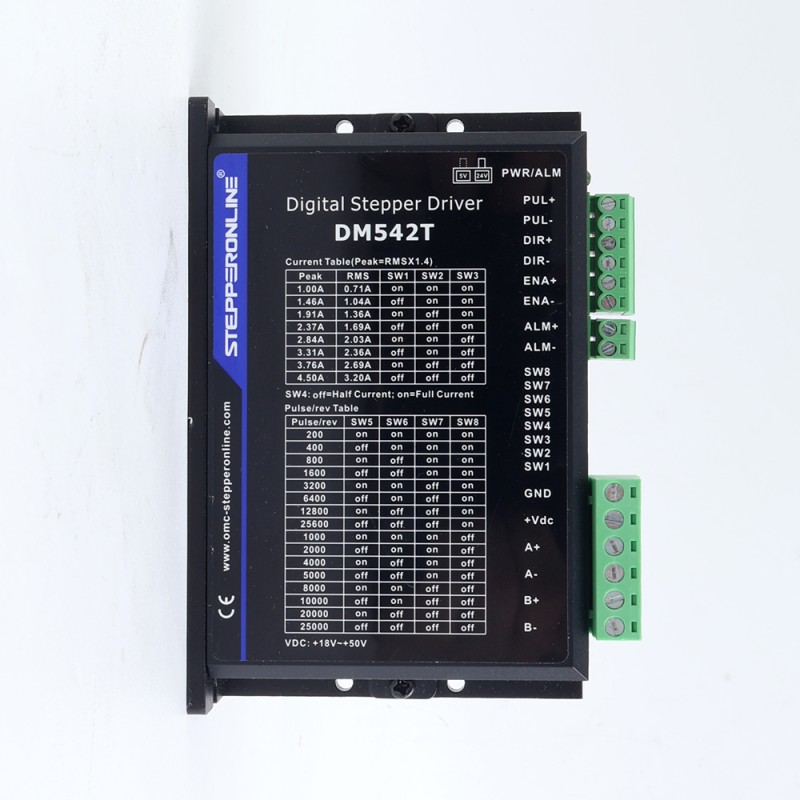

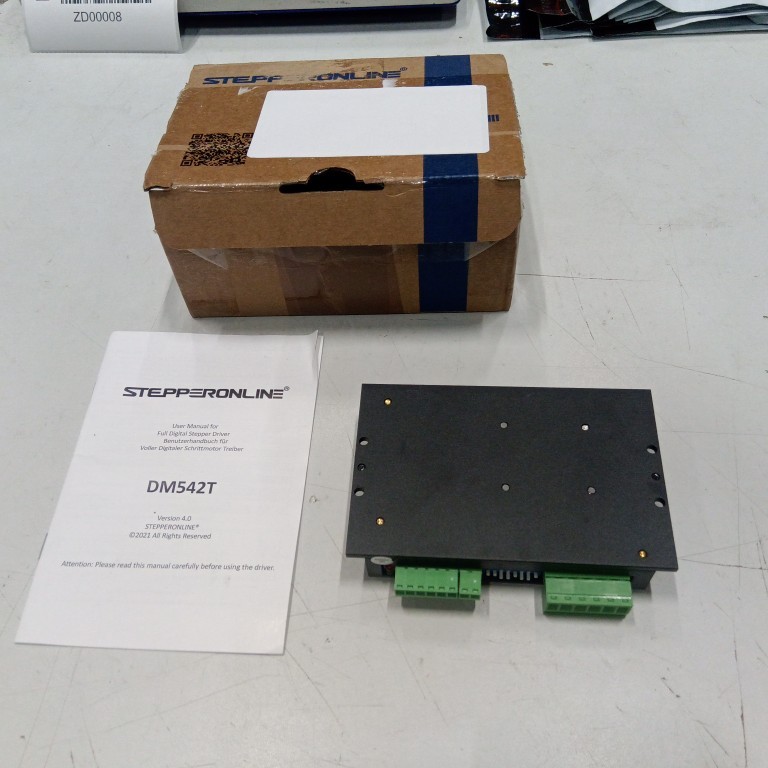

Used - Stock in Germany - Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor

The DM542T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM542T can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM542T an ideal choice for high requirement applications. It is highly recommended to work as nema 17 driver and nema 23 driver.

Key Features

• Support PUL/DIR mode
• Automatic idle-current reduction
• Over-voltage and over-current protections
• Soft-start with no "jump" when powered on
• 5V/24V logic voltage selector, default setting 24V
• Anti-Resonance provides optimal torque and nulls mid-range instability
• Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
• Suitable for 2-phase and 4-phase motors, works well as nema 17 driver, nema 23 driver
• 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.50A
• Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
• Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
• 16 selectable microstep resolutions including 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000

Electrical Specifications

• Output Peak Current: 1.0~4.5A(3.2RMS)
• Input Voltage: +18~50VDC(Typical 36VDC)
• Logic Signal Current: 7~16mA(Typical 10mA)
• Pulse Input Frequency: 0~200kHz
• Pulse Width: 2.5μS
• Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0℃ － 65℃
• Humidity: 40%RH－90%RH
• Operating Temperature: 0℃ － 40℃
• Vibration: 10-55Hz / 0.15mm
• Storage Temperature: -20℃ － 65℃
• Weight: Approx.210g(7.4oz)
