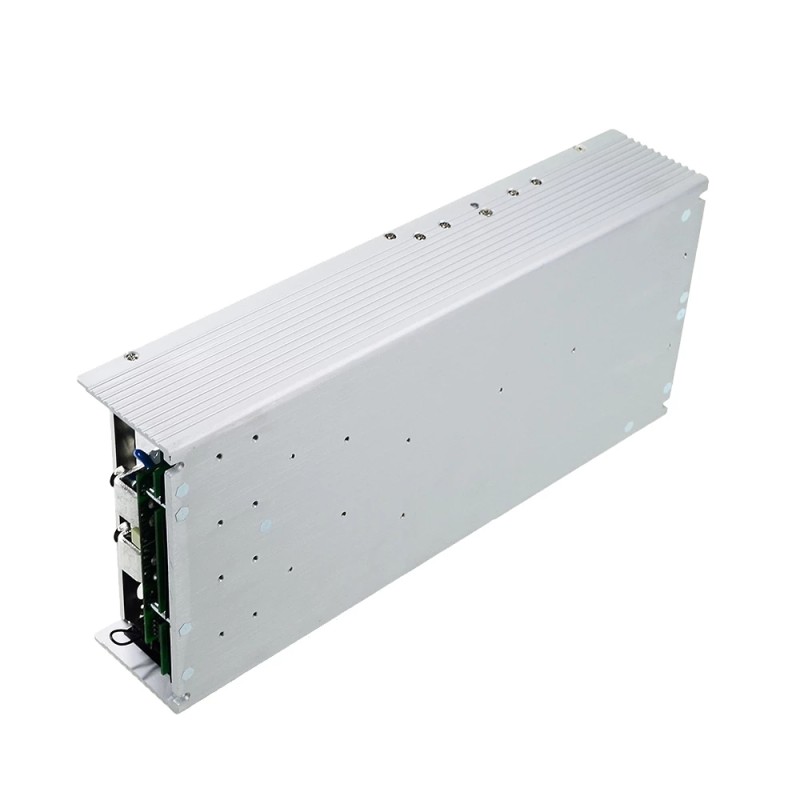

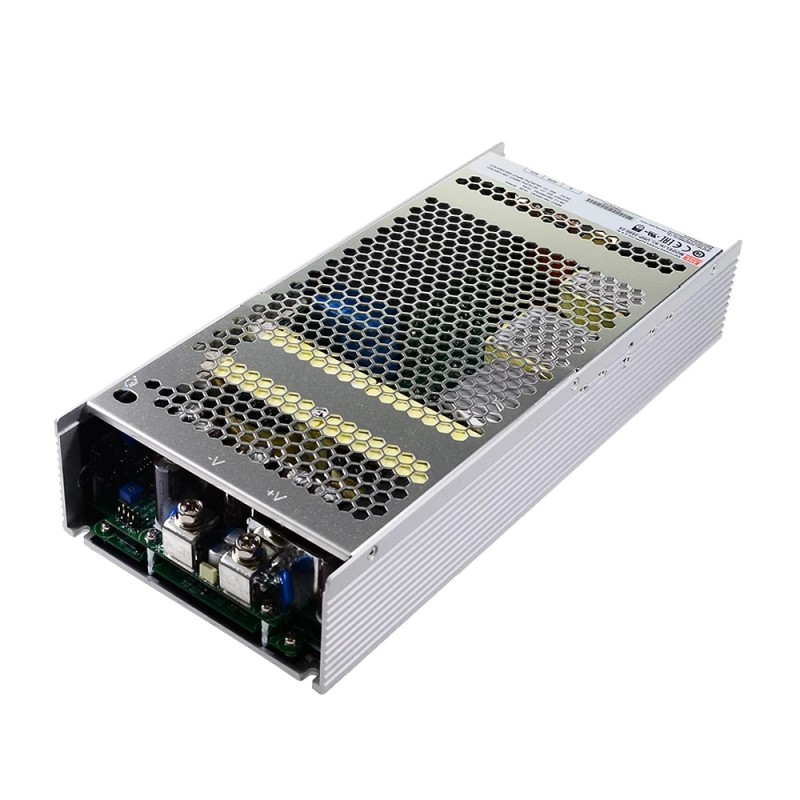

UHP-2500-36 MEANWELL 2498.4W 69.4A 115/230VAC Slim Type With PFC Switching Power Supply

UHP-2500-36 MEANWELL 2498.4W 69.4A 115/230VAC Slim Type With PFC Switching Power Supply - UHP-2500-36 | StepperOnline UK
UHP-2500-36 MEANWELL 2498.4W 69.4A 115/230VAC Slim Type With PFC Switching Power Supply - UHP-2500-36 | StepperOnline UK
Pre-order
UHP-2500-36 MEANWELL 2498.4W 69.4A 115/230VAC Slim Type With PFC Switching Power Supply - UHP-2500-36 | StepperOnline UK
UHP-2500-36 MEANWELL 2498.4W 69.4A 115/230VAC Slim Type With PFC Switching Power Supply - UHP-2500-36 | StepperOnline UK
UHP-2500-36
Output Voltage(VDC)36
Power(W)2498.4
Input Voltage(VAC/VDC)90 - 264 / 250 - 370
Question

Downloads

UHP-2500.pdfPDF · 985.23KB
Same series
ModelOutput Voltage(VDC)Power(W)Input Voltage(VAC/VDC)PriceStock
ERP-200-1212200.4180 - 264 / 254 - 370—£22.91Backorder
ERP-200-2424199.92180 - 264 / 254 - 370—£22.91Backorder
ERP-350-1212320.4180 - 264 / 254 - 370—£28.87Backorder
ERP-350-2424350.4180 - 264 / 254 - 370—£28.87Backorder
ERPF-400-121236090 - 264 / 127 - 370—£33.27Backorder
ERPF-400-2424400.890 - 264 / 127 - 370—£33.27Backorder
HRP-600-242464885 - 264 / 120 - 370—£146.09Backorder
HRPG-1000-2424100890 - 264 / 127 - 370—£149.07In stock
KNX-20E-640-SALE————£47.40In stock
LE-201-3636201115 / 230—£11.77In stock
LE-250-3636250115 / 230—£11.77In stock
LE-250-4848250115 / 230—£11.77In stock
LE-350-3636350115 / 230—£14.13In stock
LE-350-36-USED36350115 / 230—£9.73In stock
LE-350-4848350115 / 230—£14.13In stock
LE-350-6060350115 / 230—£14.13In stock
LE-400-2424400115 / 230—£15.69In stock
LE-400-3636400115 / 230—£15.69In stock
LE-400-4848400115 / 230—£15.69In stock
LM100-10C051212-355,12,-129490 - 264/120 - 370—£14.28Backorder
LM100-10C051515-305,15,-159590 - 264/120 - 370—£14.28Backorder
LM100-10C052412-205, 24, 129690 - 264/120 - 370—£14.28Backorder
LM100-10D0524-305,249790 - 264/120 - 370—£13.66Backorder
LM100-10D1224-2012,249690 - 264/120 - 370—£13.66Backorder
LM100-20B0559085 - 264/120 - 370—£8.57Backorder
LM100-20B121210285 - 264/120 - 370—£7.70Backorder
LM100-20B151510585 - 264/120 - 370—£7.70Backorder
LM100-20B242410885 - 264/120 - 370—£7.33Backorder
LM100-20B3636100.885 - 264/120 - 370—£7.70Backorder
LM100-20B4848110.485 - 264/120 - 370—£7.70Backorder
View all in category
UHP-2500-36 MEANWELL 2498.4W 69.4A 115/230VAC Slim Type With PFC Switching Power Supply
Features Brand MEANWELL 36V DC 69.4A output AC input voltage range: 90 ~ 264VAC Rated power: 2... Read More
0 reviews • Write a review
from
£649.93
5 + £630.95
10 + £613.05
50 + £596.13
100 + £580.14

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

Features

  • Brand MEANWELL
  • 36V DC 69.4A output
  • AC input voltage range: 90 ~ 264VAC
  • Rated power: 2500.8W
  • Slim and Low profile(60mm)
  • Fanless design and conduction-cooled design
  • Built-in active PFC function
  • -30~+70℃ working temperature
  • Output voltage and constant current level programmable
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in remote ON-OFF control
  • DC OK active signal
  • Operating altitude up to 5000 meter(Note.8)
  • LED indicator for power on
  • Optioanl PMBus or CANBus protocol
  • 5 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Test and measurement instruments
  • Laser related machine
  • Charging related equipment
  • Household appliances
  • Power Source Equipment for PoE(48V model: DC O/P range 48~57.6V)
Electrical Specification
Efficiency(%) 95.5%
Max. Output Current(A) 69.4
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 310 x 140 x 60
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 90 - 264 / 250 - 370
Output Voltage(VDC) 36
PFC Function No
Power Type Switching Power Supply
Power(W) 2498.4
