Name: TS Series 4 Axis 9.0Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
Brand: STEPPERONLINE
SKU: 4-CLTS90-V41
Price: 320.31 GBP
Availability: InStock

TS Series 4 Axis 9.0Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply - 4-CLTS90-V41 | StepperOnline UK

4-CLTS90-V41

Output Shaft TypeKeyway

Shaft Diameter(mm)14

Shaft Length(mm)37

Encoder Resolution1000PPR

Question

Downloads

34HS46-6004D-E1000_Full_Datasheet.pdfPDF · 162.44KB S-350-60.pdfPDF · 128.44KB CL86T-V41.STEPSTEP · 6.95MBLog in to download MotionStudio_v1.4.10.rarRAR · 14.35MB CL86T-V41_Manual.pdfPDF · 736.82KB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Encoder Resolution	Price	Stock
1-ACLYS120	Keyway	14	37	1000PPR	£82.43	In stock
1-ACLYS120-1M5	Keyway	14	37	1000PPR	£78.93	In stock
1-ACLYS65	Keyway	14	37	1000PPR	£89.72	In stock
1-ACLYS65-1M5	Keyway	14	37	1000PPR	£71.08	In stock
1-CL42T-P05-V41	D	5	24	1000PPR	£61.15	In stock
1-CL42T-P07-V41	D	5	24	1000PPR	£62.72	In stock
1-CL42T-S01-V41	D	5	20	1000PPR	£36.85	In stock
1-CL42T-S04-V41	D	5	24	1000PPR	£37.95	In stock
1-CL42T-S05-V41	D	5	24	1000PPR	£38.60	In stock
1-CL42T-S08-V41	D	5	24	1000PPR	£39.43	In stock
1-CL57T-P12-V41	D	8	21	1000PPR	£65.84	In stock
1-CL57T-P20-V41	D	8	21	1000PPR	£68.41	In stock
1-CL57T-P30-V41	D	10	21	1000PPR	£74.25	In stock
1-CL57T-S12-V41	D	8	21	1000PPR	£44.10	In stock
1-CL57T-S20-V41	D	8	21	1000PPR	£46.34	In stock
1-CL57T-S30-V41	D	10	21	1000PPR	£49.53	In stock
1-CL57T-S30A-V41	D	8	21	1000PPR	£50.83	In stock
1-CL57T-S40-V41	D	10	21	1000PPR	£51.34	In stock
1-CL57TE-S12	D	8	21	1000PPR	£44.41	In stock
1-CL57TE-S20	D	8	21	1000PPR	£46.82	In stock
1-CL57TE-S30	D	10	21	1000PPR	£50.14	In stock
1-CL57TE-S30A	D	8	21	1000PPR	£51.62	In stock
1-CL57TE-S40	D	10	21	1000PPR	£52.17	In stock
1-CL57Y-S12-V20	D	8	21	1000PPR	£37.72	In stock
1-CL57Y-S20-V20	D	8	21	1000PPR	£39.76	In stock
1-CL57Y-S30	D	8	22	1000PPR	£61.56	In stock
1-CL57Y-S30-1M5	D	8	21	1000PPR	£38.60	In stock
1-CL57Y-S30-1M5-V20	D	8	21	1000PPR	£38.43	In stock
1-CL57Y-S30-V20	D	8	22	1000PPR	£41.96	In stock
1-CL57Y-S30A-V20	D	8	21	1000PPR	£43.84	In stock

View all in category

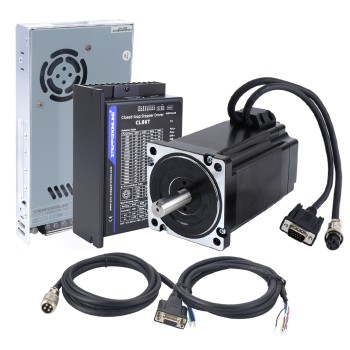

TS Series 4 Axis 9.0Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply

This CNC kit included: 4 x 34HS46-6004D-E1000: Nema 34 Closed Loop Stepper Motor 9.0Nm/1274.5oz.in ... Read More

0 reviews • Write a review

from

£320.31

5 + £310.07

10 + £300.45

50 + £291.42

100 + £282.91

Click country for live stock

Dispatches from

China

Germany (+£23.34)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

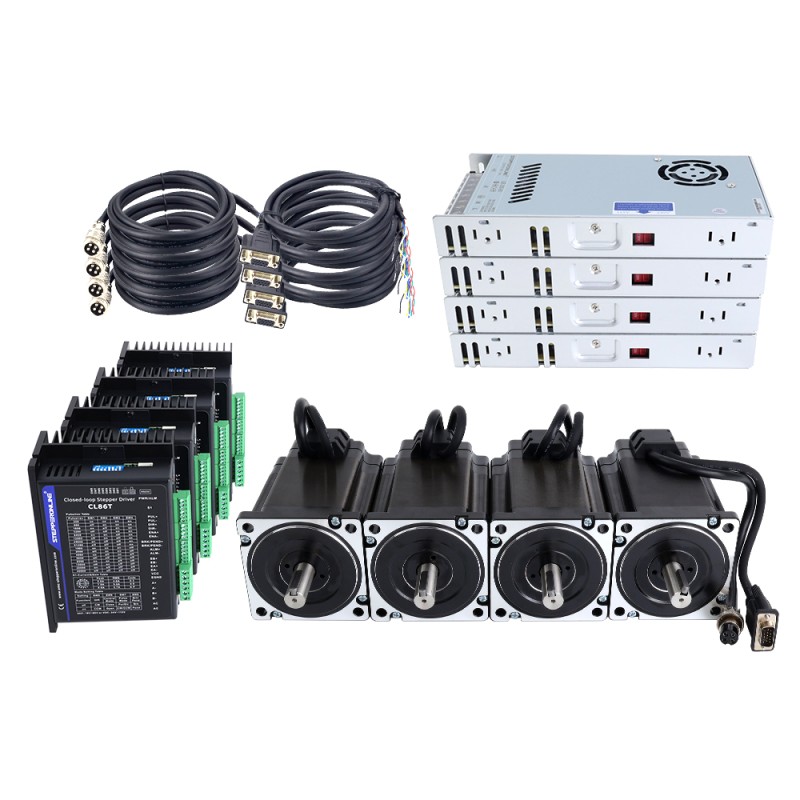

This CNC kit included:

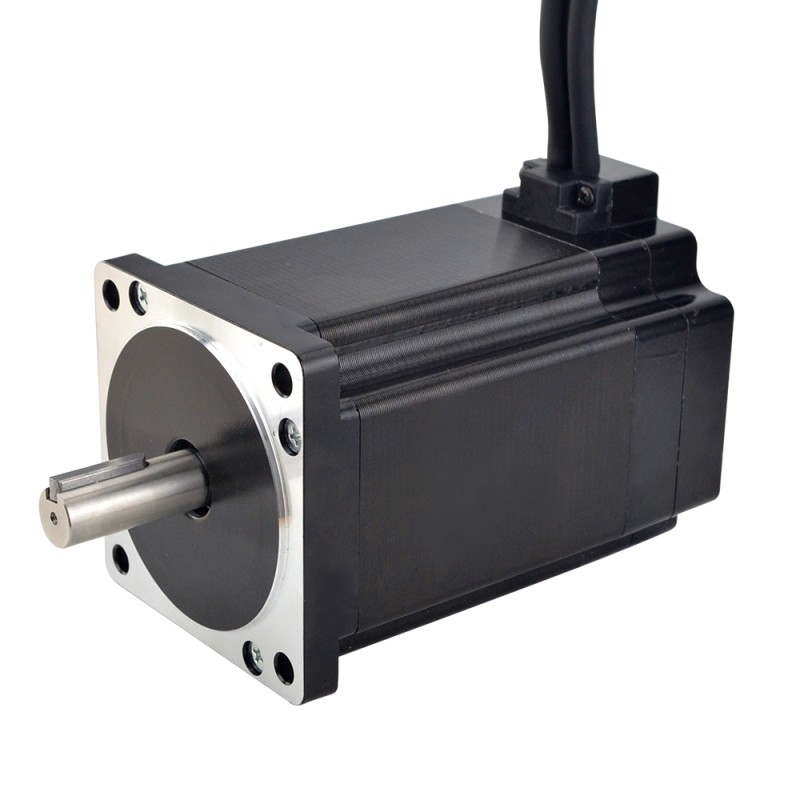

4 x 34HS46-6004D-E1000: Nema 34 Closed Loop Stepper Motor 9.0Nm/1274.5oz.in with Encoder 1000PPR

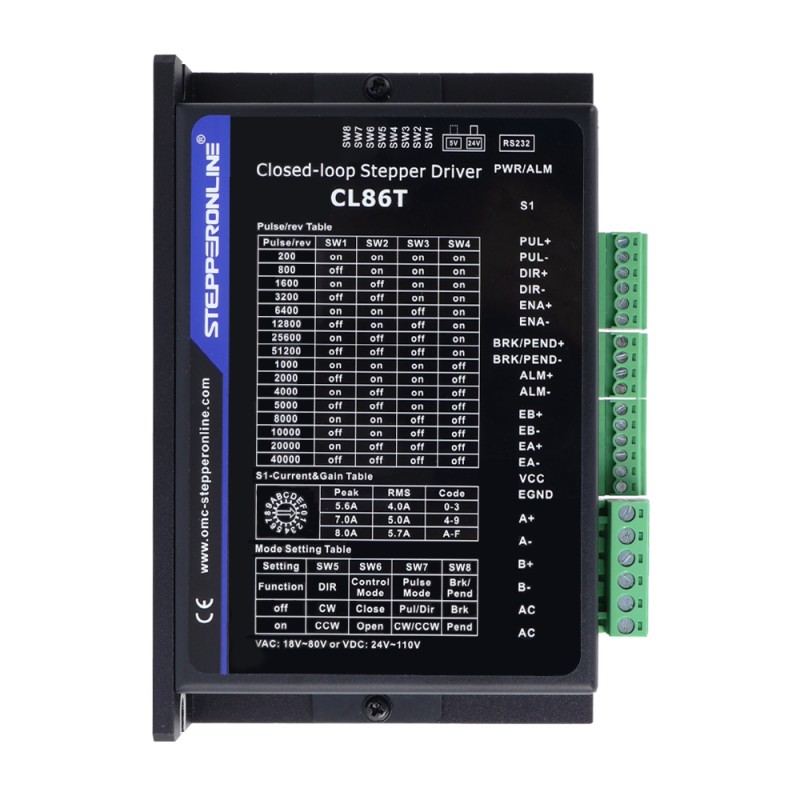

4 x CL86T-V41: Closed Loop Stepper Driver V4.1 0~8.0A 18~80VAC/24~110VDC for Nema 34 Stepper Motor

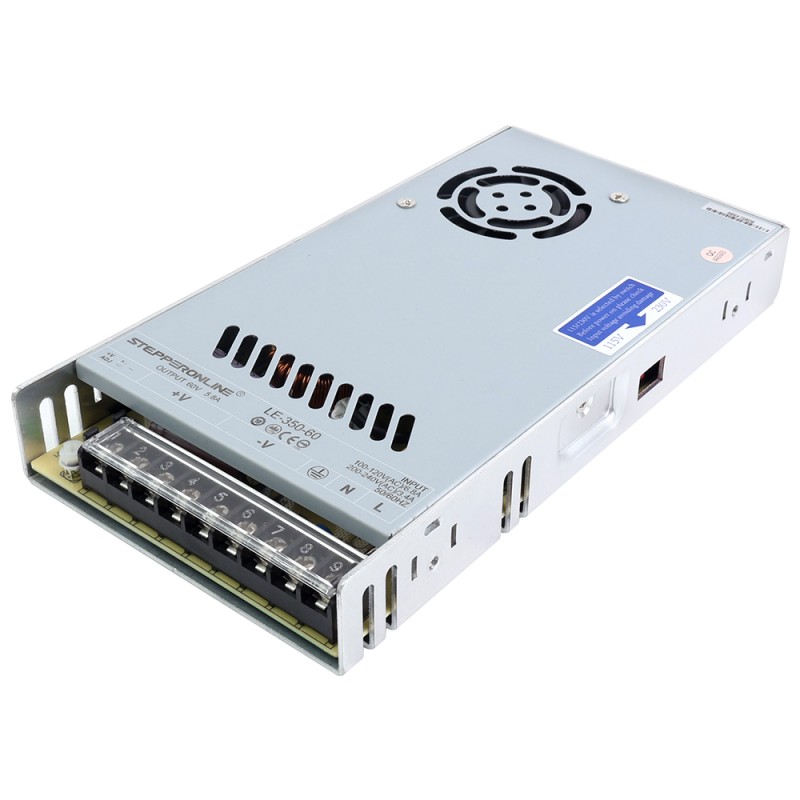

4 x LE-350-60: 350W 60V 5.8A 115/230V Switching Power Supply Stepper Motor CNC Router Kits

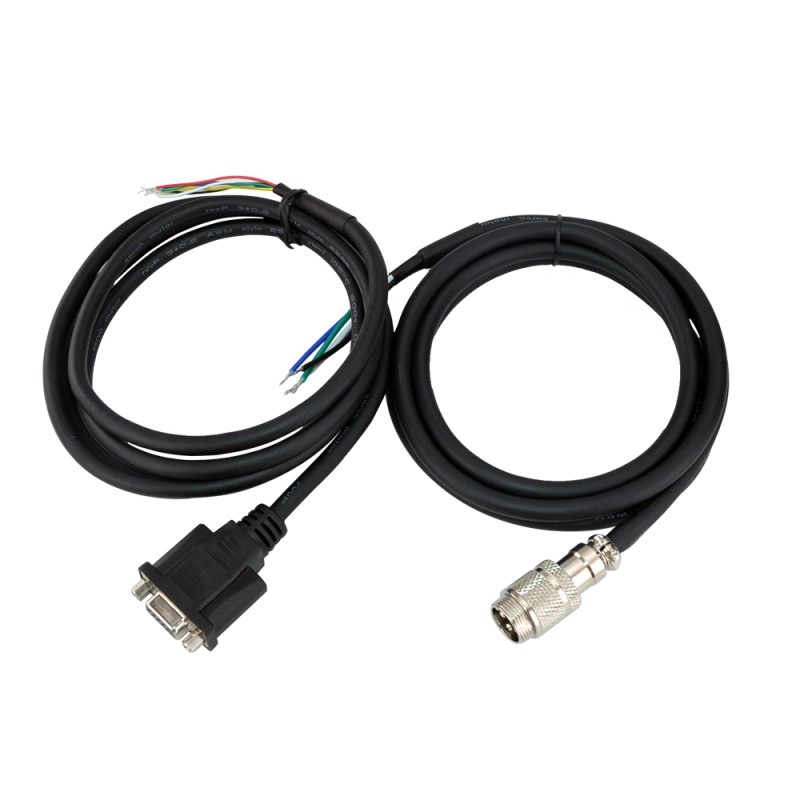

4 x CE2M: 1.7m(67") Long Encoder Extension Cable for Closed Loop Stepper Motor
4 x CM2M-18: AWG18 1.7m(67") Long Motor Extension Cable with GX16 Aviation Plug
1 x CABLE-PC-1: RS232 Debugging Cable

Motor Specification

Manufacturer Part Number: 34HS46-6004D-E1000
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 9.0Nm(1274.5oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.4ohms± 10%
Inductance: 3.6mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 137mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Lead Length: 300mm
Insulation Class: B 130°C[266°F]

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~8.0A
Input Voltage: +18~80VAC/24~110VDC
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Quick response, no delay and almost no settle time
High torque at starting and low speed, high stiffness at standstill
Offer servo-like performance at a much lower cost

Power Supply Specification

Part Number: LE-350-60
Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 60V
Output Current: 5.8A
Rated Output Power: 350W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

Motor Extension Cable Connection

PIN	1	2	3	4
Color	Black	Green	Red	Blue

Encoder Extension Cable Connection

PIN	2	3	1	13	11	12
Color	Red	White	Black	Blue	Yellow	Green

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	900
Holding Torque(oz.in)	1274.5
Inductance(mH)	3.6
Input Voltage Reference(V)	18 - 80AC / 24 - 110DC
Number of Axes	4
Output Circuit Type	Differential type
Output Signal Channels	3
Phase Resistance(ohms)	0.4
Rated Current(A)	6.0
Physical Specification
Cable Length(mm)	2000
Frame Size(mm)	Nema 34 (86 x 86)
Output Shaft Type	Keyway
Power Supply	Power Supply
Product Series	TS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37
