Name: TES Series 1 Axis Stepper CNC Kit 4.5Nm(637.25oz.in) Nema 34 Stepper Motor & Driver DM860TE
Brand: STEPPERONLINE
SKU: 1-DM860TE-34HS31
Price: 46.10 GBP
Availability: InStock

TES Series 1 Axis Stepper CNC Kit 4.5Nm(637.25oz.in) Nema 34 Stepper Motor & Driver DM860TE - 1-DM860TE-34HS31 | StepperOnline UK

1-DM860TE-34HS31

Output Shaft TypeKeyway

Holding Torque(Ncm)450

Holding Torque(oz.in)637.25

Frame Size(mm)Nema 34 (86 x 86)

Question

Downloads

DM860TE.STEPSTEP · 21.19MBLog in to download TE_series_user_manual.pdfPDF · 1.01MB 34HS31-5504S_Torque_Curve.pdfPDF · 214.75KB CABLE-PC-1.pdfPDF · 283.64KB 34HS31-5504S_Full_Datasheet.pdfPDF · 147.52KB

Same series

Model	Output Shaft Type	Holding Torque(Ncm)	Holding Torque(oz.in)	Frame Size(mm)	Price	Stock
1-DM542T-23HS32	D	240	339.87	Nema 23 (57 x 57)	£23.23	In stock
1-DM542T-23HS45	D	300	425	Nema 23 (57 x 57)	£27.93	In stock
1-DM542T-S30	D	300	425	Nema 23 (57 x 57)	£40.01	In stock
1-DM542TE-23HS30	D	200	283.22	Nema 23 (57 x 57)	£20.06	In stock
1-DM542TE-23HS32	D	240	339.87	Nema 23 (57 x 57)	£20.22	In stock
1-DM542TE-23HS45	D	300	424.83	Nema 23 (57 x 57)	£24.27	In stock
1-DM542TE-S30	D	300	424.83	Nema 23 (57 x 57)	£35.27	In stock
1-DM542Y-23HS30	D	190	269.06	Nema 23 (57 x 57)	£21.03	In stock
1-DM542Y-S19	D	190	269.06	Nema 23 (57 x 57)	£33.11	In stock
1-DM556T-23HS45	D	300	425	Nema 23 (57 x 57)	£29.50	In stock
1-DM556T-24HS39	D	340	481.48	Nema 24 (60 x 60)	£44.15	Backorder
1-DM556TE-23HS45	D	300	424.83	Nema 23 (57 x 57)	£25.40	In stock
1-DM556TE-24HS39	D	340	481.48	Nema 24 (60 x 60)	£29.93	In stock
1-DM556Y-23HS39	D	300	425	Nema 23 (57 x 57)	£26.01	In stock
1-DM556Y-S30	D	300	425	Nema 23 (57 x 57)	£38.10	In stock
1-DM860I-34HS31	Keyway	480	679.74	Nema 34 (86 x 86)	£39.70	In stock
1-DM860I-34HS31-SALE	Keyway	480	679.74	Nema 34 (86 x 86)	£38.78	In stock
1-DM860I-34HS39	Keyway	800	1132.89	Nema 34 (86 x 86)	£42.83	In stock
1-DM860I-34HS39-SALE	Keyway	800	1132.89	Nema 34 (86 x 86)	£45.35	In stock
1-DM860I-34HS45	Keyway	820	1161.45	Nema 34 (86 x 86)	£44.66	In stock
1-DM860I-34HS45-SALE	Keyway	820	1161.45	Nema 34 (86 x 86)	£43.62	In stock
1-DM860I-34HS59	Keyway	1200	1699.68	Nema 34 (86 x 86)	£51.47	In stock
1-DM860I-S120	Keyway	1200	1699.34	Nema 34 (86 x 86)	£67.94	In stock
1-DM860I-S80	Keyway	800	1132.89	Nema 34 (86 x 86)	£59.31	In stock
1-DM860T-34HS31	Keyway	450	637	Nema 34 (86 x 86)	£61.11	Backorder
1-DM860T-34HS59	D	1300	1841	Nema 34 (86 x 86)	£74.16	Backorder
1-DM860TE-34HS31	Keyway	450	637.25	Nema 34 (86 x 86)	£46.10	In stock
1-DM860Y-34HS30	D	480	679.74	Nema 34 (86 x 86)	£37.98	In stock
1-DM860Y-34HS30-SALE	D	480	679.74	Nema 34 (86 x 86)	£37.95	In stock
1-DM860Y-34HS39	Keyway	800	1132.89	Nema 34 (86 x 86)	£40.80	In stock

View all in category

TES Series 1 Axis Stepper CNC Kit 4.5Nm(637.25oz.in) Nema 34 Stepper Motor & Driver DM860TE

This CNC kit included: 1 x DM860TE: TE Series Digital Stepper Driver 2.4-7.2A 20-80VAC/30-100VDC ... Read More

0 reviews • Write a review

from

£46.10

5 + £44.72

10 + £43.41

50 + £42.19

100 + £41.02

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

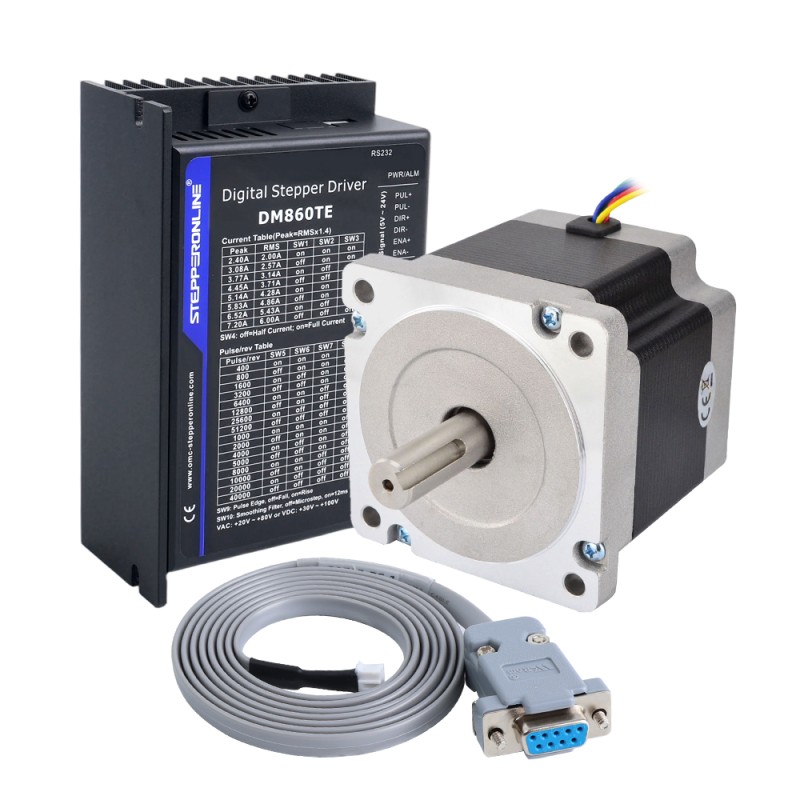

This CNC kit included:

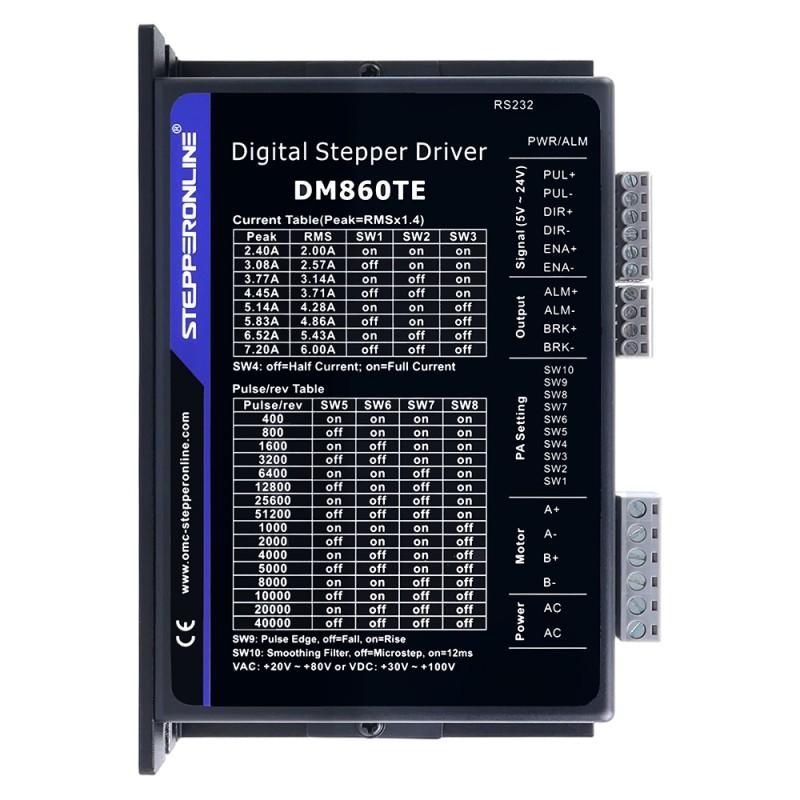

1 x DM860TE: TE Series Digital Stepper Driver 2.4-7.2A 20-80VAC/30-100VDC for Nema 34 Motor

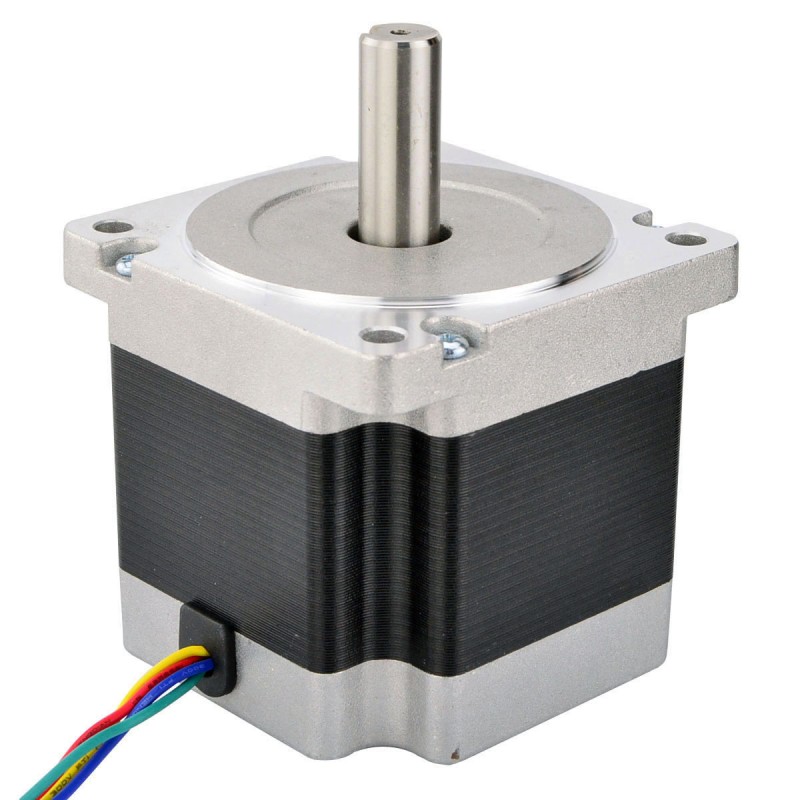

1 x 34HS31-5504S: Nema 34 CNC Stepper Motor 4.5Nm(637.25oz.in) 5.5A 86x86x80mm Key Way Shaft

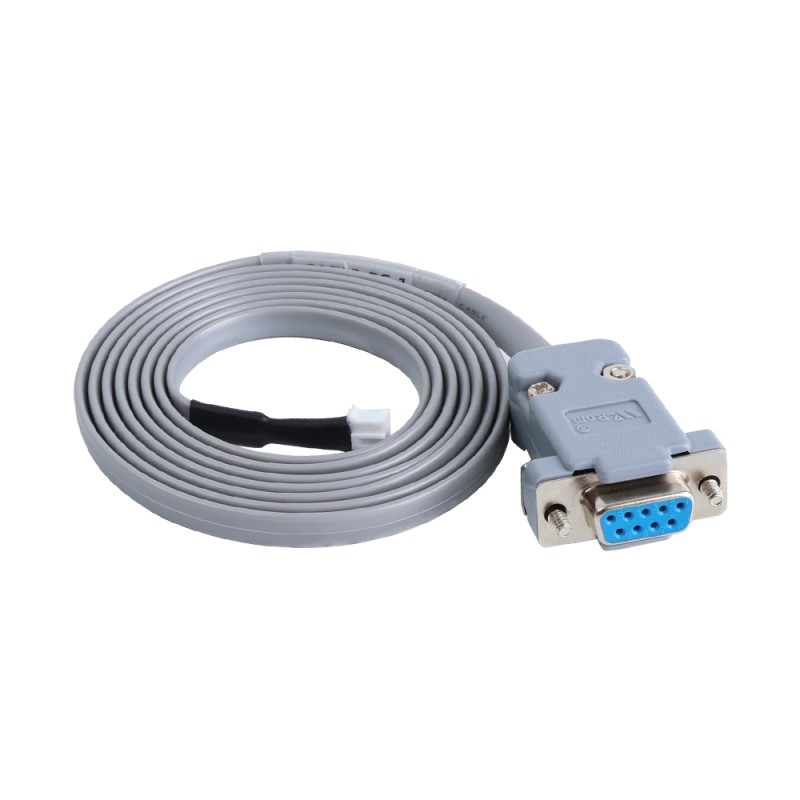

1 x CABLE-PC-1: RS232 Debugging Cable

Motor Specification

Manufacturer Part Number: 34HS31-5504S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 4.5Nm(637.25oz.in)
Rated Current/phase: 5.5A
Phase Resistance: 0.4ohms
Inductance: 3.5mH±20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 80mm
Shaft Diameter: Φ14mm
Shaft Length: 35mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 2.3kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Driver Specification

Output Peak Current: 2.4~7.2A(2.0~6.0RMS)
Input Voltage: +20~80VAC/30~100VDC
Logic Input Voltage: 5~24VDC
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Motor winding open circuit detection
Optically isolated inputs with 5V to 24V
Only supports single pulse
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-current protection
Soft-start with no "jump" when powered on
Anti-Resonance provides optimal torque and nulls mid-range instability
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
