Name: TES Series 1 Axis Stepper CNC Kit 3.4Nm(481.48oz.in) Nema 24 Stepper Motor & Driver DM556TE
Brand: STEPPERONLINE
SKU: 1-DM556TE-24HS39
Price: 29.93 GBP
Availability: InStock

TES Series 1 Axis Stepper CNC Kit 3.4Nm(481.48oz.in) Nema 24 Stepper Motor & Driver DM556TE - 1-DM556TE-24HS39 | StepperOnline UK

1-DM556TE-24HS39

Output Shaft TypeD

Holding Torque(Ncm)340

Holding Torque(oz.in)481.48

Frame Size(mm)Nema 24 (60 x 60)

Question

Downloads

24HS39-3008D.STEPSTEP · 1.63MBLog in to download DM556TE.STEPSTEP · 11.44MBLog in to download TE_series_user_manual.pdfPDF · 1.01MB 24HS39-3008D_Full_Datasheet.pdfPDF · 126.63KB 24HS39-3008D_Torque_Curve.pdfPDF · 213.2KB

Same series

Model	Output Shaft Type	Holding Torque(Ncm)	Holding Torque(oz.in)	Frame Size(mm)	Price	Stock
1-DM542T-23HS32	D	240	339.87	Nema 23 (57 x 57)	£23.23	In stock
1-DM542T-23HS45	D	300	425	Nema 23 (57 x 57)	£27.93	In stock
1-DM542T-S30	D	300	425	Nema 23 (57 x 57)	£40.01	In stock
1-DM542TE-23HS30	D	200	283.22	Nema 23 (57 x 57)	£20.06	In stock
1-DM542TE-23HS32	D	240	339.87	Nema 23 (57 x 57)	£20.22	In stock
1-DM542TE-23HS45	D	300	424.83	Nema 23 (57 x 57)	£24.27	In stock
1-DM542TE-S30	D	300	424.83	Nema 23 (57 x 57)	£35.27	In stock
1-DM542Y-23HS30	D	190	269.06	Nema 23 (57 x 57)	£21.03	In stock
1-DM542Y-S19	D	190	269.06	Nema 23 (57 x 57)	£33.11	In stock
1-DM556T-23HS45	D	300	425	Nema 23 (57 x 57)	£29.50	In stock
1-DM556T-24HS39	D	340	481.48	Nema 24 (60 x 60)	£44.15	Backorder
1-DM556TE-23HS45	D	300	424.83	Nema 23 (57 x 57)	£25.40	In stock
1-DM556TE-24HS39	D	340	481.48	Nema 24 (60 x 60)	£29.93	In stock
1-DM556Y-23HS39	D	300	425	Nema 23 (57 x 57)	£26.01	In stock
1-DM556Y-S30	D	300	425	Nema 23 (57 x 57)	£38.10	In stock
1-DM860I-34HS31	Keyway	480	679.74	Nema 34 (86 x 86)	£39.70	In stock
1-DM860I-34HS31-SALE	Keyway	480	679.74	Nema 34 (86 x 86)	£38.78	In stock
1-DM860I-34HS39	Keyway	800	1132.89	Nema 34 (86 x 86)	£42.83	In stock
1-DM860I-34HS39-SALE	Keyway	800	1132.89	Nema 34 (86 x 86)	£45.35	In stock
1-DM860I-34HS45	Keyway	820	1161.45	Nema 34 (86 x 86)	£44.66	In stock
1-DM860I-34HS45-SALE	Keyway	820	1161.45	Nema 34 (86 x 86)	£43.62	In stock
1-DM860I-34HS59	Keyway	1200	1699.68	Nema 34 (86 x 86)	£51.47	In stock
1-DM860I-S120	Keyway	1200	1699.34	Nema 34 (86 x 86)	£67.94	In stock
1-DM860I-S80	Keyway	800	1132.89	Nema 34 (86 x 86)	£59.31	In stock
1-DM860T-34HS31	Keyway	450	637	Nema 34 (86 x 86)	£61.11	Backorder
1-DM860T-34HS59	D	1300	1841	Nema 34 (86 x 86)	£74.16	Backorder
1-DM860TE-34HS31	Keyway	450	637.25	Nema 34 (86 x 86)	£46.10	In stock
1-DM860Y-34HS30	D	480	679.74	Nema 34 (86 x 86)	£37.98	In stock
1-DM860Y-34HS30-SALE	D	480	679.74	Nema 34 (86 x 86)	£37.95	In stock
1-DM860Y-34HS39	Keyway	800	1132.89	Nema 34 (86 x 86)	£40.80	In stock

View all in category

TES Series 1 Axis Stepper CNC Kit 3.4Nm(481.48oz.in) Nema 24 Stepper Motor & Driver DM556TE

This CNC kit includes: 1 x DM556TE: TE Series Digital Stepper Driver 1.8-5.6A 24-50VDC for Nema 2... Read More

0 reviews • Write a review

from

£29.93

5 + £29.02

10 + £28.18

50 + £27.38

100 + £26.62

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

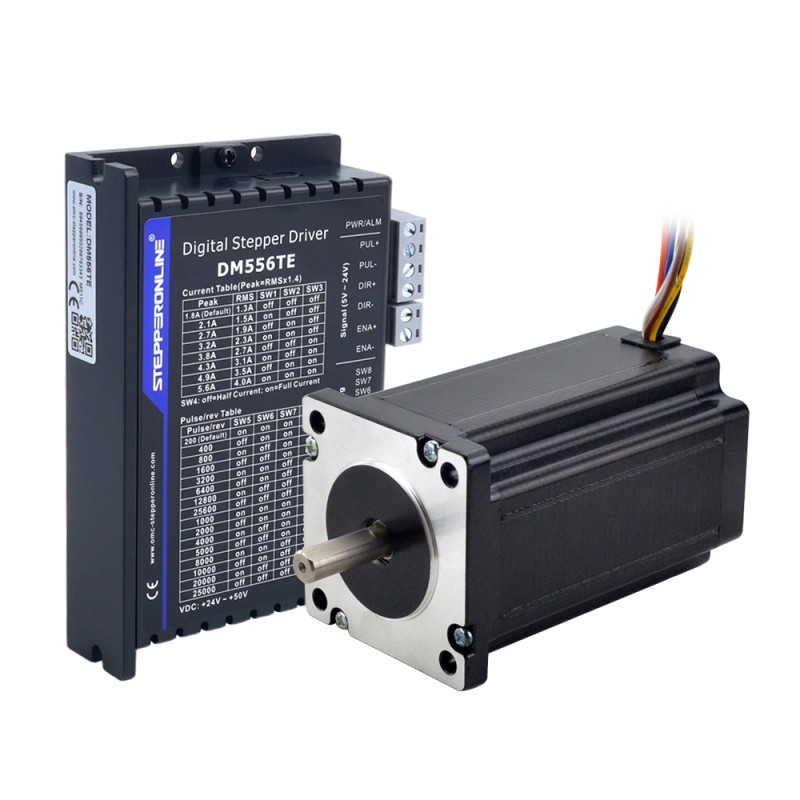

This CNC kit includes:

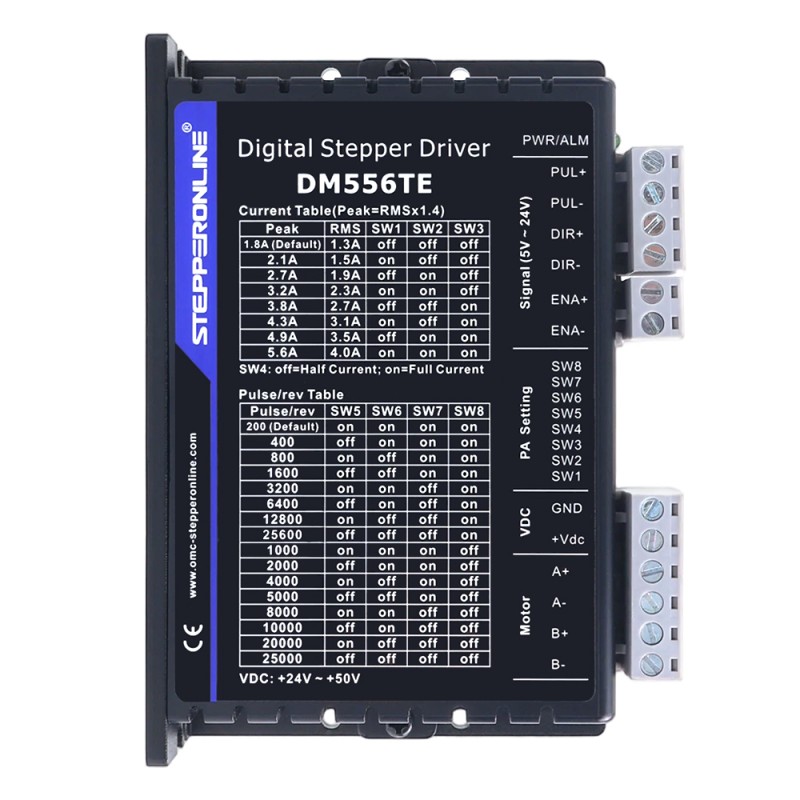

1 x DM556TE: TE Series Digital Stepper Driver 1.8-5.6A 24-50VDC for Nema 23, 24, 34 Motor

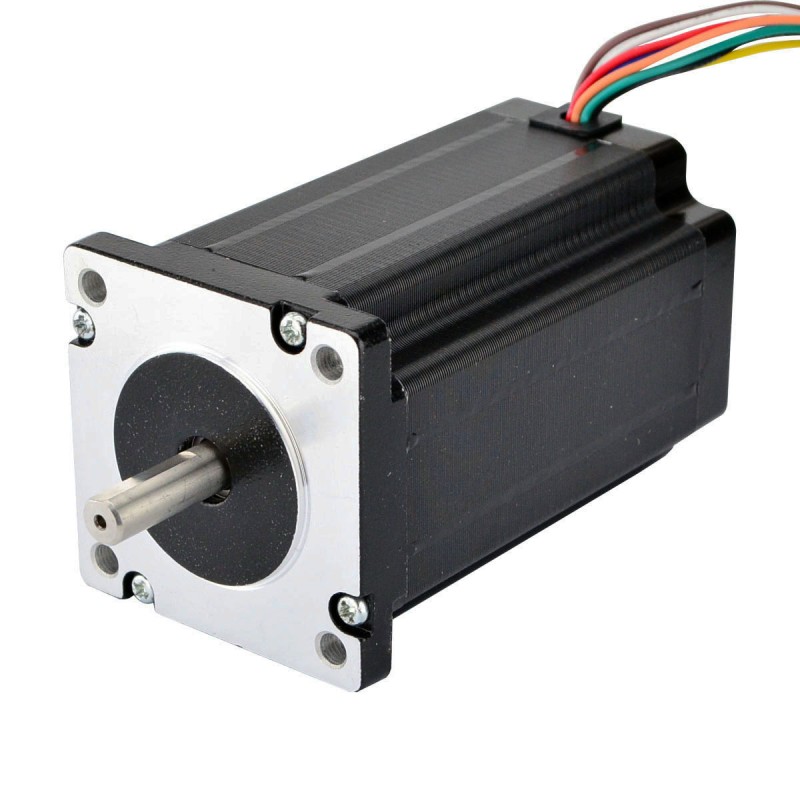

1 x 24HS39-3008D: Dual Shaft Nema 24 Bipolar 4Nm(566oz.in) 60x60x100mm 8 Wires

Motor Specification

Manufacturer Part Number: 24HS39-3008D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque(Bipolar): 4Nm(566oz.in)
Holding Torque(Unipolar): 2.8Nm(397oz.in)
Rated Current/phase(Bipolar Parallel): 4A
Rated Current/phase(Bipolar Serial): 2A
Rated Current/phase(Unipolar): 3A
Phase Resistance(Bipolar Parallel): 0.7ohms
Phase Resistance(Bipolar Serial): 2.8ohms
Phase Resistance(Unipolar): 1.4ohms
Inductance(Bipolar Parallel): 3mH±20%(1KHz)
Inductance(Bipolar Serial): 12mH±20%(1KHz)
Inductance(Unipolar): 3mH±20%(1KHz)
Frame Size: 60 x 60mm
Body Length: 100mm
Shaft Diameter: Φ8mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 400mm
Weight: 1.6kg

Connection

A+	A-	B+	B-
Red/Blue	Yellow/Black	White/Brown	Orange/Green

Driver Specification

Output Peak Current: 1.8~5.6A(1.3~4.0RMS)
Input Voltage: +24~50VDC
Logic Input Voltage: 5~24VDC
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Motor winding open circuit detection
Optically isolated inputs with 5V to 24V
Only supports single pulse
Automatic idle-current reduction
Pulse input frequency up to 200KHz
Step & direction(PUL/DIR) control
Multi-Stepping for smooth motor movement
Soft-start with no "jump" when powered on
Protections for over-voltage and over-current
TTL compatible and optically isolated inputsto 5.6A
16 selectable micro-step resolutions of 200-25,600 via DIP switches
8 selectable output current settings of 1.8A to 5.6A via DIP switches
Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	340
Holding Torque(oz.in)	481.48
Input Voltage Reference(V)	24 - 50DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 24 (60 x 60)
Output Shaft Type	D
Product Series	TES Series
Shaft Inner Diameter(mm)	8
