Name: S Series Standard Nema 24 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)
Brand: STEPPERONLINE
SKU: 24HS34A-5004D-E1000
Price: 26.59 GBP
Availability: InStock

S Series Standard Nema 24 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR) - 24HS34A-5004D-E1000 | StepperOnline UK

24HS34A-5004D-E1000

Shaft Diameter(mm)8

Shaft Length(mm)30

Output Signal Channels2

Holding Torque(Ncm)300

Question

Downloads

24HS34A-5004D-E1000_Full_Datasheet.pdfPDF · 195.25KB 24HS34A-5004D-E1000_Torque_Curve.pdfPDF · 142.77KB 24HS34A-5004D-E1000.STEPSTEP · 6.94MBLog in to download

Same series

Model	Shaft Diameter(mm)	Shaft Length(mm)	Output Signal Channels	Holding Torque(Ncm)	Price	Stock
24HS34-5004D-E1000	10	21	2	300	£26.66	In stock
24HS34A-5004D-E1000	8	30	2	300	£26.59	In stock
24HS40-5004-ME1K	10	21	3	400	£26.03	In stock
24HS40-5004D-E1000	10	21	2	400	£29.13	In stock
24HS40A-5004D-E1000	8	30	2	400	£29.06	In stock

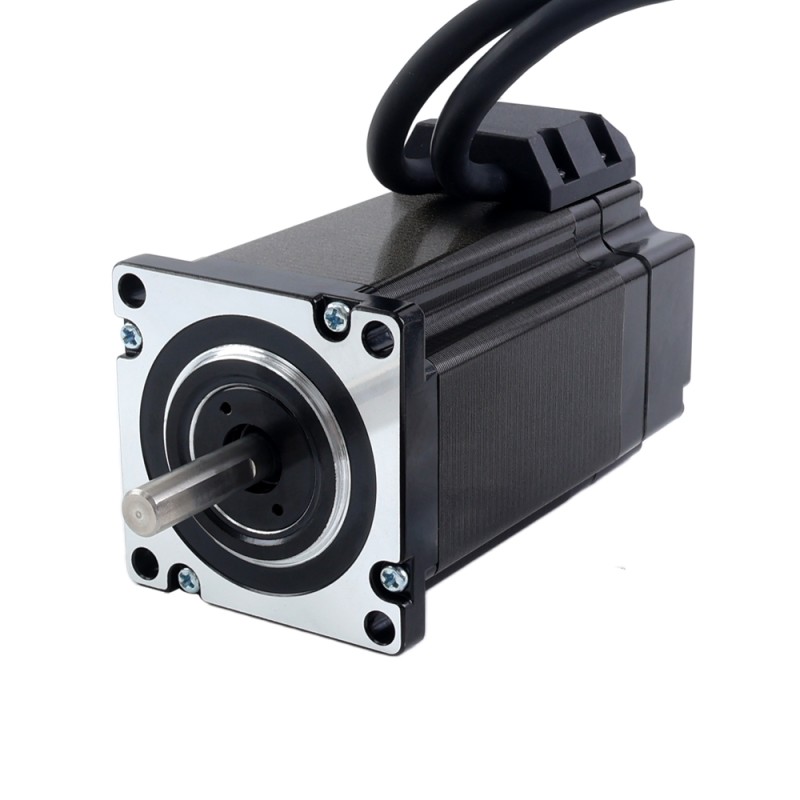

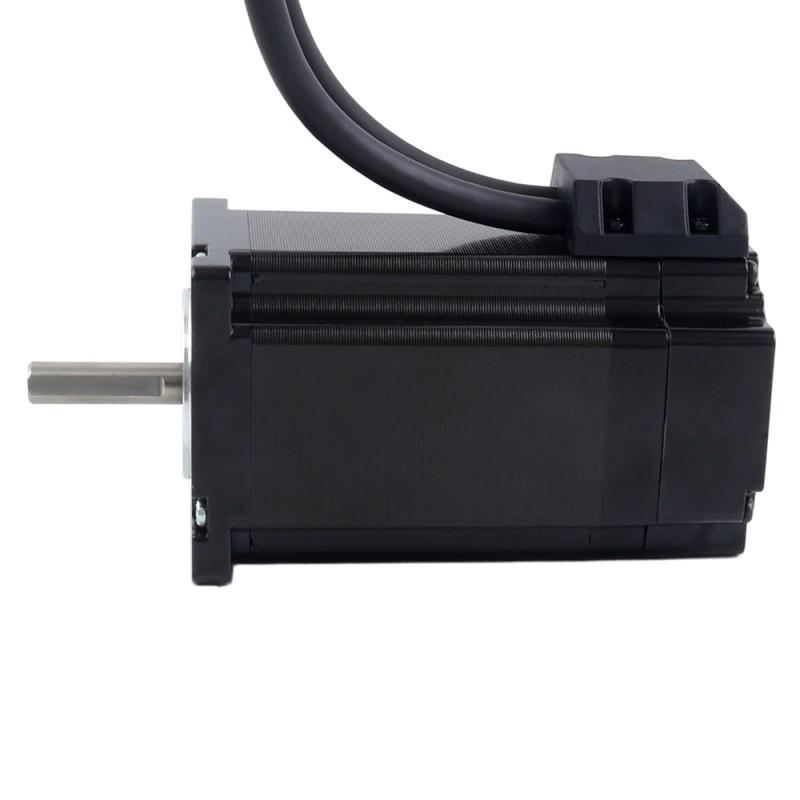

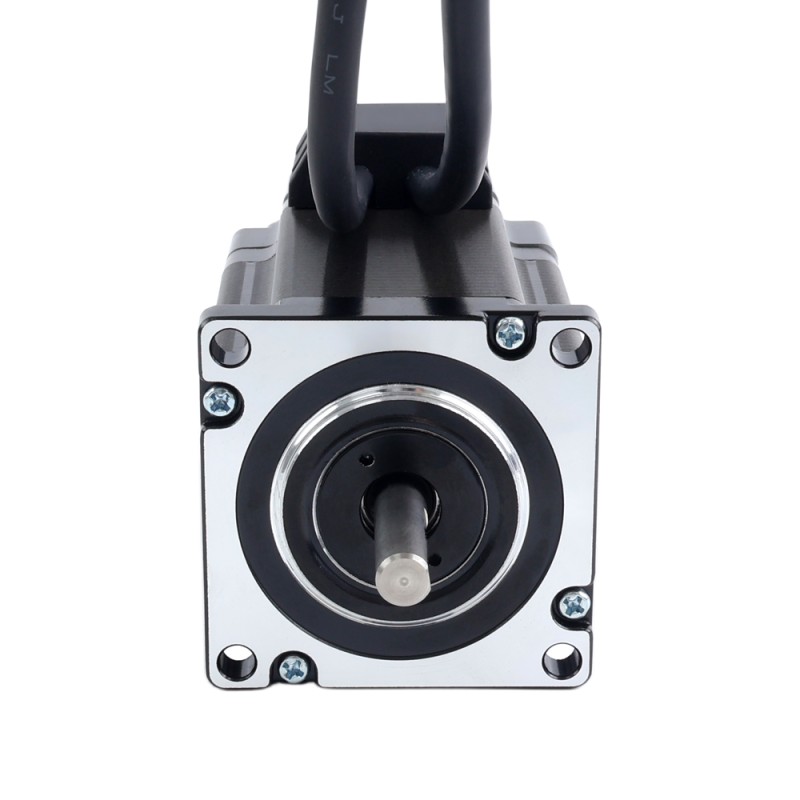

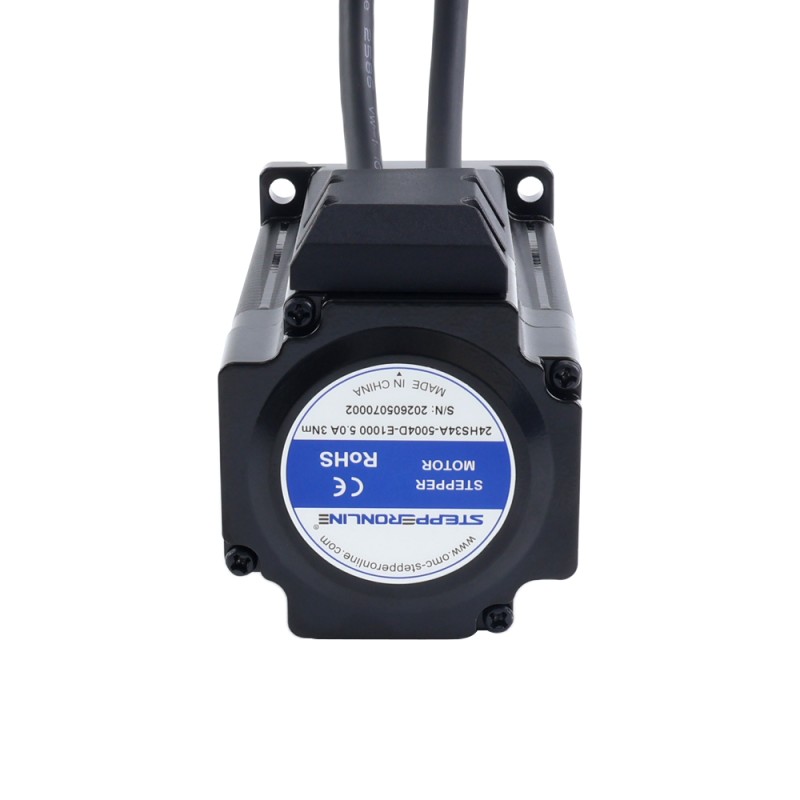

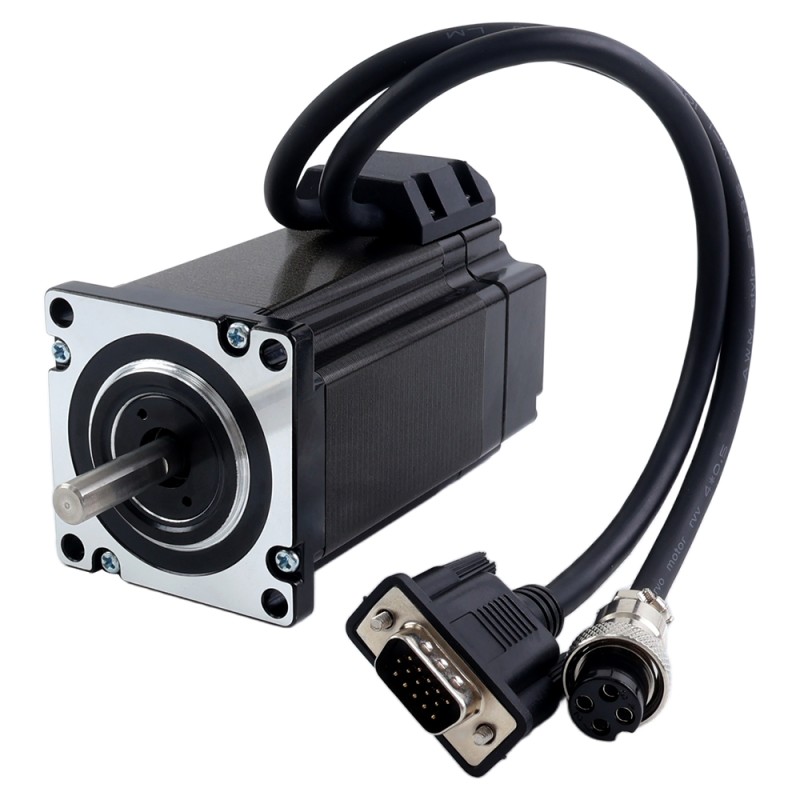

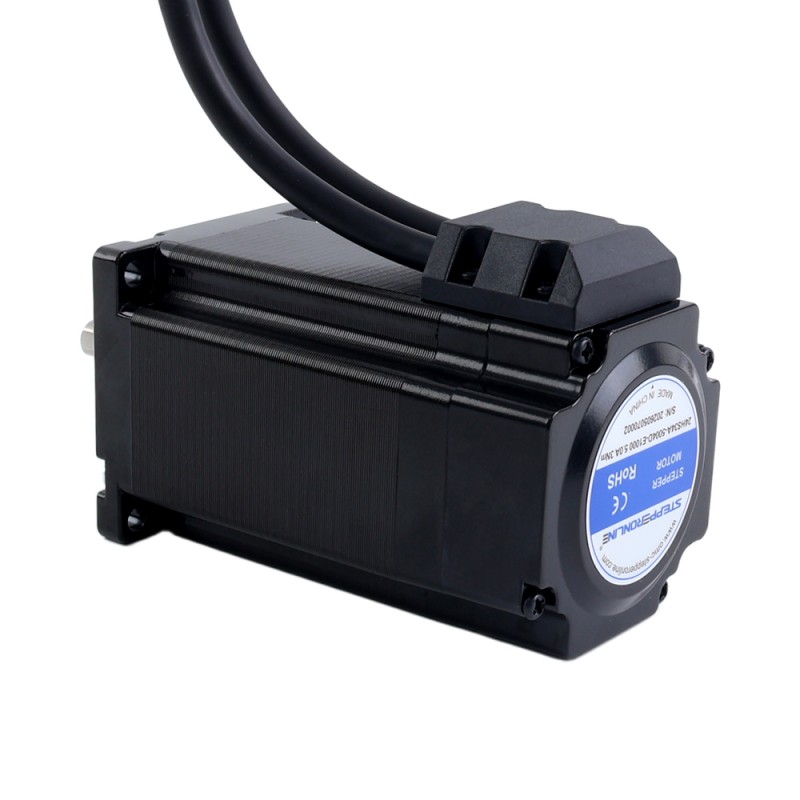

S Series Standard Nema 24 Closed Loop Stepper Motor 3.0Nm(424.83oz.in) Encoder 1000PPR(4000CPR)

This Nema 24 closed-loop stepper motor delivers a holding torque of 3.0Nm(424.83oz.in) and is equip... Read More

0 reviews • Write a review

from

£26.59

5 + £25.49

10 + £24.48

50 + £23.55

100 + £22.69

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This Nema 24 closed-loop stepper motor delivers a holding torque of 3.0Nm(424.83oz.in) and is equipped with a compact optical incremental encoder featuring 2-channel output and a resolution of 1000ppr(4000cpr).
Different from the 24HS34-5004D-E1000, this motor's mounting surface and its Ø8mm shaft diameter with a 30mm shaft length make it compatible with standard Nema 24 input-size gearboxes and motor modules available on the market.

Electrical Specification

MPN: 24HS34A-5004D-E1000
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 3.0Nm(424.83oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.52ohms± 10%
Inductance: 2.1mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 60 x 60mm
Body Length: 108mm
Shaft Diameter: Φ8mm
Shaft Length: 30mm
D-cut Shaft Length: 24mm
Cable Length: 300mm
Weight: 1.52kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 0.3V
Output Frequency Max: 60kHZ

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	GND	EA+	EA-	EB+	EB-

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	424.83
Inductance(mH)	2.1
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.52
Rated Current(A)	5.0
Physical Specification
Body Length(mm)	108
Frame Size(mm)	Nema 24 (60 x 60)
IP Rating	40
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	30
