34HS39-6004S
Output Shaft TypeKeyway
Shaft Diameter(mm)14
Shaft Length(mm)32
No. of Lead4
Question

Downloads

34HS39-6004S.STEPSTEP · 2MBLog in to download34HS39-6004S_Full_Datasheet.pdfPDF · 215.3KB
Same series
ModelOutput Shaft TypeShaft Diameter(mm)Shaft Length(mm)No. of LeadPriceStock
34HS25-5604SO12.7304£25.12In stock
34HS26-2006DD14376£24.93Backorder
34HS27-4004SD14324£25.04In stock
34HS30-6004SD14324£22.11In stock
34HS31-5504DKeyway14374£25.60Backorder
34HS31-6004SKeyway14374£27.57In stock
34HS31-6004S1Keyway14324£29.63In stock
34HS38-3008SD12.7328£36.02In stock
34HS38-4204DKeyway14374£27.17In stock
34HS39-6004SKeyway14324£26.24In stock
34HS45-6004SKeyway14374£35.30In stock
34HS46-5004D1Keyway14374£25.76In stock
34HS46-6004S1Keyway14324£42.51In stock
34HS59-5004DKeyway14374£62.79Backorder
34HS59-5004SD14374£56.99Backorder
34HS59-6004SKeyway14374£46.89In stock
34HS61-6004S1Keyway14324£57.97In stock
S Series Nema 34 Stepper Motor 8.0Nm(1132.89oz.in) 6.0A 86x86x98mm 4 Wires
This is a Nema 34 stepper CNC motors with a step angle of 1.8deg and size of 86x86x98mm. It has 4 wi... Read More
0 reviews • Write a review
from
£26.24
5 + £25.24
10 + £24.32
50 + £23.46
100 + £22.65

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

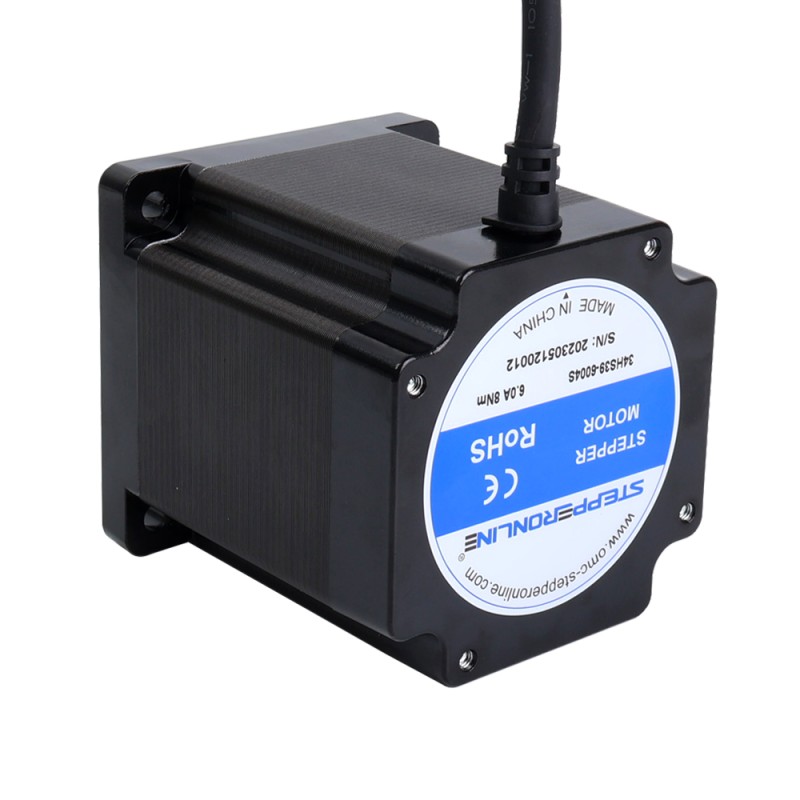

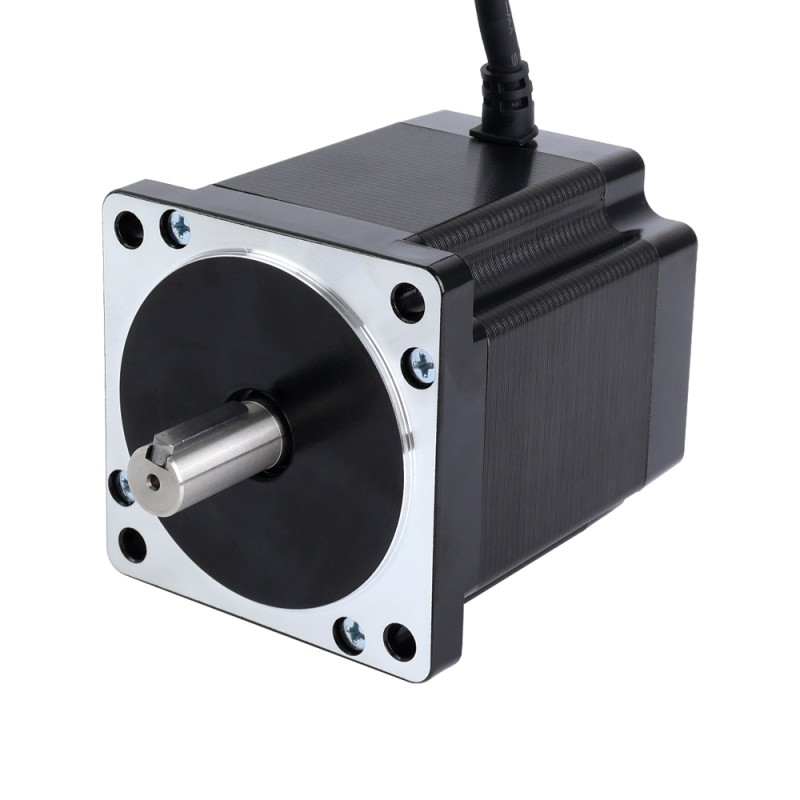

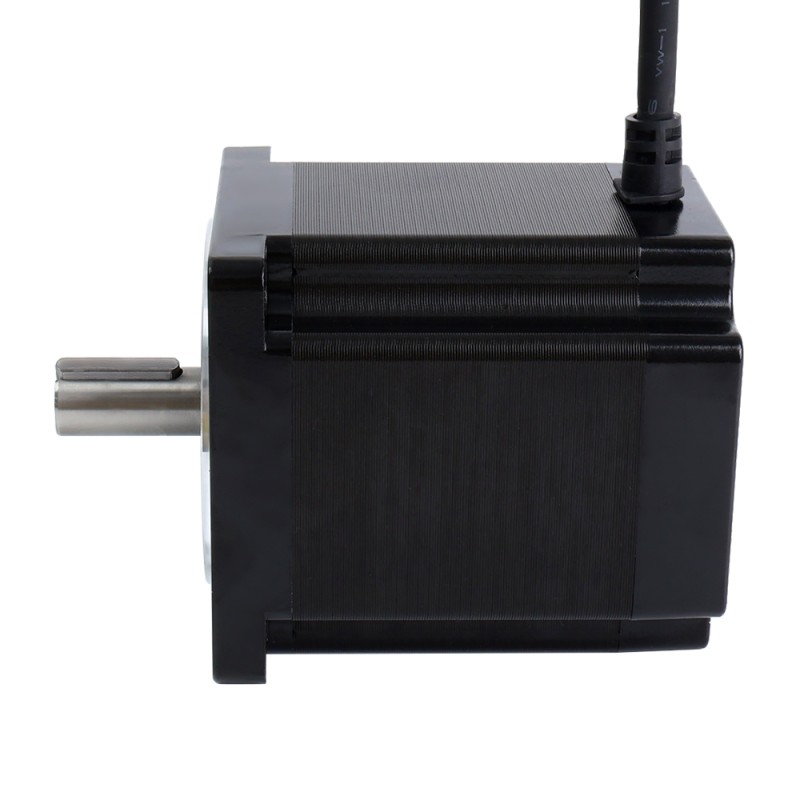

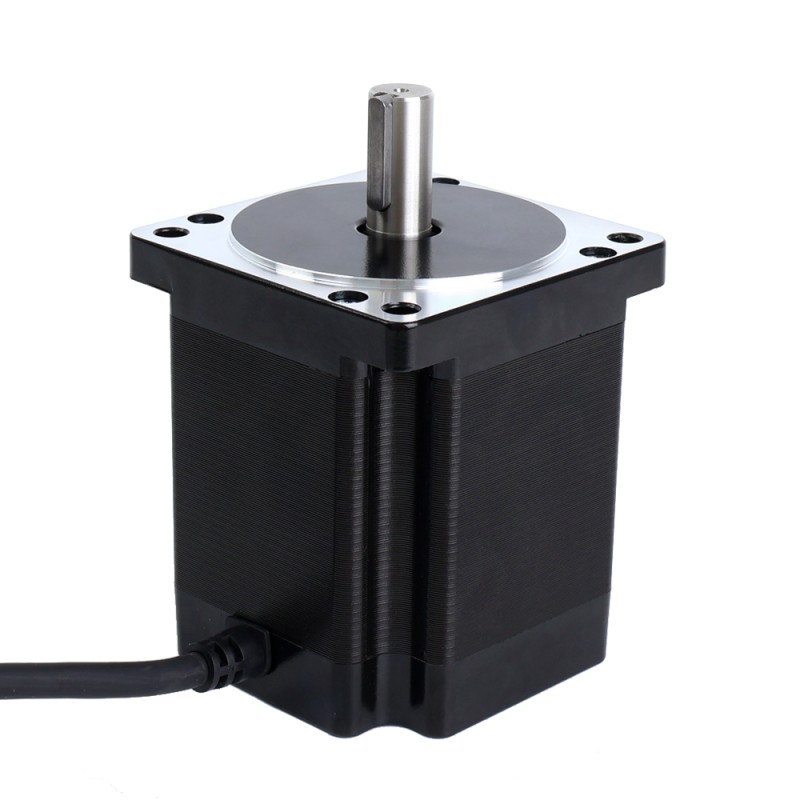

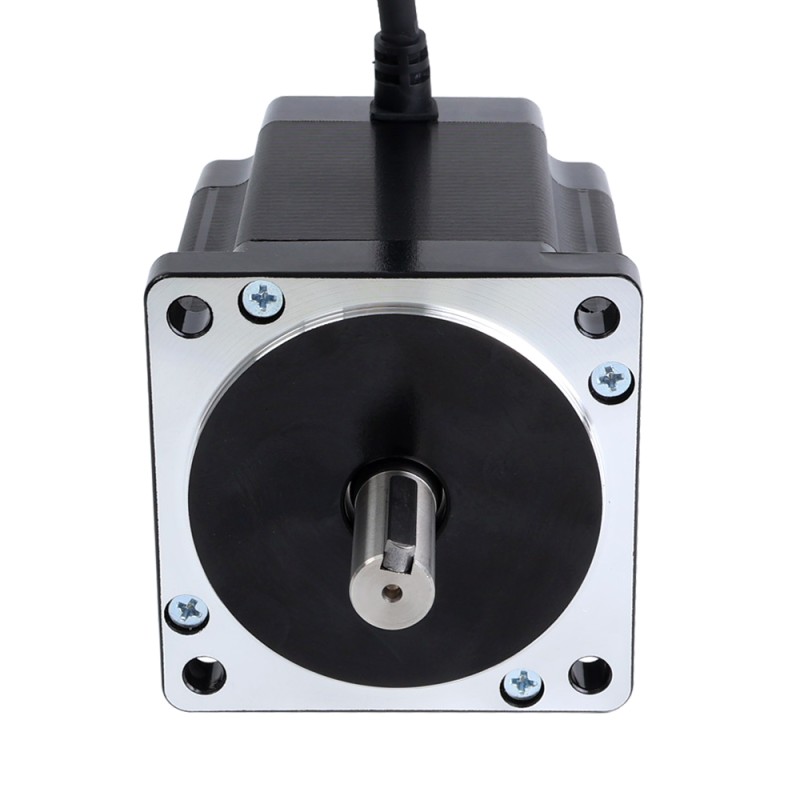

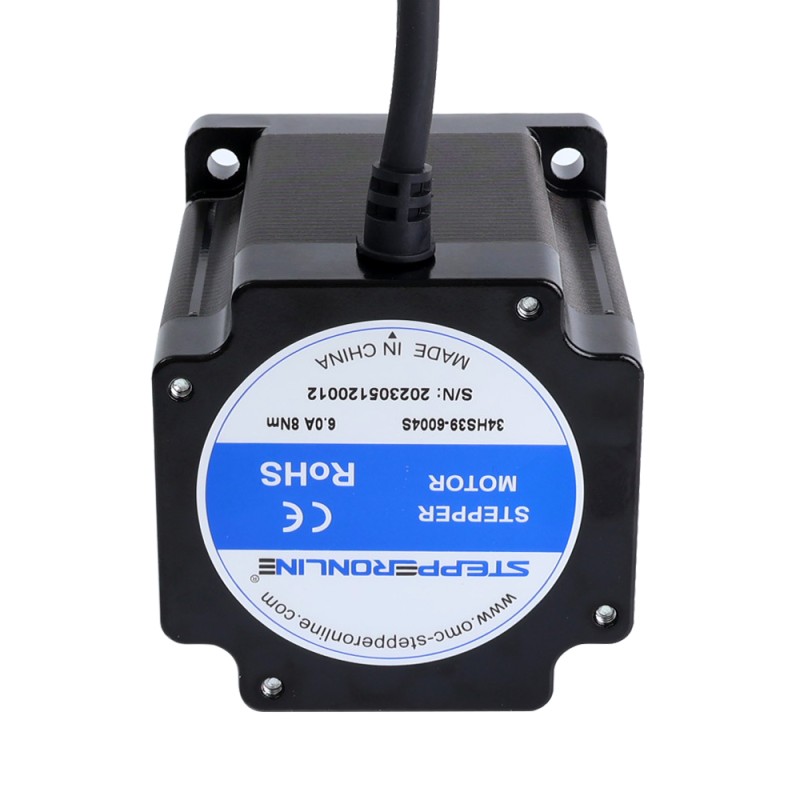

This is a Nema 34 stepper CNC motors with a step angle of 1.8deg and size of 86x86x98mm. It has 4 wires, draws 6.0A per phase and has a holding torque of 8.0Nm(1132.89oz.in).

Electrical Specification

  • Manufacturer Part Number: 34HS39-6004S
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 8.0Nm(1132.89oz.in)
  • Rated Current/Phase: 6.0A
  • Phase Resistance: 0.55ohms± 10%
  • Inductance: 4.6mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 98mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 32mm
  • Keyway Shaft Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 3.0kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 800
Holding Torque(oz.in) 1132.89
Inductance(mH) 4.6
Phase Resistance(ohms) 0.55
Rated Current(A) 6.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 98
Frame Size(mm) Nema 34 (86 x 86)
IP Rating 40
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type Keyway
Product Series S
Shaft Diameter(mm) 14
Shaft Length(mm) 32
Single Shaft/Dual Shaft Single Shaft
Weight(g) 3090

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Digital Stepper Driver 2.4-7.2A 18-80VAC or 24-110VDC for Nema 34 Motor
Digital Stepper Driver 2.4-7.2A 18-80VAC or 24-110VDC for Nema 34 Motor
The DM860T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achie..
from
£30.60
Add to Cart
Add to Wish List Compare this Product
Quickview

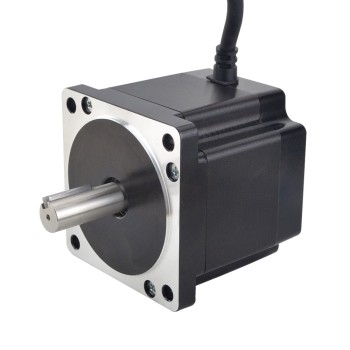

S Series Nema 34 Stepper Motor Bipolar 1.8deg 4.8Nm(679.74oz.in) 6.0A 86x86x80mm 4 Wires
