Nema 8 Stepper Ball Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.83oz.in) Lead 2mm(0.07874") with Sensor
This LMD series Nema 8 stepper motor linear actuator features a 90mm stroke length, a holding torque... Read More
0 reviews • Write a review
from
£175.30
5 + £167.27
10 + £159.94
50 + £153.24
100 + £149.07

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

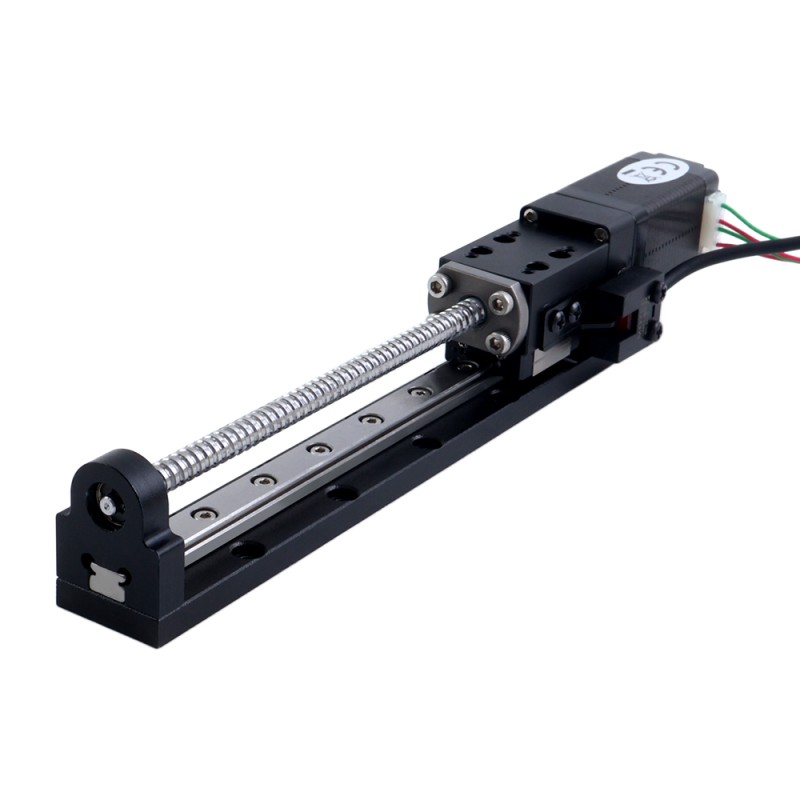

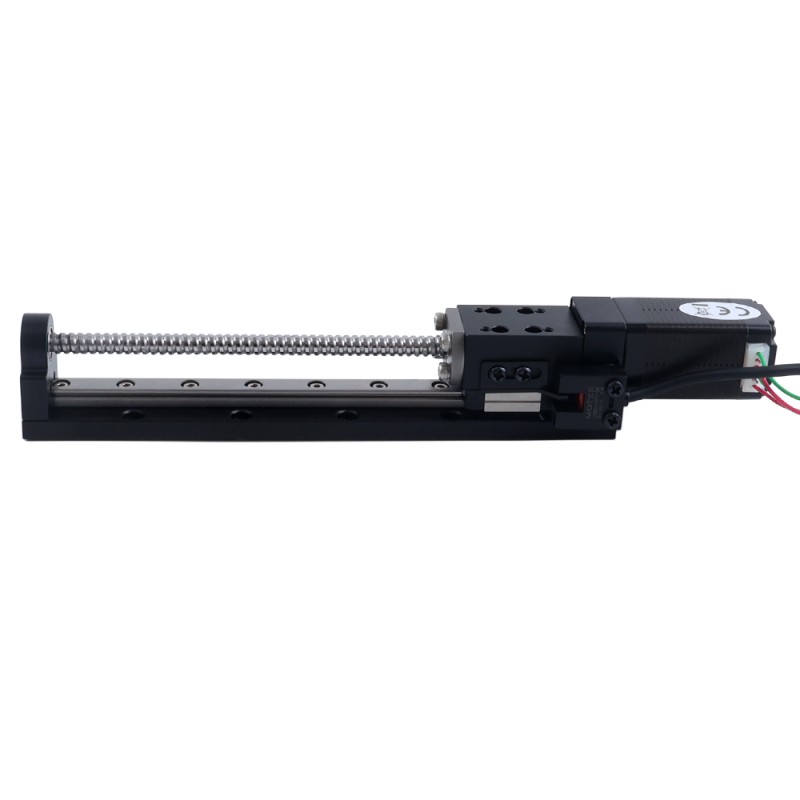

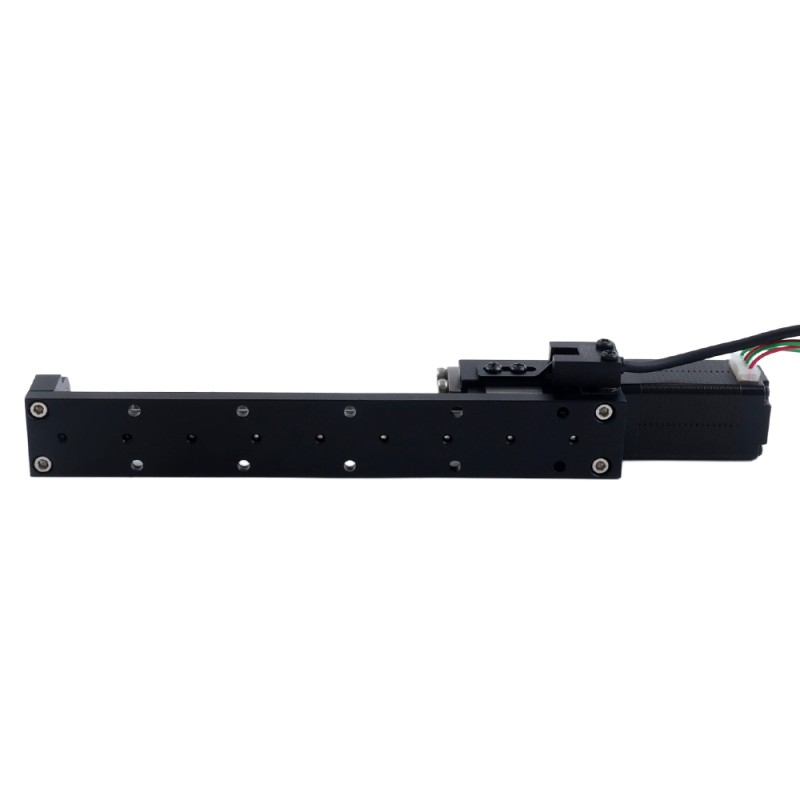

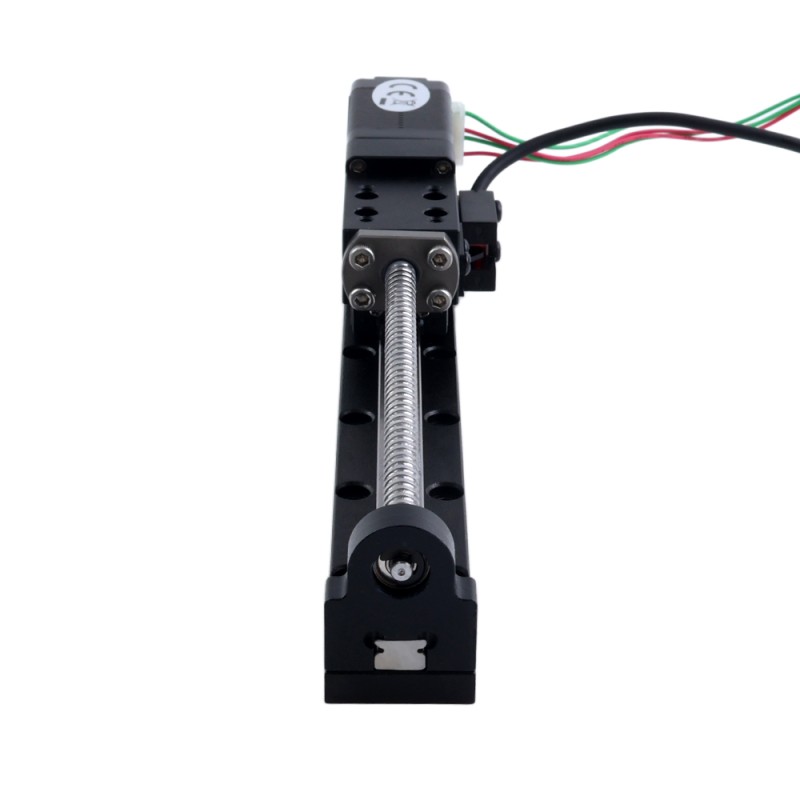

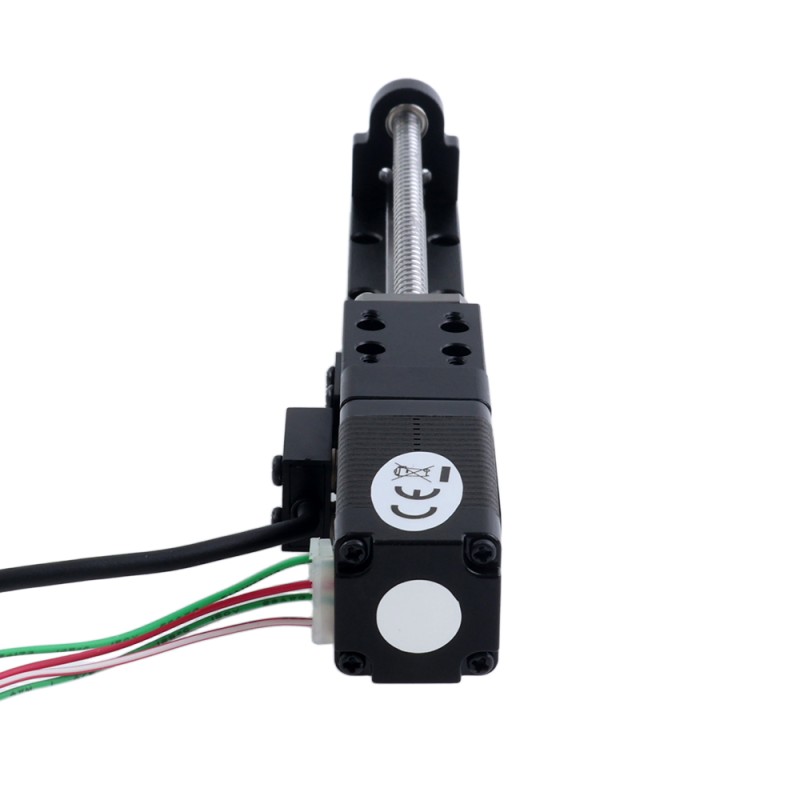

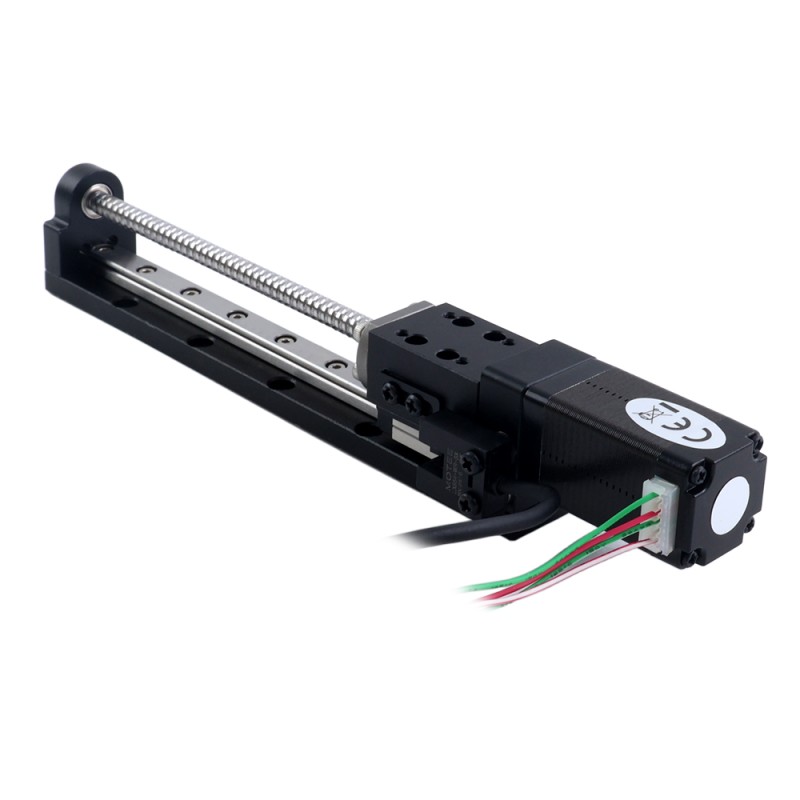

This LMD series Nema 8 stepper motor linear actuator features a 90mm stroke length, a holding torque of 0.02Nm(2.83oz.in), and a 2mm(0.07874") lead, and is equipped with a sensor.
This type of actuator is composed of a highly integrated ball screw linear stepper motor and a guide rail slide. It has the advantages of simple structure and small installation space. Since there is no coupling, its accuracy is higher than that of linear actuators with conventional coupling structures. In addition, the actuator is equipped with a photoelectric sensor for detecting the zero point position. This actuator is widely used in the medical industry, measurement, laser welding, laser cutting, small CNC machine tools, engraving, milling machines, etc.

Electrical Specification

  • MPN: LMD8S15BAA05-090
  • Screw Type: Ball Screw
  • Step Angle: 1.8deg
  • Holding Torque: 0.02Nm(2.83oz.in)
  • Maximum Thrust: 52.5N
  • Rated Load Capacity: 32.5N
  • Rated Current/phase: 0.5A
  • Phase Resistance: 12.5ohms ± 10%
  • Inductance: 11.0mH ± 20%(1KHz)
  • Sensor Type: NPN

Physical Specification

  • Motor Size: 20 x 20 x 38.2mm
  • Lead Screw Length: 124mm
  • Lead Screw Diameter: 5mm
  • Max. Stroke Length: 90mm(3.5433")
  • Max. Speed: 40mm/s
  • Position Accuracy: ± 0.02mm
  • Lead/Step: 0.01mm(0.0003937")
  • Lead/Revolution: 2mm(0.07874")
  • Number of Leads: 4
  • Cable Length: 320mm
  • Weight: 0.25kg

Motor Connection

Pin No.
1
2
3
4
Bipolar
A+
A-
B+
B-
Wires
Red
Red/White
Green
Green/White

Photoelectric Switch Sequence

Pin No.
1
2
3
4
Bipolar
+5~24V
GND
Signal Line
N/A
Wires
Brown
Blue
Black
White
Electrical Specification
Holding Torque(Ncm) 2
Holding Torque(oz.in) 2.83
Inductance(mH) 11.0
Phase Resistance(ohms) 12.5
Rated Current(A) 0.5
Rated Load Capacity(N) 32.5
Step Angle(deg.) 1.8
Physical Specification
Frame Size(mm) Nema 08 (20 x 20)
Lead Screw Diameter(mm) 5
Lead Screw Length(mm) 124
Lead Travel/Revolution(mm) 2
Lead Travel/Step(mm) 0.01
Linear Motor Type Ball Screw
Stroke Length(mm/ft) 90/0.3
