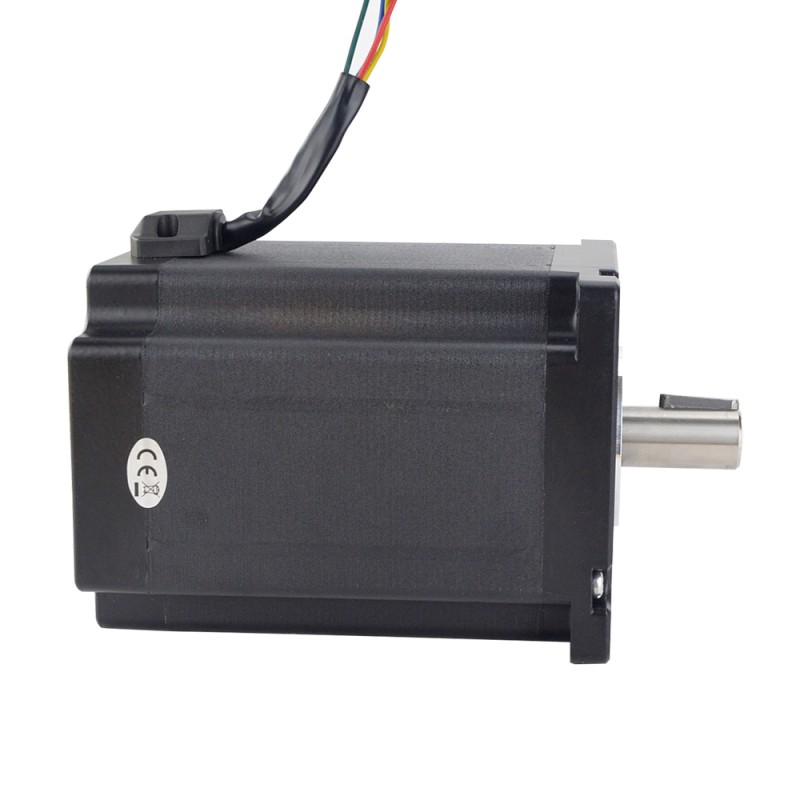

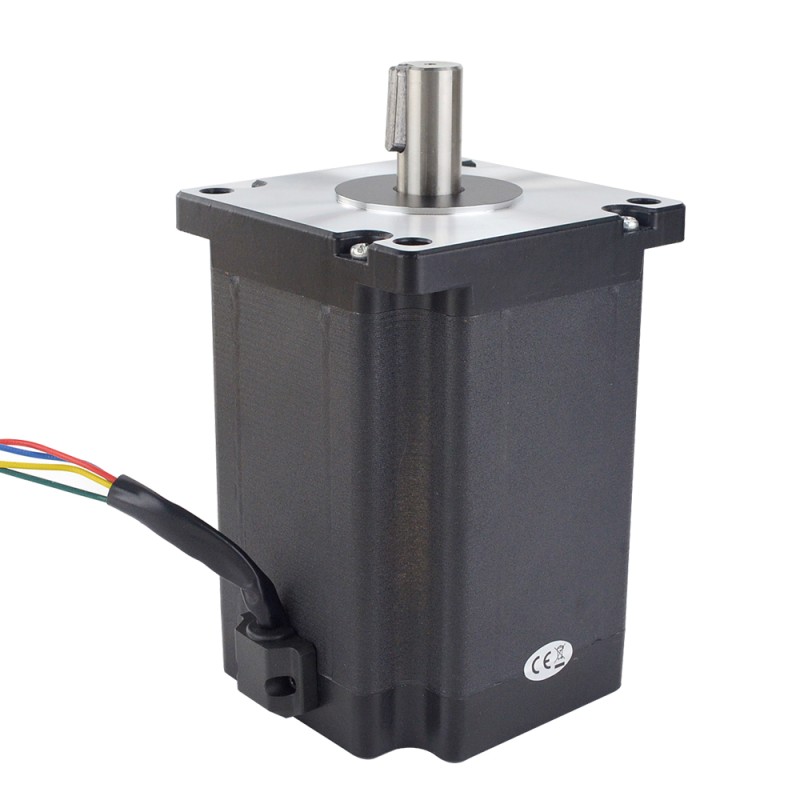

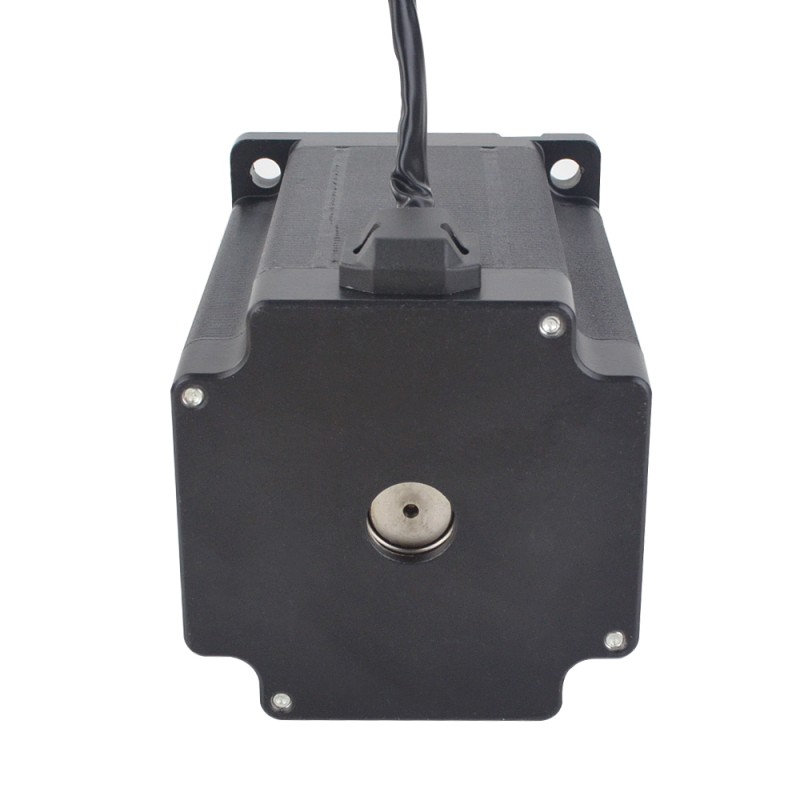

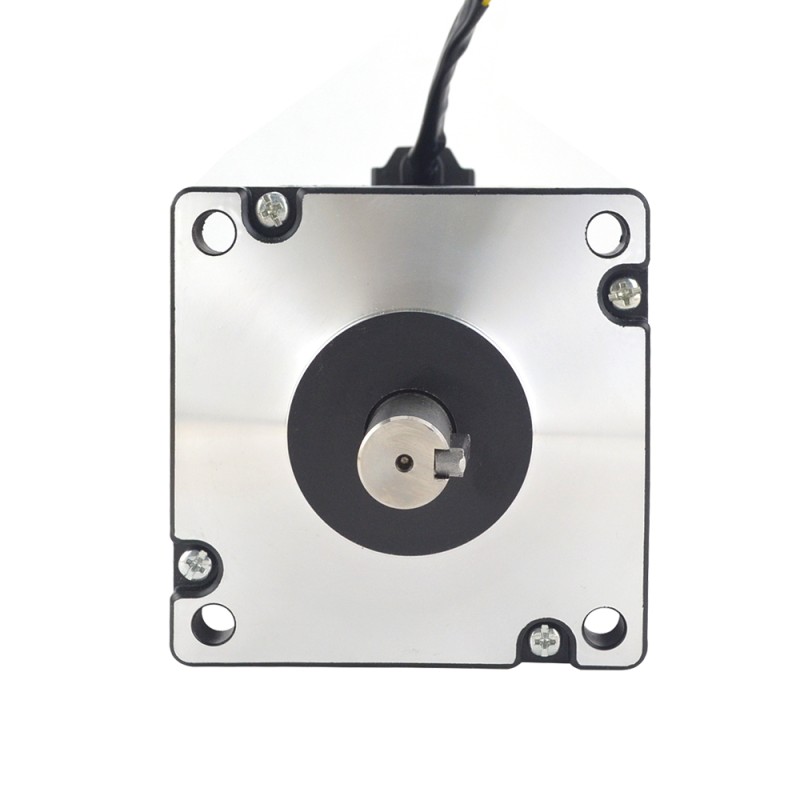

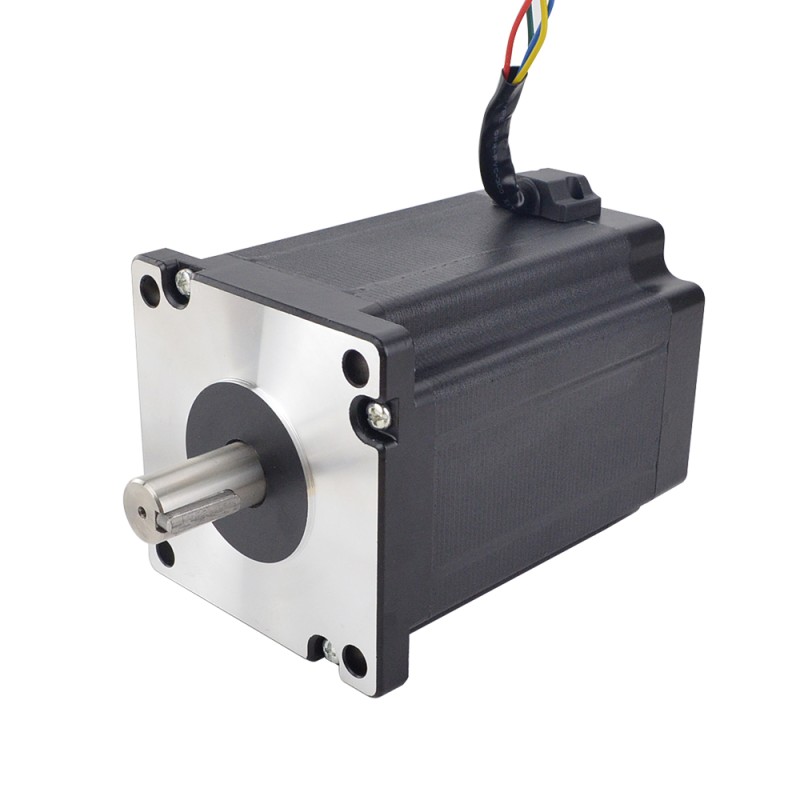

Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires

Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires - 42HS59-6004S1 | StepperOnline UK
42HS59-6004S1 Discontinued

This product has been discontinued and is no longer available for purchase. Please contact us for a replacement.

Question
Same series
ModelPriceStock
42HS59-6004S Discontinued—————
42HS59-6004S1 Discontinued—————
42HS79-8004D-E1000 Discontinued—————
Nema 42 CNC Stepper Motor Bipolar 18 Nm(2549.52oz.in) 6.0A 110x150mm 4 Wires
Electrical Specification Manufacturer Part Number: 42HS59-6004S1 Motor Type: Bipolar Stepper St... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

Electrical Specification

  • Manufacturer Part Number: 42HS59-6004S1
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 18 Nm(2549.52oz.in)
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.75ohms
  • Inductance: 15.5mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 110 x 110mm
  • Body Length: 150mm
  • Shaft Diameter: Φ19mm
  • Shaft Length: 40mm
  • Key Way Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 10.9kg

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue

Resources

Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 1800
Holding Torque(oz.in) 2549.52
Inductance(mH) 15.5
Phase Resistance(ohms) 0.75
Rated Current(A) 6
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 150
Frame Size(mm) Nema 42 (110 x 110)
IP Rating 40
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type Keyway
Product Series S
Shaft Diameter(mm) 19
Shaft Length(mm) 40
Single Shaft/Dual Shaft Single Shaft
Weight(g) 10900
