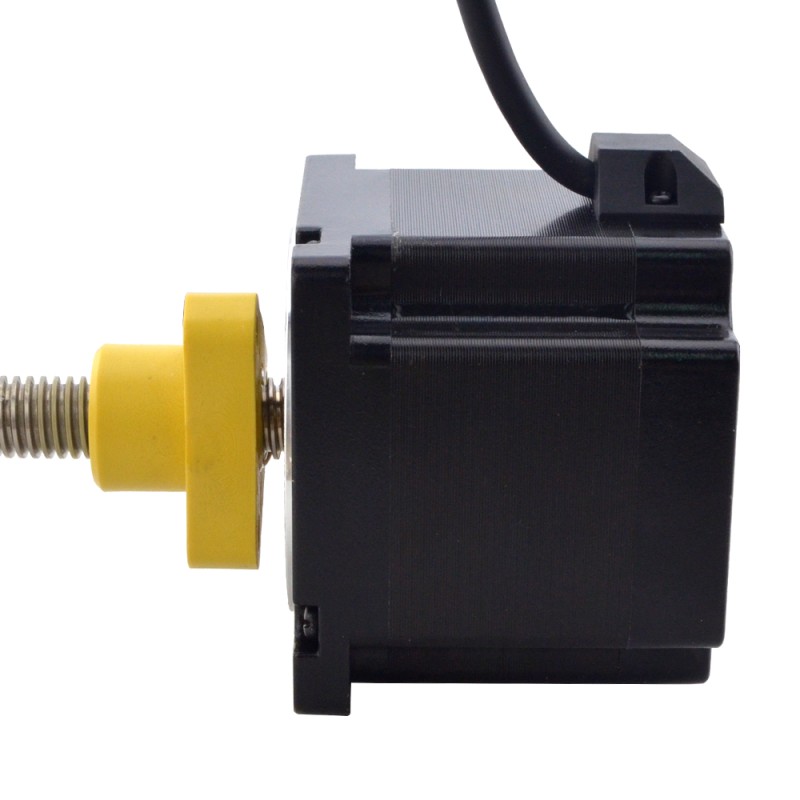

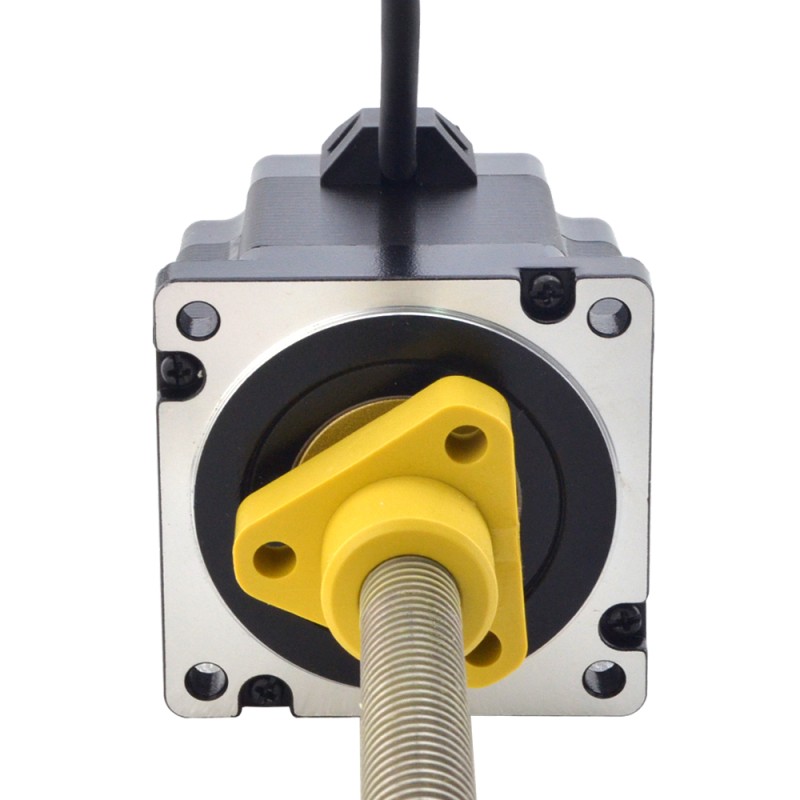

NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm

NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1) Lead Length 200mm - 34E30S5504GK5-200RS | StepperOnline UK
34E30S5504GK5-200RS
Rated Current(A)5.5
Phase Resistance(ohms)0.5
Inductance(mH)4.5
Linear Motor TypeExternal(Acme)
Question

Downloads

34E30S5504GK5-200RS_Full_Datasheet.pdfPDF · 182.33KB34E30S5504GK5-200RS.STEPSTEP · 557.59KBLog in to download
Same series
ModelRated Current(A)Phase Resistance(ohms)Inductance(mH)Linear Motor TypePriceStock
11E13S0424ED-150RS-USED0.4211.46External(Acme)£25.60In stock
11E13S0424ED5-150RS0.4211.46External(Acme)£29.58In stock
11E13S0424FD3-150RS0.4211.46External(Acme)£51.21In stock
11E13S0424FD4-150RS0.4211.46External(Acme)£25.81In stock
11E13S0424GD3-150RS0.4211.46External(Acme)£51.21Backorder
11E13S0754ED4-100RS0.753.22External(Acme)£22.22In stock
11E13S1004FD4-150RS-OE1K1.02.11.5External(Acme)£61.71In stock
11E13S1004FD5-150RS1.02.11.5External(Acme)£27.93In stock
11E13S1004GD4-150RS-OE1K1.02.11.5External(Acme)£61.71In stock
11E13S1004GD5-150RS1.02.11.5External(Acme)£27.93In stock
11E13S1004HD5-150RS1.02.11.5External(Acme)£29.32Backorder
11E13S1004HD5-180RS-E22-3001.02.11.5External(Acme)£57.67In stock
11E18S0754ED3-250RS0.756.75.8External(Acme)£66.67In stock
11E18S0754ED4-101RS0.756.73External(Acme)£22.44In stock
11E18S0754FD4-250RS0.756.75.8External(Acme)£32.54In stock
11E18S0754HD5-250RS0.756.75.8External(Acme)£40.26In stock
11E18S1004FD5-150RS1.03.73.7External(Acme)£29.58Backorder
11E18S1004GD5-150RS1.03.73.7External(Acme)£29.58Backorder
11E18S1004GD5-250RS1.03.73.7External(Acme)£33.89In stock
11E18S1004HD5-150RS1.03.73.7External(Acme)£29.58Backorder
11E18S1004ND5-150RS-SALE1.03.73.7External(Acme)£26.14In stock
11E20S0674ED4-100RS0.679.25.7External(Acme)£25.12In stock
14E13S0574FF3-150RS0.578.813External(Acme)£58.33Backorder
14E13S0574JE4-150RS0.578.813External(Acme)£35.73In stock
14E13S0574LF3-150RS0.578.813External(Acme)£49.27Backorder
14E13S1504GF5-150RS1.50.951External(Acme)£26.29In stock
14E17S0914FF3-250RS0.915.57.63External(Acme)£66.67Backorder
14E17S0914LF3-250RS-SALE0.915.57.63External(Acme)£46.89In stock
14E19S1504FF5-150RS1.51.52.0External(Acme)£27.93In stock
14E19S1504GF5-150RS1.51.52.0External(Acme)£27.93In stock
View all in category
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
This is integrated with a Φ15.875mm(0.625") diameter, 200mm(7.8740") ACME screw length and a POM scr... Read More
0 reviews • Write a review
from
£95.31
5 + £92.40
10 + £89.66
50 + £87.08
100 + £84.64

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

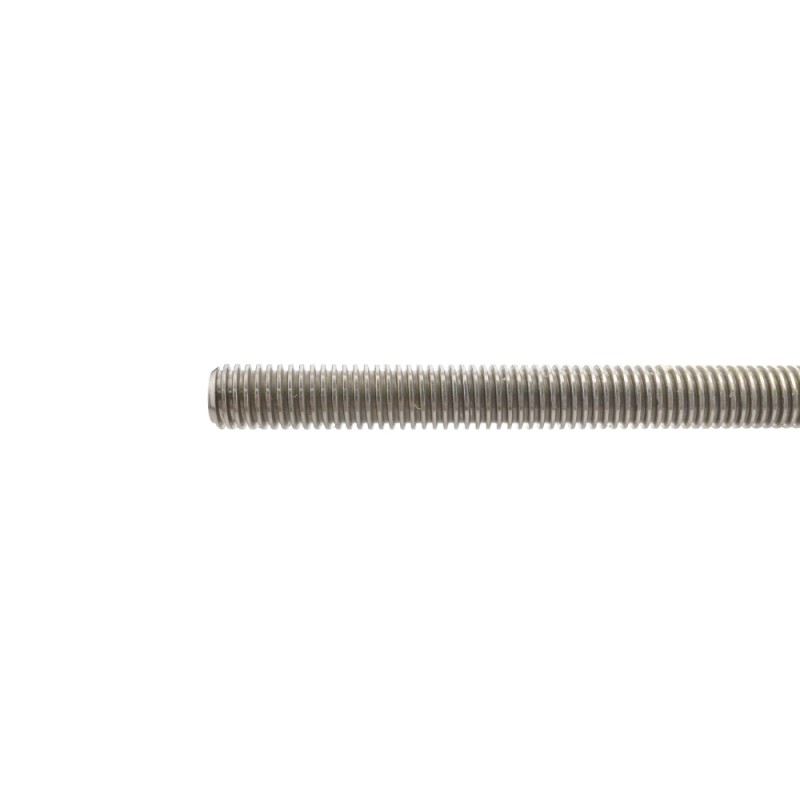

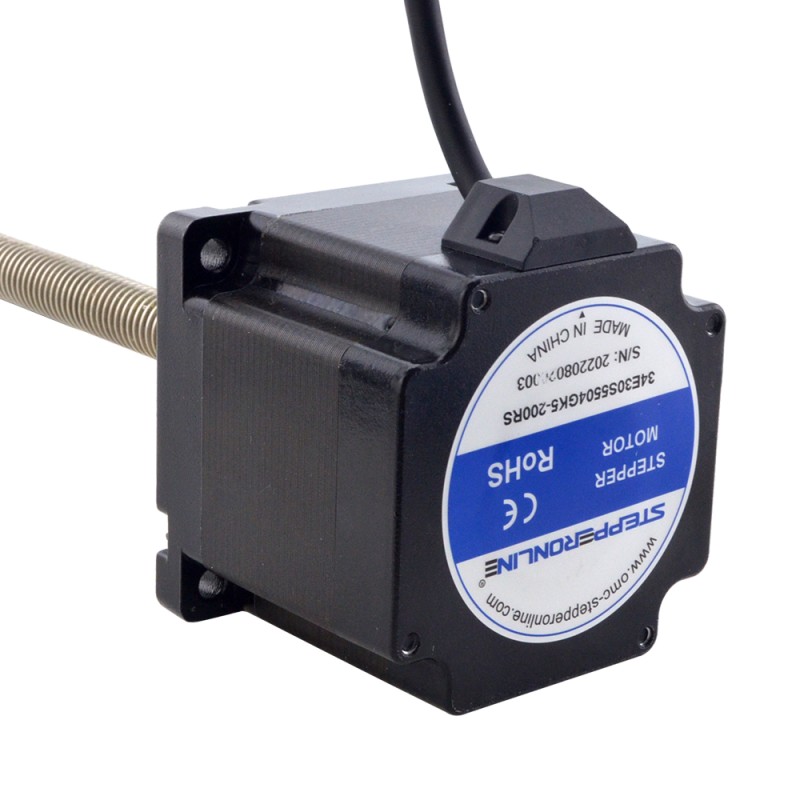

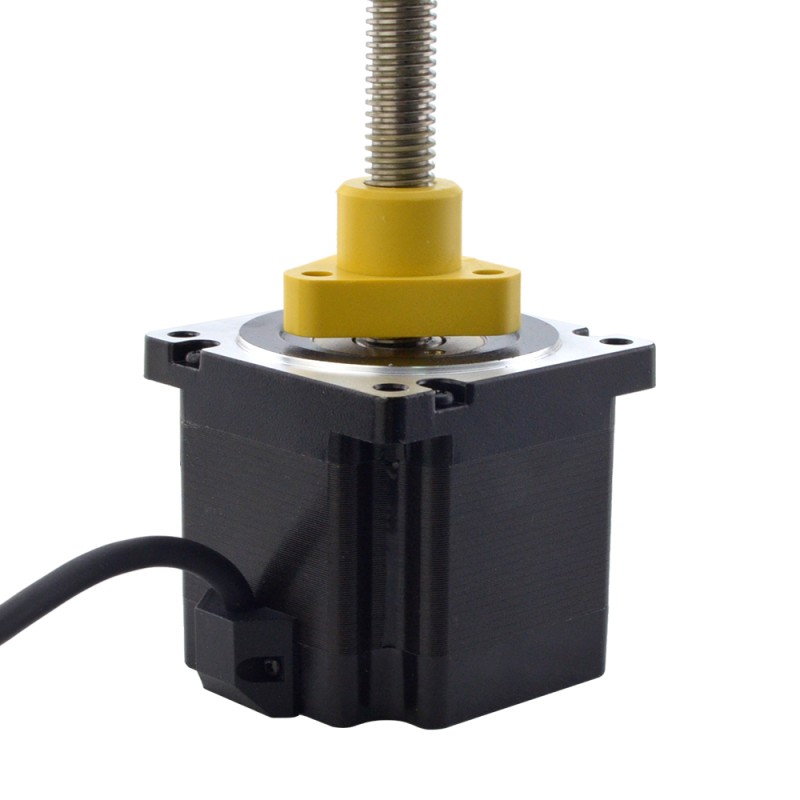

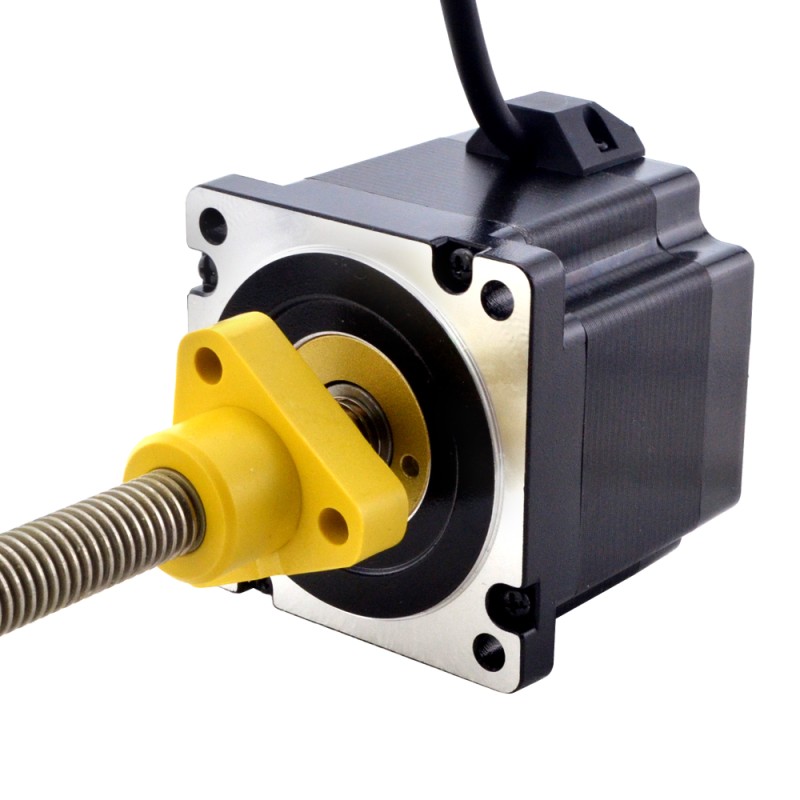

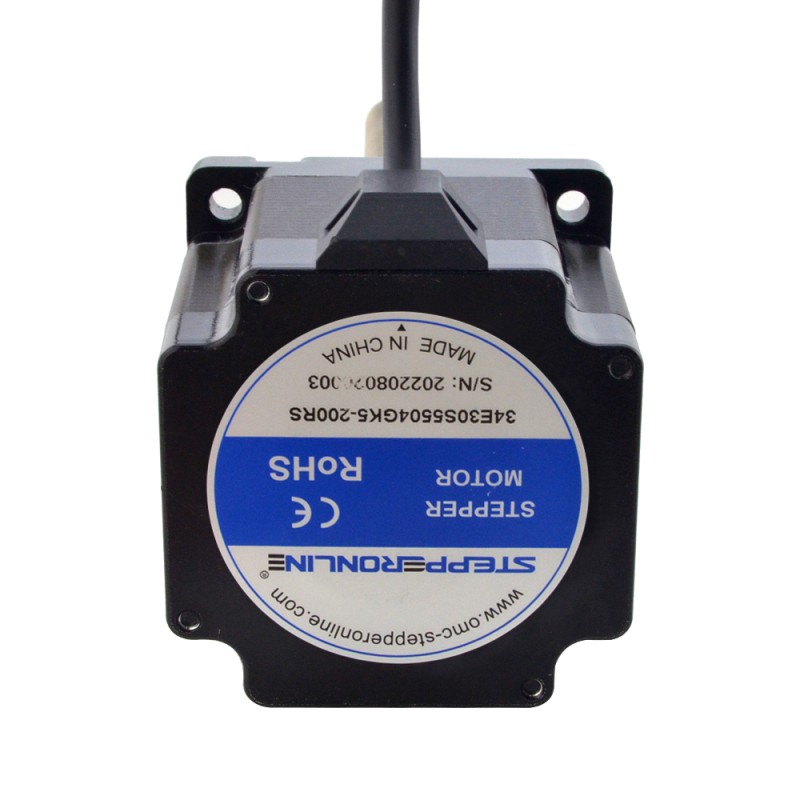

This is integrated with a Φ15.875mm(0.625") diameter, 200mm(7.8740") ACME screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution. This model is a Nema 34 ACME screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 5.5A rated current. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

  • Manufacturer Part Number: 34E30S5504GK5-200RS
  • Motor Type: External(ACME)
  • Step Angle: 1.8°
  • Holding Torque: 4.5Nm(637.38oz.in)
  • Rated Current/phase: 5.5A
  • Phase Resistance: 0.5ohms
  • Inductance: 4.5mH±20%(1KHz)

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 76mm
  • Lead Screw Length: 200mm(7.8740")
  • Lead Screw Diameter: Φ15.875mm(0.625")
  • Lead/Step: 0.0127mm(0.0005")
  • Lead Travel/Revolution: 2.54mm(0.1")
  • Number of Leads: 4
  • Number of Thread Starts: 1
  • Cable Length: 500mm

Connection

A+
A-
B+
B-
Red
Red/White
Green
Green/White
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Inductance(mH) 4.5
Phase Resistance(ohms) 0.5
Rated Current(A) 5.5
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 76
Frame Size(mm) Nema 34 (86 x 86)
IP Rating 40
Lead Length(mm) 500
Lead Screw Diameter(mm) 15.875
Lead Screw Length(mm) 200
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
Linear Motor Type External(Acme)
No. of Lead 4

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

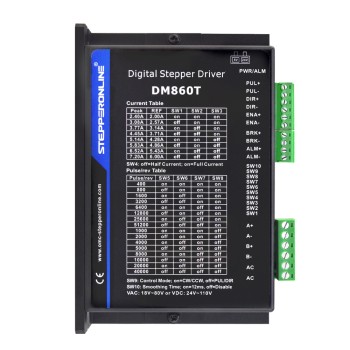

Digital Stepper Driver 2.4-7.2A 18-80VAC or 24-110VDC for Nema 34 Motor
Digital Stepper Driver 2.4-7.2A 18-80VAC or 24-110VDC for Nema 34 Motor
The DM860T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achie..
from
£30.60
Add to Cart
Add to Wish List Compare this Product
Quickview

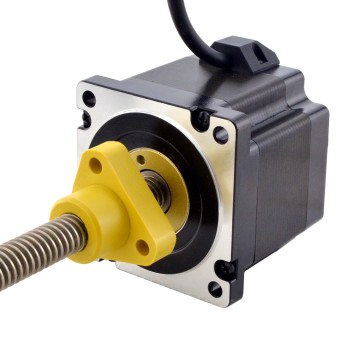

NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 6.35mm(0.25") Lead Length 200mm
Pre-order
NEMA 34 External Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 6.35mm(0.25") Lead Length 200mm
This is integrated with a Φ15.875mm(0.625") diameter, 200mm(7.8740") ACME screw length and a POM screw nut, the linear travel is 6.35mm(0.25") per rev..
from
£100.03
Add to Cart
Add to Wish List Compare this Product
Quickview

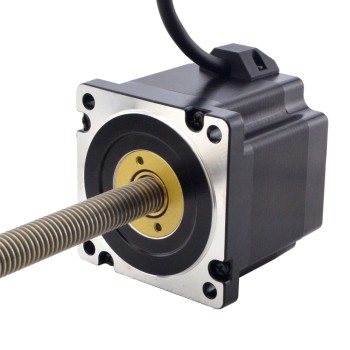

NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
NEMA 34 Non-Captive Acme Linear Stepper Motor 5.5A 76mm Stack Screw Lead 2.54mm(0.1") Lead Length 300mm
This is integrated with a Φ15.875mm(0.625") diameter, 300mm(11.811") lead screw length and the linear travel is 2.54mm(0.1") per revolution. This..
from
£97.07
Add to Cart
Add to Wish List Compare this Product
Quickview

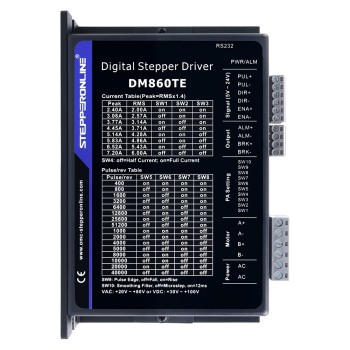

TE Series Digital Stepper Driver 2.4-7.2A 20-80VAC/30-100VDC for Nema 34 Motor
