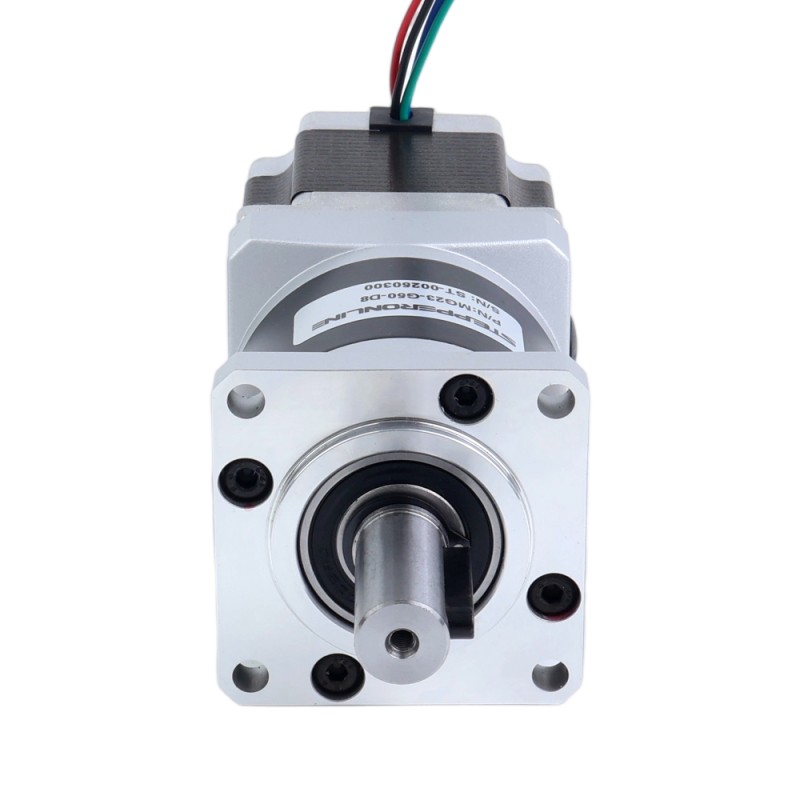

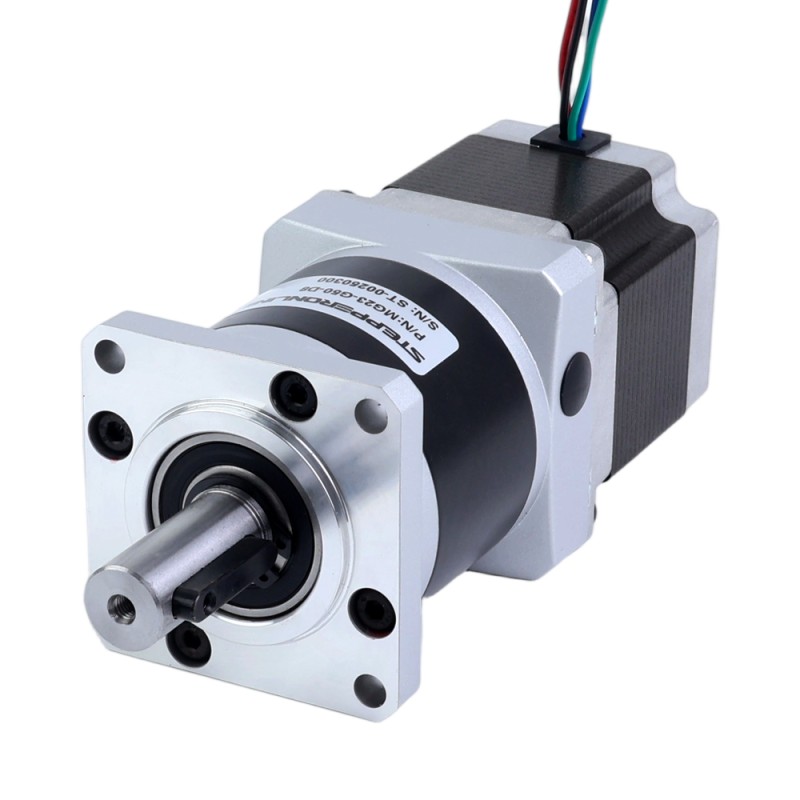

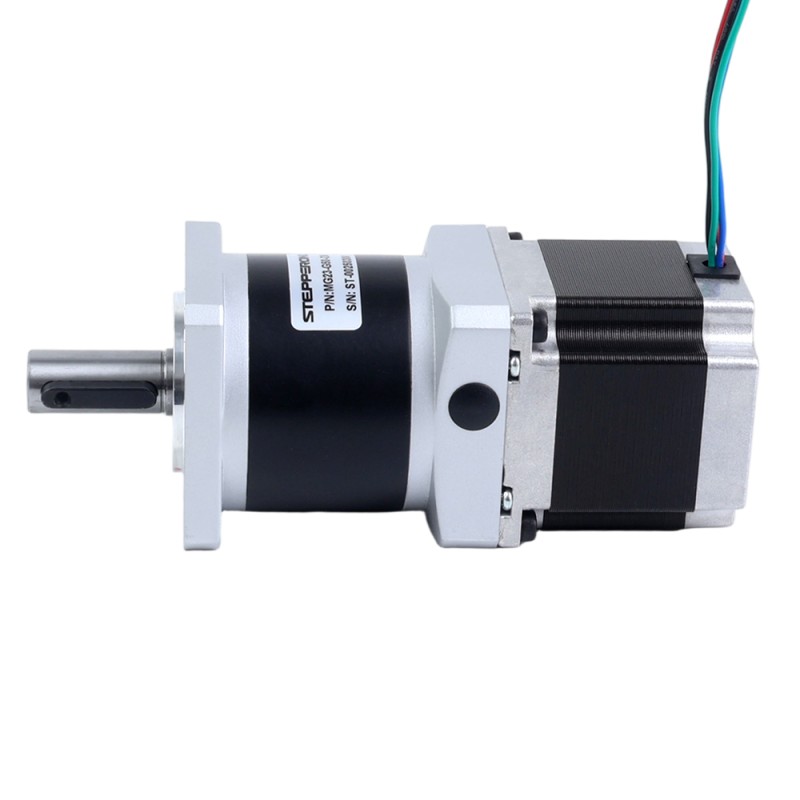

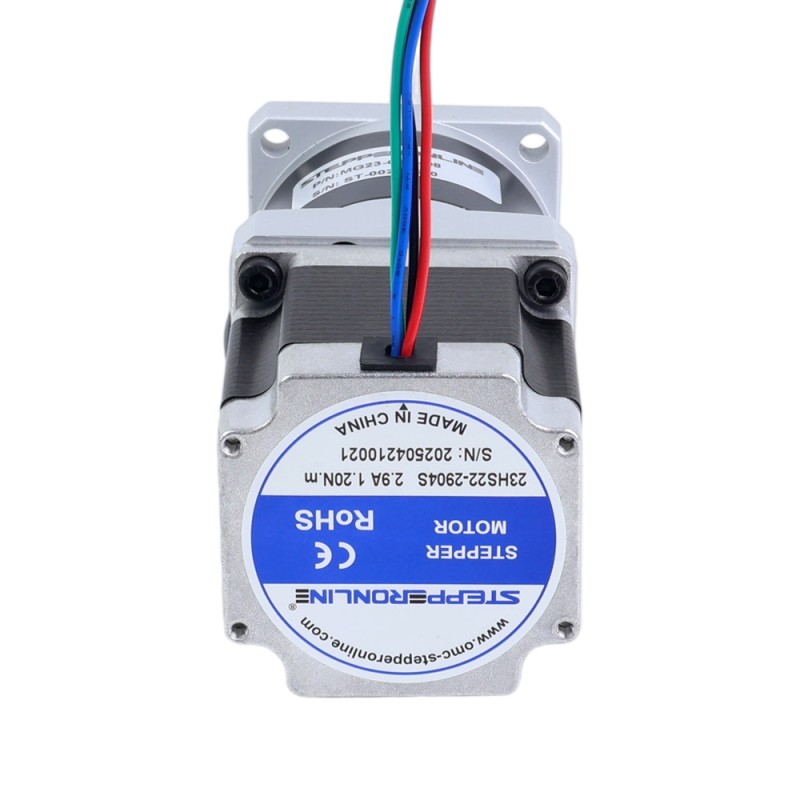

Name: Nema 23 Stepper Motor Bipolar L=54.5mm w/ Gear Ratio 50:1 MG Series Planetary Gearbox
Brand: STEPPERONLINE
SKU: 23HS22-2904S-MG50
Price: 33.88 GBP
Availability: InStock

Nema 23 Stepper Motor Bipolar L=54.5mm w/ Gear Ratio 50:1 MG Series Planetary Gearbox - 23HS22-2904S-MG50 | StepperOnline UK

23HS22-2904S-MG50

Output Shaft TypeKeyway

Single Shaft/Dual ShaftSingle Shaft

Frame Size(mm)Nema 23 (57 x 57)

Product TypeGeared Stepper Motor

Question

Downloads

23HS22-2904S-MG50_Full_Datasheet.pdfPDF · 56.18KB 23HS22-2904S-MG50.STEPSTEP · 1.73MBLog in to download

Same series

Model	Output Shaft Type	Single Shaft/Dual Shaft	Frame Size(mm)	Product Type	Price	Stock
23HS22-2804D-HG50-AR3	Keyway	Dual Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£83.70	Backorder
23HS22-2804S-HG10	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£63.15	In stock
23HS22-2804S-HG100	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£72.55	In stock
23HS22-2804S-HG15	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£72.55	In stock
23HS22-2804S-HG20	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£72.55	In stock
23HS22-2804S-HG5	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£63.69	In stock
23HS22-2804S-HG50	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£72.55	In stock
23HS22-2904S-EGS50	Keyway	Single Shaft	Nema 23 (60 x 60)	Geared Stepper Motor	£71.76	In stock
23HS22-2904S-MG10	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£28.27	In stock
23HS22-2904S-MG20	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£33.88	In stock
23HS22-2904S-MG5	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£28.27	In stock
23HS22-2904S-MG50	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£33.88	In stock
23HS30-2804S-HG10	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£65.86	Backorder
23HS30-2904S-EGS50	Keyway	Single Shaft	Nema 23 (60 x 60)	Geared Stepper Motor	£76.05	In stock
23HS30-2904S-MG10	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£31.64	In stock
23HS30-2904S-MG20	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£37.25	In stock
23HS30-2904S-MG4	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£31.64	In stock
23HS30-2904S-MG5	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£31.64	In stock
23HS30-2904S-MG50	Keyway	Single Shaft	Nema 23 (57 x 57)	Geared Stepper Motor	£37.25	In stock

Nema 23 Stepper Motor Bipolar L=54.5mm w/ Gear Ratio 50:1 MG Series Planetary Gearbox

This Nema 23 stepper motor delivers a holding torque of 1.20Nm(169.93oz.in) and features our high-pr... Read More

0 reviews • Write a review

from

£33.88

5 + £32.48

10 + £31.20

50 + £30.01

100 + £28.91

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This Nema 23 stepper motor delivers a holding torque of 1.20Nm(169.93oz.in) and features our high-precision MG series gearbox with a 50:1 gear ratio. Unlike the EG series' steel gears, the MG series utilizes durable powder metallurgy gears, offering an optimal balance of precision and cost-effectiveness for your applications.
The integrated shaft coupling design allows for easy motor or gearbox replacement, providing flexibility for your projects.

Electrical Specification

Part Number: 23HS22-2904S-MG50
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 1.20Nm(169.93oz.in)
Rated Current/phase: 2.90A
Phase Resistance: 0.90ohms±10%
Inductance: 2.60mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 50:1
Efficiency: 80%
Backlash at No-load: <=45arcmin
Maximum Permissible Torque: 20.00Nm(2832.23oz.in)
Moment Permissible Torque: 40.00Nm(5664.47oz.in)

Physical Specification

Frame Size: 57 x 57m
Motor Length: 54.5mm
Gearbox Length: 68mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ14mm
Output Shaft Length: 34mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.9
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	1.20
Inductance(mH)	2.6
Phase Resistance(ohms)	0.9
Physical Specification
Backlash at No-load	<=45 arcmin
Body Length(mm)	122.5
Frame Size(mm)	Nema 23 (57 x 57)
Gear Material	Powder Metallurgy
Gear Ratio(xx:1)	50
Gearbox Type	Precision Planetary
IP Rating	40
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	34
Single Shaft/Dual Shaft	Single Shaft
