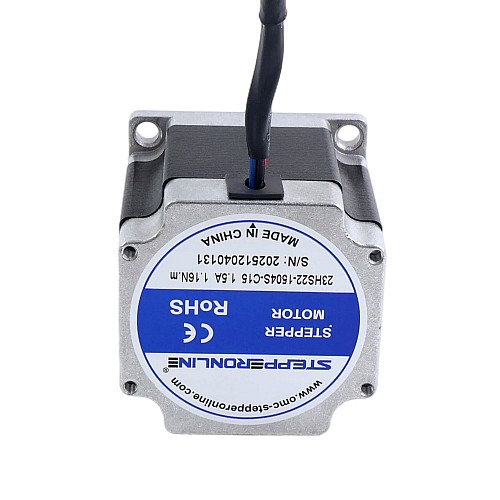

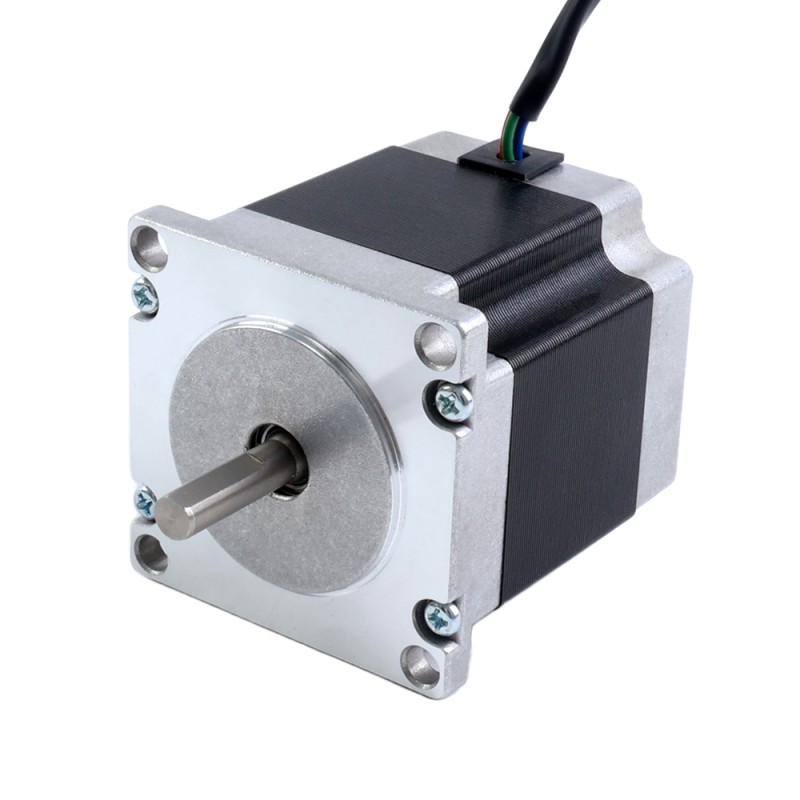

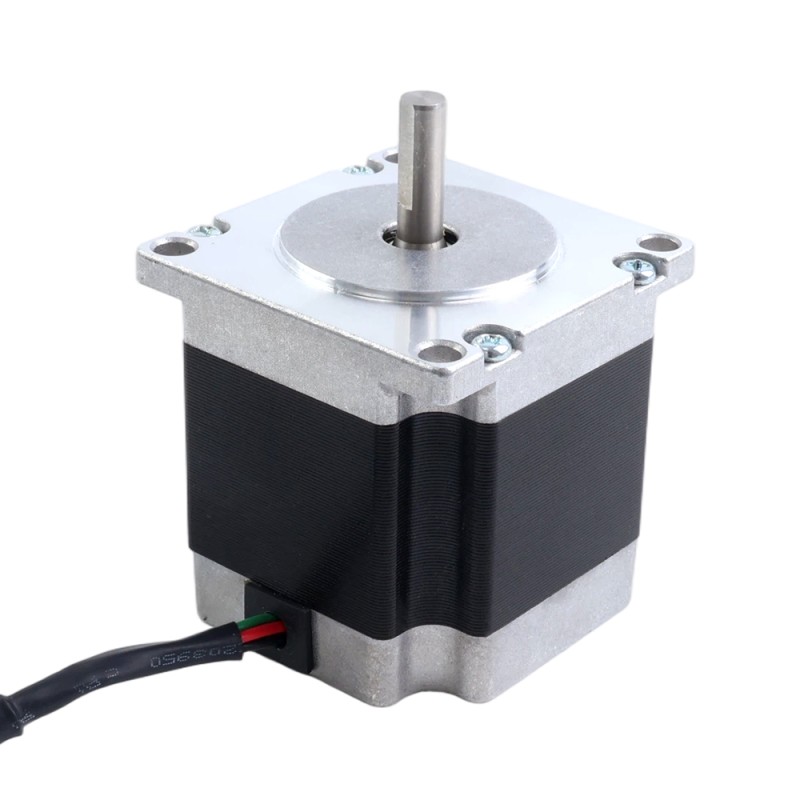

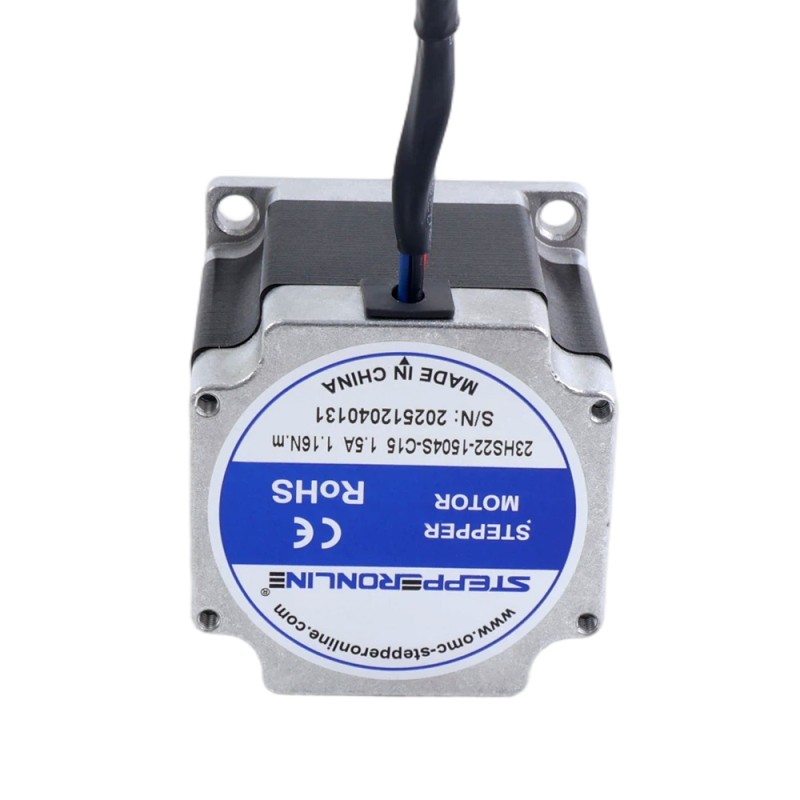

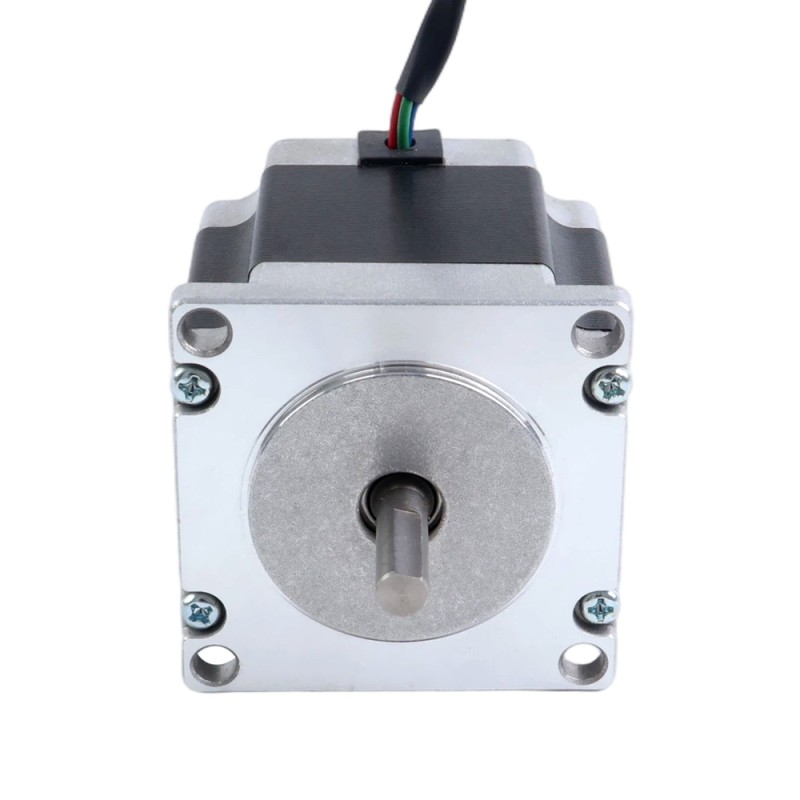

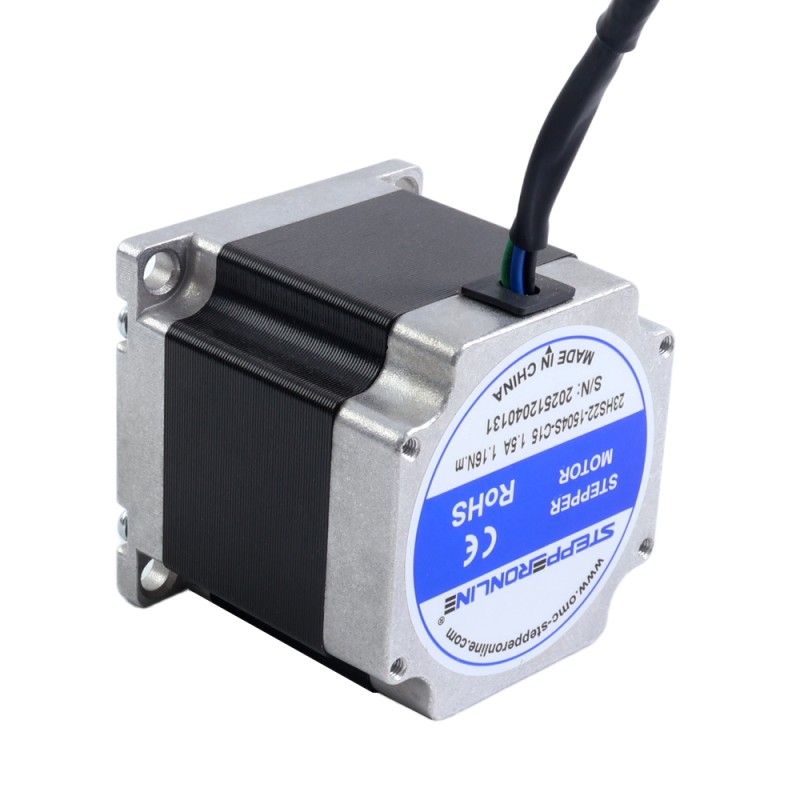

Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector

Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector - 23HS22-1504S-C15 | StepperOnline UK
23HS22-1504S-C15 Discontinued

This product has been discontinued and is no longer available for purchase. Please contact us for a replacement.

Question

Downloads

23HS22-1504S-C15_Full_Datasheet.pdfPDF · 266.42KB
Same series
ModelPriceStock
23HS22-1504S-C15 Discontinued—————
23HS22-2804D-E1000 Discontinued—————
23HS22-2804D-PG15-E1000 Discontinued—15 : 1———
23HS22-2804D-PG4-E1000 Discontinued—4 : 1———
23HS22-2804D-PG47-E1000 Discontinued—47 : 1———
23HS30-2804D-E1000 Discontinued—————
23HS30-4004D-E1000 Discontinued—————
23HS45-4204S-RV30-G20 Discontinued—20Worm Gearbox——
23HS45-4204S-RV30-G7.5 Discontinued—7.5Worm Gearbox——
Nema 23 Stepper Motor Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm with 762mm Cable & Molex Connector
This bipolar Nema 23 stepper motor features a 1.8° step angle and delivers a holding torque of 1... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

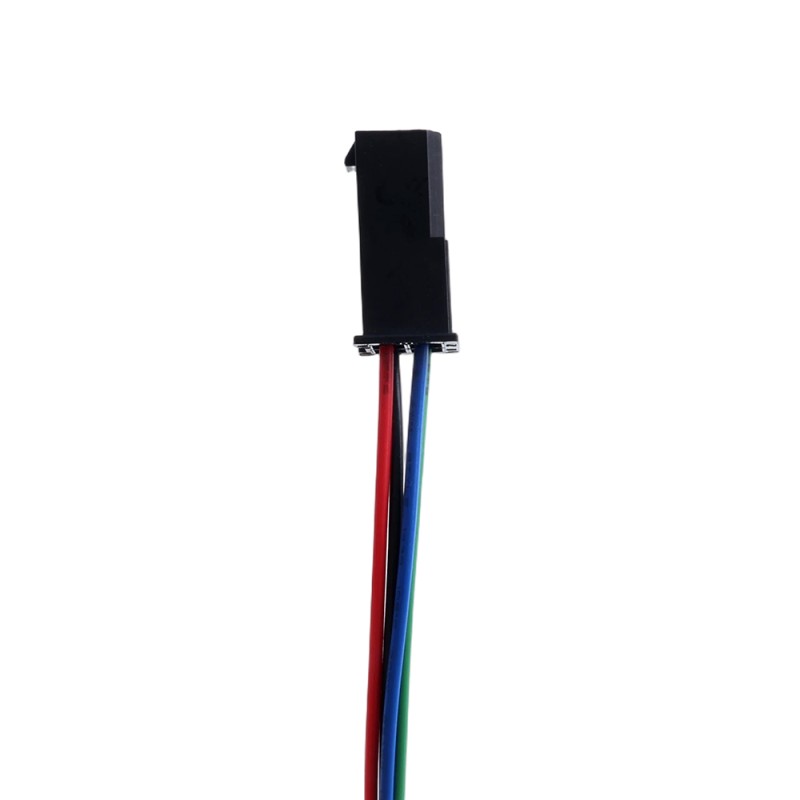

This bipolar Nema 23 stepper motor features a 1.8° step angle and delivers a holding torque of 1.16Nm(164.3oz.in), with each phase drawing 1.5A. This motor features an additional MOLEX 39013046 connector compared to the standard 23HS22-2804S model, with a longer cable length of 762mm.

Electrical Specification

  • Manufacturer Part Number: 23HS22-1504S-C15
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 1.16Nm(164.3oz.in)
  • Rated Current/phase: 1.5A
  • Phase Resistance: 3.6ohms
  • Inductance: 13mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Cable Length: 762mm
  • Weight: 0.68kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Please note that this motor has been discontinued. The recommended replacement is 23HS22-1504S.
Removing the connector makes this motor identical to the standard model, but at a more favorable price.
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 116
Holding Torque(oz.in) 164.3
Inductance(mH) 13
Phase Resistance(ohms) 3.6
Rated Current(A) 1.5
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 40
Lead Length(mm) 762
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 6.35
Shaft Length(mm) 21
Single Shaft/Dual Shaft Single Shaft
