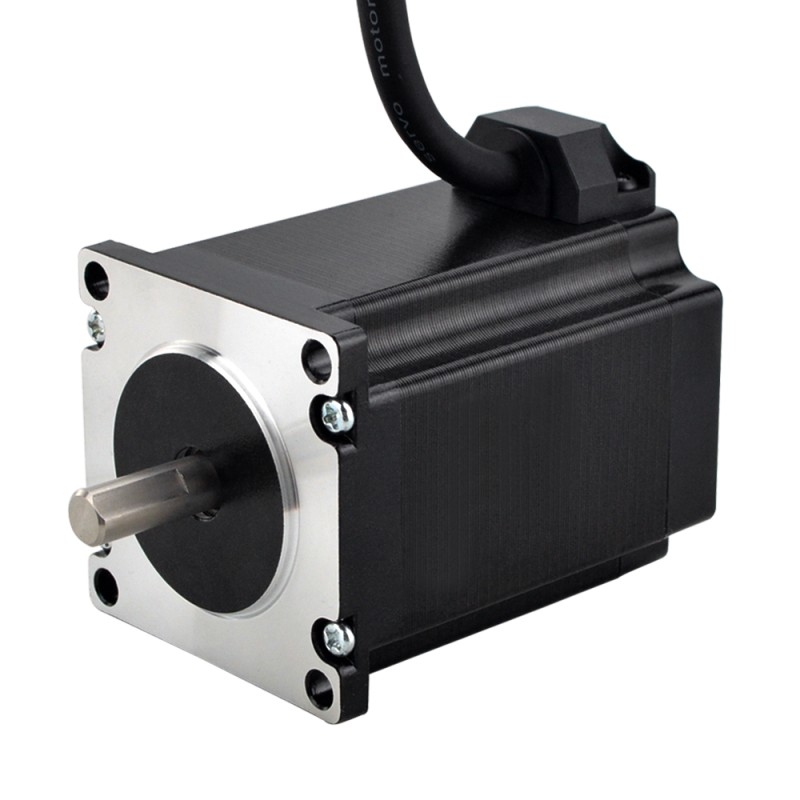

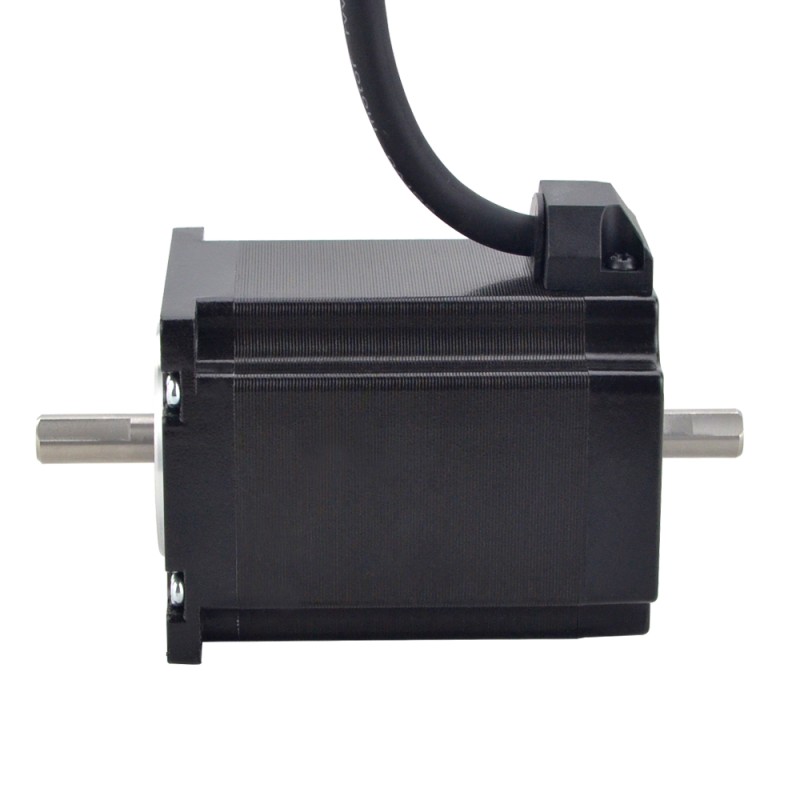

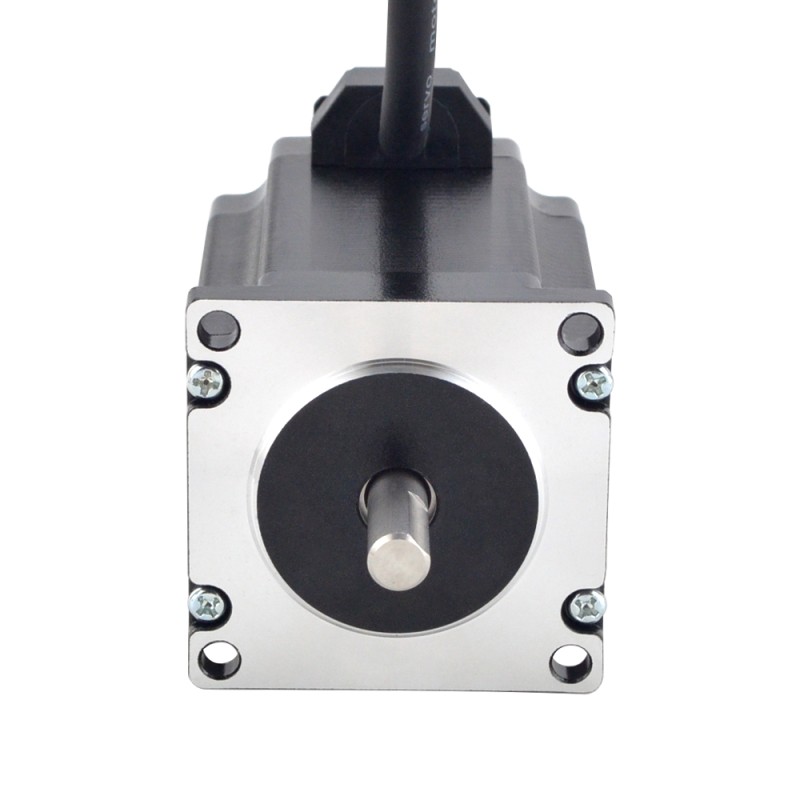

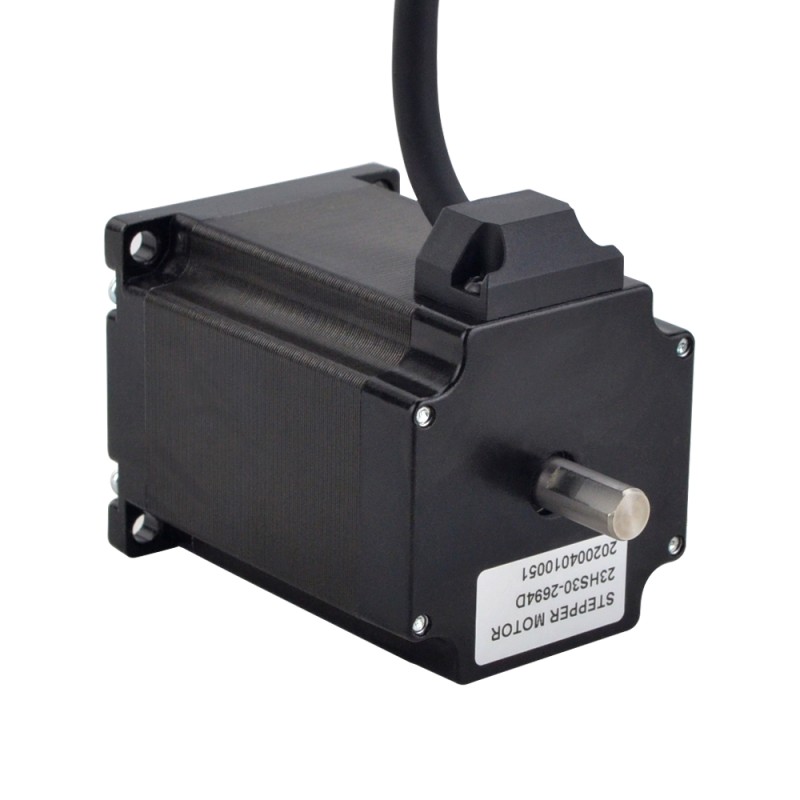

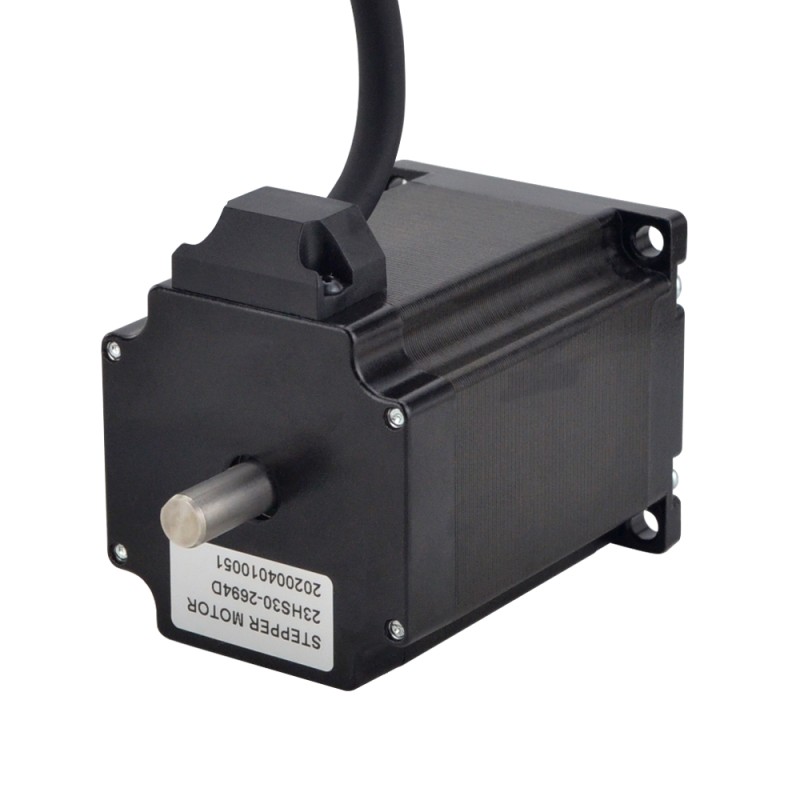

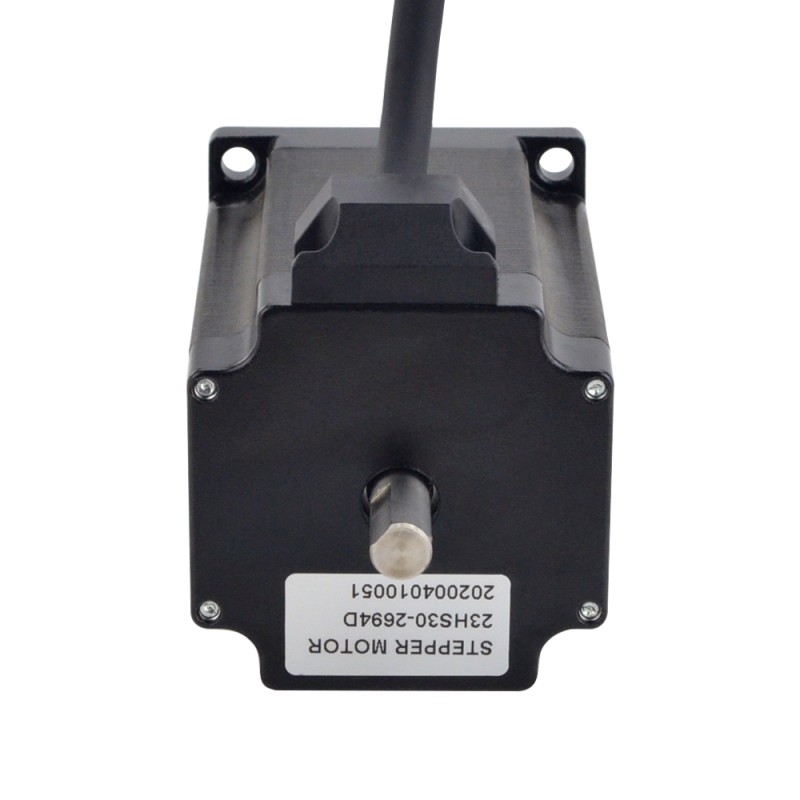

Dual Shaft Nema 23 Bipolar 1.8deg 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires

Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
Nema 23 Stepper Motor 8mm Dual Shaft for Face Mask Machine & Respiratory Ventilator - 23HS30-2694D | StepperOnline UK
23HS30-2694D
Output Shaft TypeD
No. of Lead4
Single Shaft/Dual ShaftDual Shaft
Holding Torque(Ncm)185
Question

Downloads

23HS30-2694D.STEPSTEP · 1.43MBLog in to download23HS30-2694D_Torque_Curve.pdfPDF · 173.97KB23HS30-2694D_Full_Datasheet.pdfPDF · 122.83KB
Same series
ModelOutput Shaft TypeNo. of LeadSingle Shaft/Dual ShaftHolding Torque(Ncm)PriceStock
23HS22-1006DD6Dual Shaft90£12.36In stock
23HS22-1006SD6Single Shaft90£12.36In stock
23HS22-1504SD4Single Shaft116£10.56In stock
23HS22-1504S-C14D4Single Shaft116£7.06In stock
23HS22-2804DD4Dual Shaft120£13.97In stock
23HS22-2804SD4Single Shaft124£10.56In stock
23HS22-2804S1D4Single Shaft126£10.56In stock
23HS22-3008DO8Dual Shaft126£12.36In stock
23HS26-2004HHollow4Dual Shaft145£20.21In stock
23HS30-1006SD6Single Shaft135£17.52In stock
23HS30-2694DD4Dual Shaft185£14.95In stock
23HS30-2694SD4Single Shaft185£14.95In stock
23HS30-2804DD4Dual Shaft185£19.20In stock
23HS30-2804SD4Single Shaft200£14.43In stock
23HS30-2804S-RVKeyway4Single Shaft190£20.58In stock
23HS30-2804S-USEDD4Single Shaft190£6.05In stock
23HS30-2804S1D4Single Shaft185£17.52In stock
23HS30-2804S2D4Single Shaft190£14.43In stock
23HS30-2904SD4Single Shaft190£14.43In stock
23HS30-3004SD4Single Shaft189£14.43In stock
23HS30-3006DO6Dual Shaft135£17.52Backorder
23HS32-4004SD4Single Shaft240£14.95In stock
23HS32-4004S-C8-USEDD4Single Shaft240£13.65In stock
23HS33-4008DD8Dual Shaft283£21.16In stock
23HS33-4008SD8Single Shaft283£22.29In stock
23HS39-5004SD4Single Shaft300£11.56In stock
23HS39-5004S-USEDD4Single Shaft300£11.79In stock
23HS41-1804SD4Single Shaft240£19.89In stock
23HS45-3504SD4Single Shaft300£24.47In stock
23HS45-4204DD4Dual Shaft280£29.92In stock
View all in category
Dual Shaft Nema 23 Bipolar 1.8deg 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Electrical Specification Manufacturer Part Number: 23HS30-2694D Number Of Phase: 2 Step Angle: ... Read More
0 reviews • Write a review
from
£14.95
5 + £14.24
10 + £13.60
50 + £13.01
100 + £12.48

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

Electrical Specification

  • Manufacturer Part Number: 23HS30-2694D
  • Number Of Phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 1.85Nm(261.98oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 1.1ohms± 10%
  • Inductance: 5.4mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 76mm
  • Shaft Diameter: Φ8mm
  • Front Shaft Length: 21mm
  • Front D-CUT Shaft Length: 15mm
  • Rear Shaft Length:16mm
  • Rear D-CUT Shaft Length: 14mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.09kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 185
Holding Torque(oz.in) 261.98
Inductance(mH) 5.4
Phase Resistance(ohms) 1.1
Rated Current(A) 2.8
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 76
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 40
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 1090

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview

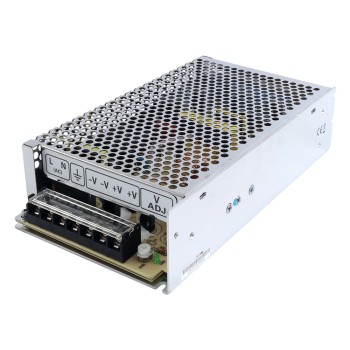

150W 36V 4.17A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
Pre-order
150W 36V 4.17A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This professional 150W 36V 4.17A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System. 115V and 230V ..
from
£11.38
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Driver 1.8-5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 1.8-5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
The DM556T is a digital stepper driver with simple design and easy setup. By implementing advanced stepper control technology, this stepper driver is ..
from
£18.11
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 23 Bipolar 1.8deg 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
Nema 23 Bipolar 1.8deg 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires
This Nema 23 stepper CNC motor has a step angle of 1.8degrees, size of 57x57x76mm, and draws 2.8A per phase. It has 4 wires and has a holding torque o..
from
£14.95
Add to Cart
Add to Wish List Compare this Product
Quickview
Aluminium Alloy Motor Handwheel 40mm OD 8mm Bore Diameter
Aluminium Alloy Motor Handwheel 40mm OD 8mm Bore Diameter
This handwheel has an outer diameter of 40mm and a bore diameter of 8mm. It is made of a reliable aluminum alloy for maximum durability and reliabilit..
from
£3.43
Add to Cart
Add to Wish List Compare this Product
Quickview

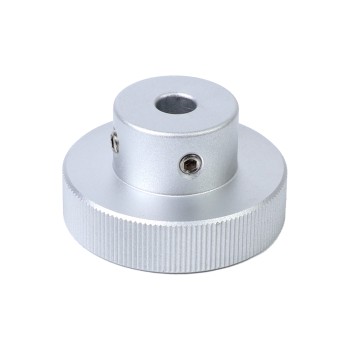

Aluminium Alloy Motor Handwheel 45mm OD 8mm Bore Diameter
