Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874") Length 250mm

Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline UK
23N22S2004AJ4-250RS
Rated Current(A)2.0
Phase Resistance(ohms)3.6
Lead Travel/Revolution(mm)2
Lead Travel/Step(mm)0.01
Question

Downloads

23N22S2004AJ4-250RS_Full_Datasheet.pdfPDF · 52.04KB
Same series
ModelRated Current(A)Phase Resistance(ohms)Lead Travel/Revolution(mm)Lead Travel/Step(mm)PriceStock
11N13S0424ED5-150RS0.4211.90.6350.003175£29.12In stock
11N13S0424HD3-150RS-SALE0.4211.45.080.0254£44.73In stock
11N13S0754AA4-100RS0.753.220.01£19.07In stock
11N13S0754QE2-100RS0.753.24.8770.024384£25.12In stock
11N13S0754QE4-150RS0.753.24.8770.024384£25.81In stock
11N13S1004FD5-200RS1.02.11.270.00635£27.50In stock
11N13S1004GD5-200RS1.02.12.540.0127£27.50In stock
11N13S1004HD5-200RS1.02.15.080.0254£27.50In stock
11N18S0754FD3-250RS0.756.71.270.00635£68.60In stock
11N18S0754GD3-250RS0.756.72.540.0127£68.60In stock
11N18S0754HD3-250RS0.756.75.080.0254£68.60In stock
11N18S1004ED5-250RS1.03.70.6350.003175£30.74In stock
11N18S1004FD5-200RS1.03.71.270.00635£29.12Backorder
11N18S1004GD5-200RS1.03.72.540.0127£29.12In stock
11N18S1004HD5-200RS1.03.75.080.0254£29.12Backorder
11N18S1004ND5-200RS1.03.710.160.0508£29.12Backorder
14N13S1504GF5-200RS1.50.952.540.0127£25.88In stock
14N17S0914LF3-250RS0.915.50.7940.00396875£68.60Backorder
14N17S0914QE3-250RS-SALE0.915.54.8770.024384£53.62In stock
14N19S1504FF5-200RS1.51.51.270.00635£27.50In stock
14N19S1504GF5-200RS1.51.52.540.0127£27.50In stock
14N19S1504RF5-200RS-SALE1.51.56.350.03175£24.69In stock
14N19S1504WF5-200RS-SALE1.51.512.70.0635£24.69In stock
17N13S0404AF4-100RS0.43020.01£22.29In stock
17N13S0404AF4-150RS0.43020.01£24.15In stock
17N13S0404MB4-320RS0.43080.04£18.40In stock
17N13S0704JE2-150RS0.77.22.43840.012192£53.14In stock
17N13S0844AF4-200RS0.845.7520.01£24.15In stock
17N13S1504FF5-200RS1.51.71.270.00635£25.07In stock
17N13S1504GF5-200RS1.51.72.540.0127£25.07Backorder
View all in category
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874") Length 250mm
This model is an economy linear stepper motor named Nema 23 non captive linear actuator, which consi... Read More
0 reviews • Write a review
from
£31.42
5 + £30.12
10 + £28.93
50 + £27.82
100 + £26.80

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

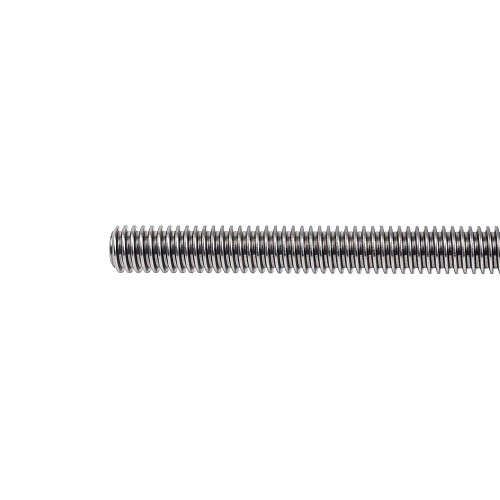

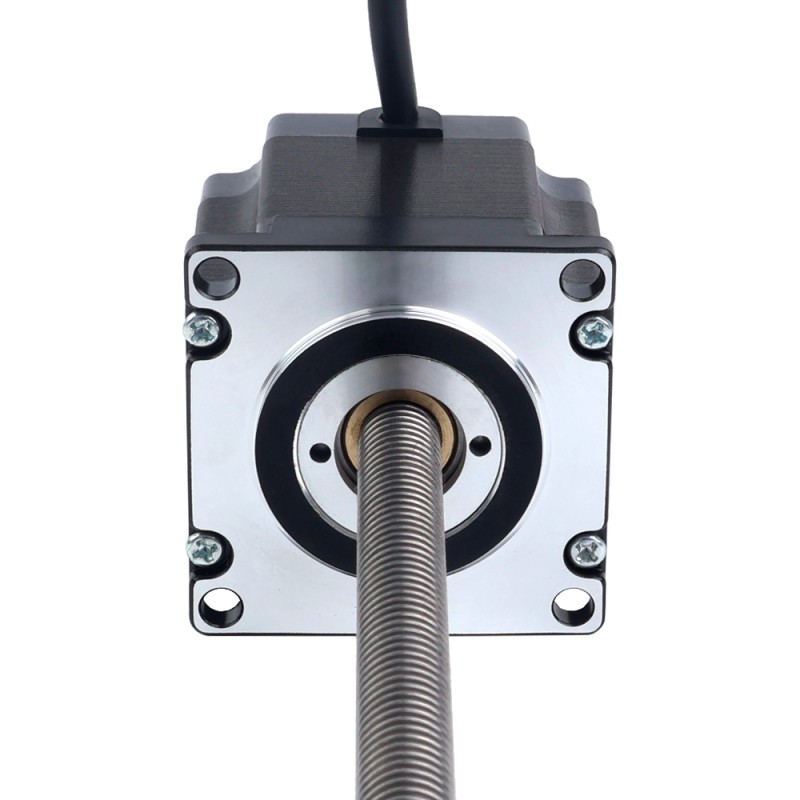

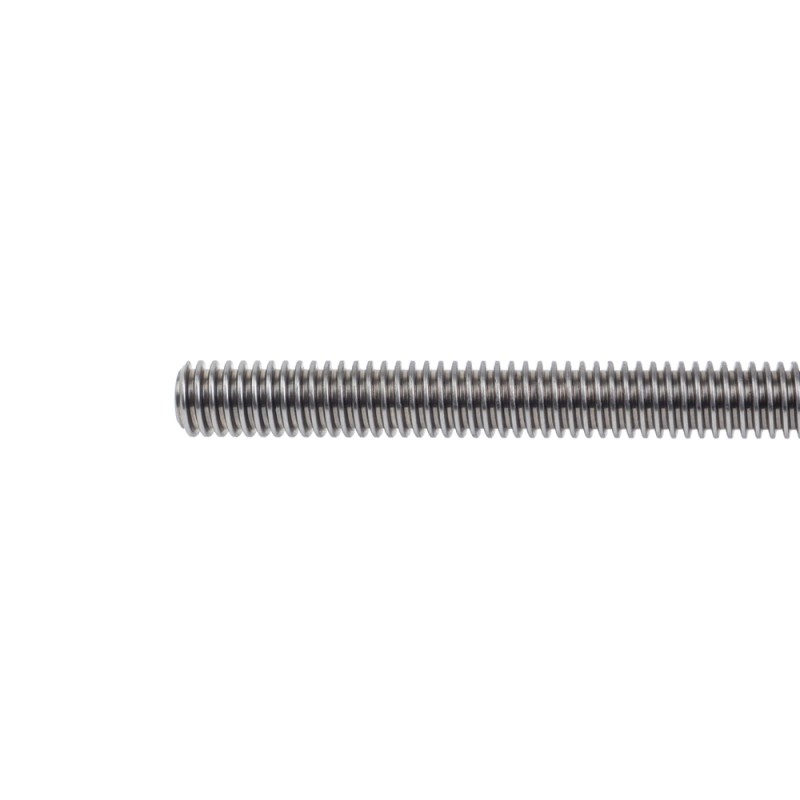

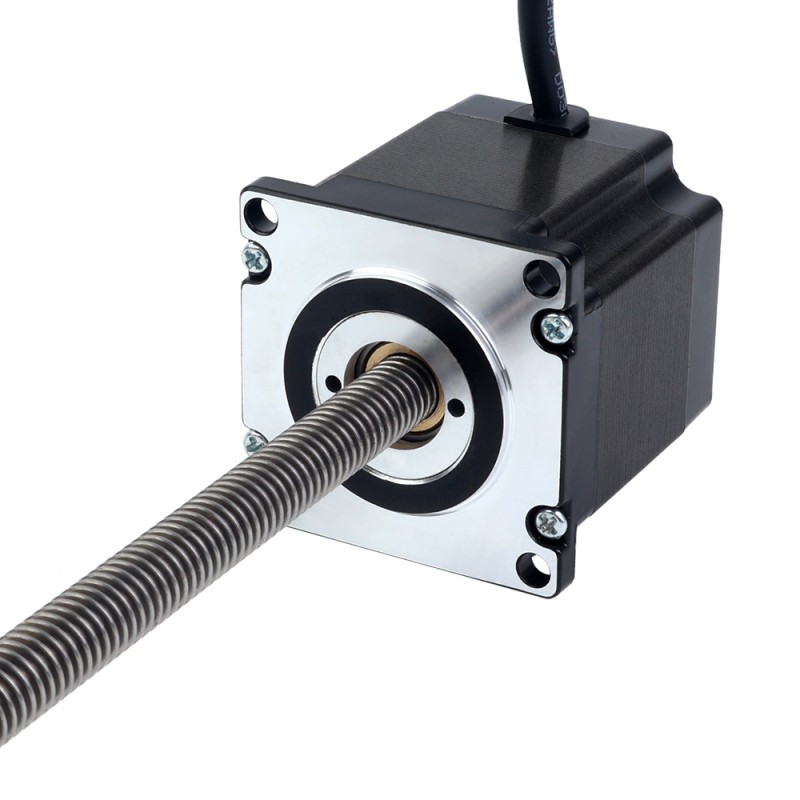

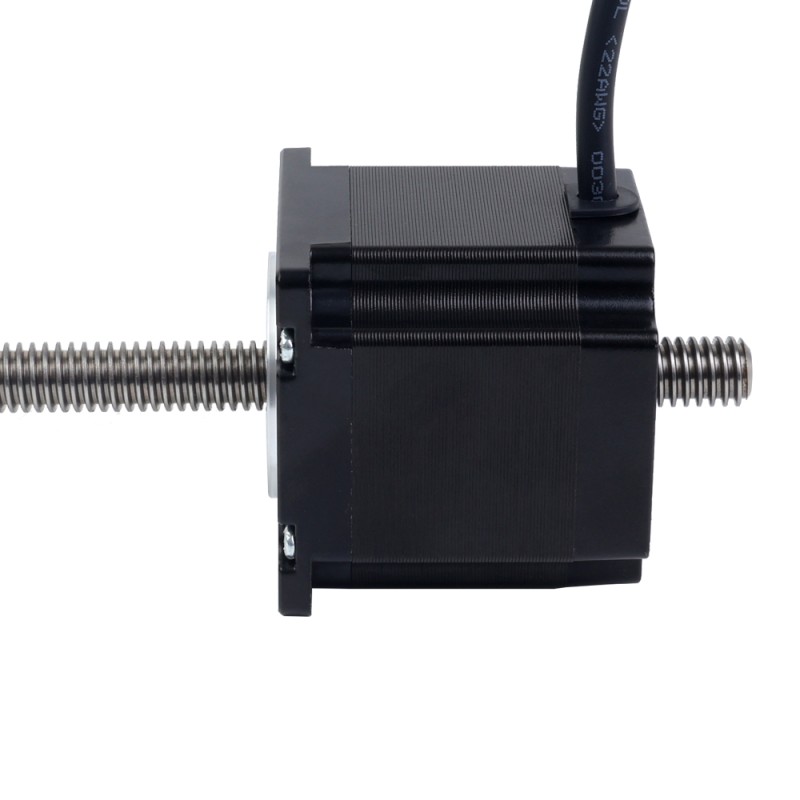

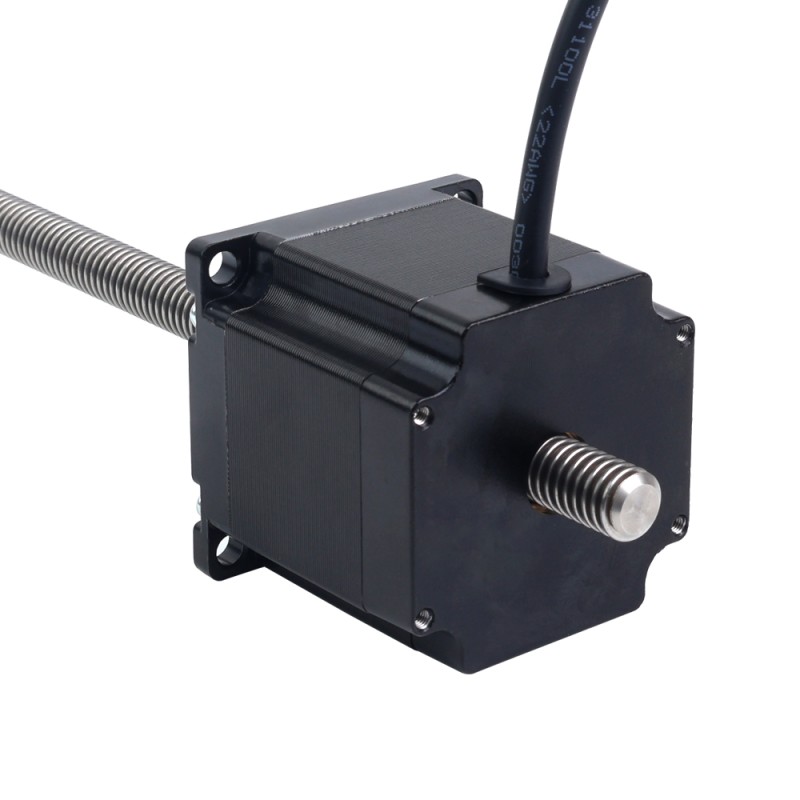

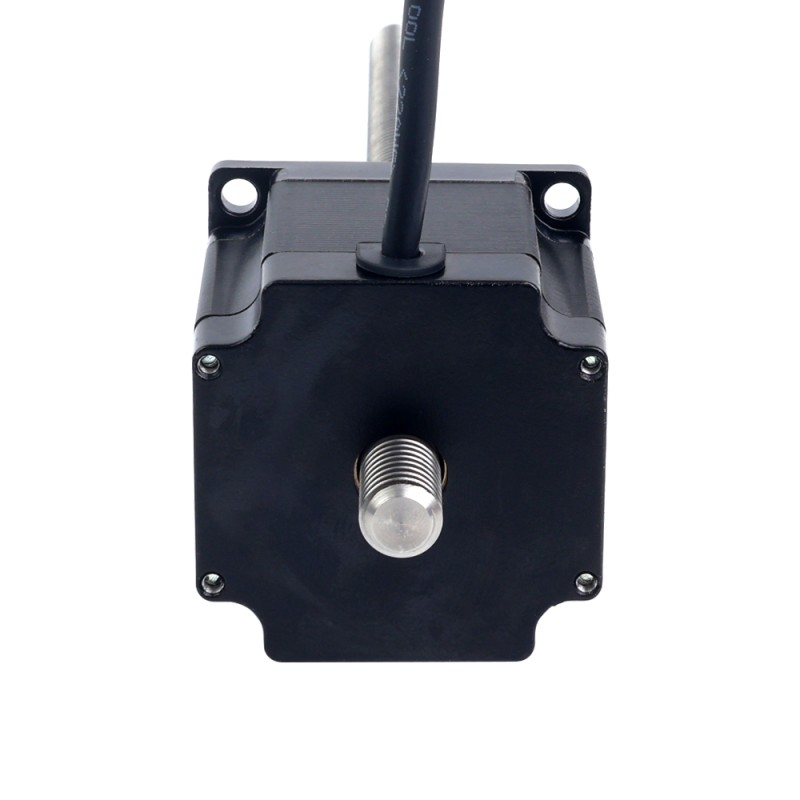

This model is an economy linear stepper motor named Nema 23 non captive linear actuator, which consists of a 56mm 2.0A Nema 23 stepper motor and a 250mm length Tr11x2 linear screw.

Electrical Specification

  • Manufacturer Part Number: 23N22S2004AJ4-250RS
  • Motor Type: Non Captive Linear Stepper
  • Holding Torque: 1.2Nm(169.93oz.in)
  • Rated Current/phase: 2.0A
  • Phase Resistance: 3.60ohms±10%
  • Inductance: 12mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Motor Length: 56mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ11mm(0.433")
  • Lead/Step: 0.01mm(0.0003937")
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Cable Length: 500mm
  • Weight: 824g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 120
Inductance(mH) 12
Phase Resistance(ohms) 3.6
Rated Current(A) 2.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 40
Lead Length(mm) 500
Lead Screw Diameter(mm) 11
Lead Screw Length(mm) 250
Lead Travel/Revolution(mm) 2
Lead Travel/Step(mm) 0.01
Linear Motor Type Non-Captive
No. of Lead 4

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
The DM542T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achie..
from
£15.52
Add to Cart
Add to Wish List Compare this Product
Quickview
LRS-350-24 MEANWELL 350W 24VDC 14.6A 115/230VAC Enclosed Switching Power Supply
🔥 Bestseller
LRS-350-24 MEANWELL 350W 24VDC 14.6A 115/230VAC Enclosed Switching Power Supply
This is a 350W 24VDC 14.6A power supply. LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting t..
from
£15.62
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Non-captive 44Ncm (62.31oz.in) 48mm Stack 1.68A Lead 8mm(0.31496") Length 200mm
Nema 17 Non-captive 44Ncm (62.31oz.in) 48mm Stack 1.68A Lead 8mm(0.31496") Length 200mm
This model is economy linear stepper motor which named Nema 17 non captive linear actuator, it was composed of 48mm 1.8 degree 1.68A Nema 17 stepper m..
from
£13.75
Add to Cart
Add to Wish List Compare this Product
Quickview
EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 17 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 17 Stepper Motor
The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it wi..
from
£23.12
Add to Cart
Add to Wish List Compare this Product
Quickview
EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for 8mm Shaft Nema 23 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for 8mm Shaft Nema 23 Stepper Motor
The size of this gearbox is 60 x 60mm and the input shaft diameter is 8mm. This high-precision planetary gearbox is belong to EG series gearbox, it wi..
from
£26.93
Add to Cart
Add to Wish List Compare this Product
Quickview
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 8mm Shaft Nema 23 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20arc-min for 8mm Shaft Nema 23 Stepper Motor
The size of this gearbox is 60 x 60mm and the input shaft diameter is 8mm. This high-precision planetary gearbox is belong to EG series gearbox, it wi..
from
£37.03
Add to Cart
Add to Wish List Compare this Product
Quickview
Single Output Shaft for NMRV30 Worm Gear Speed Reducer
Single Output Shaft for NMRV30 Worm Gear Speed Reducer
This is single output shaft for NMRV30 Worm Gear Speed Reducer, the output shaft diameter is 14mm with 5mm keyway and M6 screw holes on the end. ..
from
£2.38
Add to Cart
Add to Wish List Compare this Product
Quickview

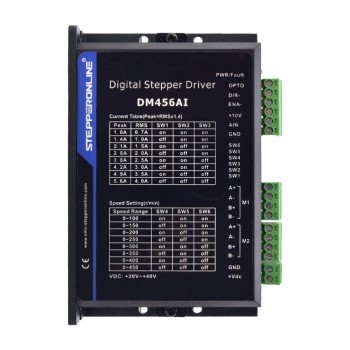

Stepper Motor Controller 2 Channels 1.0-5.6A 20-40VDC Speed Adjustable
