Nema 17 Stepper Motor Bipolar L=60mm w/ Gear Ratio 100:1 MG Series Planetary Gearbox

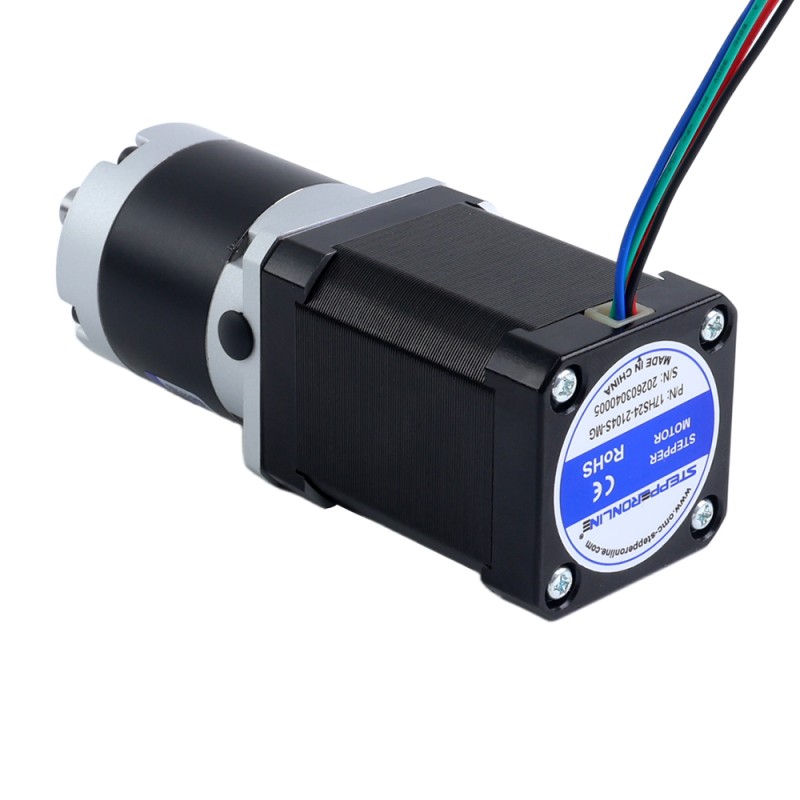

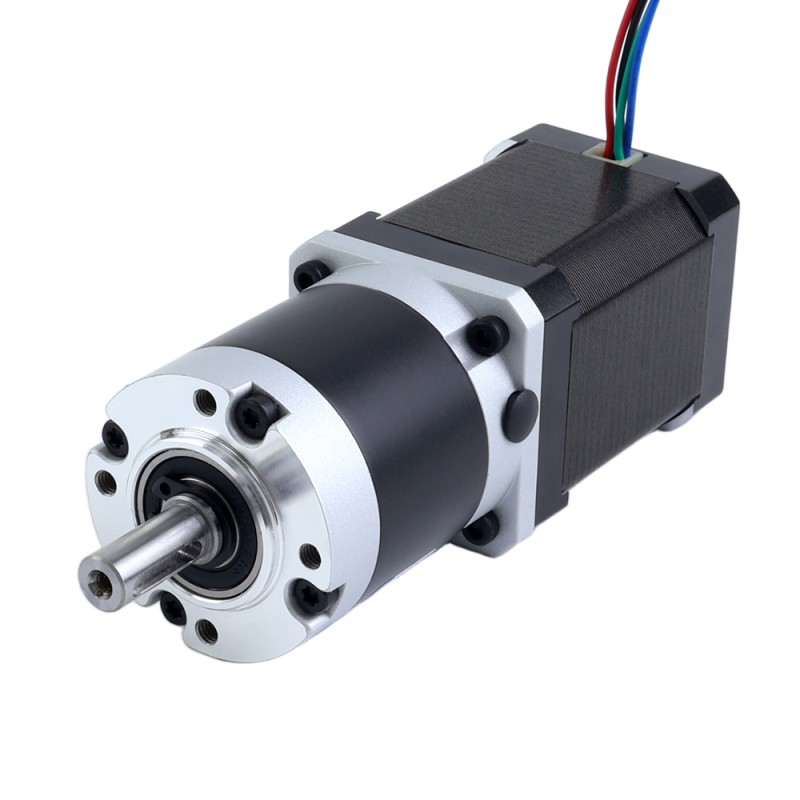

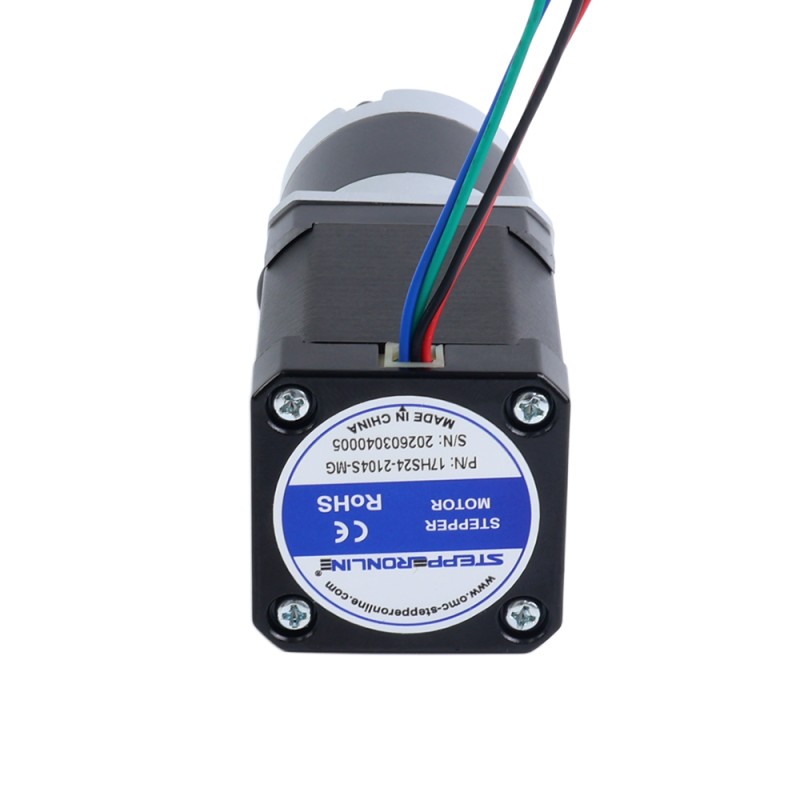

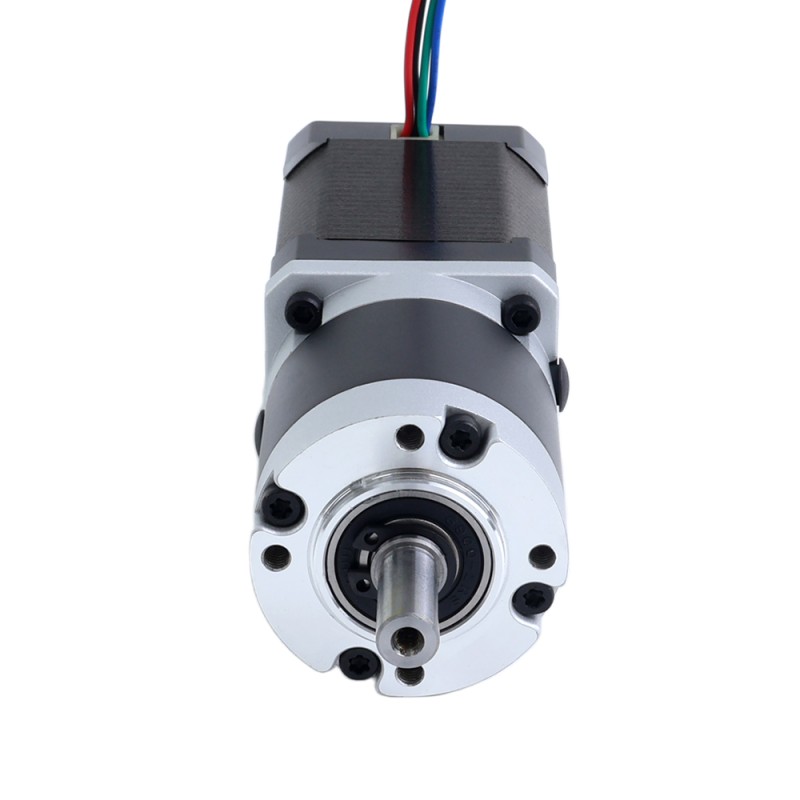

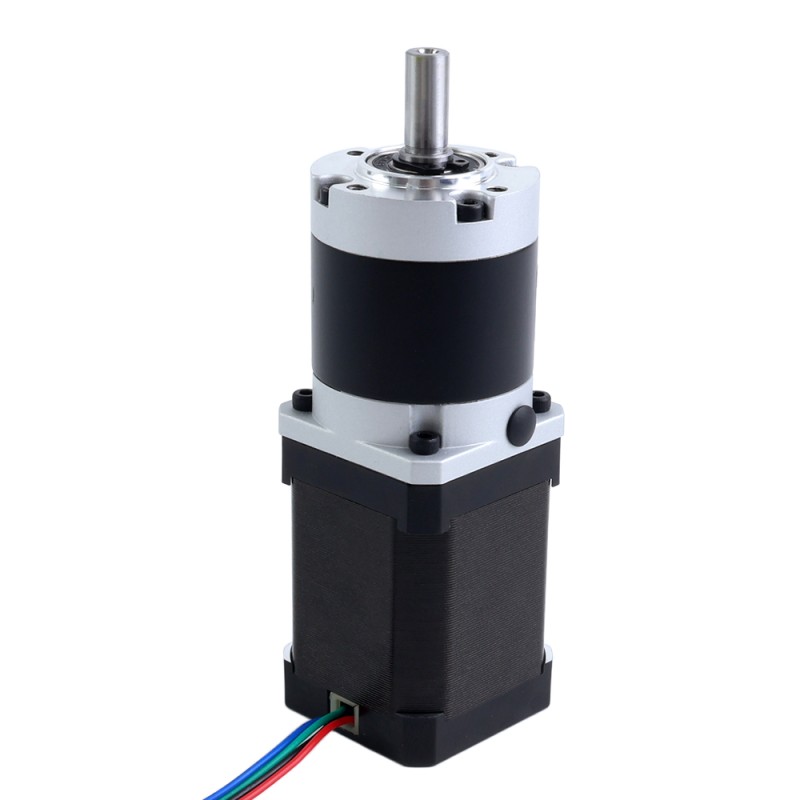

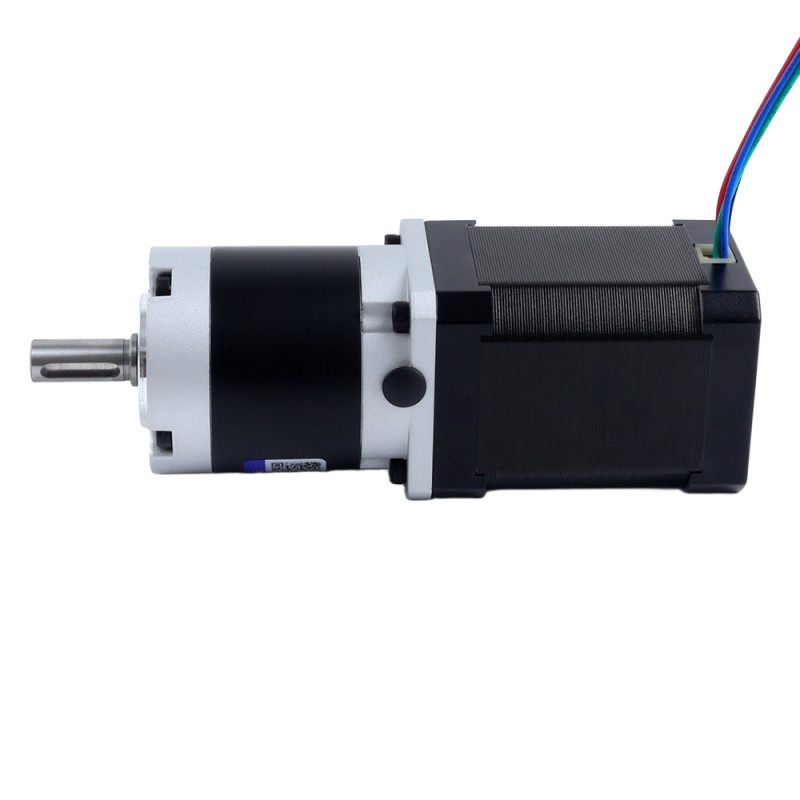

This Nema 17 stepper motor delivers a holding torque of 0.76Nm(107.62oz.in) and features our high-precision MG series gearbox with a 100:1 gear ratio. Unlike the EG series' steel gears, the MG series utilizes durable powder metallurgy gears, offering an optimal balance of precision and cost-effectiveness for your applications.
The integrated shaft coupling design allows for easy motor or gearbox replacement, providing flexibility for your projects.

Electrical Specification

• Part Number: 17HS24-2104S-MG100
• Motor Type: Bipolar Stepper
• Holding Torque without Gearbox: 0.76Nm(107.62oz.in)
• Rated Current/phase: 2.10A
• Phase Resistance: 1.60ohms±10%
• Inductance: 3.00mH±20%(1KHz)
• Insulation Class: B 130°C[266°F]

Gearbox Specifications

• Gearbox Type: Spur Planetary
• Gear Material: Powder Metallurgy
• Gear Ratio: 100:1
• Efficiency: 80%
• Backlash at No-load: <=45arcmin
• Maximum Permissible Torque: 5.00Nm(708.06oz.in)
• Moment Permissible Torque: 10.00Nm(1416.12oz.in)

Physical Specification

• Frame Size: 42 x 42mm
• Motor Length: 60mm
• Gearbox Length: 51mm
• Output Shaft Type: Keyway
• Output Shaft Diameter: Φ8mm
• Output Shaft Length: 21.5mm

Connection
