Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox

Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox - 17HS19-1684S-MG10 | StepperOnline UK
17HS19-1684S-MG10
Output Shaft TypeKeyway
Single Shaft/Dual ShaftSingle Shaft
Frame Size(mm)Nema 17 (42 x 42)
Product TypeGeared Stepper Motor
Question

Downloads

17HS19-1684S-MG10_Full_Datasheet.pdfPDF · 62.4KB17HS19-1684S-MG10.STEPSTEP · 1.78MBLog in to download
Same series
ModelOutput Shaft TypeSingle Shaft/Dual ShaftFrame Size(mm)Product TypePriceStock
17HS08-1004S-HG100-SALEKeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£22.37In stock
17HS13-0404S-MG10KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£17.75In stock
17HS13-0404S-MG100KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£22.05In stock
17HS13-0404S-MG20KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£22.05In stock
17HS13-0404S-MG5KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£17.75In stock
17HS13-0404S-MG50KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£22.05In stock
17HS15-0404S-HG20DSingle ShaftNema 17 (42 x 42)Geared Stepper Motor£48.78In stock
17HS15-1584S-MG10KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£18.50In stock
17HS15-1584S-MG100KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£22.81In stock
17HS15-1584S-MG20KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£22.81In stock
17HS15-1584S-MG5KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£18.50In stock
17HS15-1584S-MG50KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£22.81In stock
17HS15-1684D-HG10-AR3KeywayDual ShaftNema 17 (42 x 42)Geared Stepper Motor£44.92Backorder
17HS15-1684S-HG10KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£39.30In stock
17HS15-1684S-HG15KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£39.30In stock
17HS15-1684S-HG20KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£48.78In stock
17HS15-1684S-HG3KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£39.30In stock
17HS15-1684S-HG30KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£48.78In stock
17HS15-1684S-HG5KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£39.30In stock
17HS15-1684S-HG50 DiscontinuedKeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor—
17HS19-1684S-HG20KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£49.33Backorder
17HS19-1684S-MG10KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£19.04In stock
17HS19-1684S-MG100KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£23.34In stock
17HS19-1684S-MG20KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£23.34In stock
17HS19-1684S-MG5KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£19.04In stock
17HS19-1684S-MG50KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£23.34In stock
17HS24-2104S-MG10KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£19.47In stock
17HS24-2104S-MG100KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£24.80In stock
17HS24-2104S-MG5KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£19.47In stock
17HS24-2104S-MG50KeywaySingle ShaftNema 17 (42 x 42)Geared Stepper Motor£23.77In stock
Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox
This Nema 17 stepper motor delivers a holding torque of 0.52Nm(73.64oz.in) and features our high-pre... Read More
0 reviews • Write a review
from
£19.04
5 + £18.29
10 + £17.59
50 + £16.95
100 + £16.35

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

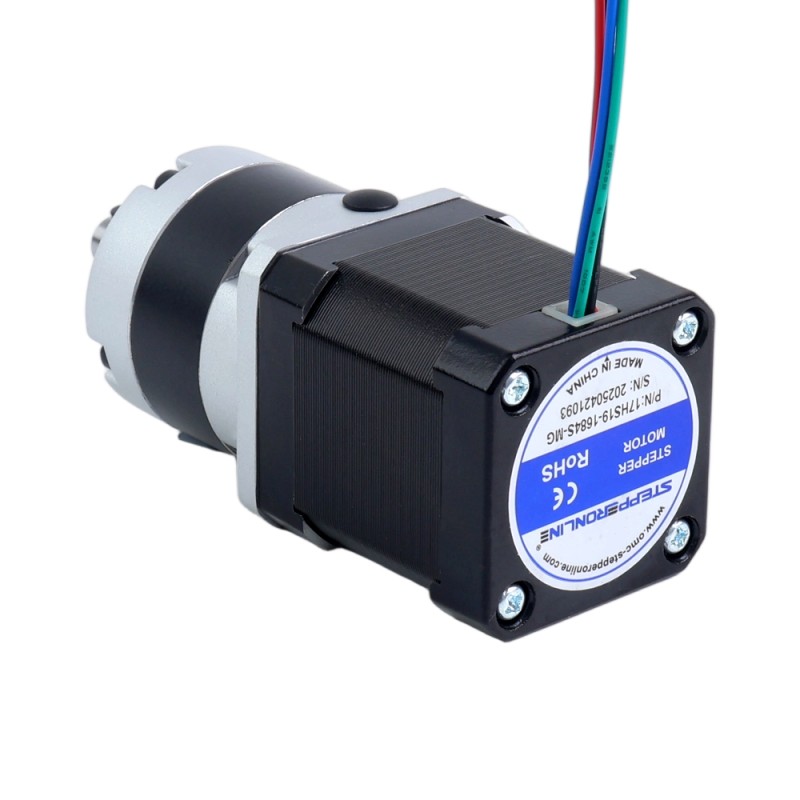

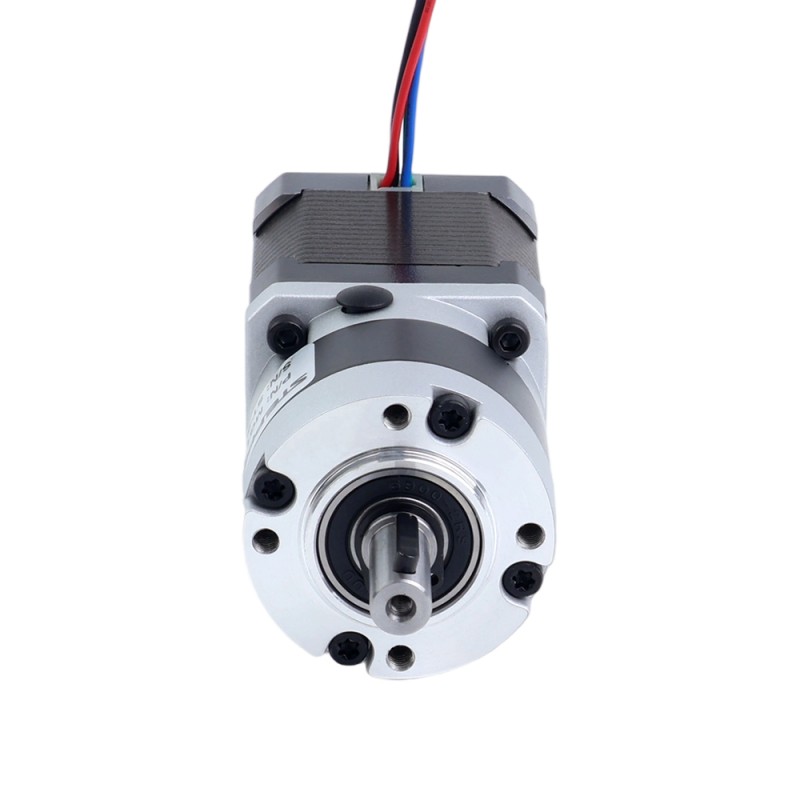

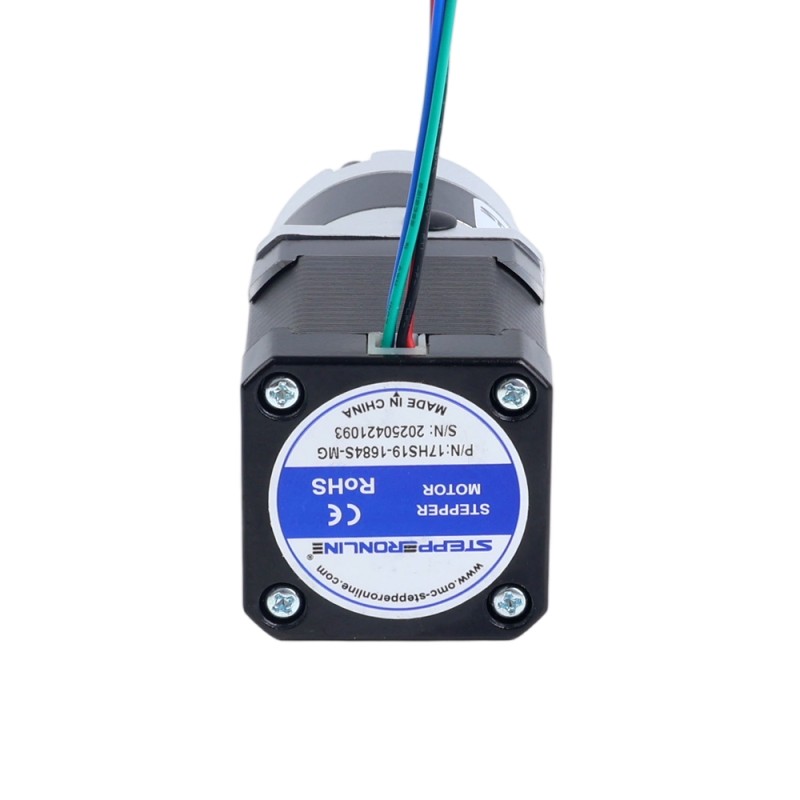

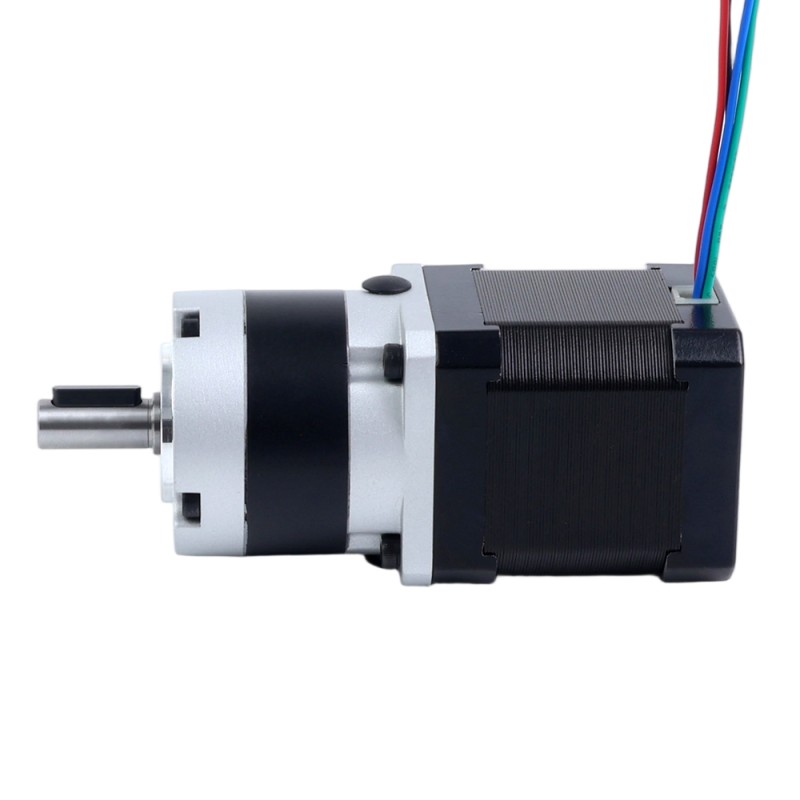

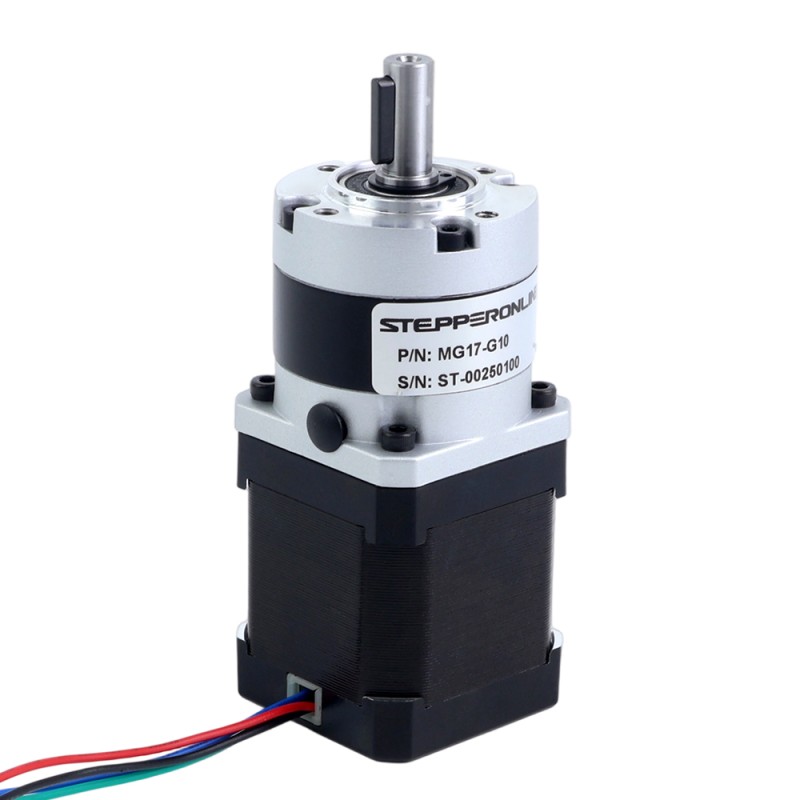

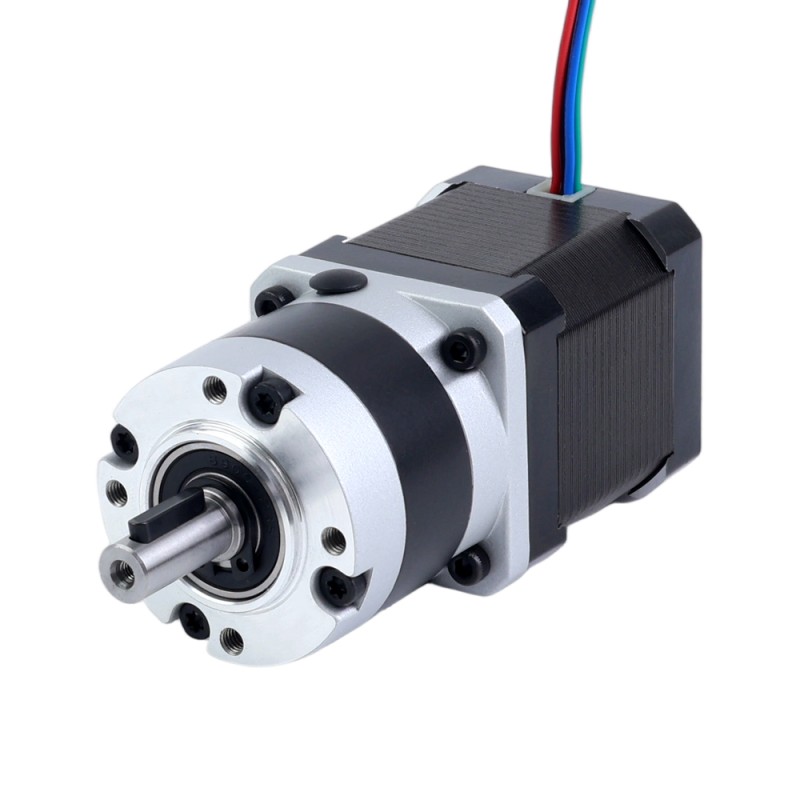

This Nema 17 stepper motor delivers a holding torque of 0.52Nm(73.64oz.in) and features our high-precision MG series gearbox with a 10:1 gear ratio. Unlike the EG series' steel gears, the MG series utilizes durable powder metallurgy gears, offering an optimal balance of precision and cost-effectiveness for your applications.
The integrated shaft coupling design allows for easy motor or gearbox replacement, providing flexibility for your projects.

Electrical Specification

  • Part Number: 17HS19-1684S-MG10
  • Motor Type: Bipolar Stepper
  • Holding Torque without Gearbox: 0.52Nm(73.64oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.80ohms±10%
  • Inductance: 3.20mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Spur Planetary
  • Gear Material: Powder Metallurgy
  • Gear Ratio: 10:1
  • Efficiency: 90%
  • Backlash at No-load: <=30arcmin
  • Maximum Permissible Torque: 5.00Nm(708.06oz.in)
  • Moment Permissible Torque: 10.00Nm(1416.12oz.in)

Physical Specification

  • Frame Size: 42 x 42mm
  • Motor Length: 48mm
  • Gearbox Length: 40mm
  • Output Shaft Type: Keyway
  • Output Shaft Diameter: Φ8mm
  • Output Shaft Length: 21.5mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Current(A) 1.68
Has Torque/Thrust Curve? No
Holding Torque w/o Gearbox(N.m) 0.52
Inductance(mH) 3.2
Phase Resistance(ohms) 1.8
Physical Specification
Backlash at No-load <=30 arcmin
Body Length(mm) 88
Frame Size(mm) Nema 17 (42 x 42)
Gear Material Powder Metallurgy
Gear Ratio(xx:1) 10
Gearbox Type Precision Planetary
IP Rating 40
No. of Lead 4
Output Shaft Type Keyway
Shaft Diameter(mm) 8
Shaft Length(mm) 21.5
Single Shaft/Dual Shaft Single Shaft
