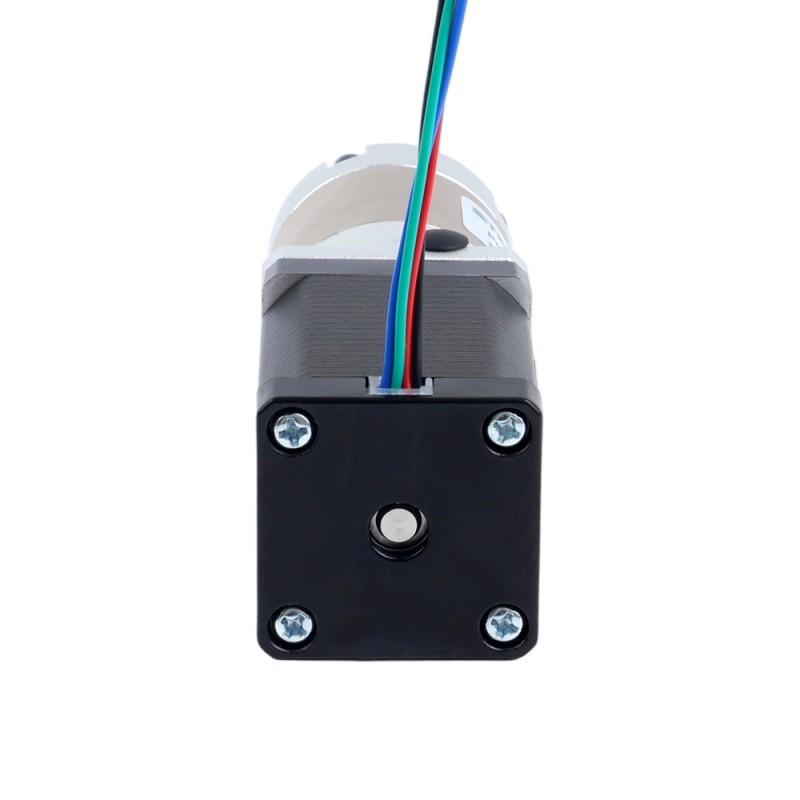

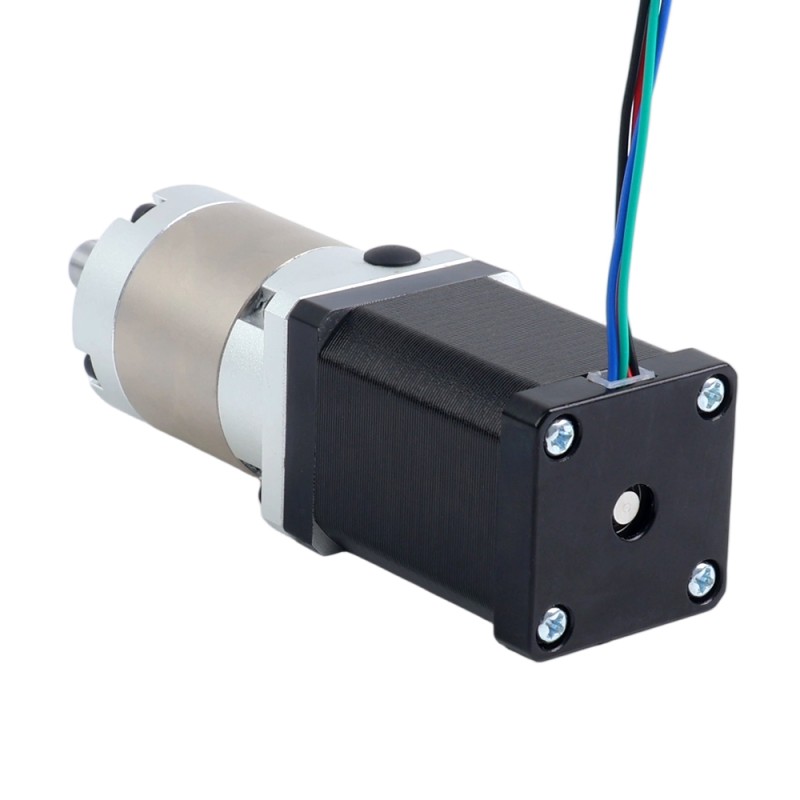

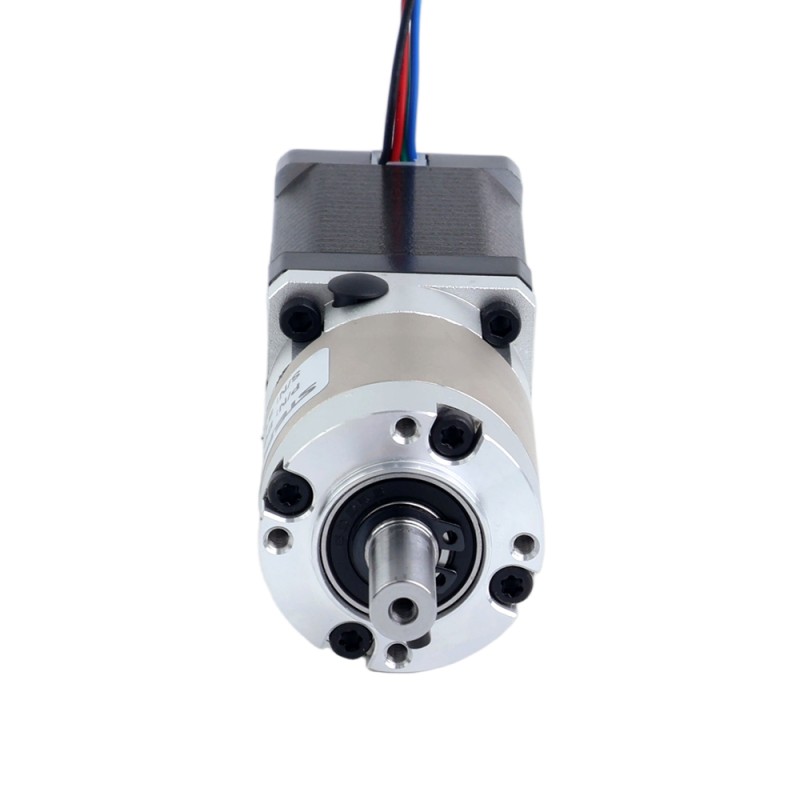

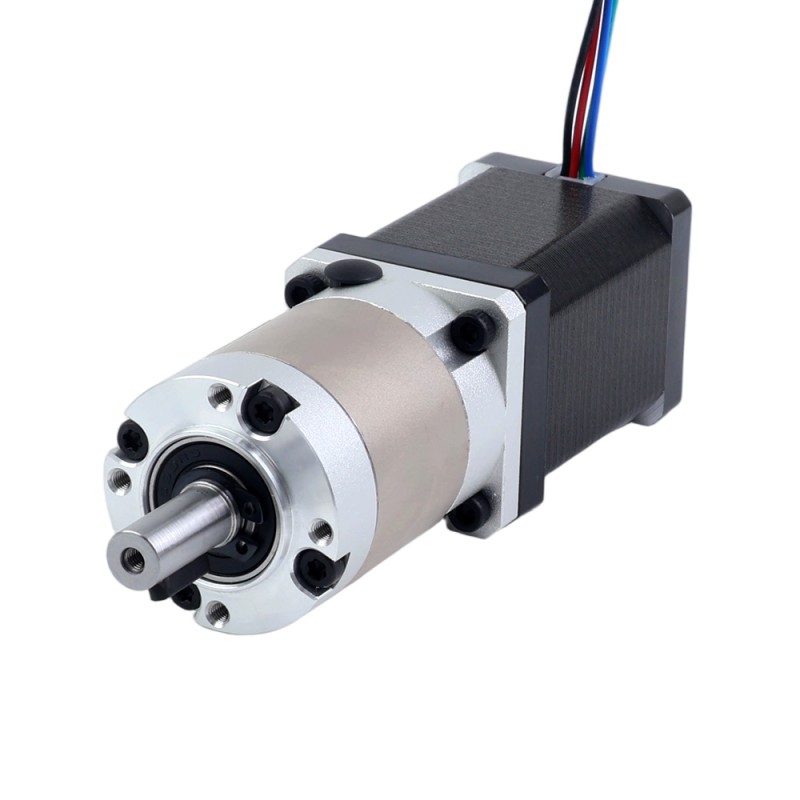

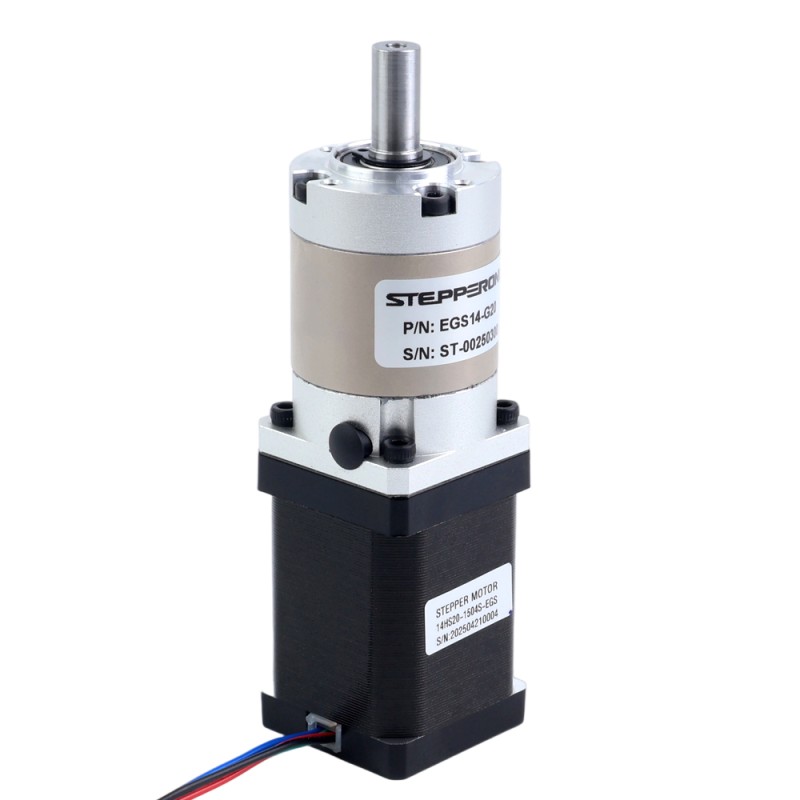

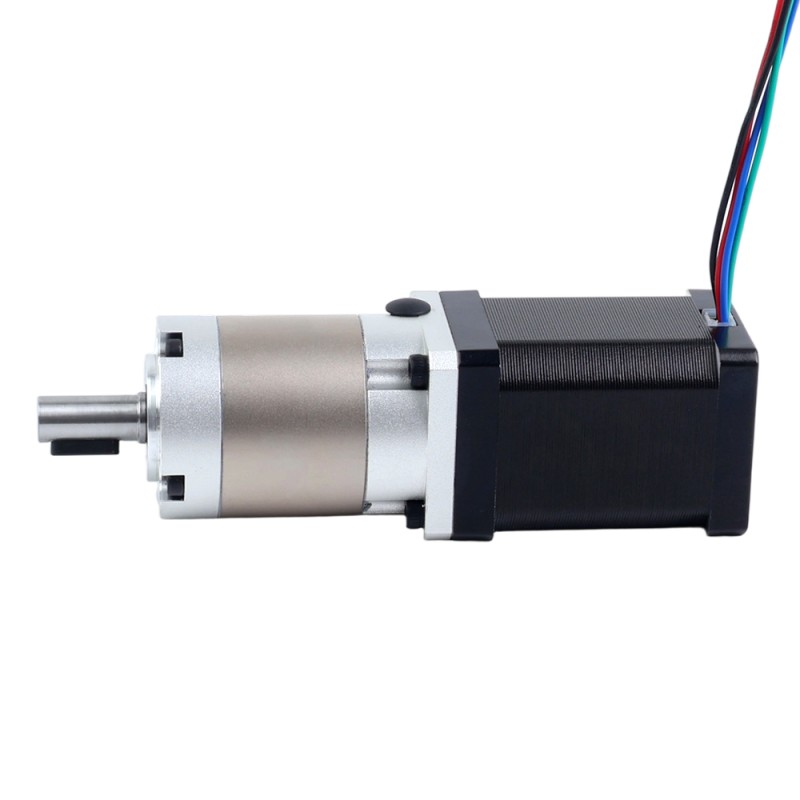

Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox

Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox - 14HS20-1504S-EGS20 | StepperOnline UK
14HS20-1504S-EGS20
Output Shaft TypeKeyway
Single Shaft/Dual ShaftSingle Shaft
Frame Size(mm)Nema 14 (35 x 35)
Product TypeGeared Stepper Motor
Question

Downloads

14HS20-1504S-EGS20_Full_Datasheet.pdfPDF · 60.25KB14HS20-1504S-EGS20.STEPSTEP · 2.31MBLog in to download14HS20-1504S_Torque_curve.pdfPDF · 212.77KB
Same series
ModelOutput Shaft TypeSingle Shaft/Dual ShaftFrame Size(mm)Product TypePriceStock
14HS13-1004S-EGS100KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper Motor£45.74In stock
14HS13-1004S-EGS15KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper Motor£45.74In stock
14HS13-1004S-EGS20KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper Motor£45.74In stock
14HS13-1004S-EGS45KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper Motor£45.74In stock
14HS13-1004S-EGS5KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper Motor£22.22In stock
14HS20-1504S-EGS100KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper Motor£47.46In stock
14HS20-1504S-EGS20KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper Motor£47.46In stock
14HS20-1504S-EGS45KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper Motor£47.46In stock
14HS20-1504S-EGS5KeywaySingle ShaftNema 14 (35 x 35)Geared Stepper Motor£37.45In stock
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox
This Nema 14 stepper motor comes with a holding torque of 0.40Nm(56.64oz.in) and is equipped with a ... Read More
0 reviews • Write a review
from
£47.46
5 + £43.85
10 + £40.76
50 + £38.07
100 + £35.72

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This Nema 14 stepper motor comes with a holding torque of 0.40Nm(56.64oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio of 20:1. Compared to the motors with PG series gearboxes, precision and accuracy of this motor with EG series gearbox has been significantly improved, with a maximum backlash of up to 20arcmin.
With its superior precision and reliability, motors with EG series delivers outstanding performance, making it the ideal choice for applications where accuracy, durability and value are critical.

Electrical Specification

  • Part Number: 14HS20-1504S-EGS20
  • Motor Type: Bipolar Stepper
  • Holding Torque without Gearbox: 0.40Nm(56.64oz.in)
  • Rated Current/phase: 1.50A
  • Phase Resistance: 2.80ohms±10%
  • Inductance: 4.80mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 20:1
  • Efficiency: 94%
  • Backlash at No-load: <=20arcmin
  • Maximum Permissible Torque: 8.50Nm(1203.70oz.in)
  • Moment Permissible Torque: 17.00Nm(2407.40oz.in)

Physical Specification

  • Frame Size: 35 x 35mm
  • Motor Length: 52mm
  • Gearbox Length: 49.5mm
  • Output Shaft Type: Keyway
  • Output Shaft Diameter: Φ8mm
  • Output Shaft Length: 20mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Current(A) 1.5
Has Torque/Thrust Curve? No
Holding Torque w/o Gearbox(N.m) 0.40
Inductance(mH) 4.8
Phase Resistance(ohms) 2.8
Physical Specification
Backlash at No-load <=20 arcmin
Body Length(mm) 101.5
Frame Size(mm) Nema 14 (35 x 35)
Gear Material Alloy Steel
Gear Ratio(xx:1) 20
Gearbox Type Precision Planetary
IP Rating 40
No. of Lead 4
Output Shaft Type Keyway
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Single Shaft/Dual Shaft Single Shaft

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Modbus RS485 Closed Loop Stepper Motor Driver 0.1-7.0A 24-48VDC
Modbus RS485 Closed Loop Stepper Motor Driver 0.1-7.0A 24-48VDC
CLRS Series are closed loop stepper driver based on standard Modbus RS485 protocol, using RS485 communication can network up to 31 axes, built-in..
from
£70.69
Add to Cart
Add to Wish List Compare this Product
Quickview

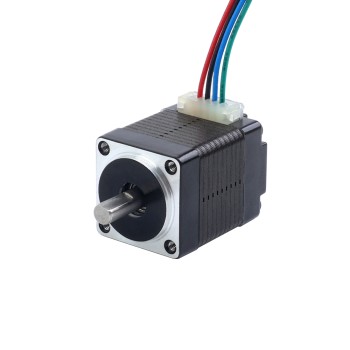

Nema 8 Bipolar 1.8deg 1.4Ncm(1.98oz.in) 0.2A 20x20x27.3mm 4 Wires
Nema 8 Bipolar 1.8deg 1.4Ncm(1.98oz.in) 0.2A 20x20x27.3mm 4 Wires
This mini nema 8 stepper motor is the smallest hybrid motor we carry, it with step angle 1.8deg and size 20x20x28mm. It has 4 wires, each phase draws ..
from
£12.62
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox
Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox
This Nema 14 stepper motor comes with a holding torque of 0.18Nm(25.49oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio..
from
£22.22
Add to Cart
Add to Wish List Compare this Product
Quickview

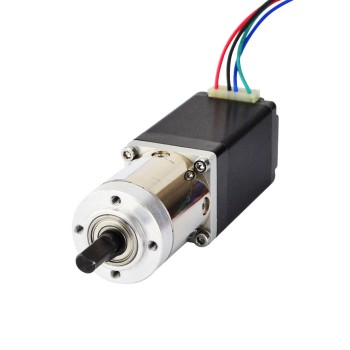

Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 27:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 27:1 Planetary Gearbox
This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 26.85:1 gear ratio. It's a good solution to appli..
from
£28.87
Add to Cart
Add to Wish List Compare this Product
Quickview

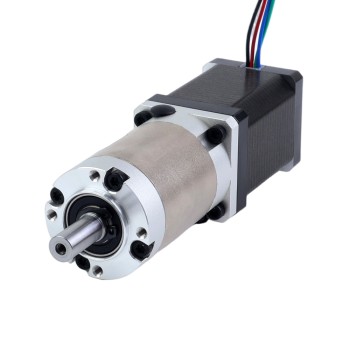

Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 45:1 EG Series Planetary Gearbox
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 45:1 EG Series Planetary Gearbox
This Nema 14 stepper motor comes with a holding torque of 0.40Nm(56.64oz.in) and is equipped with a high-precision EG series gearbox with a gear ..
from
£47.46
Add to Cart
Add to Wish List Compare this Product
Quickview

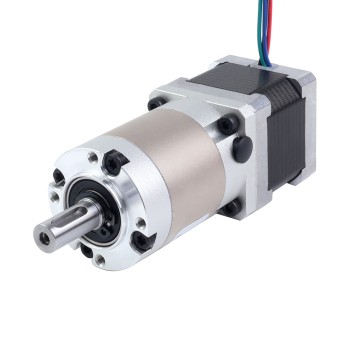

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox
