14E13S0574JE4-150RS
Rated Current(A)0.57
Phase Resistance(ohms)8.8
Inductance(mH)13
Linear Motor TypeExternal(Acme)
Question

Downloads

14E13S0574JE4-150RS_Full_Datasheet.pdfPDF · 52.79KB
Same series
ModelRated Current(A)Phase Resistance(ohms)Inductance(mH)Linear Motor TypePriceStock
11E13S0424ED5-150RS0.4211.46External(Acme)£29.58In stock
11E13S0424FD3-150RS0.4211.46External(Acme)£51.21In stock
11E13S0424FD4-150RS0.4211.46External(Acme)£25.81In stock
11E13S0424GD3-150RS0.4211.46External(Acme)£51.21Backorder
11E13S0754ED4-100RS0.753.22External(Acme)£22.22In stock
11E13S1004FD4-150RS-OE1K1.02.11.5External(Acme)£61.71In stock
11E13S1004FD5-150RS1.02.11.5External(Acme)£27.93In stock
11E13S1004GD4-150RS-OE1K1.02.11.5External(Acme)£61.71In stock
11E13S1004GD5-150RS1.02.11.5External(Acme)£27.93In stock
11E13S1004HD5-150RS1.02.11.5External(Acme)£29.32Backorder
11E13S1004HD5-180RS-E22-3001.02.11.5External(Acme)£57.67In stock
11E18S0754ED3-250RS0.756.75.8External(Acme)£66.67In stock
11E18S0754ED4-101RS0.756.73External(Acme)£22.44In stock
11E18S0754FD4-250RS0.756.75.8External(Acme)£32.54In stock
11E18S0754HD5-250RS0.756.75.8External(Acme)£40.26In stock
11E18S1004FD5-150RS1.03.73.7External(Acme)£29.58Backorder
11E18S1004GD5-150RS1.03.73.7External(Acme)£29.58Backorder
11E18S1004GD5-250RS1.03.73.7External(Acme)£33.89In stock
11E18S1004HD5-150RS1.03.73.7External(Acme)£29.58Backorder
11E18S1004ND5-150RS-SALE1.03.73.7External(Acme)£26.14In stock
11E20S0674ED4-100RS0.679.25.7External(Acme)£25.12In stock
14E13S0574FF3-150RS0.578.813External(Acme)£58.33Backorder
14E13S0574JE4-150RS0.578.813External(Acme)£35.73In stock
14E13S0574LF3-150RS0.578.813External(Acme)£49.27Backorder
14E13S1504GF5-150RS1.50.951External(Acme)£26.29In stock
14E17S0914FF3-250RS0.915.57.63External(Acme)£66.67Backorder
14E17S0914LF3-250RS-SALE0.915.57.63External(Acme)£46.89In stock
14E19S1504FF5-150RS1.51.52.0External(Acme)£27.93In stock
14E19S1504GF5-150RS1.51.52.0External(Acme)£27.93In stock
14E19S1504RF5-150RS1.51.62.3External(Acme)£29.32Backorder
View all in category
Nema 14 External 34mm Stack 0.57A Lead 2.4384mm(0.096") Length 150mm
The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it has integrated with a 5.5... Read More
0 reviews • Write a review
from
£35.73
5 + £33.02
10 + £30.69
50 + £28.67
100 + £26.89

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

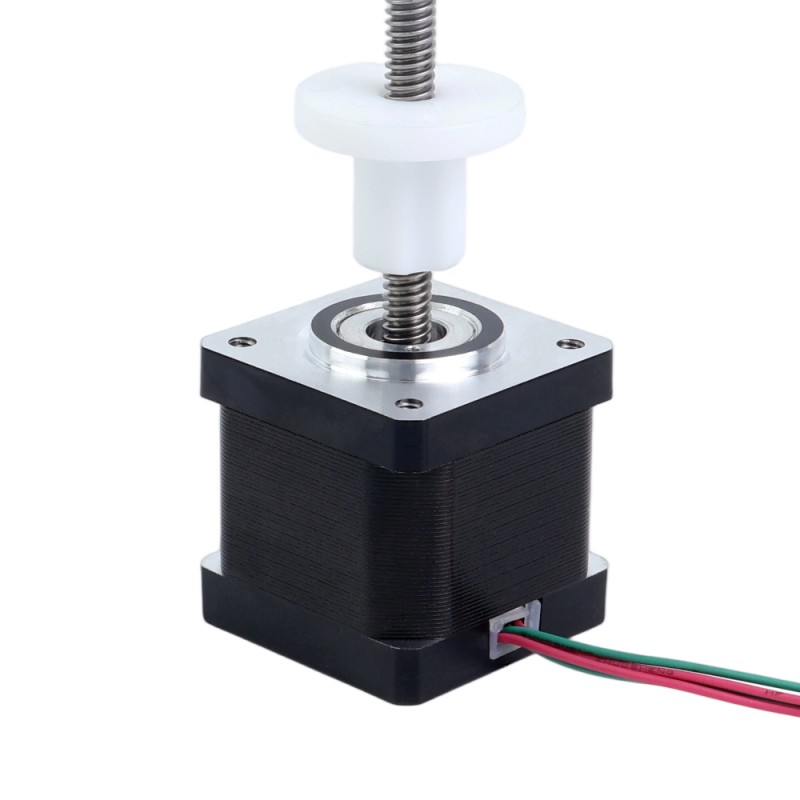

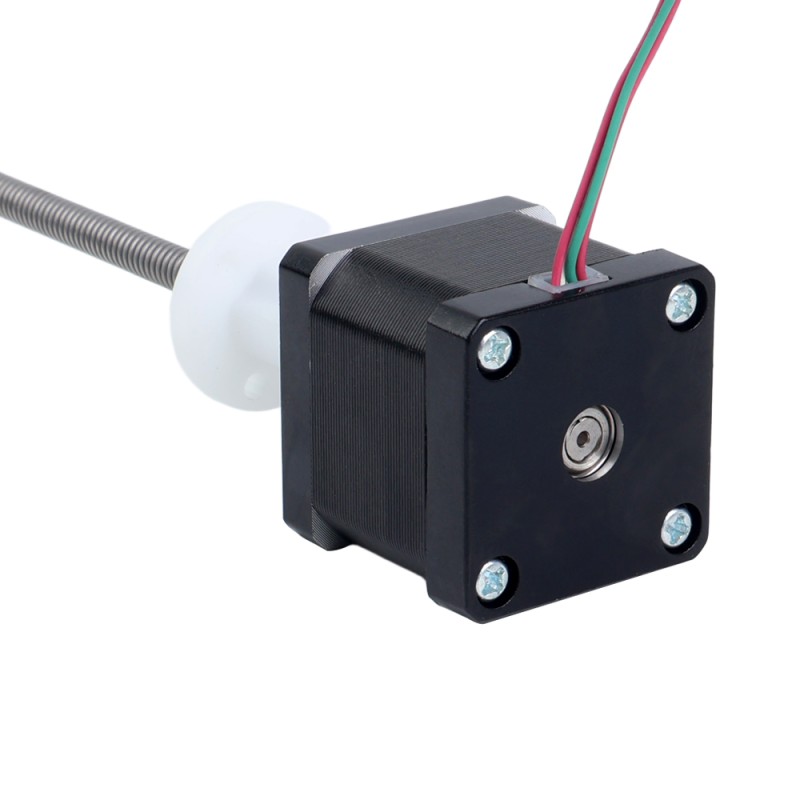

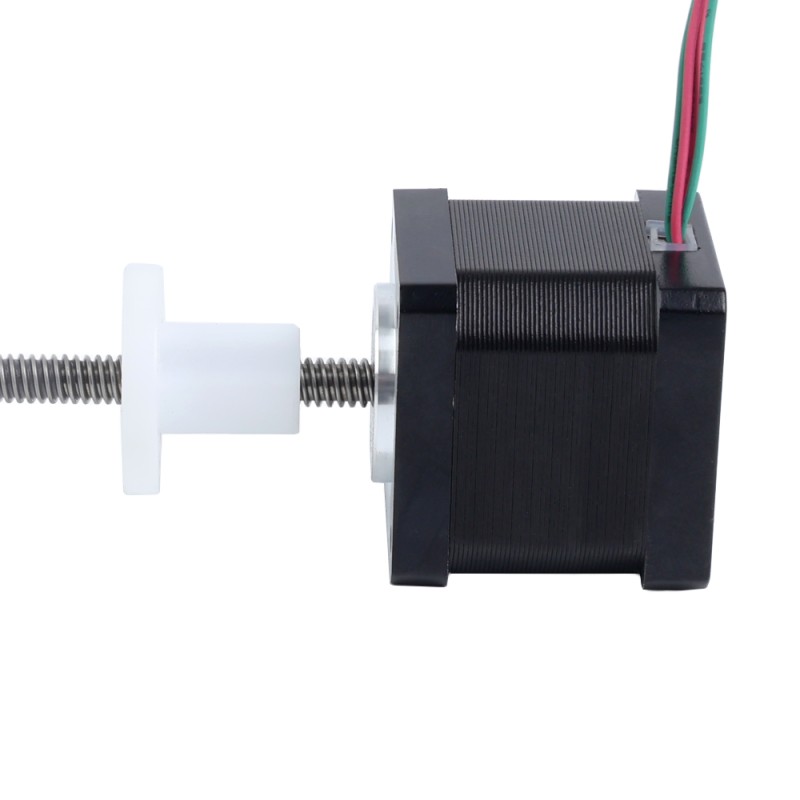

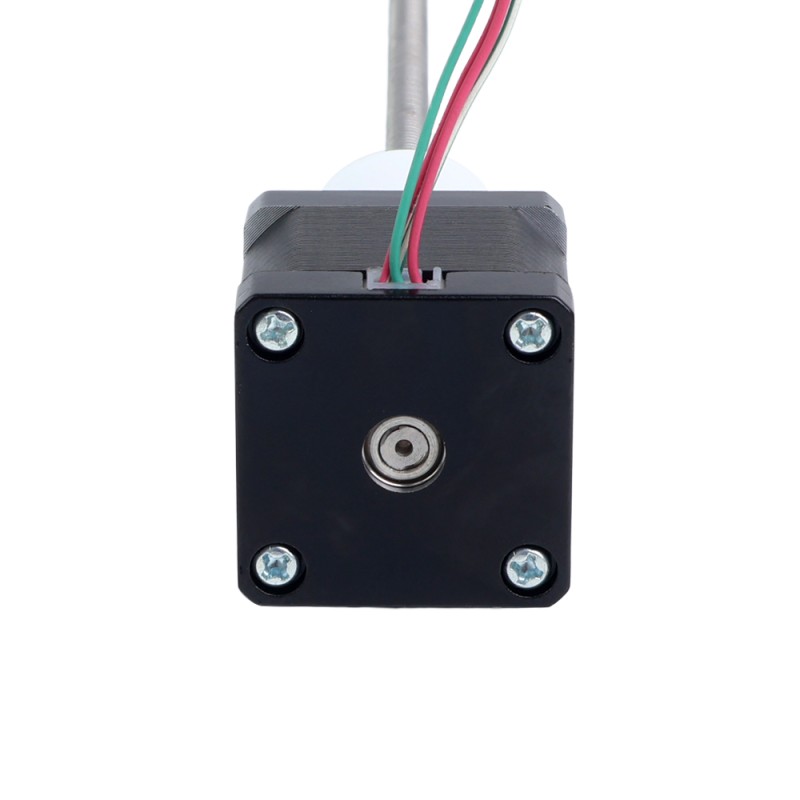

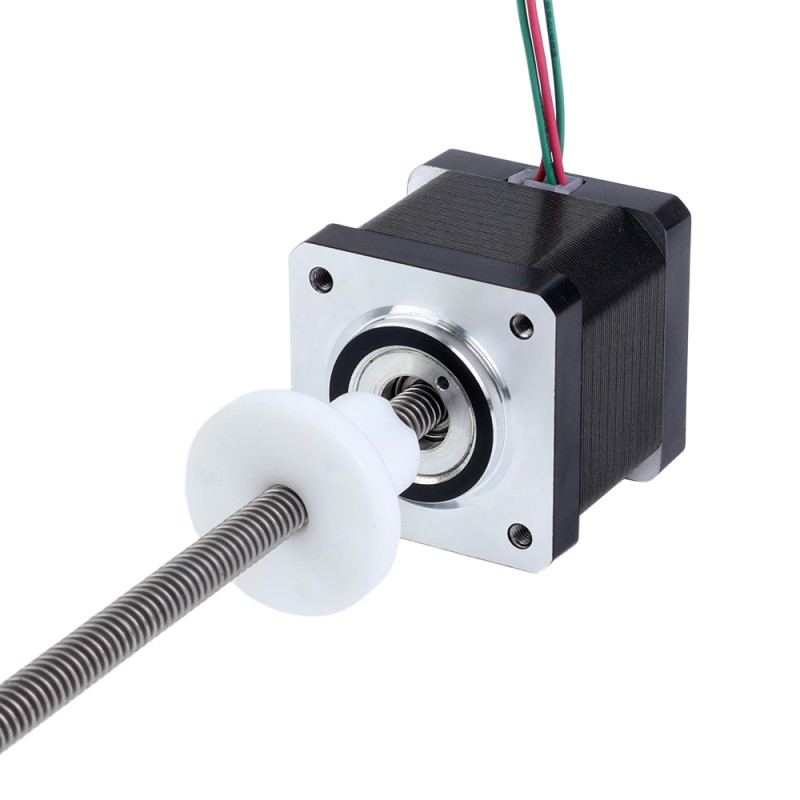

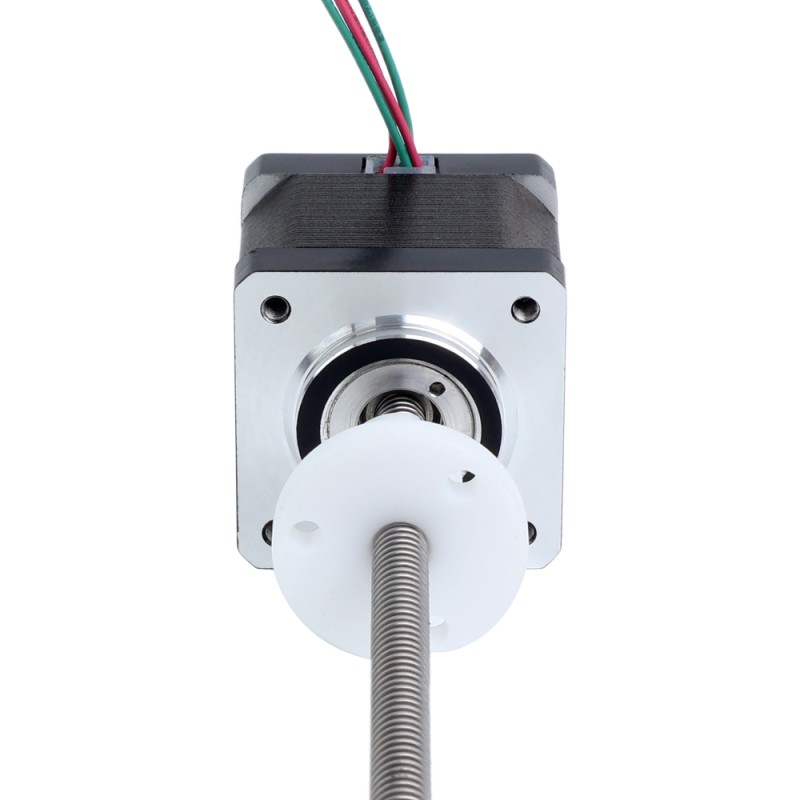

The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it has integrated with a 5.54mm(0.2181") diameter 150mm(5.9055") length lead screw and a POM screw nut, the linear travel is 2.438mm(0.096") per revolution. This model is almost exactly same as Haydon Kerk 35000 series size 14 external stepper motor linear actuator.

Electrical Specification

  • Manufacturer Part Number: 14E13S0574JE4-150RS
  • Motor Type: External(Acme)
  • Step Angle: 1.8°
  • Holding Torque: 0.18Nm(25.49oz.in)
  • Rated Current/phase: 0.57A
  • Phase Resistance: 8.8ohms
  • Inductance: 13mH±20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 34mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ5.54mm(0.2181")
  • Lead/Step: 0.012192mm(0.00048")
  • Lead Travel/Revolution: 2.4384mm(0.096")
  • Number of Leads: 4
  • Cable Length: 300mm

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green
Product Type
Product Type Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 18
Inductance(mH) 13
Phase Resistance(ohms) 8.8
Rated Current(A) 0.57
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 34
Cable Length(mm) 300
Frame Size(mm) Nema 14 (35 x 35)
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 150
Lead Travel/Revolution(mm) 2.4384
Lead Travel/Step(mm) 0.012192
Linear Motor Type External(Acme)
No. of Lead 4
With Encoder No
