Nema 11 Closed Loop Stepper Motor L=32mm w/ Gear Ratio 50:1 EG Series Planetary Gearbox
This Nema 11 stepper motor provides a holding torque of 0.06Nm(8.5oz.in) and features a high-precisi... Read More
0 reviews • Write a review
from
£80.62
5 + £74.50
10 + £69.24
50 + £64.67
100 + £60.67

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

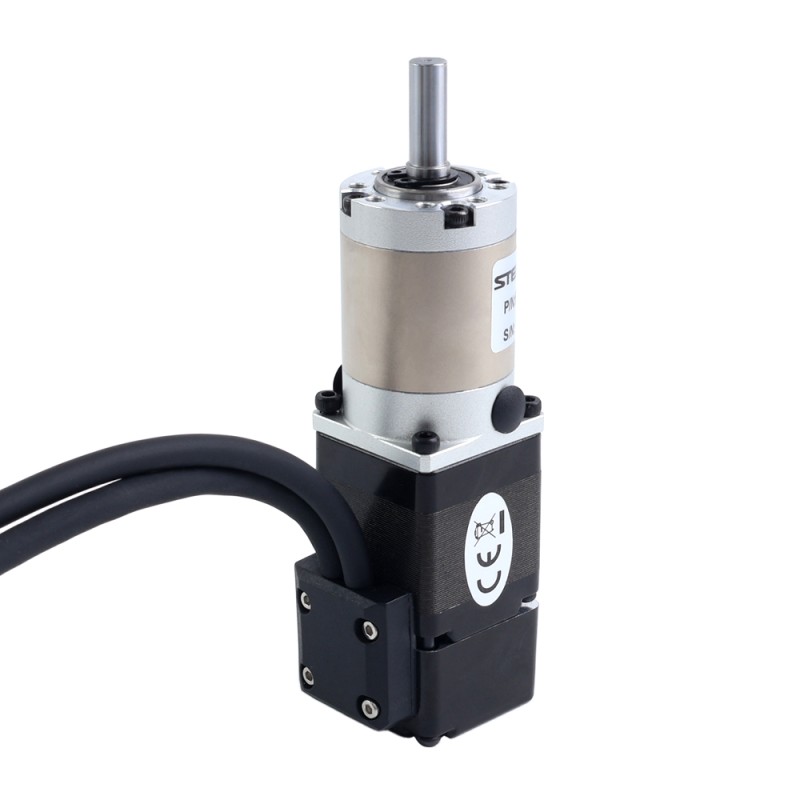

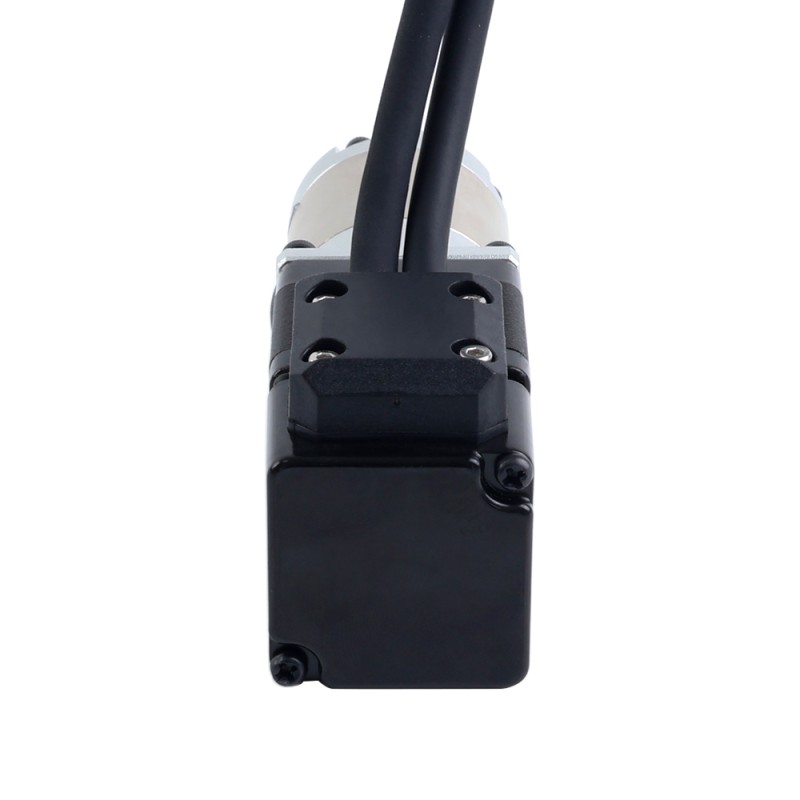

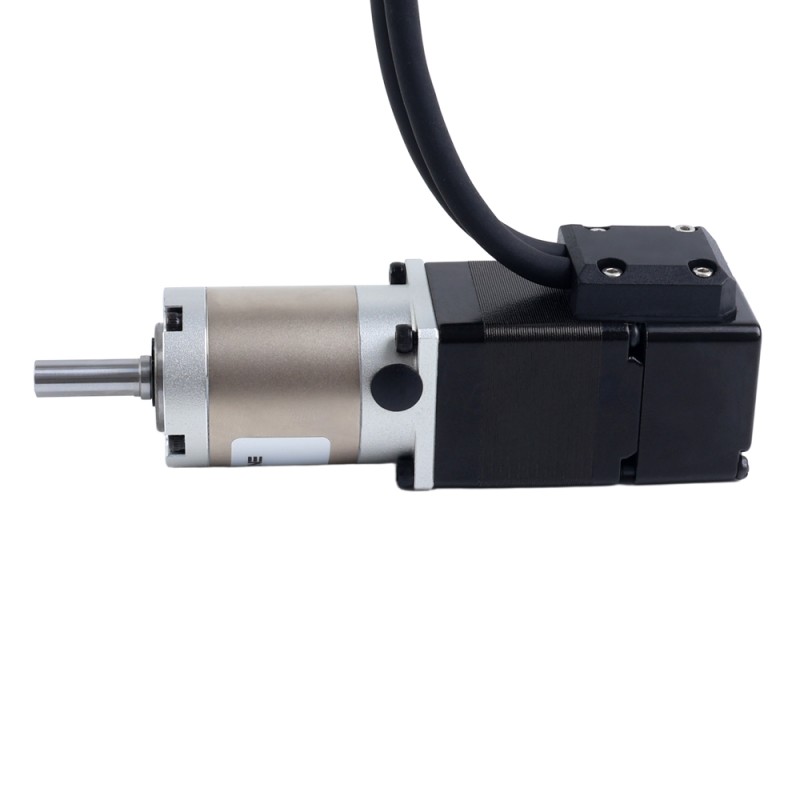

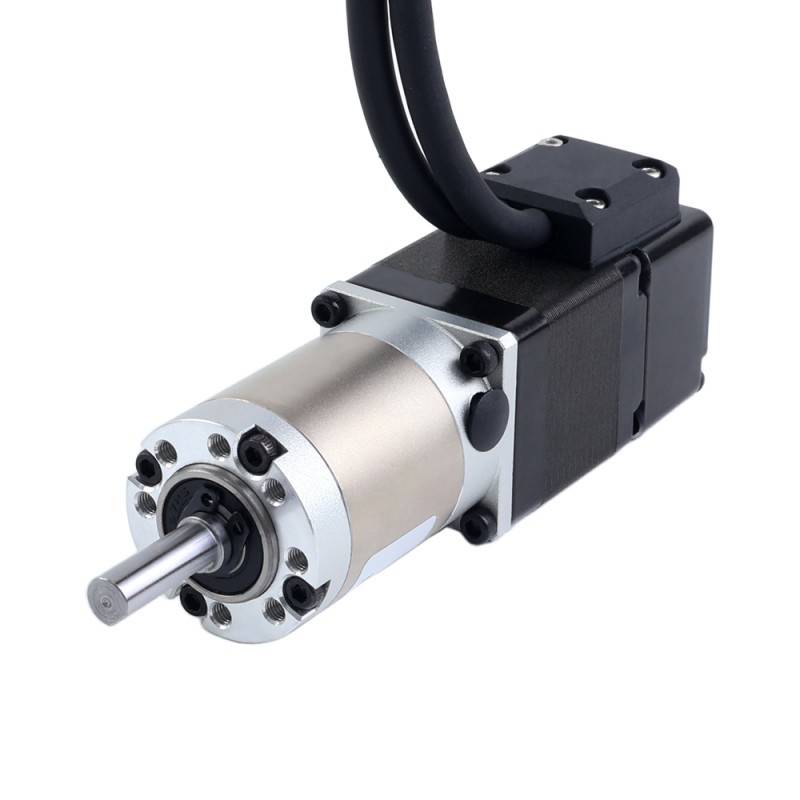

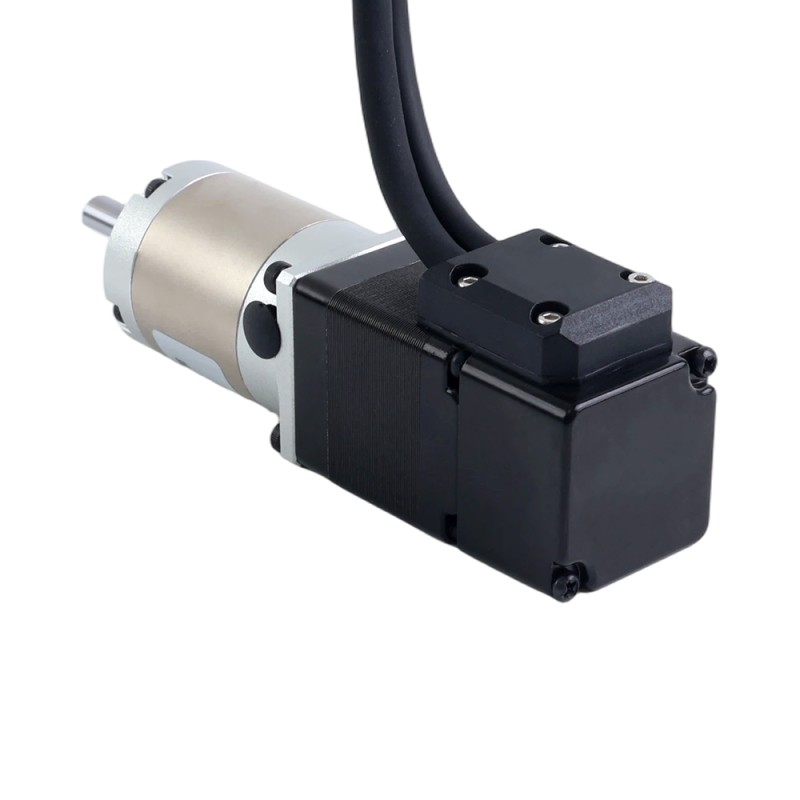

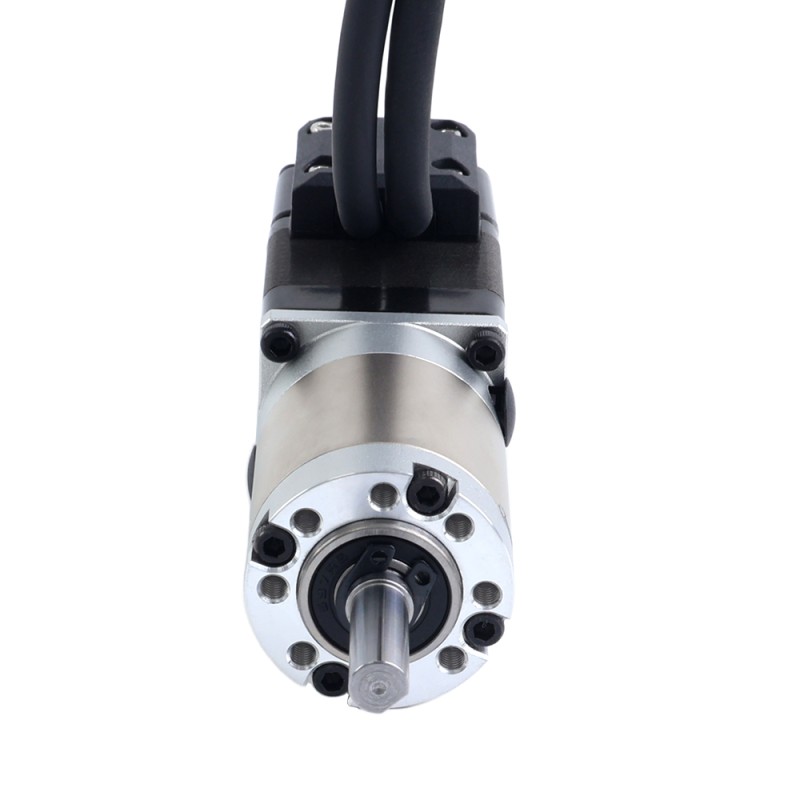

This Nema 11 stepper motor provides a holding torque of 0.06Nm(8.5oz.in) and features a high-precision EG series gearbox with a 50:1 gear ratio, complemented by a 1000PPR(4000CPR) incremental optical encoder. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.

Electrical Specification

  • Part Number: 11HS12-1004D-E1000-EGS50
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque without Gearbox: 0.06Nm(8.5oz.in)
  • Rated Current/phase: 1.0A
  • Phase Resistance: 2.00ohms ± 10%
  • Inductance: 1.50mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 91mm
  • Shaft Diameter: 7mm
  • Shaft Length: 20mm
  • D-cut Shaft Length: 15mm
  • Cable Length: 300mm

Gearbox Specification

  • Gearbox Type: Planetary
  • Gear Ratio: 50:1
  • Efficiency: 94%
  • Backlash at No-load: <=20arcmin
  • Max. Permissible Torque: 3.0Nm(424.83oz.in)
  • Moment Permissible Torque: 6.0Nm(849.67oz.in)
  • Maximum Axial Load: 100N
  • Maximum Raddial Load: 300N

Encoder Specification

  • Output Circuit Type: Differential Type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 3 Channels
  • Supply Voltage Min: 4.5V
  • Supply Voltage Max: 5.5V
  • High Level Output Voltage: 2.4V - Vcc
  • Low Level Output Voltage: ≤ 0.4V

Connection

Pin
1
2
3
4
Motor
A+
A-
B+
B-
Color
Black
Green
Red
Blue

Encoder
EA+
VCC
GND
EB+
EB-
EA-
EZ+
EZ-
Color
White
Red
Black
Orange
Gray
Yellow
Green
Blue
Product Type
Product Type Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Optical Incremental
Holding Torque(Ncm) 0.06
Inductance(mH) 1.50
Output Circuit Type Differential
Output Signal Channels 3
Phase Resistance(ohms) 2.00
Rated Current(A) 1.0
Stepper Motor with Encoder/Gearbox
Physical Specification
Body Length(mm) 91
Frame Size(mm) Nema 11 (28 x 28)
Gear Ratio(xx:1) 50
Gearbox Type EG Series Planetary Gearbox
IP Rating 40
Output Shaft Type D
Shaft Diameter(mm) 7
Shaft Length(mm) 20
