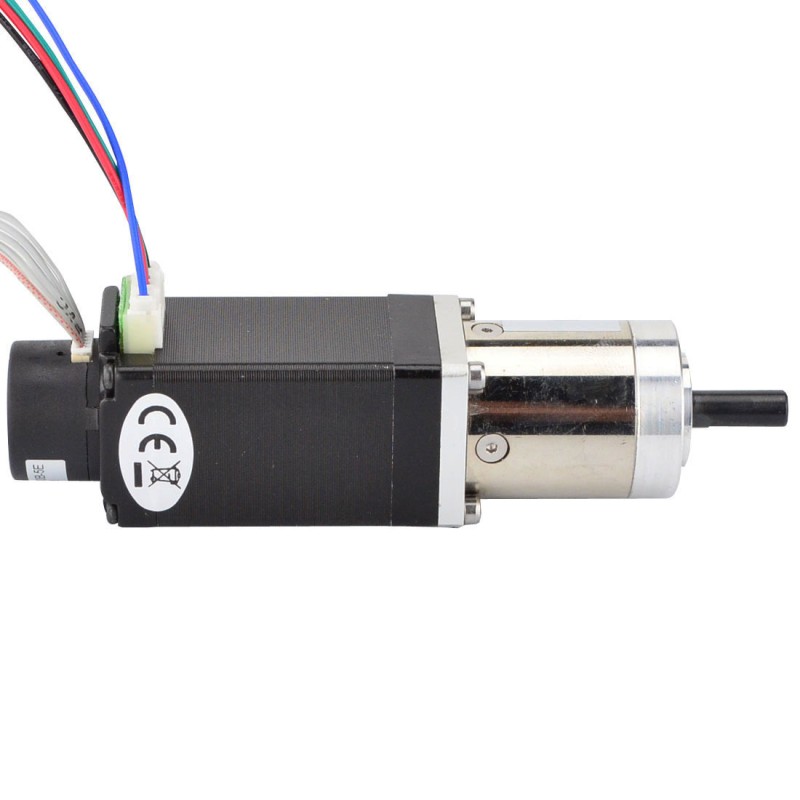

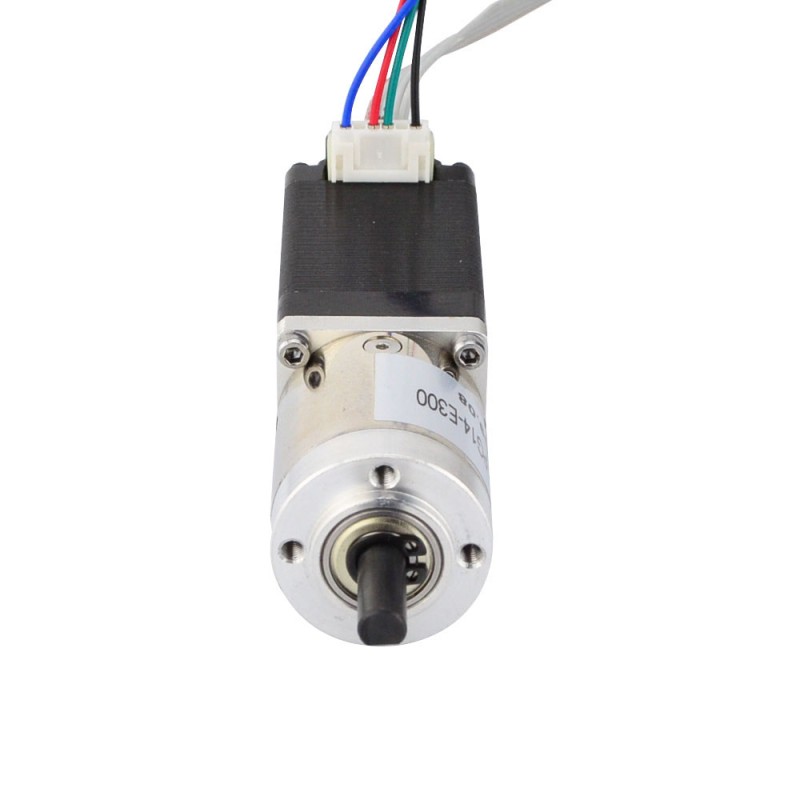

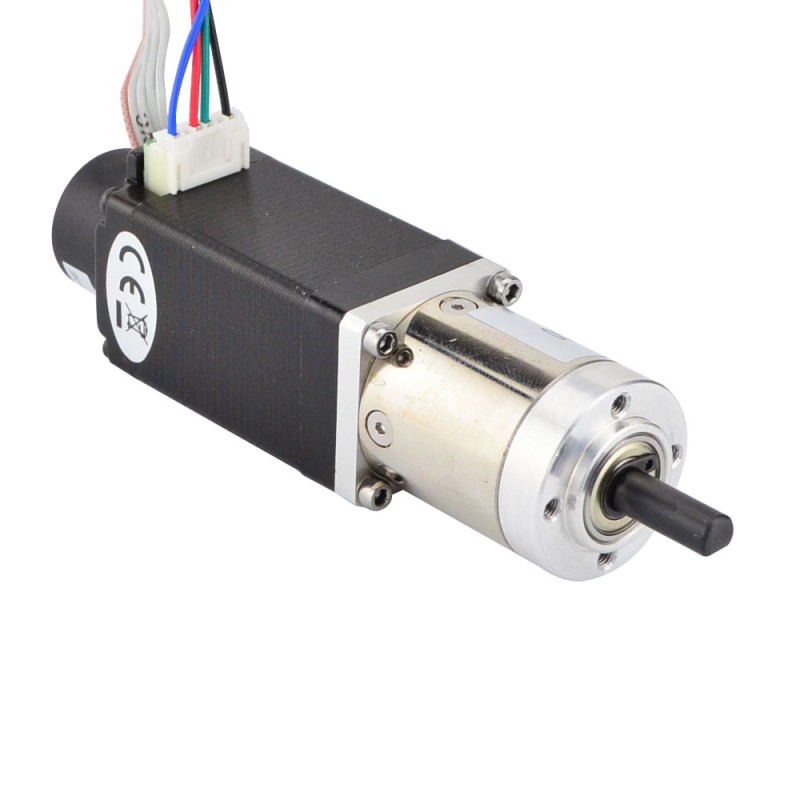

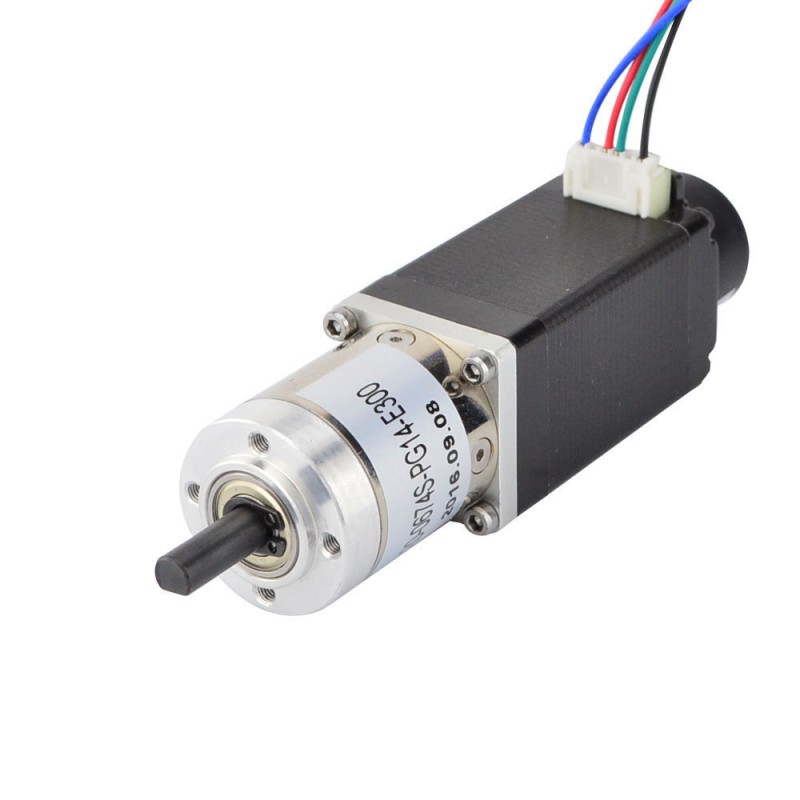

Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR

Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
Pre-order
Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR - 11HS20-0674S-PG14-E300 | StepperOnline UK
11HS20-0674S-PG14-E300
Shaft Diameter(mm)6
Encoder Resolution300PPR
Output Signal Channels2
Phase Resistance(ohms)12
Question
Ordering & ComplianceFor purchasing
Min. order
20

Downloads

11HS20-0674S-PG14-E300_Full_Datasheet.pdfPDF · 149.1KB11HS20-0674S_Torque_curve.pdfPDF · 213.04KB
Same series
ModelShaft Diameter(mm)Encoder ResolutionOutput Signal ChannelsPhase Resistance(ohms)PriceStock
11HS12-0674D-PG100-E22-3006300PPR25.6£49.34In stock
11HS12-0674D-PG27-E22-3006300PPR25.6£49.34Backorder
11HS12-0674D-PG5-E22-3006300PPR25.6£49.34In stock
11HS20-0674D-EGS16-AR471000PPR312£84.25In stock
11HS20-0674D-PG100-E22-3006300PPR212£51.66In stock
11HS20-0674D-PG14-AR461000PPR312£44.31Backorder
11HS20-0674D-PG14-AR4-USED61000PPR312£22.16In stock
11HS20-0674D-PG14-E22-3006300PPR212£49.34In stock
11HS20-0674D-PG5-E22-3006300PPR212£51.19In stock
11HS20-0674D-PG51-E22-3006300PPR212£50.11In stock
11HS20-0674S-PG14-E3006300PPR212£49.08Backorder

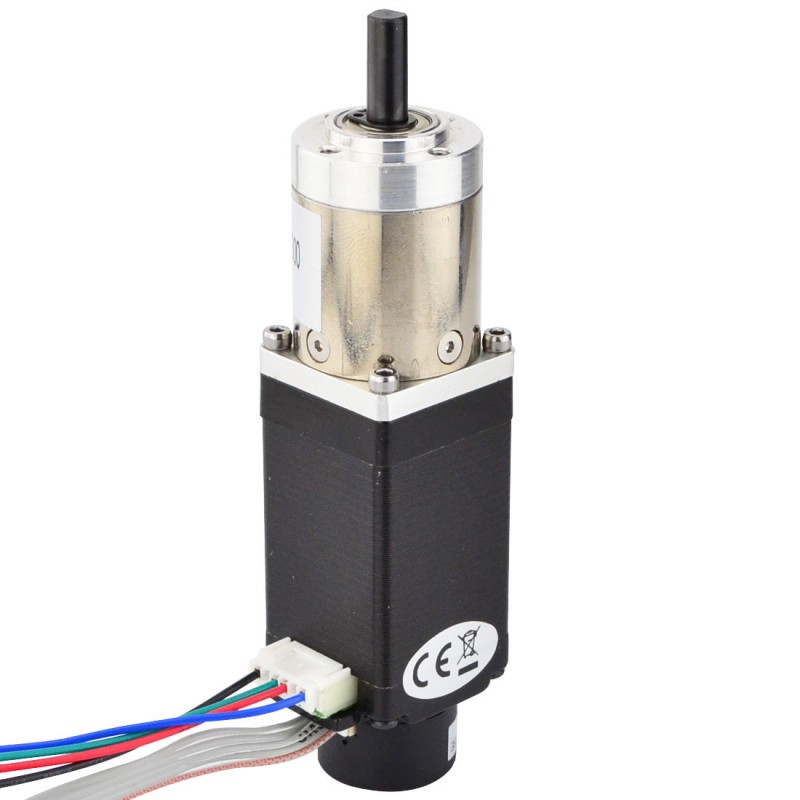

Nema 11 Closed-loop Geared Stepper L=51mm Gear Ratio 14:1 Encoder 300PPR
Motor Specification Manufacturer Part Number: 11HS20-0674S-PG14-E300 Motor Type: Bipolar Stepper... Read More
0 reviews • Write a review
from
£49.08
5 + £46.77
10 + £44.67
50 + £42.75
100 + £40.99

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
This product has a minimum quantity of 20
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

Motor Specification

  • Manufacturer Part Number: 11HS20-0674S-PG14-E300
  • Motor Type: Bipolar Stepper
  • Frame Size: 28 x 28mm
  • Motor Length: 51mm
  • Step Angle without Gearbox: 1.8deg
  • Holding Torque without Gearbox: 0.14Nm(19.8oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 12ohms
  • Voltage: 8.04V
  • Inductance: 6.5mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]
  • Number of Leads: 4
  • Lead Length: 500mm

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gearbox Length: 35mm
  • Gear Ratio: 13.73:1
  • Efficiency: 81%
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-Cut length: 12mm
  • Backlash at No-load: <=3deg
  • Max.Permissible Torque: 3Nm(424.8.oz.in)
  • Moment Permissible Torque: 5Nm(708.1oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Encoder Specification

  • Encoder Type: Optical Incremental
  • Driving Voltage : 5V
  • Output current : 50mA
  • Resolution: 300ppr
  • Output Signal: 2Channels
  • Bore Diameter: Φ4mm
  • Output Frequency: ≤1MHz
  • Running Speed: ≤5000rpm

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
1
2
3
4
5
Encoder
0V
N.C
Ch B
+5V
Ch A
Product Type
Product Type Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution 300PPR
Encoder Type Optical Incremental
Holding Torque(Ncm) 14
Inductance(mH) 6.5
Output Circuit Type Push-Pull (Single-Ended)
Output Signal Channels 2
Phase Resistance(ohms) 12
Rated Current(A) 0.67
Stepper Motor with Encoder/Gearbox
Physical Specification
Body Length(mm) 100
Frame Size(mm) Nema 11 (28 x 28)
Gear Ratio(xx:1) 14
Gearbox Type PG Series Planetary Gearbox
IP Rating 40
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 18

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

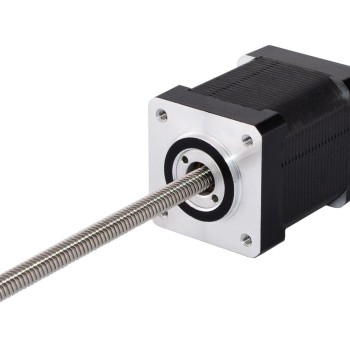

Nema 14 Non-captive 48mm Stack 0.91A Lead 0.794mm(0.031") Length 250mm
Pre-order
Nema 14 Non-captive 48mm Stack 0.91A Lead 0.794mm(0.031") Length 250mm
The motor part is 48mm body 1.8 degree 0.91A Nema 14 stepper motor, and it works with a 6.35mm(0.25") diameter 250mm(9.8425") length lead screw, the l..
from
£68.60
Add to Cart
Add to Wish List Compare this Product
Quickview
Dual Shaft Nema 8 Hollow Shaft Stepper Motor Bipolar 1.5Ncm(2.12oz.in) 0.49A 20x20x27mm
Dual Shaft Nema 8 Hollow Shaft Stepper Motor Bipolar 1.5Ncm(2.12oz.in) 0.49A 20x20x27mm
Electrical Specification Manufacturer Part Number: 8HS12-0494H Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 0.015Nm(2.12oz.in..
from
£16.23
Add to Cart
Add to Wish List Compare this Product
Quickview

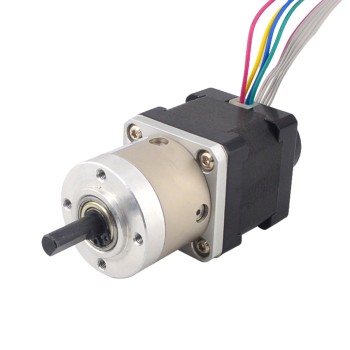

Nema 14 Closed-loop Geared Stepper L=34mm Gear Raio 5:1 Encoder 300PPR
Pre-order
Nema 14 Closed-loop Geared Stepper L=34mm Gear Raio 5:1 Encoder 300PPR
Motor Specification Manufacturer Part Number: 14HS13-0804D-PG5-E22-300 Motor Type: Bipolar Stepper Step Angle without Gearbox: 1.8deg Holding To..
from
£47.27
Add to Cart
Add to Wish List Compare this Product
Quickview

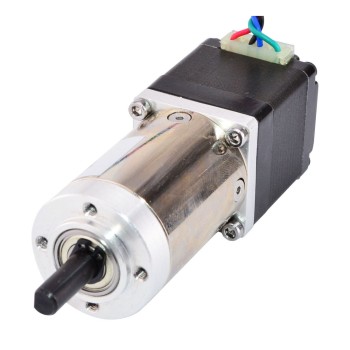

Nema 11 Stepper L=31mm w/ Rear Shaft & Screw Hole Gear Ratio 100:1 Gearbox
Nema 11 Stepper L=31mm w/ Rear Shaft & Screw Hole Gear Ratio 100:1 Gearbox
This Nema 11 stepper motor with 31mm body and 0.67A rated current, integrated a planetary gearbox of 99.548:1 gear ratio. It's a good solution to appl..
from
£28.05
Add to Cart
Add to Wish List Compare this Product
Quickview

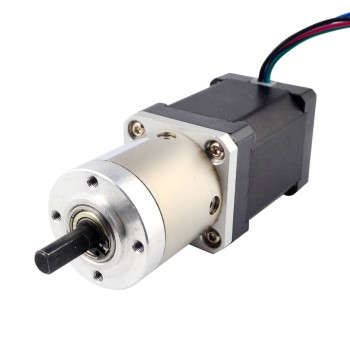

Nema 14 Stepper L=52mm w/ Rear Shaft & Screw Hole & Gear Ratio 14:1 Gearbox
30 - 45 days
Nema 14 Stepper L=52mm w/ Rear Shaft & Screw Hole & Gear Ratio 14:1 Gearbox
This Nema 14 stepper motor with 52mm body and 1.50A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good solution to appli..
from
£31.59
Add to Cart
Add to Wish List Compare this Product
Quickview

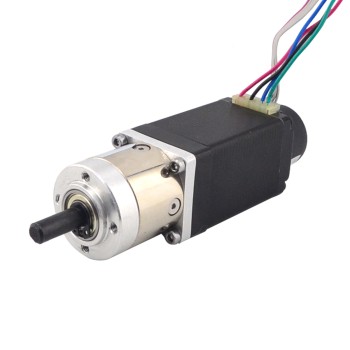

Nema 11 Closed-loop Geared Stepper L=51mm Gear Raio 5:1 Encoder 300PPR
Nema 11 Closed-loop Geared Stepper L=51mm Gear Raio 5:1 Encoder 300PPR
Motor Specification Manufacturer Part Number: 11HS20-0674D-PG5-E22-300 Motor Type: Bipolar Stepper Step Angle without Gearbox: 1.8deg Holding To..
from
£51.19
Add to Cart
Add to Wish List Compare this Product
Quickview

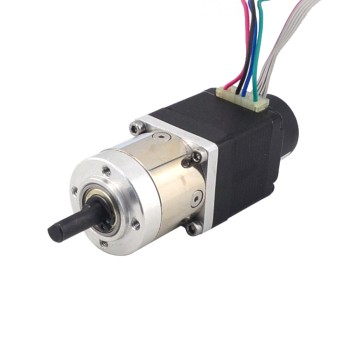

Nema 11 Closed-loop Geared Stepper L=31mm Gear Raio 5:1 Encoder 300PPR
