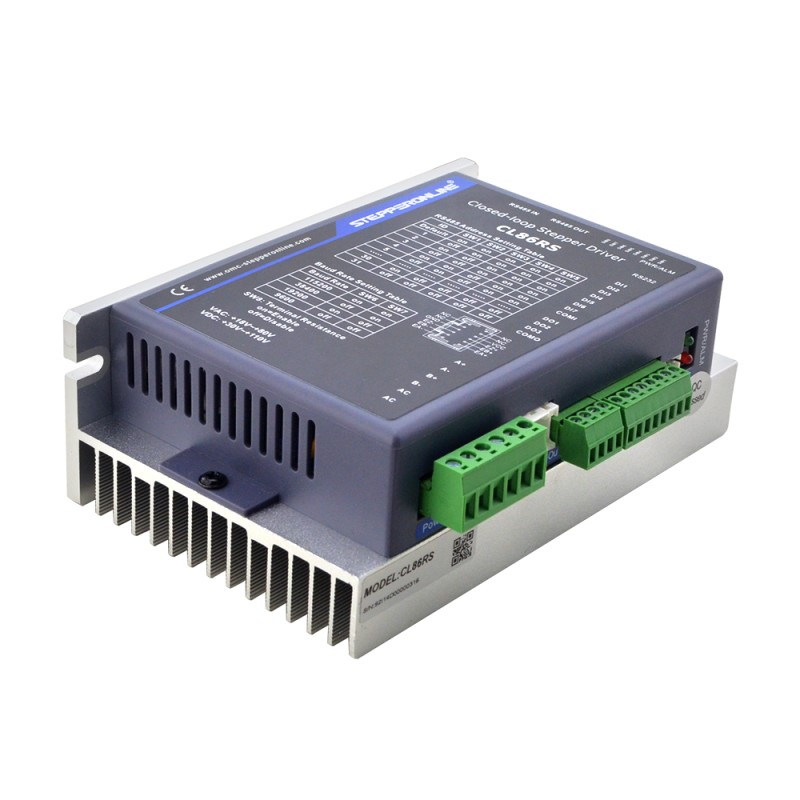

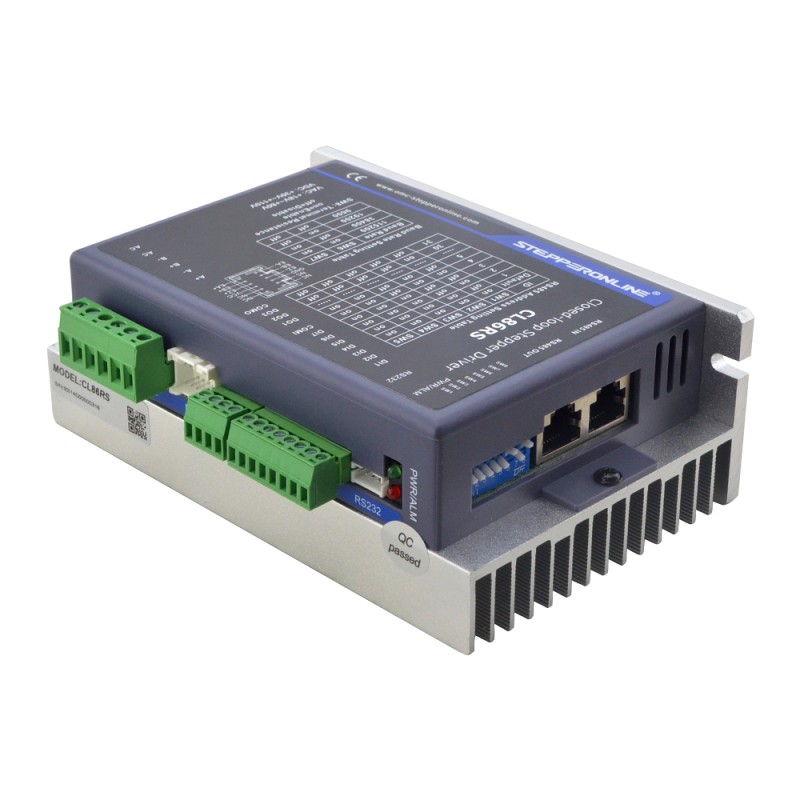

Modbus RS485 Closed Loop Stepper Motor Driver 2.1-8.0A 30-110VDC or 18-80VAC

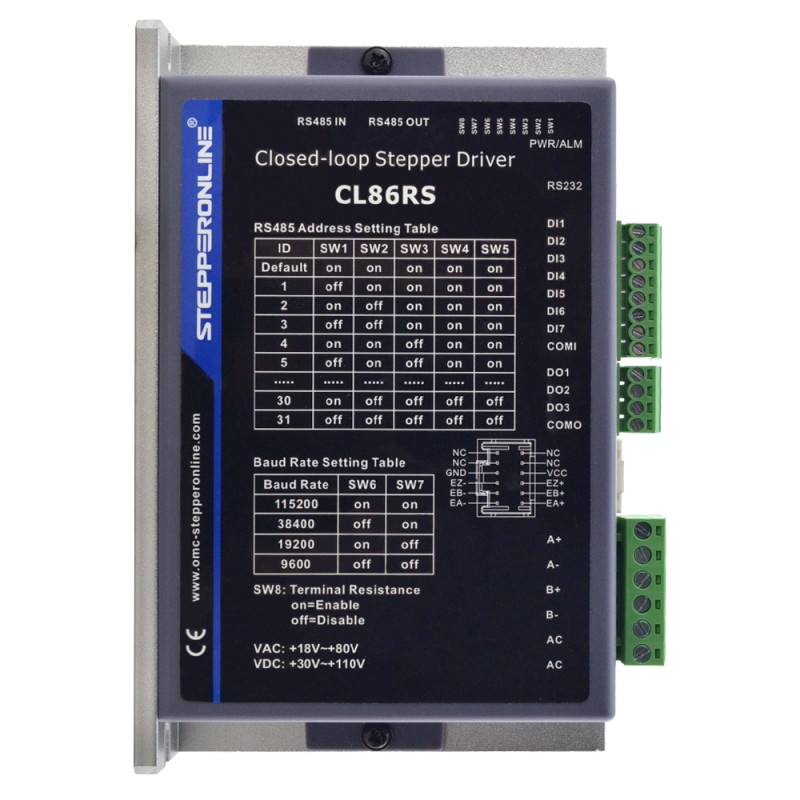

CLRS Series are closed loop stepper driver based on standard Modbus RS485 protocol, using RS485 communication can network up to 31 axes, built-in PR feature with 16-segment position table(PR Mode). They can not only solve the problem of step loss in the open loop stepper system, but also can save additional controllers in most of point-to-point applications, to greatly enhance system reliability and reduce the cost. CLRS Series also support the feature of teaching, the operation modes of Profile Position, Profile Velocity and Homing.

Key Features

• Suit for Nema 34 with encoder resolution of 1000 ppr to 5000 ppr
• Support Modbus RS485 protocol, Internal 16-segment position instructions
• No loss of step, No hunting, No torque reservation
• Motion can be started by Exernal IO or RS485

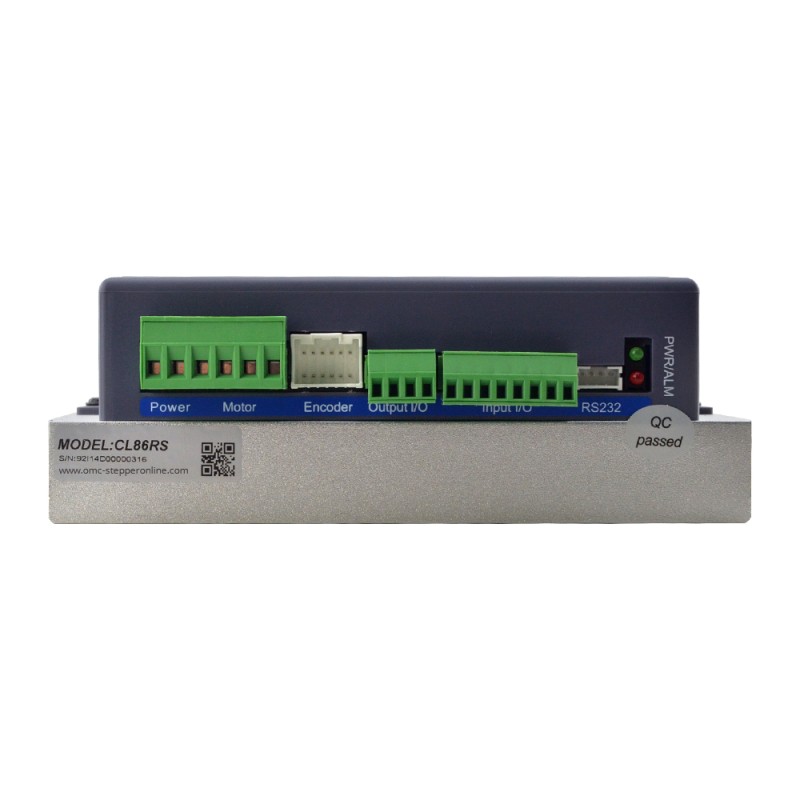

• 7 Configurable Digital Inputs, 3 optically isolated digital outputs
• Limit , Limit-, Origin, Quick stop, Enable, JOG , JOG- and Position Table inputs
• Alarm, Brake, Homing complete, In Position complete, instructions complete, Path complete outputs
• RS232 for connection to tuning software, RS485 for fieldbus control
• Protections for over voltage, over current and position following error, encoder cable error,etc.
• By default, it supports an encoder with a resolution of 1000PPR, and you can also customize any resolution between 0-5000PPR

Packing List

• 1 x CL86RS Driver
• 1 x RS232 Cable CABLE-PC-1
• 1 x 0.5m RS485 Network Cable

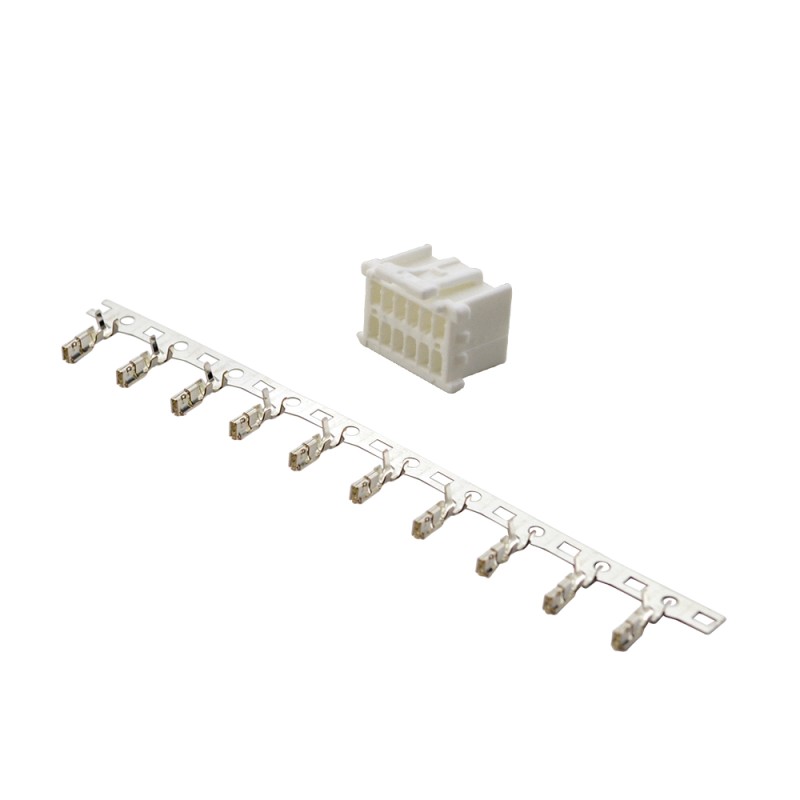

• 1 x Encoder Connector
