MGL23-G4-D8
Gear Ratio(xx:1)4
Backlash at No-load<=30 arcmin
Input Shaft Length(mm)20 - 25
Gearbox Length(mm)66.3
Question

Downloads

MGL23-G4-D8_Full_Datasheet.pdfPDF · 54.33KBMGL23-G4-D8.STEPSTEP · 417.39KBLog in to download
Same series
ModelGear Ratio(xx:1)Backlash at No-loadInput Shaft Length(mm)Gearbox Length(mm)PriceStock
MG23-G10-D810<=30 arcmin8 - 1455.5£15.16In stock
MG23-G20-D820<=45 arcmin8 - 1455.5£19.62In stock
MG23-G4-D84<=30 arcmin8 - 1455.5£14.66In stock
MG23-G5-D85<=30 arcmin8 - 1455.5£15.16In stock
MG23-G50-D850<=45 arcmin8 - 1468£19.62In stock
MGL23-G4-D84<=30 arcmin20 - 2566.3£15.52In stock
MGL Series Planetary Gearbox Gear Ratio 4:1 Backlash 30arc-min for 8mm Shaft Standard Nema 23 Stepper Motor
The MGL series high-precision planetary gearbox features a gear ratio of 4:1 and a maximum backlash ... Read More
0 reviews • Write a review
from
£15.52
5 + £15.03
10 + £14.56
50 + £14.13
100 + £13.71

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

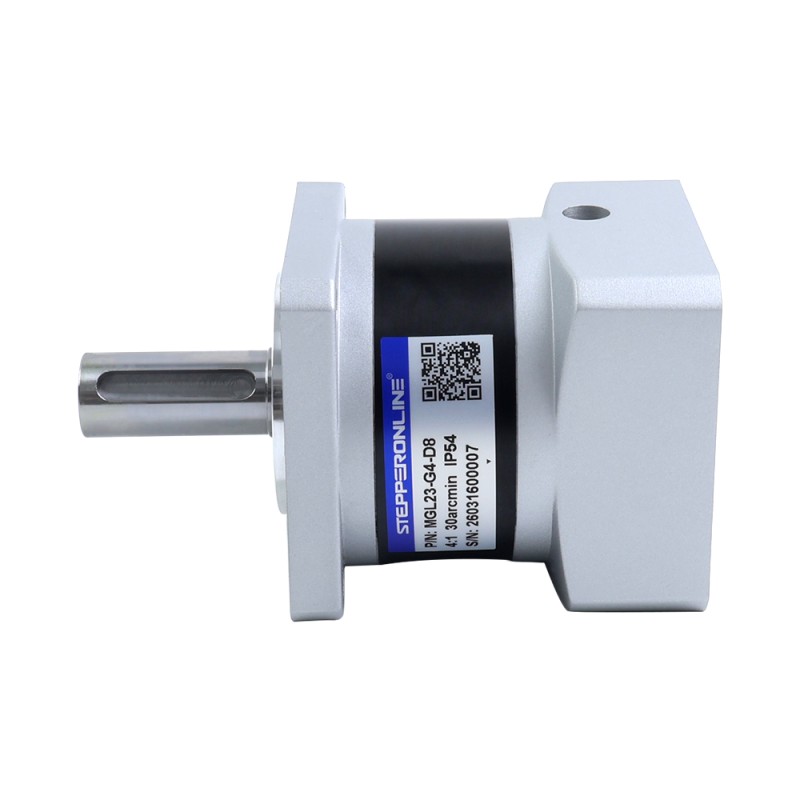

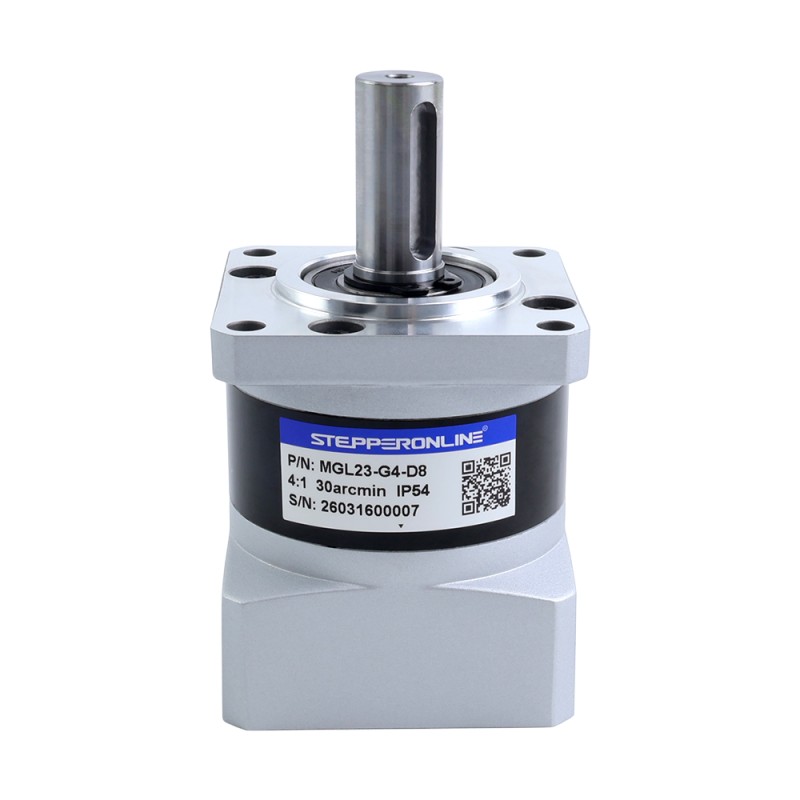

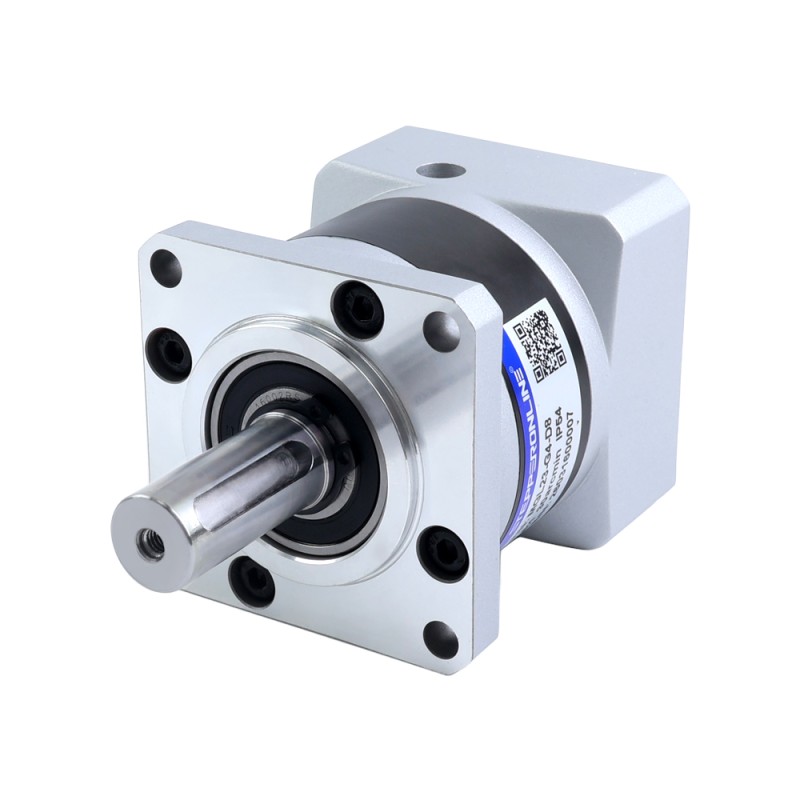

The MGL series high-precision planetary gearbox features a gear ratio of 4:1 and a maximum backlash of 30arc-min. Different with MG series gearboxes, the MGL series is designed to accommodate standard Nema 23 motors with standard shafts. This allows for more flexibility in the motor matching gearbox.

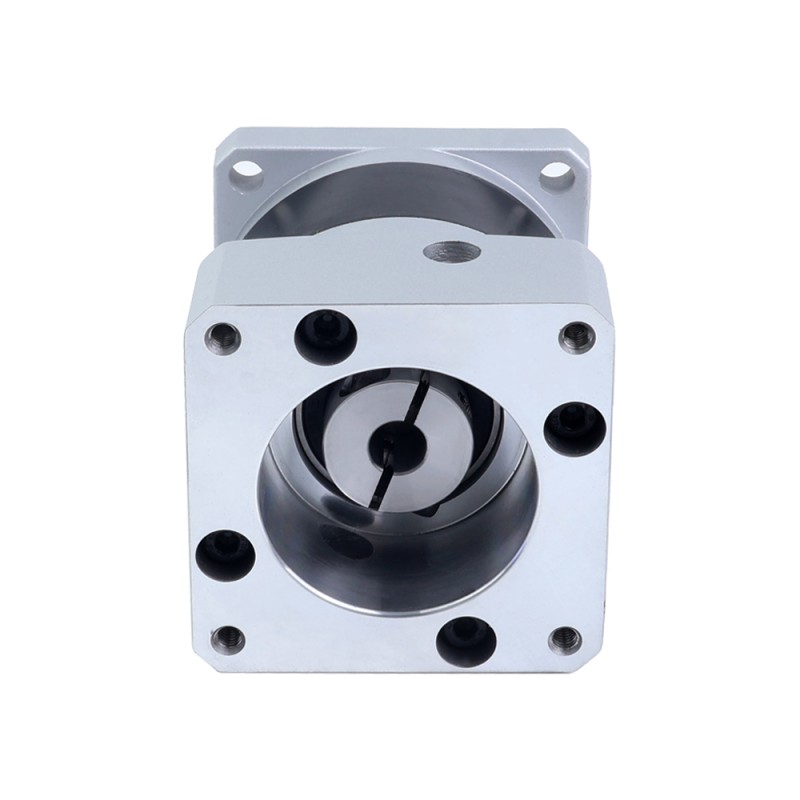

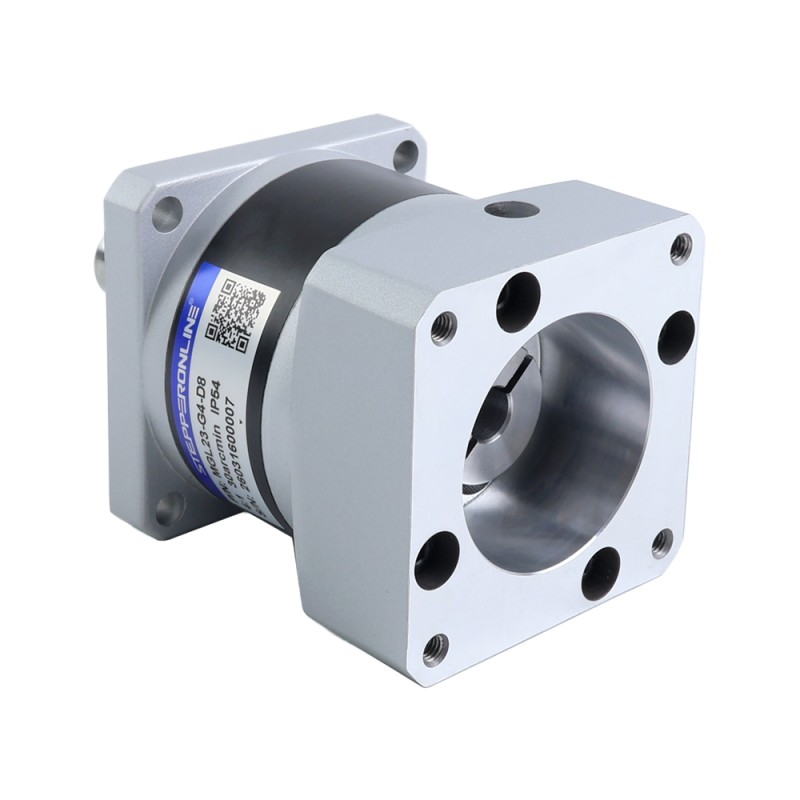

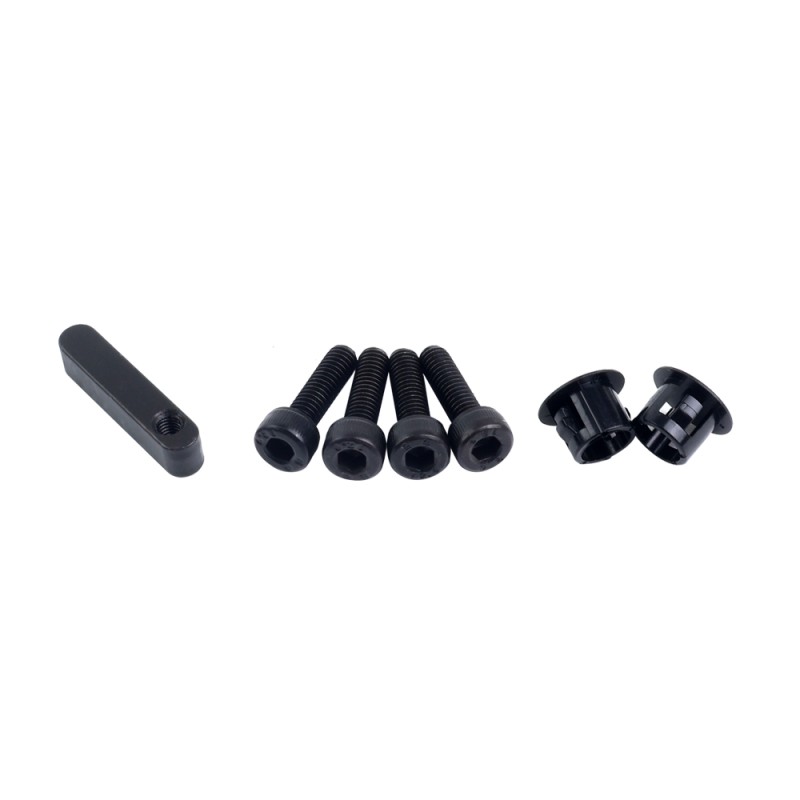

This inline planetary gearbox comes with a built-in input shaft coupling, making it compatible with standard 8mm diameter standard shafts of Nema 23 stepper motors, brushless DC motors, and brushed DC motors.

Gearbox Specifications

  • Part Number: MGL23-G4-D8
  • Gearbox Type: Spur Planetary
  • Gear Material: Powder Metallurgy
  • Gear Ratio: 4:1
  • Efficiency: 90%
  • Rotor Inertia: 0.14kg·cm²
  • Backlash at No-load: <=30arcmin
  • Maximum Permissible Torque: 25Nm(221.28lb-in)
  • Moment Permissible Torque: 50Nm(442.55lb-in)
  • Shaft Maximum Axial Load: 100N
  • Shaft Maximum Radial Load: 300N
  • Noise: <=55dB
  • Waterproof Rating: IP54
  • Lifetime: 20000hours

Physical Specifications

  • Frame Size: 57 x 57mm
  • Gearbox Length: 66.3mm
  • Rated Input Speed: 1000rpm
  • Maximum Input Speed: 2000rpm

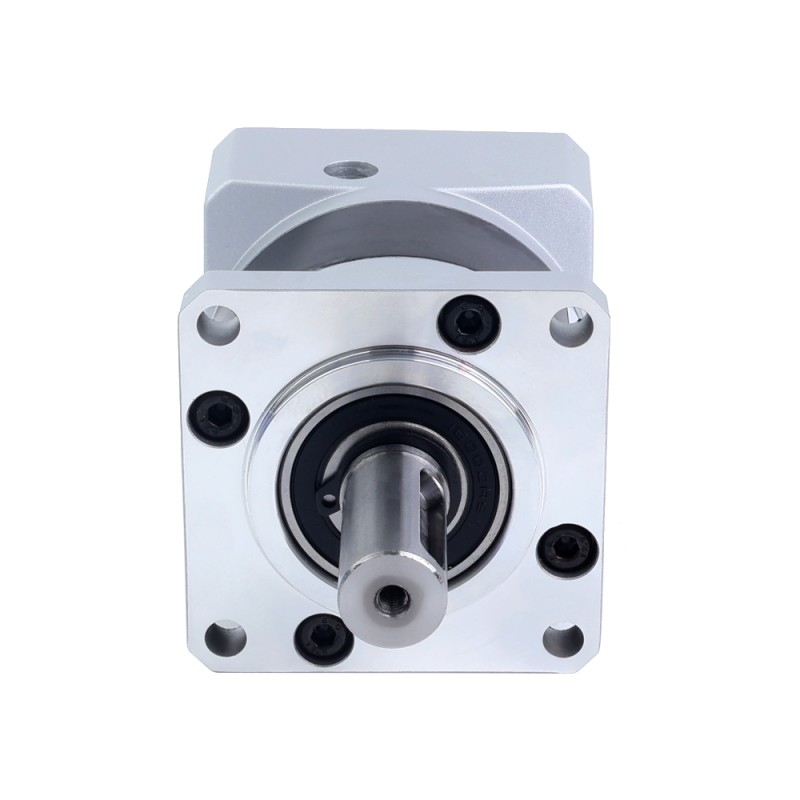

  • Output Shaft Type: KeyWay
  • Output Shaft Diameter: Φ14mm
  • Output Shaft Length: 34mm
  • Input Shaft Diameter: Φ8mm
  • Input Shaft Length: 20-25mm
Physical Specification
Backlash at No-load <=30 arcmin
Frame Size(mm) 57 x 57
Gear Material Powder Metallurgy
Gear Ratio(xx:1) 4
Gearbox Length(mm) 66.3
Gearbox Type Spur Planetary
Input Shaft Diameter(mm) 8
Input Shaft Length(mm) 20 - 25
IP Rating 54
Matching Motor Size Nema 23 Stepper Motor
Output Shaft Diameter(mm) 14
Output Shaft Length(mm) 34
Output Shaft Type Keyway
Product Series MGL
Weight(g) 710
