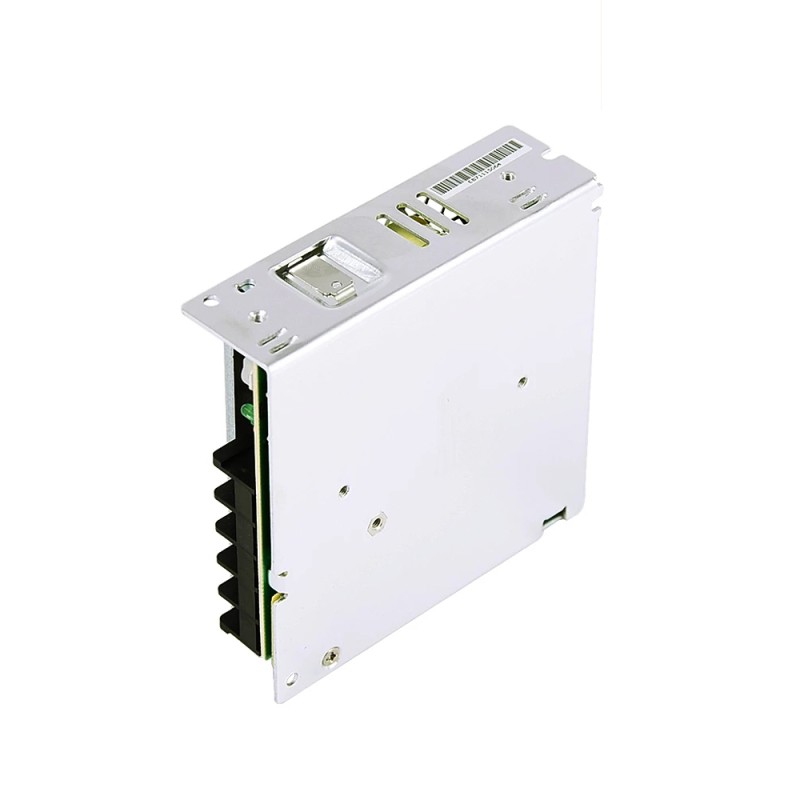

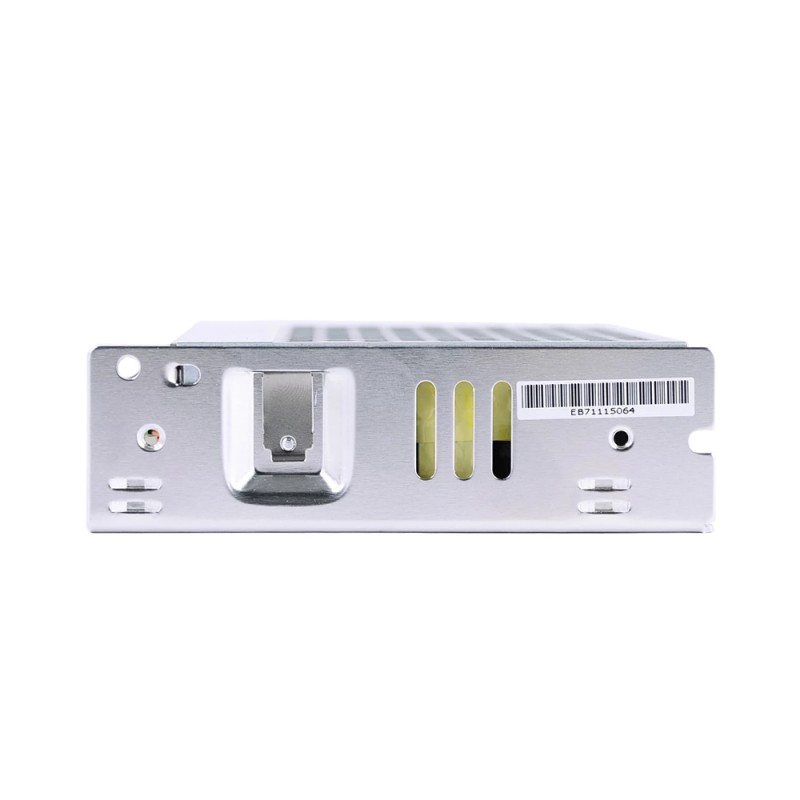

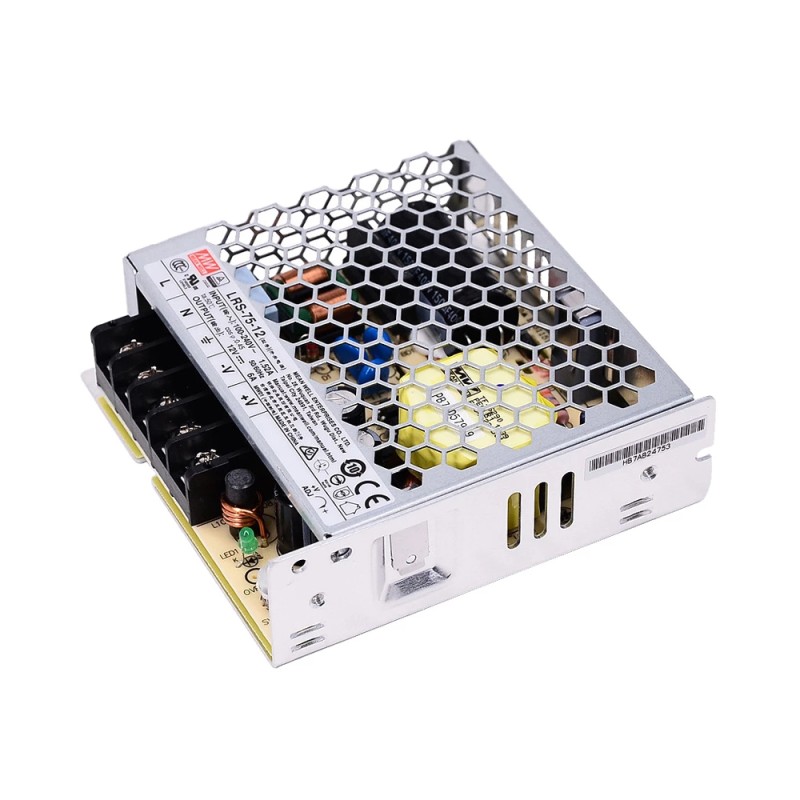

LRS-75-12 MEANWELL 75W 12VDC 6A 115/230VAC Enclosed Switching Power Supply

This is a 75W 12VDC 6A power supply. MEANWELL LRS-75 series is a 75W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation of LRS-75 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement.
LRS-75 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN62368-1,BS EN / EN60335-1,BS EN / EN61558-1/-2-16, UL62368-1 and GB4943. LRS-75 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

• Brand MEANWELL
• 12V DC 6A output
• AC input voltage range: 85 ~ 264VAC
• Rated power: 72W
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 second
• No load power consumption < 0.3W
• Miniature size and 1U low profile
• High operating temperature up to 70℃
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Compliance to IEC / BS EN / EN 60335-1(PD3) and IEC / BS EN / EN61558-1, -2-16 for household appliances
• Operating altitude up to 5000 meters (Note.7)
• Withstand 5G vibration test
• High efficiency, long life and high reliability
• LED indicator for power on
• Over voltage category Ⅲ
• 100% full load burn-in test
• 3 years warranty

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipments or apparatus
• Household appliances
