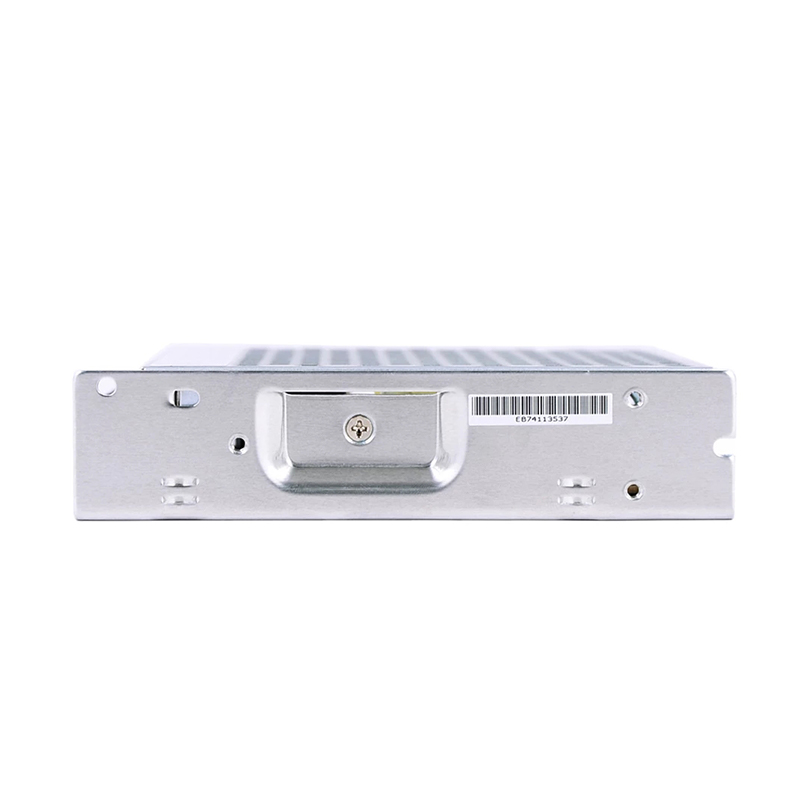

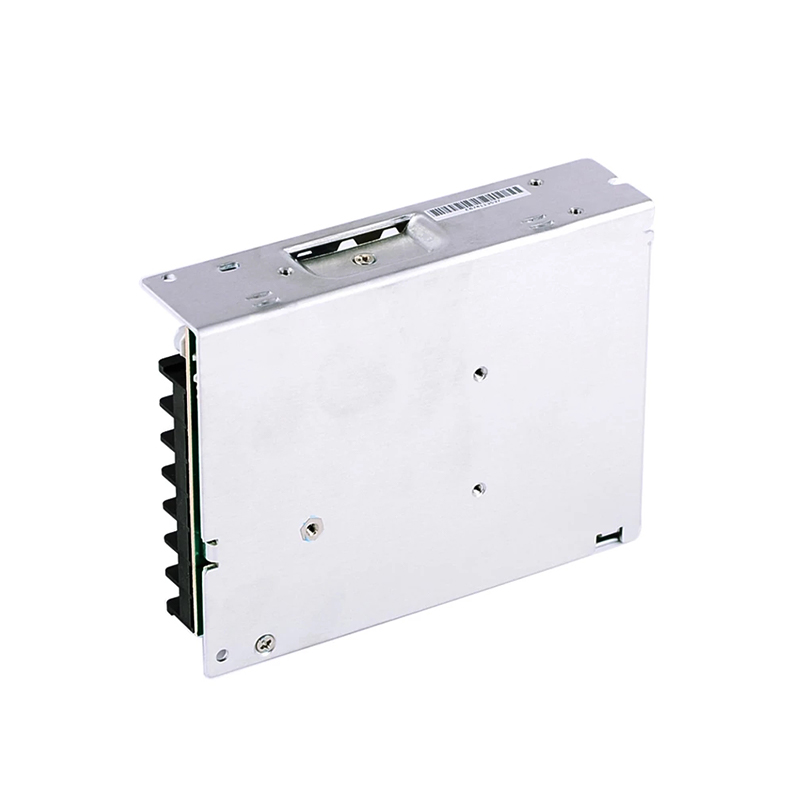

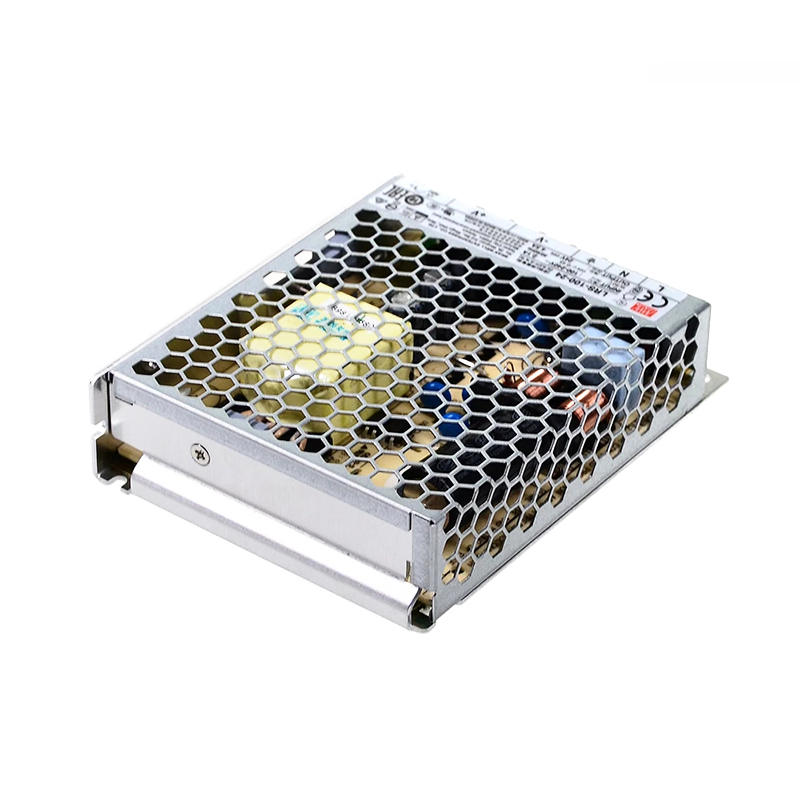

LRS-100-24 MEANWELL 100W 24VDC 4.5A 115/230VAC Enclosed Switching Power Supply

This is a 100W 24VDC 4.5A power supply. MEANWELL LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS-100 that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement.
LRS-100 has the complete protection functions and 5G anti¬vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN2368-1, BS EN / EN60335-1, BS EN / EN61558-1/-2-16, UL62368-1 and GB4943. LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

• Brand MEANWELL
• 24V DC 4.5A output
• AC input voltage range: 85 ~ 264VAC
• Rated power: 108W
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 second
• Protections: Short circuit/ Overload / Over voltage
• Cooling by free air convection
• Miniature size and 1U low profile
• Compliance to IEC/BS EN/EN 60335-1 (PD3) and IEC/BS EN/EN61558-1, 2-16 for household appliances
• Operating altitude up to 5000 meters (Note.7)
• Withstand 5G vibration test
• LED indicator for power on
• No load power consumption < 0.3W
• Over voltage category III
• 100% full load burn-in test
• High operating temperatir up 70°C
• High efficiency, long life and reliability
• 3 years warranty

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipments or apparatus
• Household appliances
