LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm

LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm for Servo Motor - LK86-60DL10S3-810 | StepperOnline UK
LK86-60DL10S3-810
Input Shaft Diameter(mm)14
Input Shaft Length(mm)30
Stroke Length(mm/ft)810/2.66
Max. Speed(mm/s) 500
Question

Downloads

LK86-60DL10S3-810.stepSTEP · 3.21MBLog in to downloadLK86-60DL10S3-810_Full_Datasheet.pdfPDF · 143.64KBLK86_User_Manual.pdfPDF · 837.46KB
Same series
ModelInput Shaft Diameter(mm)Input Shaft Length(mm)Stroke Length(mm/ft)Max. Speed(mm/s) PriceStock
LK60-23DL103-510821510/1.67166£122.86In stock
LK60-40DL10S3-110825110/0.36500£89.91In stock
LK60-40DL10S3-210825210/0.69500£95.24In stock
LK60-40DL10S3-310825310/1.02500£108.27In stock
LK60-40DL10S3-410825410/1.35500£113.76In stock
LK60-40DL10S3-410-SALE825410/1.35500£111.13In stock
LK60-40DL10S3-510825510/1.67500£122.86In stock
LK86-24DL103-510830510/1.67166£156.13In stock
LK86-24DL103-510-SALE830510/1.67166£152.52In stock
LK86-60DL10S3-2101430210/0.69500£125.37In stock
LK86-60DL10S3-3101430310/1.02500£135.57In stock
LK86-60DL10S3-4101430410/1.35500£147.65In stock
LK86-60DL10S3-5101430510/1.67500£156.13In stock
LK86-60DL10S3-6101430610/2.00500£173.70In stock
LK86-60DL10S3-8101430810/2.66500£207.60In stock
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 810mm
This LK86 series ball screw driven dustproof linear actuator offers a maximum horizontal payload o... Read More
0 reviews • Write a review
from
£207.60
5 + £201.53
10 + £195.82
50 + £190.41
100 + £185.30

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

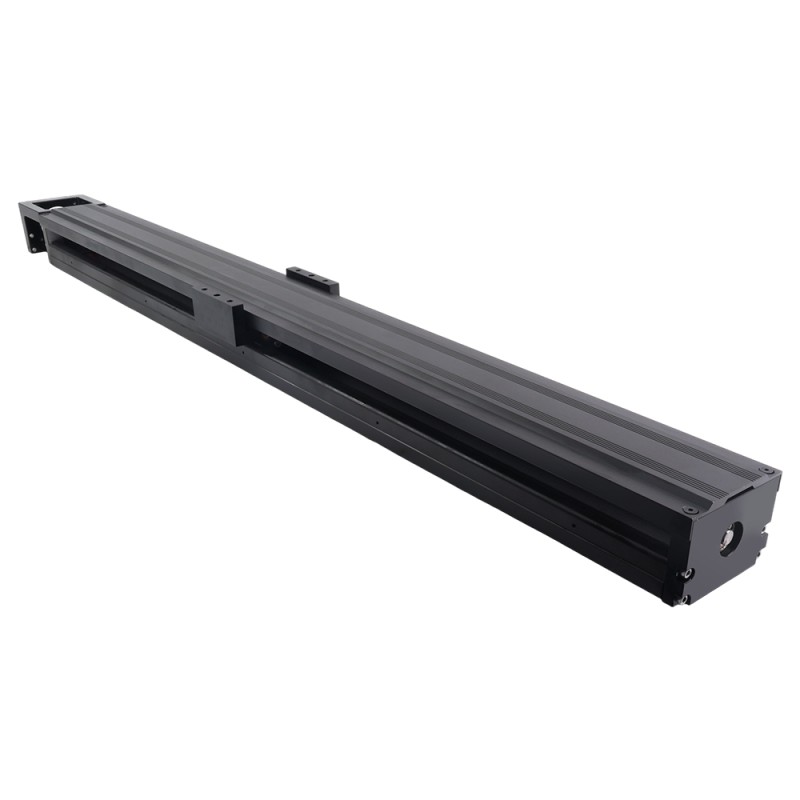

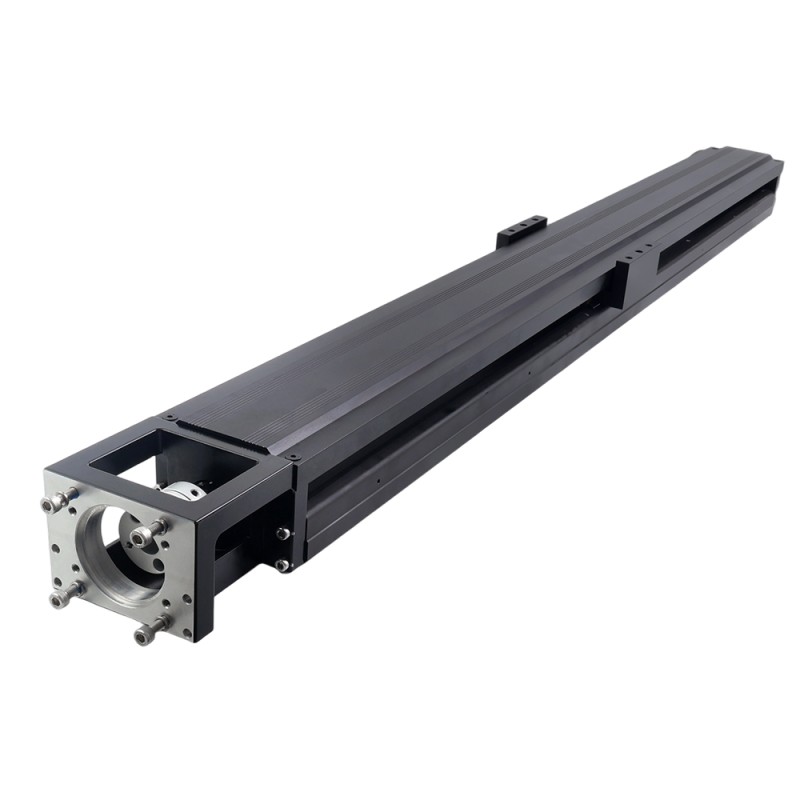

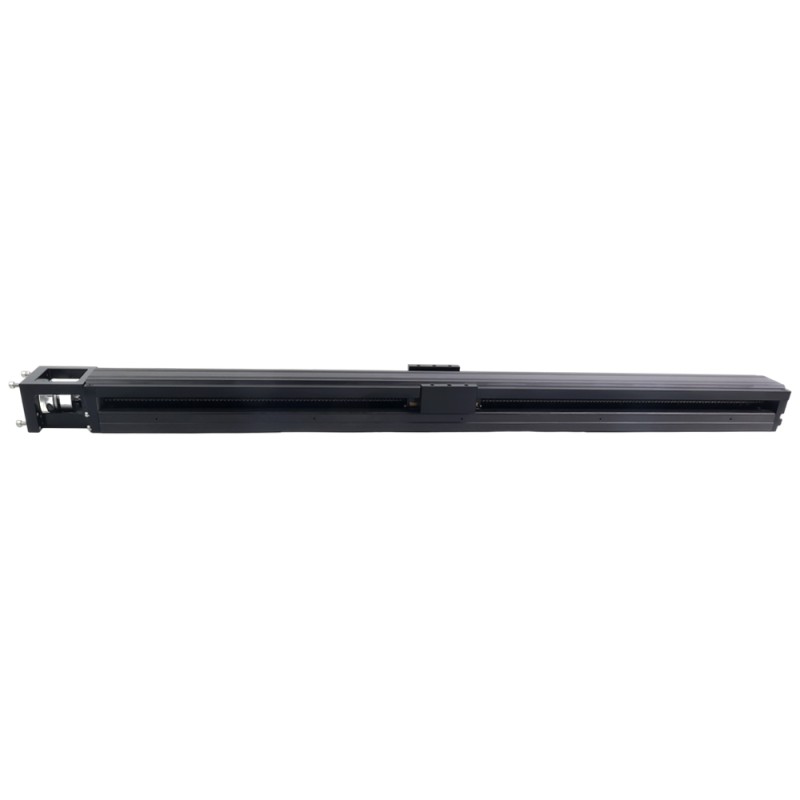

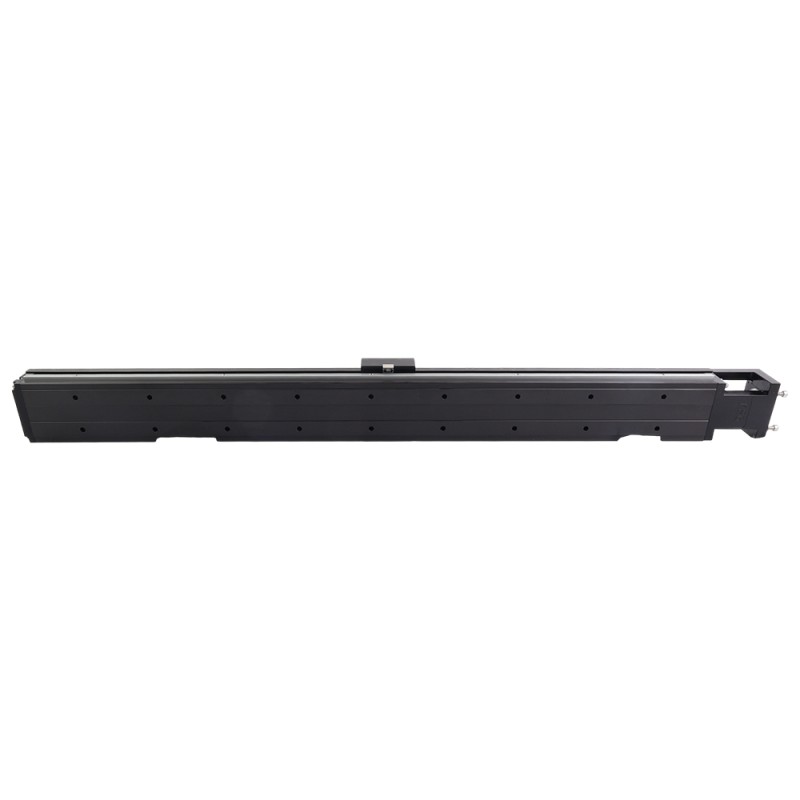

This LK86 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 40kg(88.18lb) and maximum vertical payload of 12kg(26.46lb), a stroke length of 810mm(2.66ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

  • Part Number: LK86-60DL10S3-810
  • Screw Type: Ball Screw
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.033ft)
  • Maximum Speed: 500mm/s(1.64ft/s)
  • Maximum Horizontal Payload: 40kg(88.18lb)
  • Maximum Vertical Payload: 12kg(26.46lb)
  • Rated Thrust: 694N

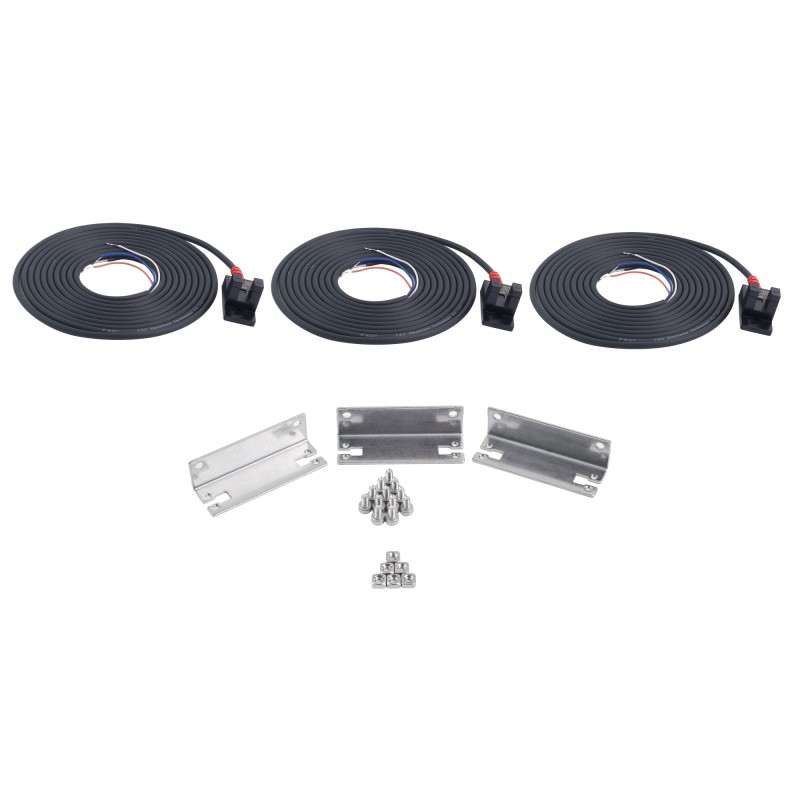

  • Sensor Type: NPN
  • Number of Sensors: 3
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ15mm
  • Motor Frame: 60mm Servo Motor(400W)
  • Stroke Length: 810mm(2.66ft)
  • Input Shaft Length: 30mm
  • Input Shaft Diameter: 14mm
Physical Specification
Input Shaft Diameter(mm) 14
Input Shaft Length(mm) 30
Lead(mm/ft) 10/0.033
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 40/88.18
Max. Speed(ft/s) 1.64
Max. Speed(mm/s) 500
Max. Vertical Payload(kg/lb) 12/26.46

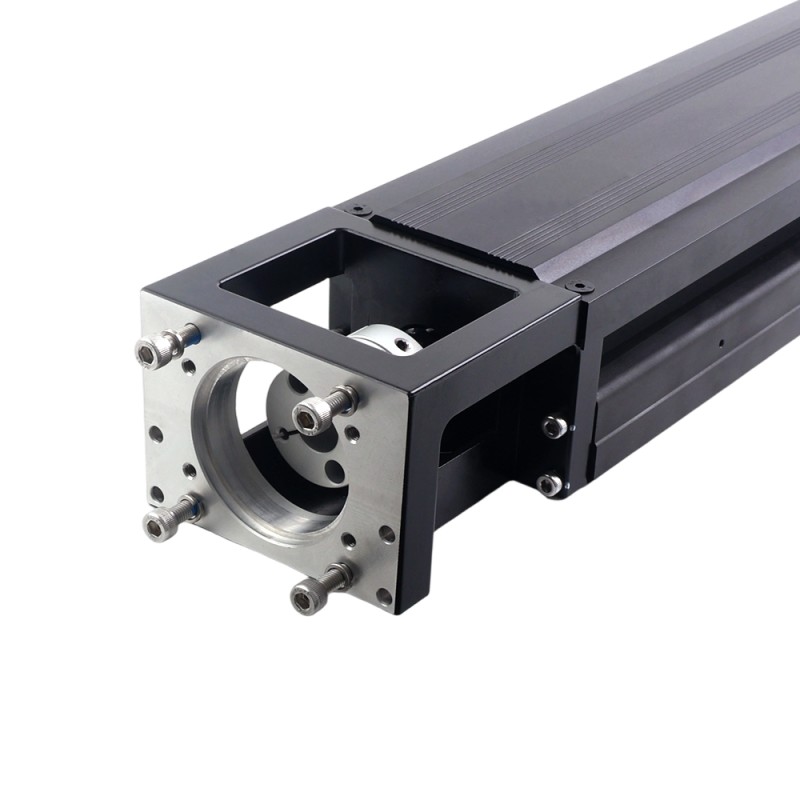

Motor Mounting Flange 60mm Servo Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 694
Stroke Length(mm/ft) 810/2.66
Transmission Method Ball Screw Driven

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

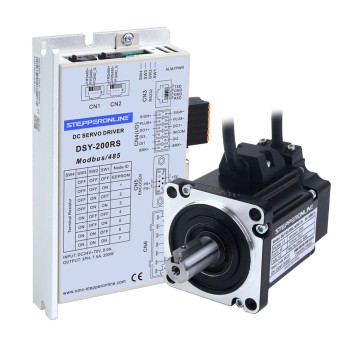

DSY Series 200W RS485 DC Servo Motor 24-70VDC 0.637Nm 3000rpm 17-Bit Incremental Encoder IP65
DSY Series 200W RS485 DC Servo Motor 24-70VDC 0.637Nm 3000rpm 17-Bit Incremental Encoder IP65
This is the latest DSY series DC servo system, consisting of a 48VDC 200W servo motor and a 24-70VDC 200W servo driver. The servo motor has a rated to..
from
£103.06
Add to Cart
Add to Wish List Compare this Product
Quickview
A6 Series 400W RS485 AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
A6 Series 400W RS485 AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 400W motor with the built-in 17-bit multiturn absolute encoder and a 24V 7.3..
from
£96.03
Add to Cart
Add to Wish List Compare this Product
Quickview
A6 Series 400W PROFINET AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
A6 Series 400W PROFINET AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 400W motor with the built-in 17-bit multiturn absolute encoder and a 24V 7.3..
from
£173.37
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor
The DM542T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achie..
from
£15.52
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires
Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires
Electrical Specification Manufacturer Part Number: 23HS32-4004S Number Of Phase: 2 Step Angle: 1.8deg Holding Torque: 2.4Nm(339.87oz.in) Rated..
from
£14.95
Add to Cart
Add to Wish List Compare this Product
Quickview
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 410mm
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 410mm
This LK86 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 40kg(88.18lb) and maximum vertical payload of 12kg..
from
£147.65
Add to Cart
Add to Wish List Compare this Product
Quickview

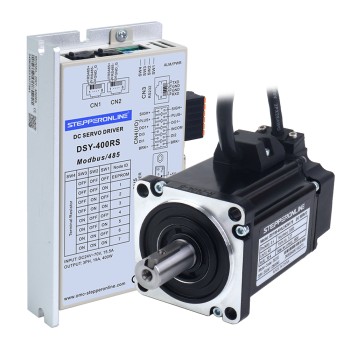

DSY Series 400W RS485 DC Servo Motor 24-70VDC 1.27Nm 3000rpm 17-Bit Incremental Encoder IP65
