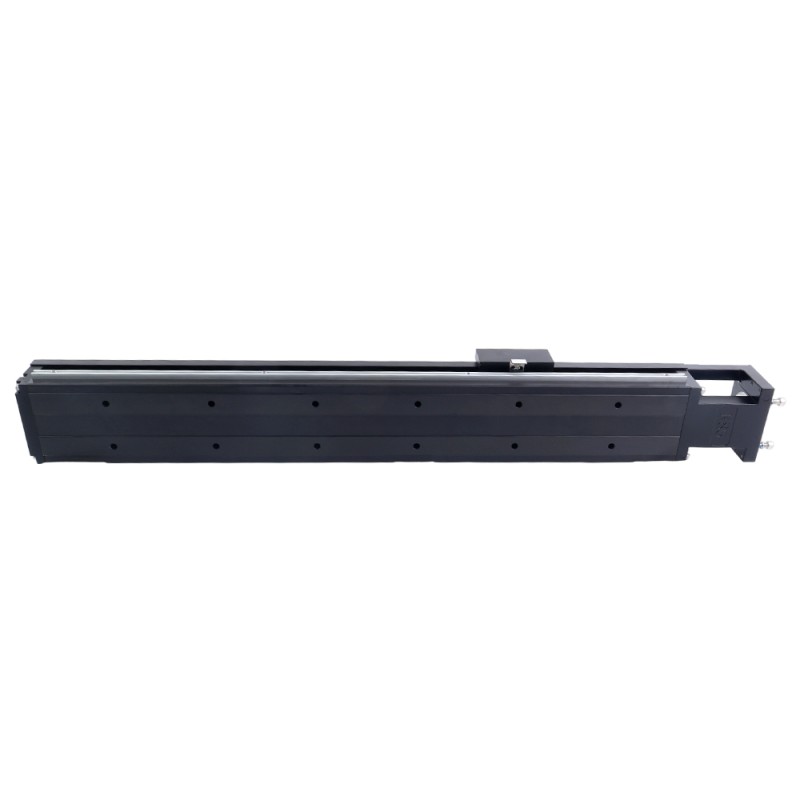

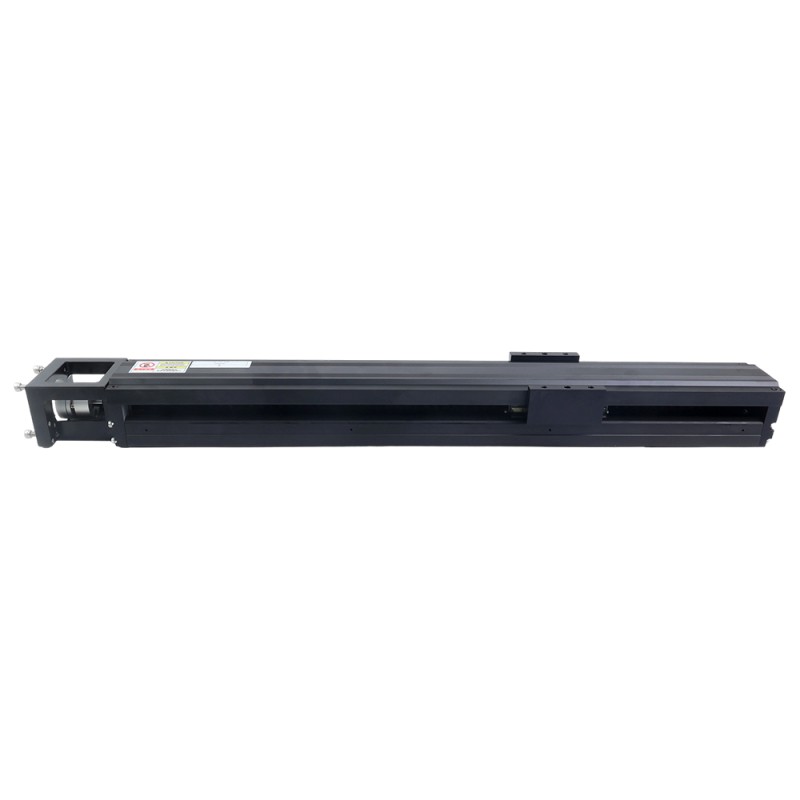

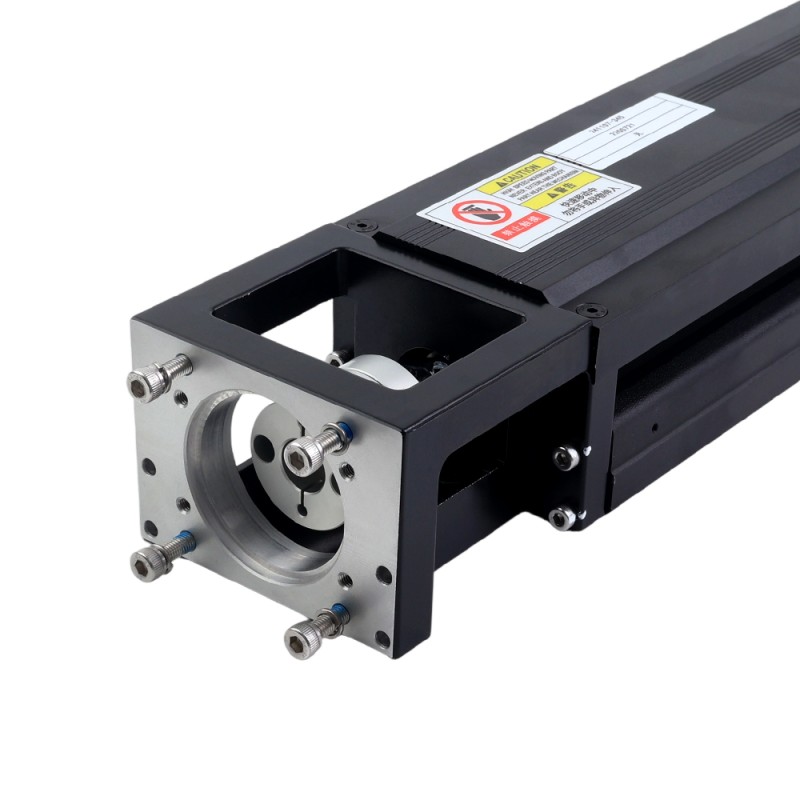

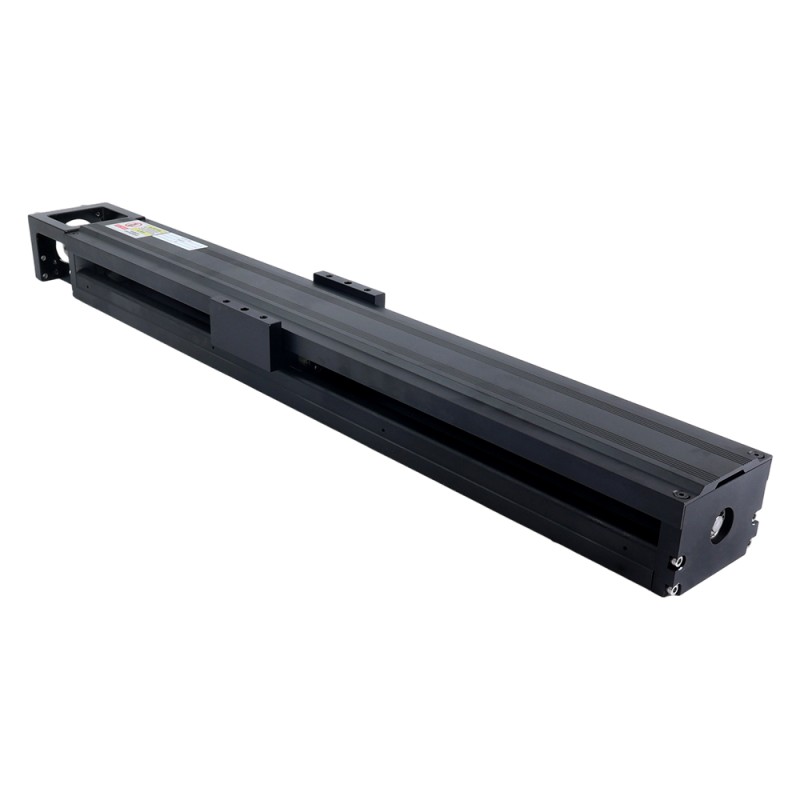

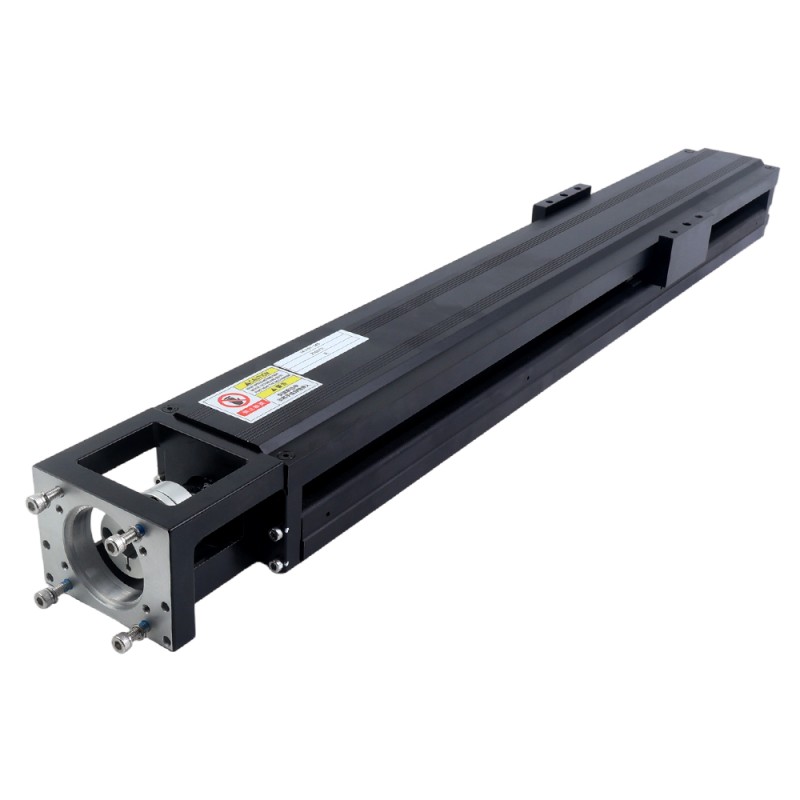

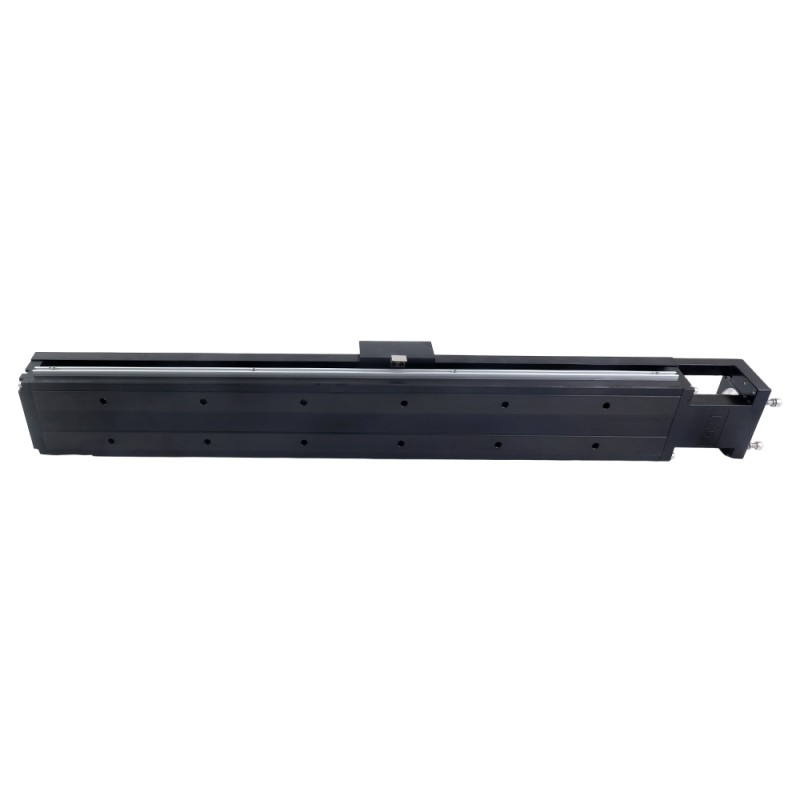

LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 510mm

This LK86 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 40kg(88.18lb) and maximum vertical payload of 12kg(26.46lb), a stroke length of 510mm(1.67ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

• Part Number: LK86-60DL10S3-510
• Screw Type: Ball Screw
• Position Accuracy: ± 0.01mm
• Ball Screw Lead: 10mm(0.033ft)
• Maximum Speed: 500mm/s(1.64ft/s)
• Maximum Horizontal Payload: 40kg(88.18lb)
• Maximum Vertical Payload: 12kg(26.46lb)
• Rated Thrust: 694N
• Sensor Type: NPN
• Number of Sensors: 3
• Ball Screw Grade: C7
• Ball Screw Diameter: Φ15mm
• Motor Frame: 60mm Servo Motor(400W)
• Stroke Length: 510mm(1.67ft)
• Input Shaft Length: 30mm
• Input Shaft Diameter: 14mm
