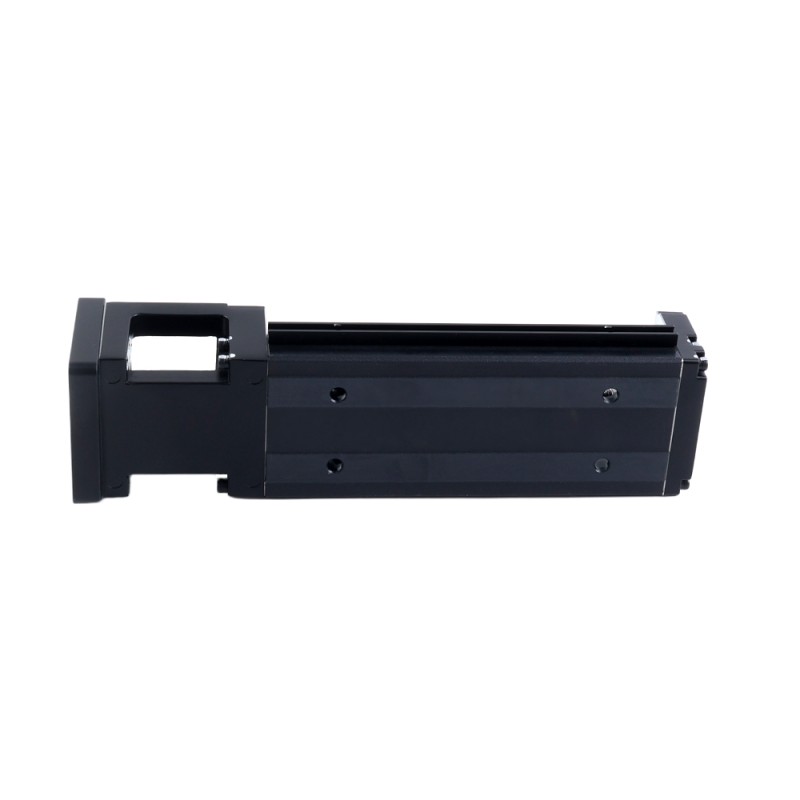

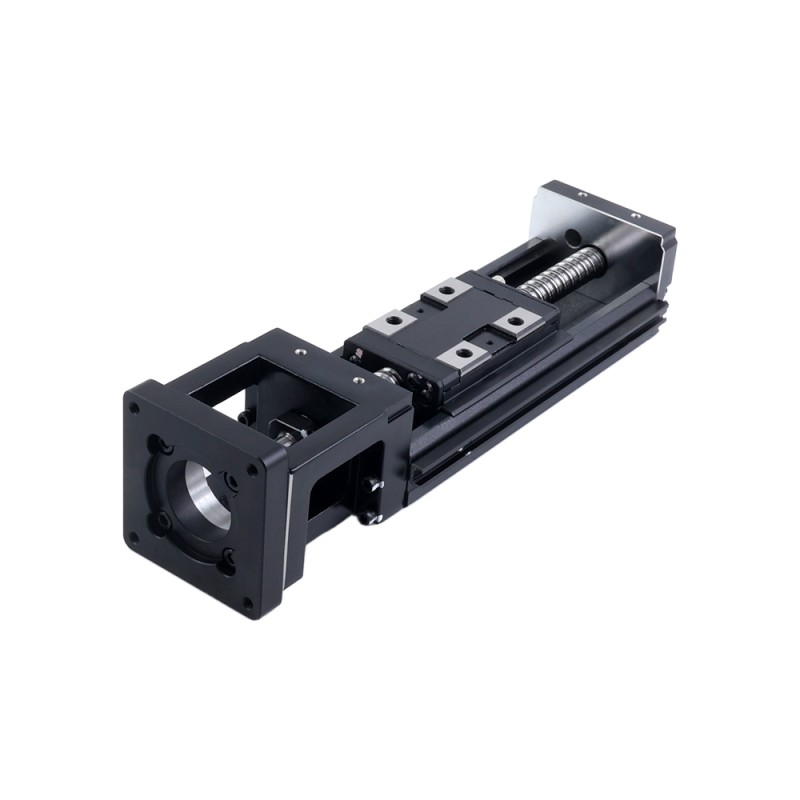

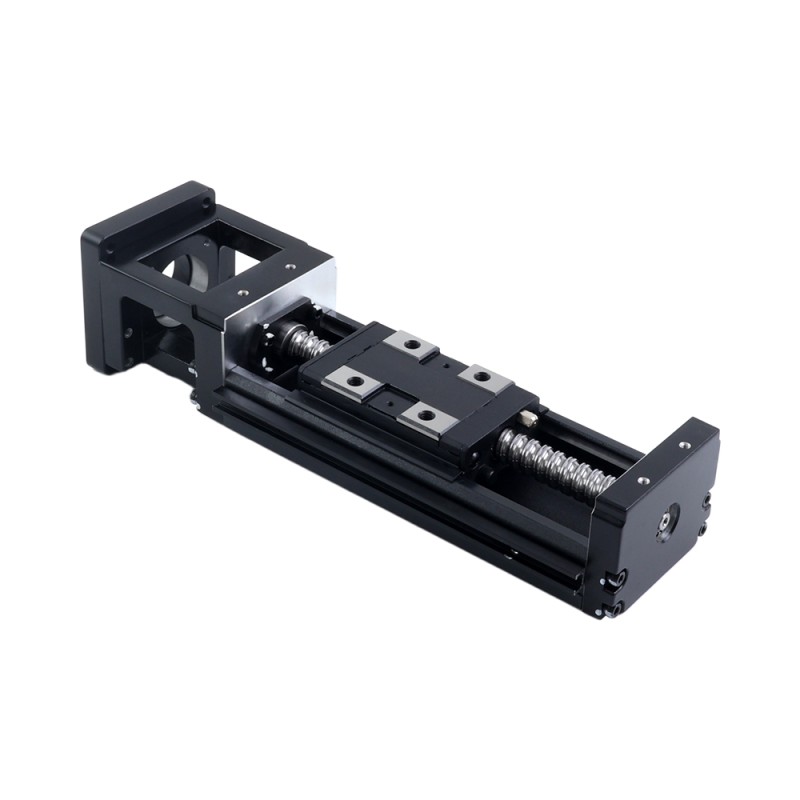

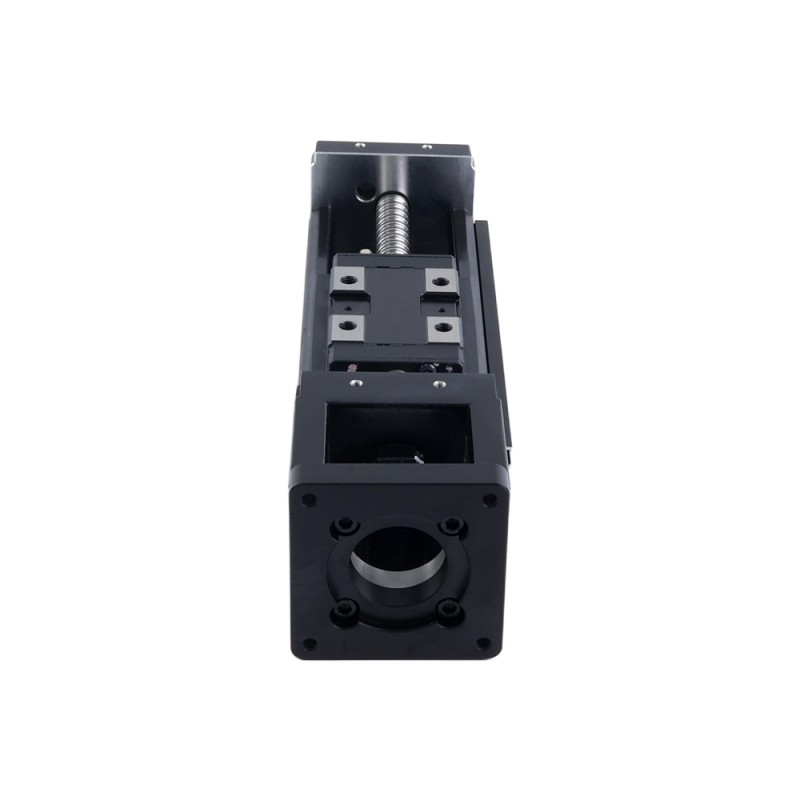

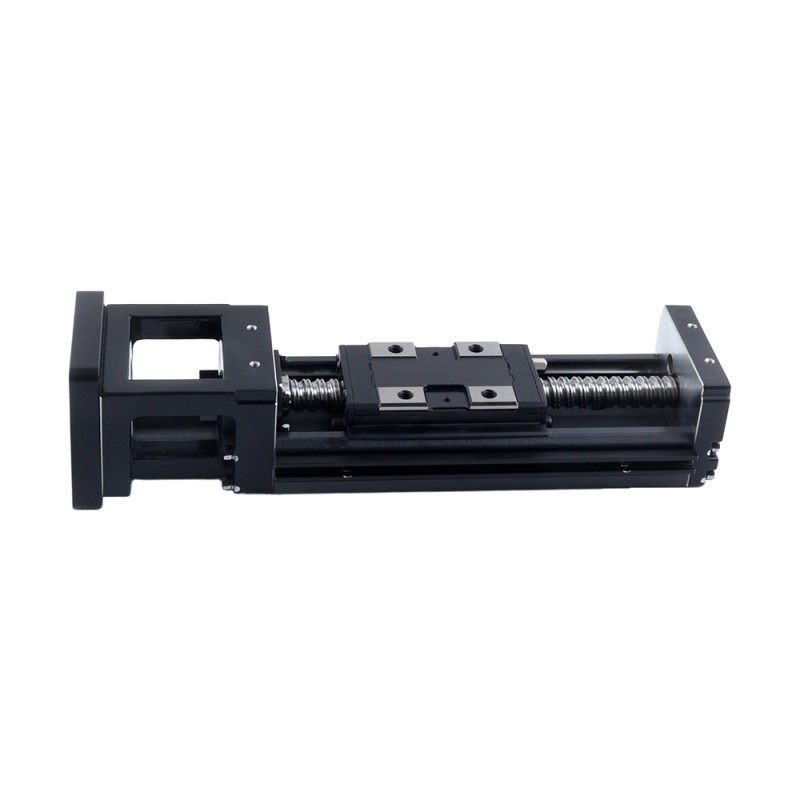

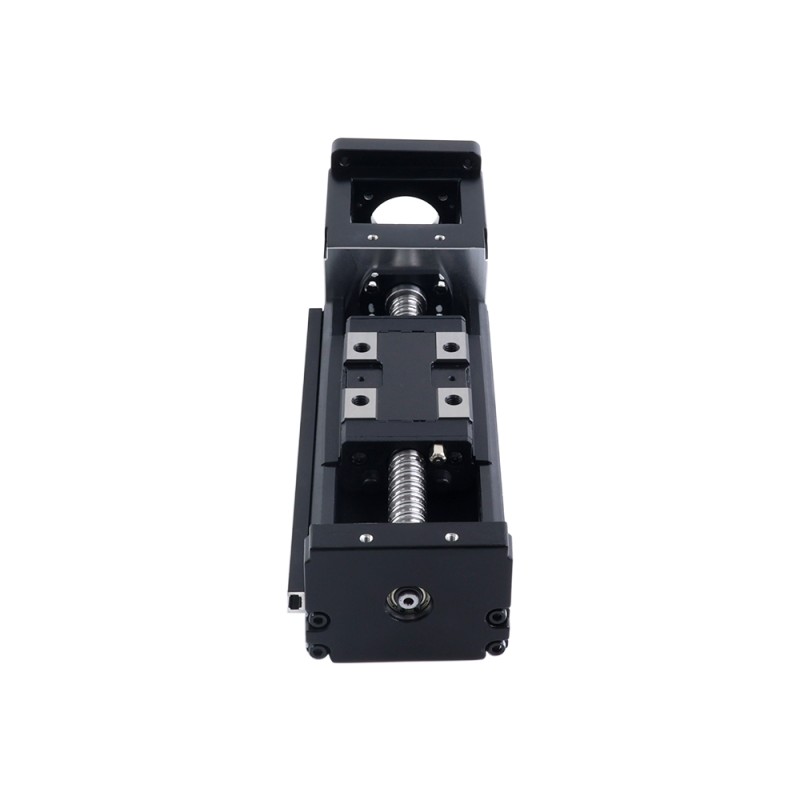

LK2A60 Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm
This LK2A60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This LK2A60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 10kg(22.05lb), a stroke length of 60mm(0.2ft) and maximum speed of 800mm/s(2.62ft/s).

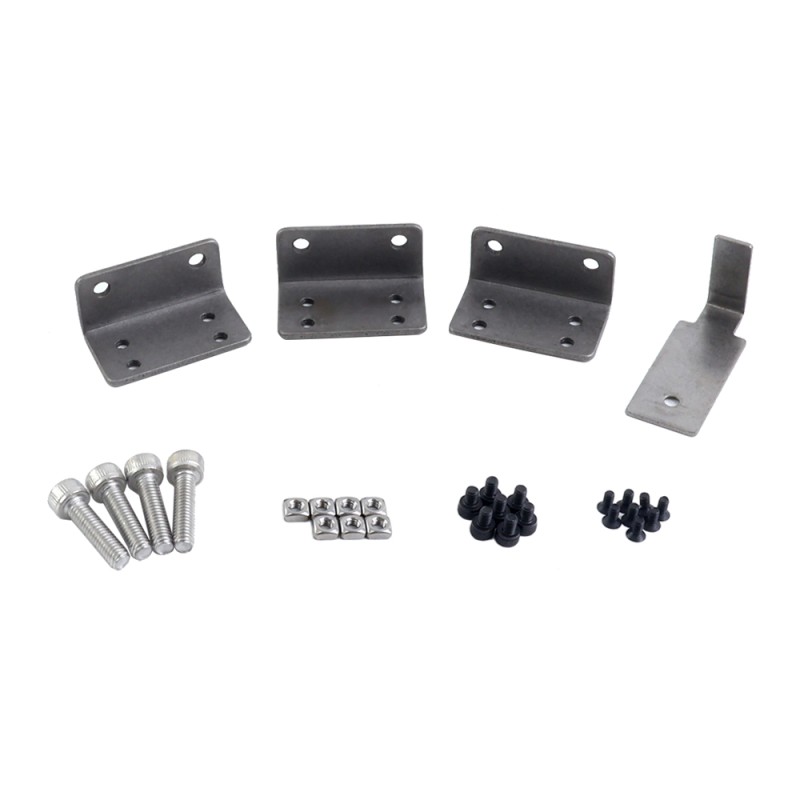

The LK2A series ball screw driven linear actuator adopts a stripped-down architecture that eliminates unnecessary components—such as sensors, protective covers, and couplings—resulting in a compact, lightweight design ideal for space-constrained automation. This streamlined approach reduces weight and installation footprint while delivering reliable linear motion with simplified assembly. To support application flexibility, it features sensor mounting rails, sensor fixing brackets, and light-blocking plates on the sliders. Engineered for applications demanding efficiency and economy, the LK2A provides dependable performance in high-cycle environments without the complexity of added hardware.

Specifications

  • Part Number: LK2A60-23DL050-060
  • Screw Type: Ball Screw
  • Stroke Length: 60mm(0.2ft)
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 5mm(0.0164ft)
  • Maximum Speed: 800mm/s(2.62ft/s)
  • Maximum Horizontal Payload: 30kg(66.14lb)
  • Maximum Vertical Payload: 10kg(22.05lb)
  • Rated Thrust: 341N
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ12mm
  • Motor Frame: Nema 23 Closed Loop Stepper Motor
Physical Specification
Lead(mm/ft) 5/0.0164
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 30/66.14
Max. Speed(ft/s) 2.62
Max. Speed(mm/s) 800
Max. Vertical Payload(kg/lb) 10/22.05
Motor Mounting Flange Nema 23 Closed Loop Stepper Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 341
Stroke Length(mm/ft) 60/0.2
Transmission Method Ball Screw Driven

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
LRS-350-36 MEANWELL 350W 36VDC 9.7A 115/230VAC Enclosed Switching Power Supply
LRS-350-36 MEANWELL 350W 36VDC 9.7A 115/230VAC Enclosed Switching Power Supply
This is a 350W 36VDC 9.7A power supply. LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting th..
from
£16.20
Add to Cart
Add to Wish List Compare this Product
Quickview
NEMA 23 Integrated Easy Servo Motor 130W 3000rpm 0.45Nm(63.73oz.in) 20-50VDC Servo Motor - Short Shaft
NEMA 23 Integrated Easy Servo Motor 130W 3000rpm 0.45Nm(63.73oz.in) 20-50VDC Servo Motor - Short Shaft
iSV57T-130S integrated servo motor is a 57mm frame size brushless motor integrated with a 16bit encoder and a servo drive. At very compact size and ..
from
£64.64
Add to Cart
Add to Wish List Compare this Product
Quickview
8mm - 8mm Flexible Single Disc Coupling 26x26mm CNC Stepper Motor Shaft Coupler
8mm - 8mm Flexible Single Disc Coupling 26x26mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP2626-8-8 Type: Single Disc Rated Torque: 1.4Nm(198.21oz.in) Max. Torque: 2.8Nm(396.42oz.in) Ma..
from
£3.93
Add to Cart
Add to Wish List Compare this Product
Quickview

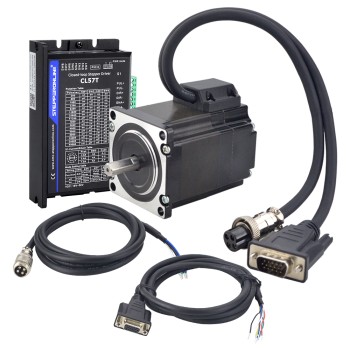

TS Series 1.2Nm(169.93oz.in) 1 Axis Closed Loop Stepper CNC Kit Nema 23 Motor & Driver
TS Series 1.2Nm(169.93oz.in) 1 Axis Closed Loop Stepper CNC Kit Nema 23 Motor & Driver
Items in Kit 1 x 23HS22-4004D-E1000: 1.2Nm Closed loop stepper motor 1 x CL57T-V41: Nema 23/Nema 24 Closed loop stepper motor driver V4.11 x CABLE..
from
£44.10
Add to Cart
Add to Wish List Compare this Product
Quickview
4.7m(185") Encoder Extension Cable for Closed Loop Stepper Motor
4.7m(185") Encoder Extension Cable for Closed Loop Stepper Motor
4.7m(185") Encoder Extension Cable for Closed Loop Stepper Motor Encoder Extension Cable Connection PIN 2 3 1 13..
from
£10.29
Add to Cart
Add to Wish List Compare this Product
Quickview

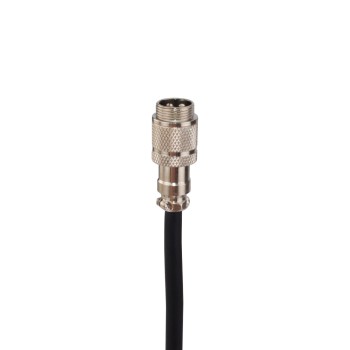

4.7m(185") AWG18 Motor Extension Cable with GX16 Aviation Connector for Nema 34 Closed Loop Stepper Motors
4.7m(185") AWG18 Motor Extension Cable with GX16 Aviation Connector for Nema 34 Closed Loop Stepper Motors
RV-4 AWG18 4.7m(185") Motor Extension Cable with GX16 Aviation Plug for Nema 34 Closed Loop Stepper Motors. Lead Length: 4.7m Wire Gauge: AWG18 ..
from
£8.58
Add to Cart
Add to Wish List Compare this Product
Quickview
NEMA 23 Integrated Easy Servo Motor 90W 3000rpm 0.3Nm(42.49oz.in) 20-50VDC Servo Motor - Short Shaft
NEMA 23 Integrated Easy Servo Motor 90W 3000rpm 0.3Nm(42.49oz.in) 20-50VDC Servo Motor - Short Shaft
iSV57T-090S integrated servo motor is a 57mm frame size brushless motor integrated with a 16bit encoder and a servo drive. At very compact size and ..
from
£60.95
Add to Cart
Add to Wish List Compare this Product
Quickview

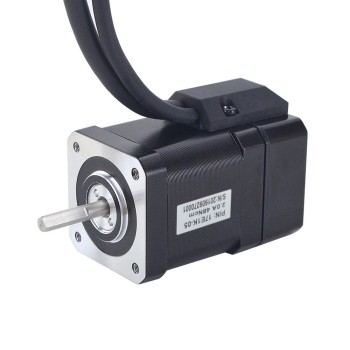

P Series Nema 17 Closed Loop Stepper Motor 48Ncm(67.97oz.in) with Encoder 1000PPR(4000CPR)
