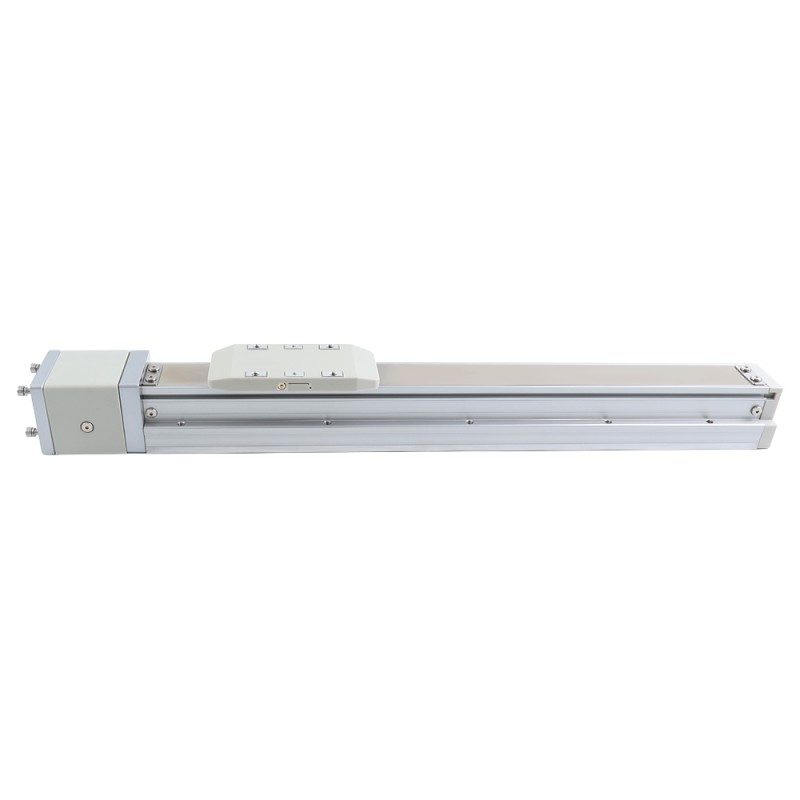

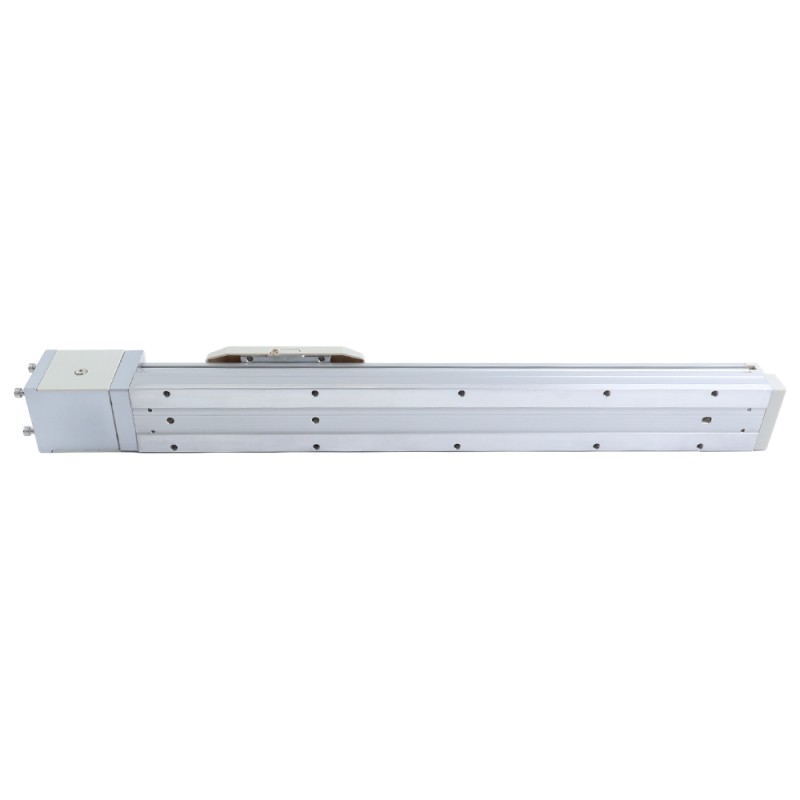

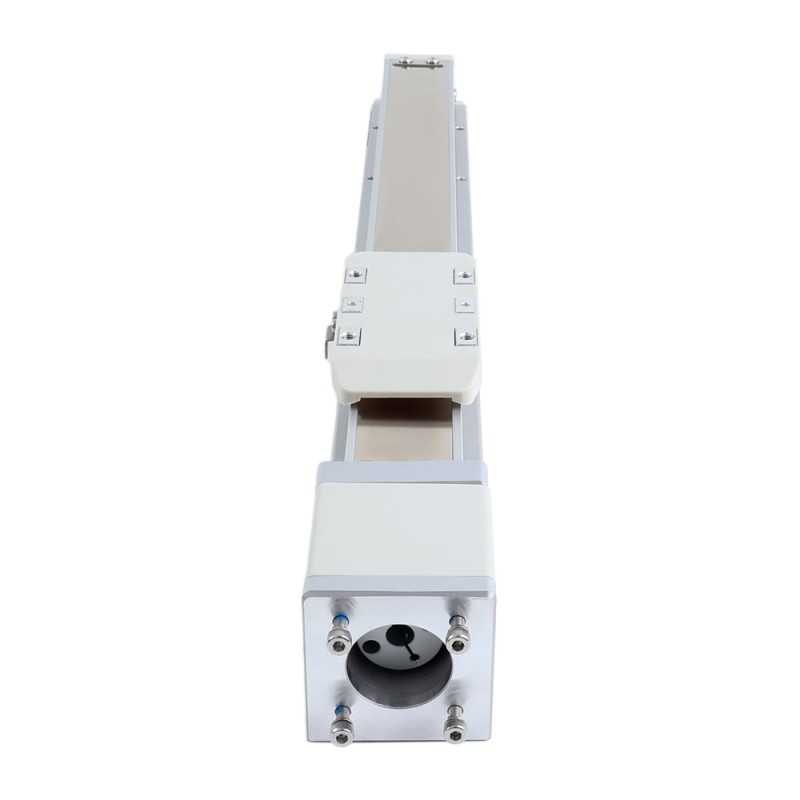

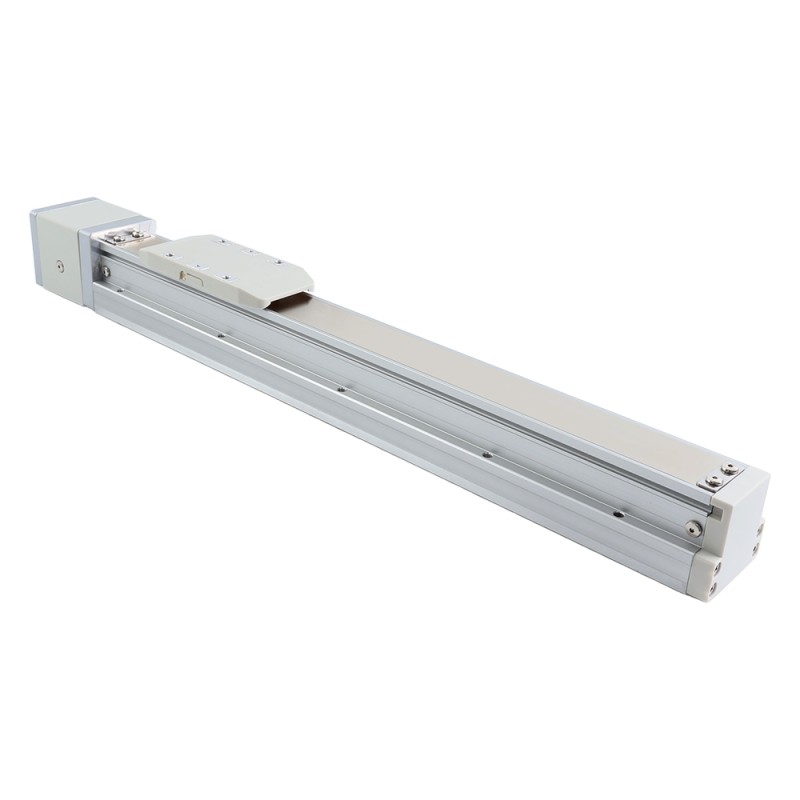

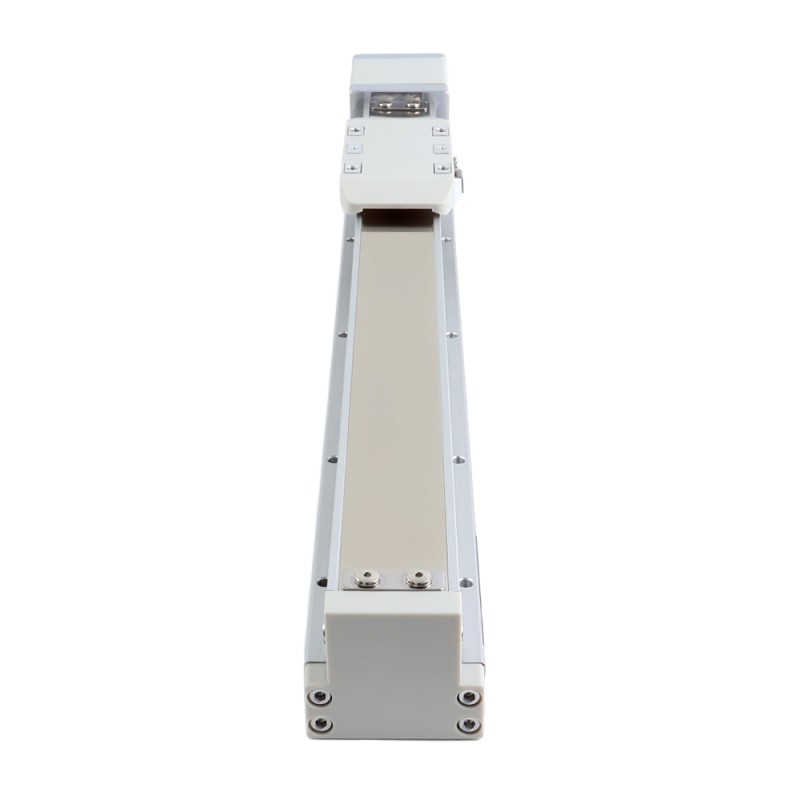

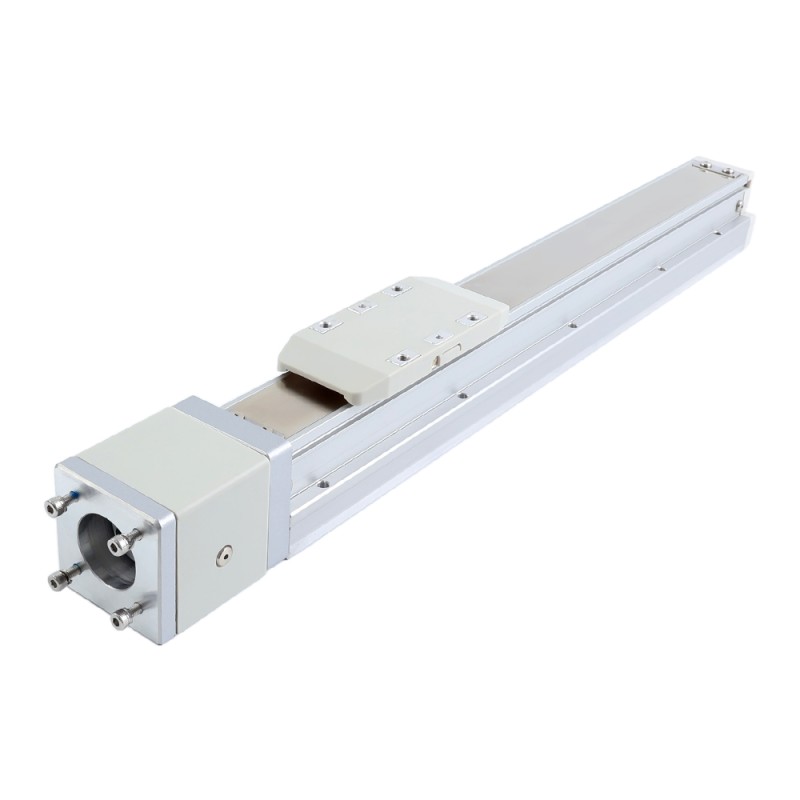

LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 300mm

This LG5 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 15kg(33.07lb) and maximum vertical payload of 5kg(11.02lb), a stroke length of 300mm(0.98ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LG series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

• PN: LG5-40DL10S3-300
• Screw Type: Ball Screw
• Position Accuracy: ± 0.01mm
• Ball Screw Lead: 10mm(0.033ft)
• Maximum Speed: 500mm/s(1.64ft/s)
• Maximum Horizontal Payload: 15kg(33.07lb)
• Maximum Vertical Payload: 5kg(11.02lb)
• Rated Thrust: 170N

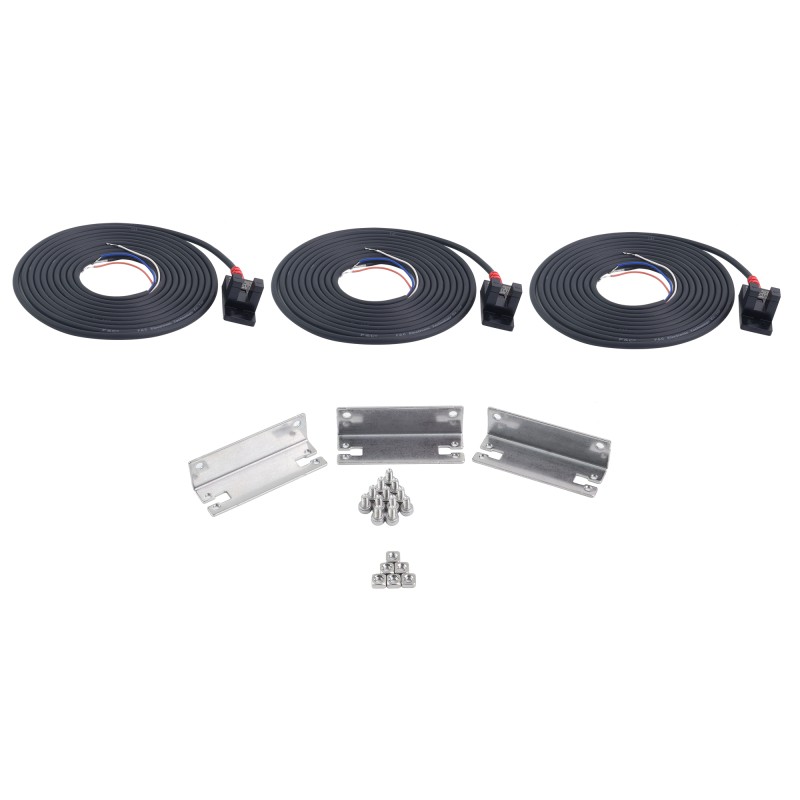

• Sensor Type: NPN
• Number of Sensors: 3
• Ball Screw Grade: C7
• Ball Screw Diameter: Φ12mm
• Motor Frame: 40mm Servo Motor(100W)
• Stroke Length: 300mm(0.98ft)
• Input Shaft Length: 25mm
• Input Shaft Diameter: 8mm
