Name: Keyway Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm(1204oz.in) 5A 86x86x114mm
Brand: STEPPERONLINE
SKU: 34HS46-5004D1
Price: 25.76 GBP
Availability: InStock
Rating: 5 (1 reviews)

Keyway Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm(1204oz.in) 5A 86x86x114mm - 34HS46-5004D1 | StepperOnline UK

34HS46-5004D1

Output Shaft TypeKeyway

Shaft Diameter(mm)14

Shaft Length(mm)37

No. of Lead4

Question

Downloads

34HS46-5004D1.STEPSTEP · 2.04MBLog in to download 34HS46-5004D1_Full_Datasheet.pdfPDF · 179.47KB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	No. of Lead	Price	Stock
34HS25-5604S	O	12.7	30	4	£25.12	In stock
34HS26-2006D	D	14	37	6	£24.93	Backorder
34HS27-4004S	D	14	32	4	£25.04	In stock
34HS30-6004S	D	14	32	4	£22.11	In stock
34HS31-5504D	Keyway	14	37	4	£25.60	Backorder
34HS31-6004S	Keyway	14	37	4	£27.57	In stock
34HS31-6004S1	Keyway	14	32	4	£29.63	In stock
34HS38-3008S	D	12.7	32	8	£36.02	In stock
34HS38-4204D	Keyway	14	37	4	£27.17	In stock
34HS39-6004S	Keyway	14	32	4	£26.24	In stock
34HS45-6004S	Keyway	14	37	4	£35.30	In stock
34HS46-5004D1	Keyway	14	37	4	£25.76	In stock
34HS46-6004S1	Keyway	14	32	4	£42.51	In stock
34HS59-5004D	Keyway	14	37	4	£62.79	Backorder
34HS59-5004S	D	14	37	4	£56.99	Backorder
34HS59-6004S	Keyway	14	37	4	£46.89	In stock
34HS61-6004S1	Keyway	14	32	4	£57.97	In stock

Keyway Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm(1204oz.in) 5A 86x86x114mm

This is a dual-shaft motor with a 15mm long rear shaft and holding torque of 8.5Nm(1204oz.in), and t... Read More

1 reviews • Write a review

from

£25.76

5 + £24.89

10 + £24.06

50 + £23.29

100 + £22.57

Click country for live stock

Dispatches from

China

United States (+£9.19)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

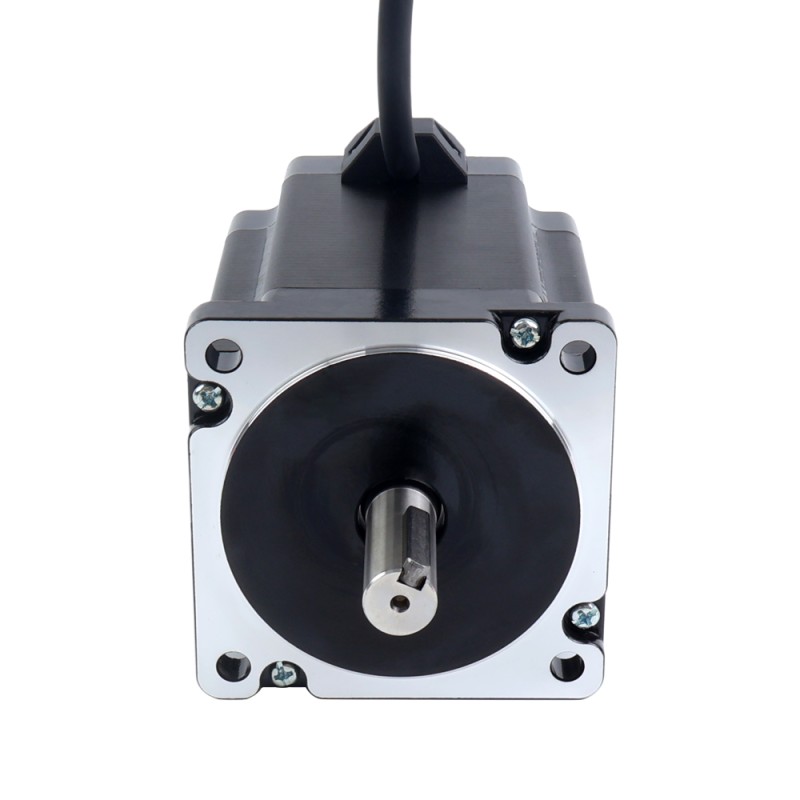

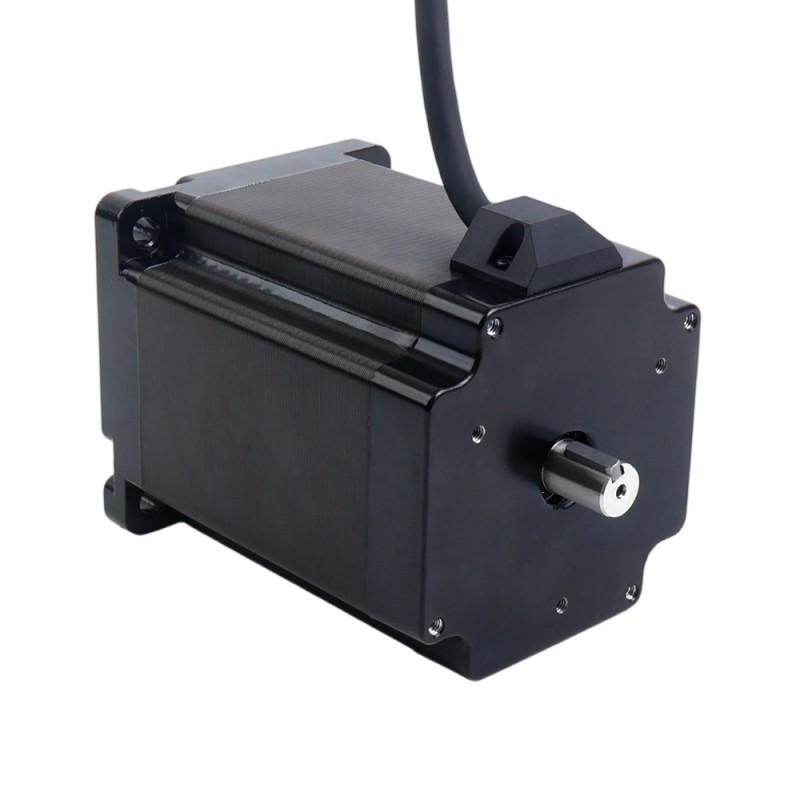

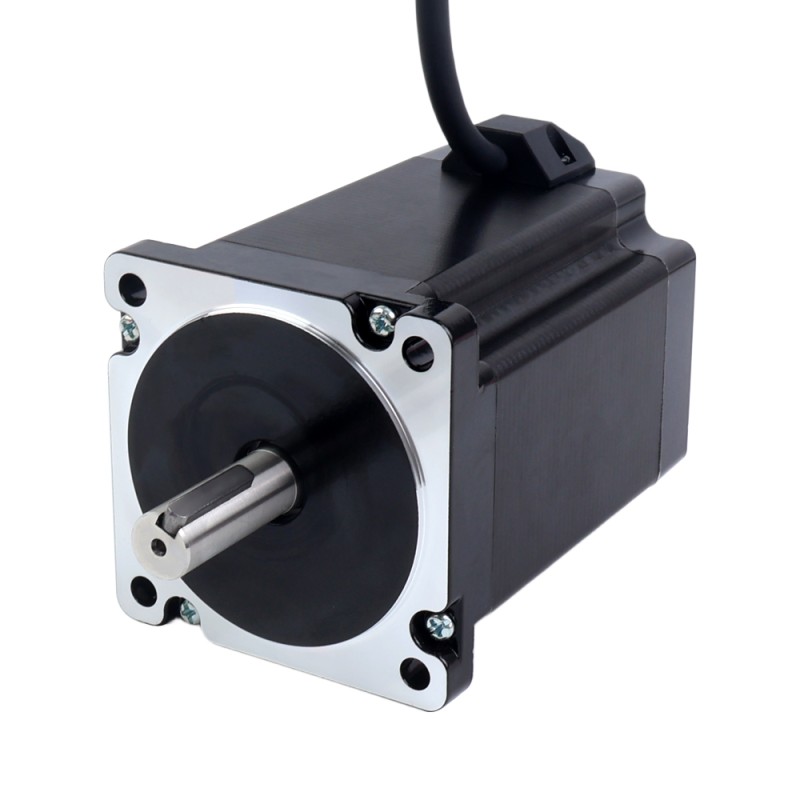

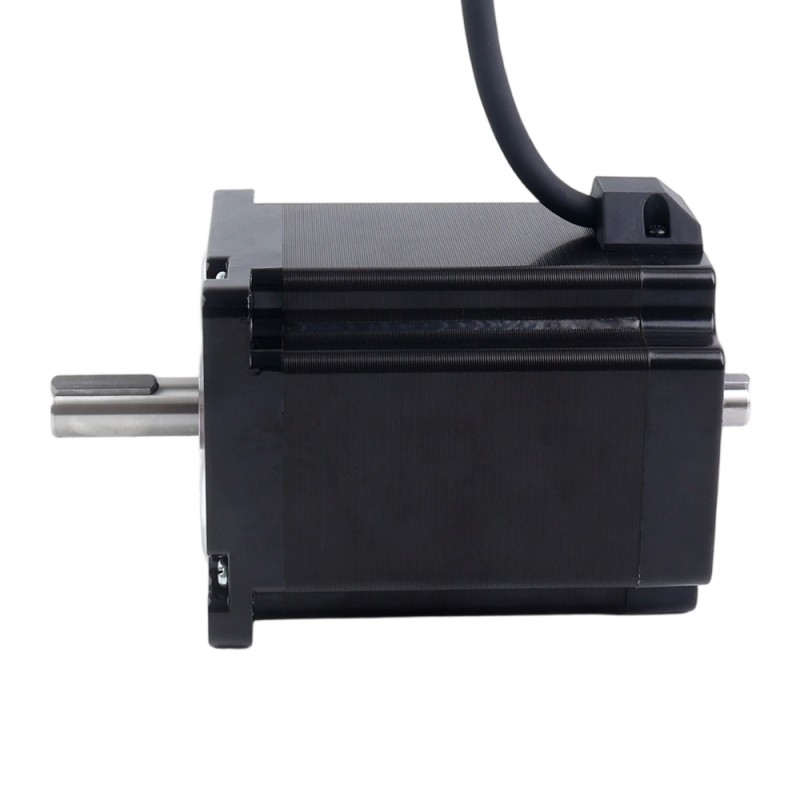

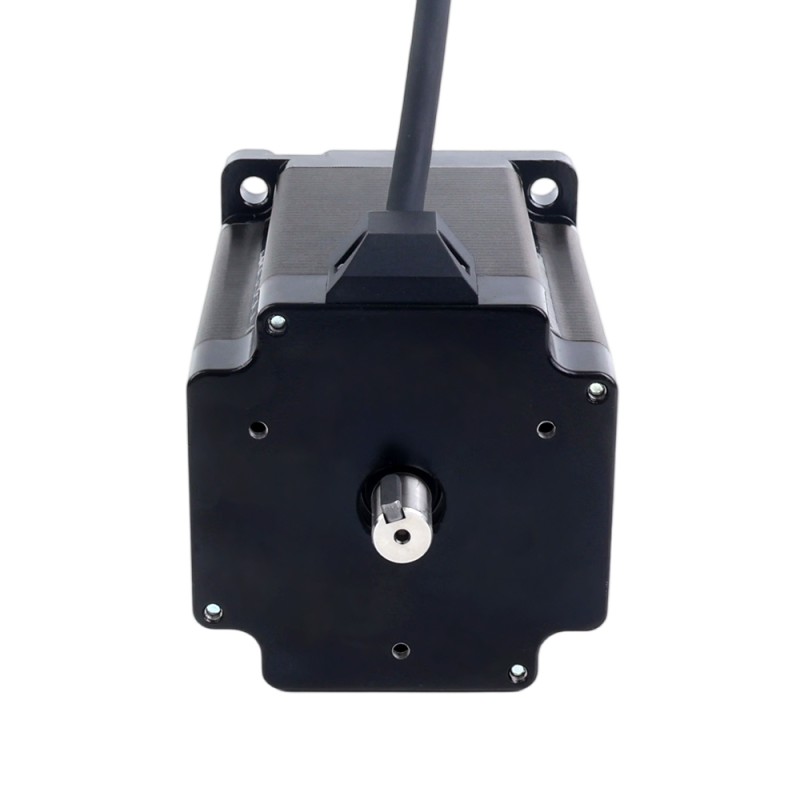

This is a dual-shaft motor with a 15mm long rear shaft and holding torque of 8.5Nm(1204oz.in), and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

Manufacturer Part Number: 34HS46-5004D1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 8.5Nm(1204oz.in)
Rated Current/phase: 5A
Phase Resistance: 1ohms
Inductance: 8.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 114mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-Way Length: 25mm
Rear Shaft Length: 15mm
Rear Shaft Diameter: 12mm
Number of Leads: 4
Cable Length: 500mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	850
Holding Torque(oz.in)	1204
Inductance(mH)	11
Phase Resistance(ohms)	1
Rated Current(A)	5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	114
Frame Size(mm)	Nema 34 (86 x 86)
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	4000
