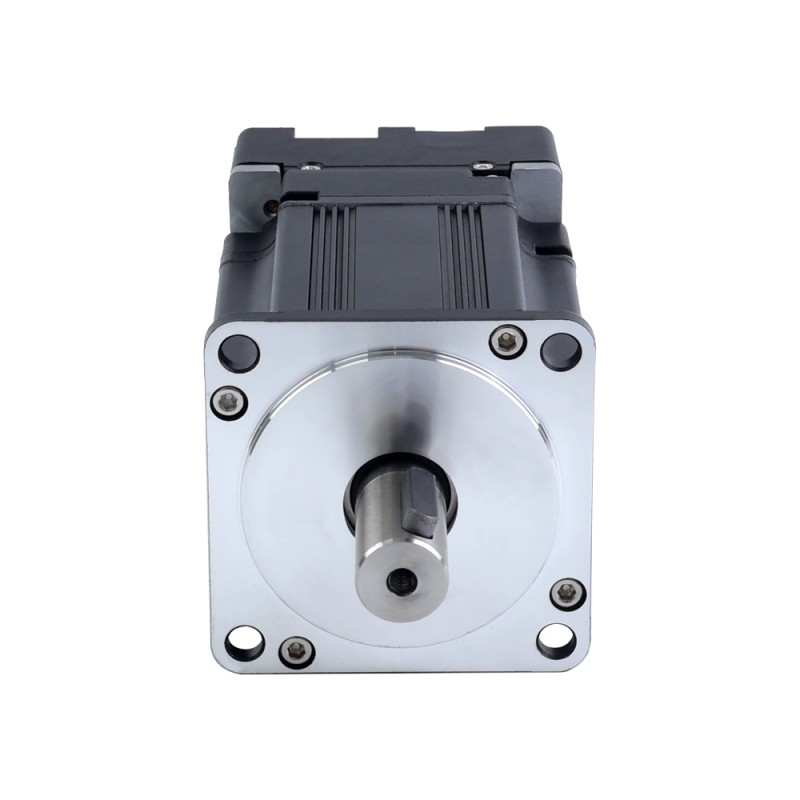

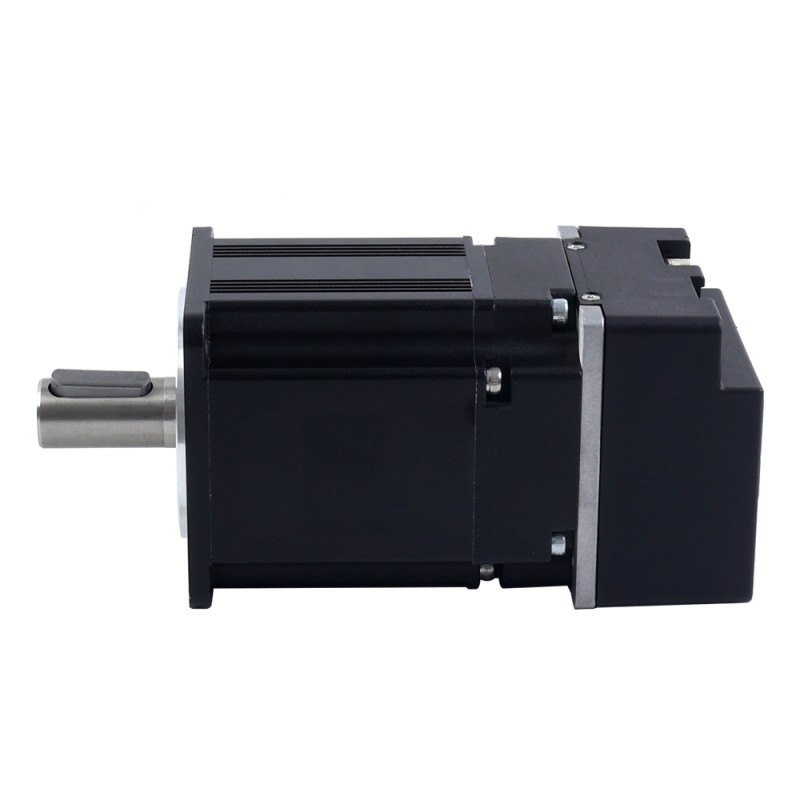

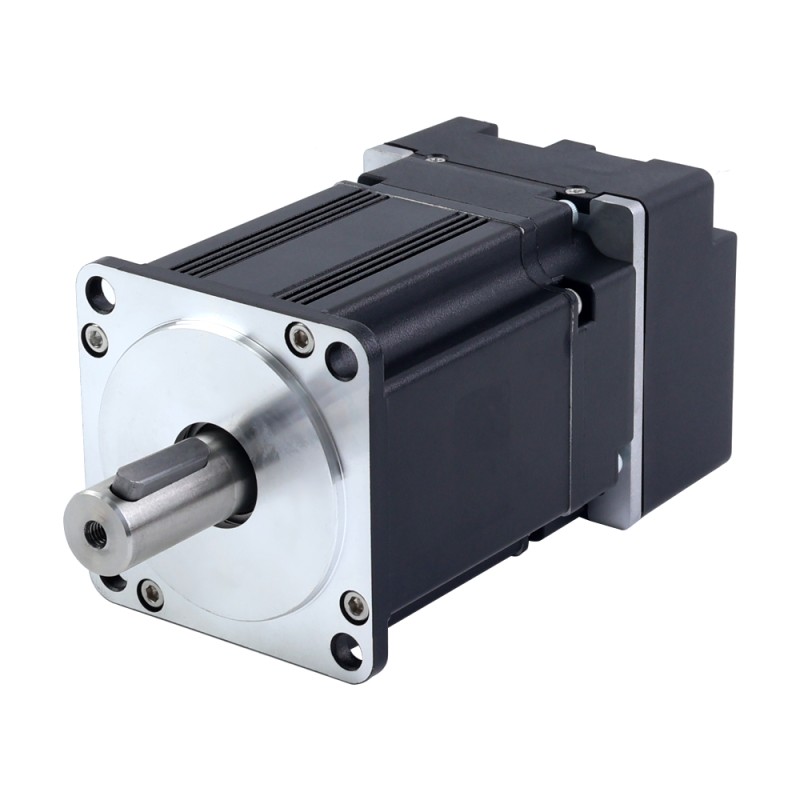

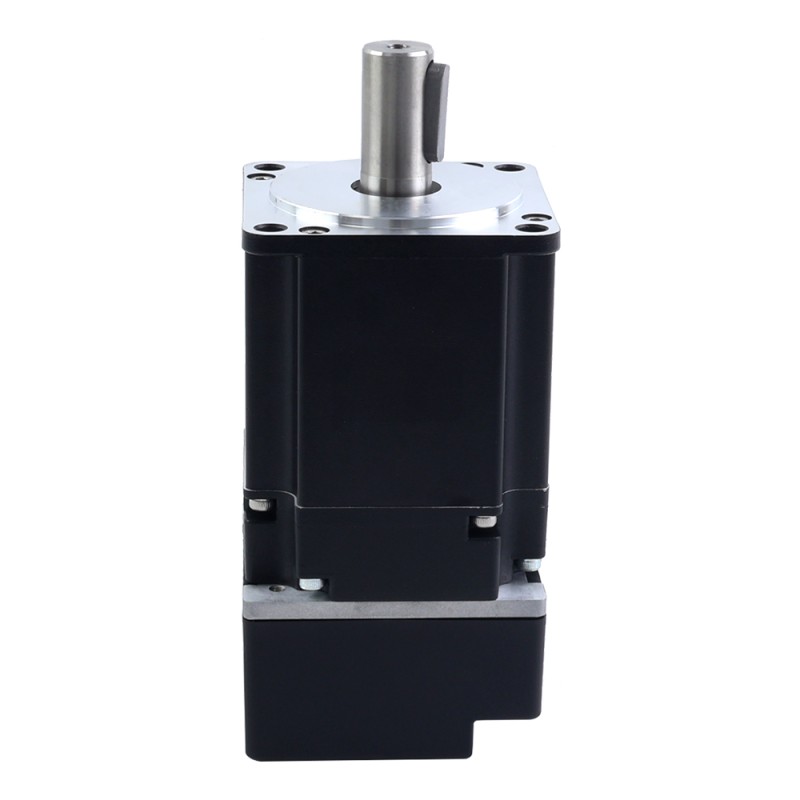

IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder

IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder - IDS-EC60AP-48V400W | StepperOnline UK
IDS-EC60AP-48V400W
Shaft Diameter(mm)14
Shaft Length(mm)30
Encoder Resolution17bit
Body Length(mm)110
Question

Downloads

DC_Servo_Debugging_Software.zipZIP · 6.75MBIDS_Motor_ECAT_V1.3.xmlXML · 214.34KBIDS-EC60AP-48V400W.STEPSTEP · 6.25MBLog in to downloadIDS_Servo_Driver_manual.pdfPDF · 1.06MBIDS_Motor-EtherCAT_driver_manual.pdfPDF · 10.75MBIDS-EC60AP-48V400W_Full_Datasheet.pdfPDF · 146.02KB
Same series
ModelShaft Diameter(mm)Shaft Length(mm)Encoder ResolutionBody Length(mm)PriceStock
IDS-C60AP-48V400W143017bit108.9£129.24In stock
IDS-C60BP-48V400W143017bit145£155.08In stock
IDS-EC60AP-48V400W143017bit110£157.95In stock
iSV57T-090-SALE83316bit108£48.25In stock
iSV57T-090S82116bit108£60.95In stock
iSV57T-130S82116bit128£64.64In stock
iSV57T-180-SALE83316bit148£62.33In stock
iSV57T-180S82116bit148£69.26In stock
IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder
This IDS series 48VDC 400W servo motor features a built-in servo drive and supports EtherCAT/RS485 c... Read More
0 reviews • Write a review
from
£157.95
5 + £152.36
10 + £147.15
50 + £142.29
100 + £137.74

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This IDS series 48VDC 400W servo motor features a built-in servo drive and supports EtherCAT/RS485 communication. Its compact, integrated design saves valuable mounting space and eliminates the need for separate encoder connections and motor wiring, significantly reducing setup time. By minimizing electrical interference, it ensures smoother and more reliable operation.

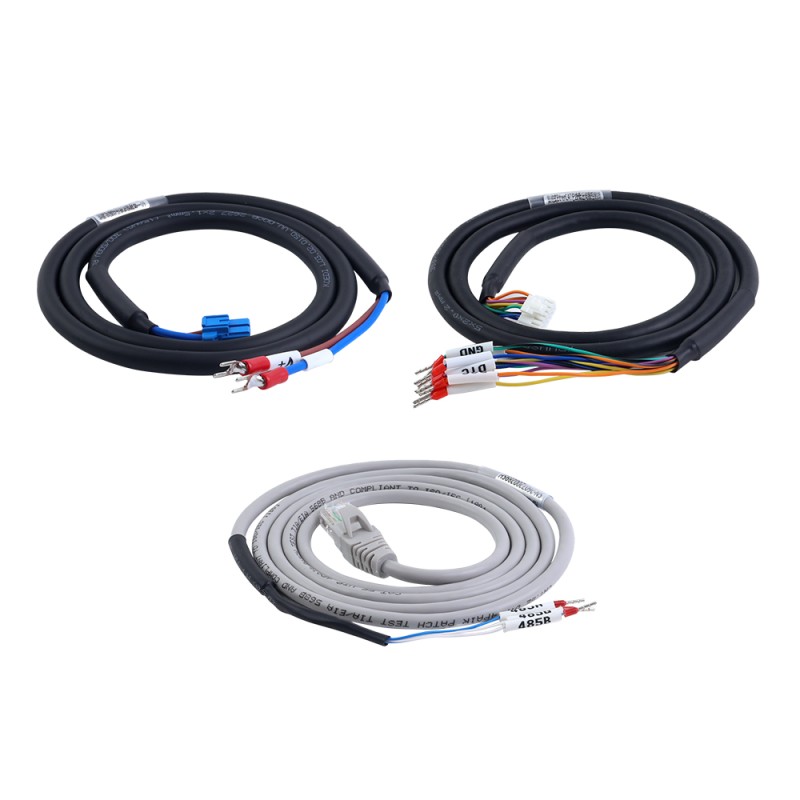

Items in Kit

  • IDS-EC60AP-48V400W: IDS Series 400W EtherCAT/RS485 Integrated DC Servo Motor
  • IDS400-1.0M-PW: 1.0m power cable
  • IDS400E-1.0M-IO: 1.0m control signal cable
  • IDS400E-1.5M-RJ45: 1.5m communication cable

Servo Motor Specification

  • Part Number: IDS-EC60AP-48V400W
  • Pairs of Poles: 5
  • Rated Power: 400W
  • Rated Torque: 1.27Nm(179.85oz.in)
  • Rated Speed: 3000rpm ± 10%
  • Peak Speed: 3600rpm ± 10%
  • Back EMF Constant: 8.3V/K rpm
  • Rated Voltage: 48VDC
  • Rated Current: 10A
  • Resistance: 0.31Ohms
  • Inductance: 0.62mH
  • Interia: 0.52kg·cm²
  • Torque Coefficient: 0.13Nm/A
  • Electrical Time Constant: 1.58ms
  • Protection Level: IP54(motor part only, driver excluded)
  • Insulation Class: Class F
  • Body Length: 110mm
  • Shaft Length: 30mm
  • Shaft Diameter: 14mm
Product Type
Product Type Integrated Motor
Electrical Specification
Control Modes EtherCAT/RS485
Encoder Resolution 17bit
Encoder Type Magnetic Incremental
Input Voltage(V) 48VDC
Peak Speed(rpm) 3600
Rated Power(W) 400
Rated Speed(rpm) 3000
Rated Torque(Nm) 1.27
With Brake No
Physical Specification
Aviation Plug or Not No
Body Length(mm) 110
Frame Size(mm) 60 x 60
Integrated or Not Yes
IP Rating 54
Shaft Diameter(mm) 14
Shaft Length(mm) 30
