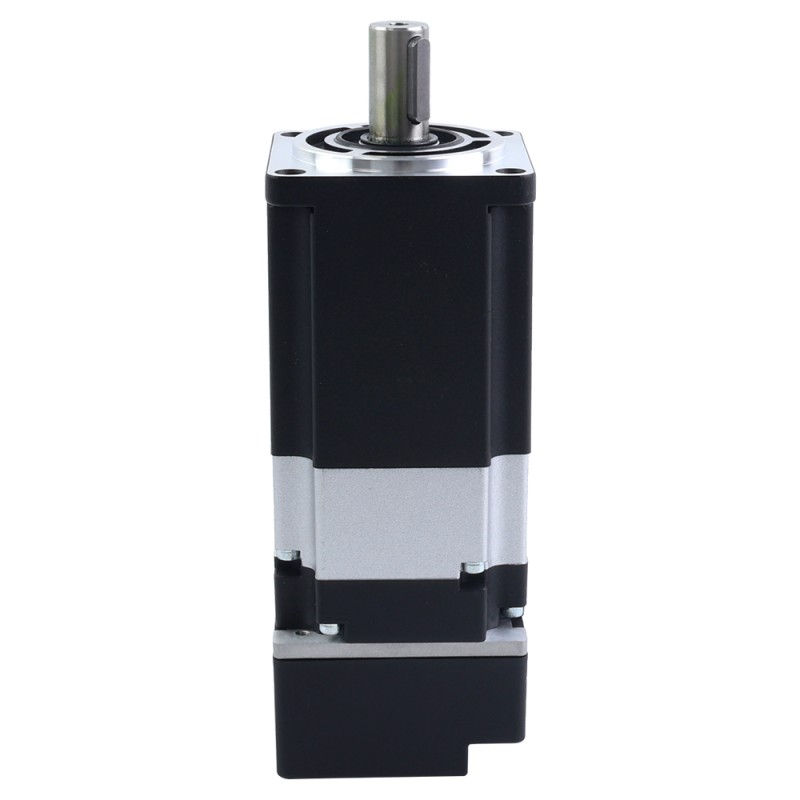

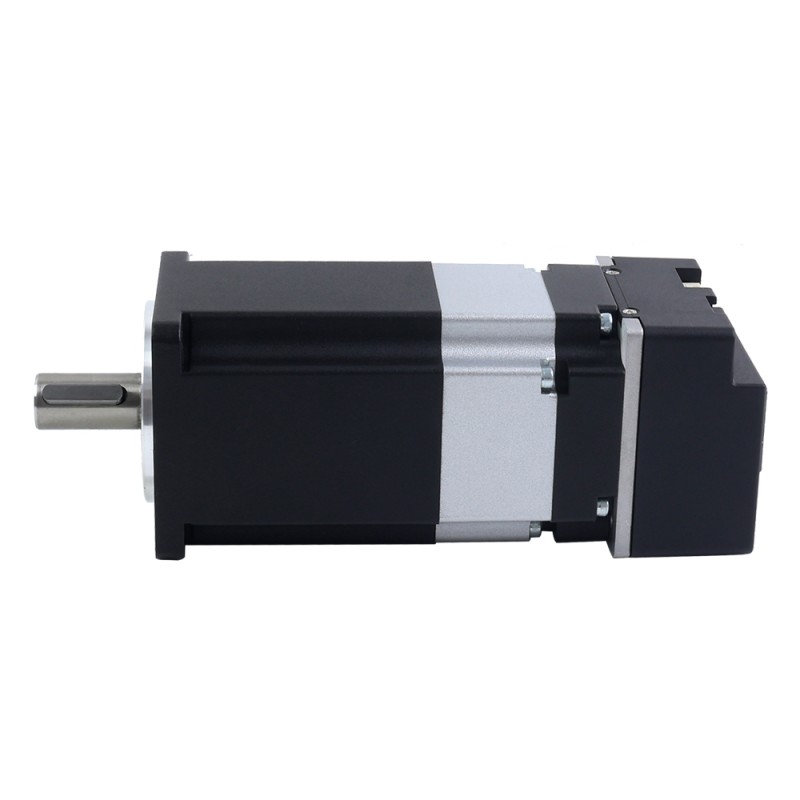

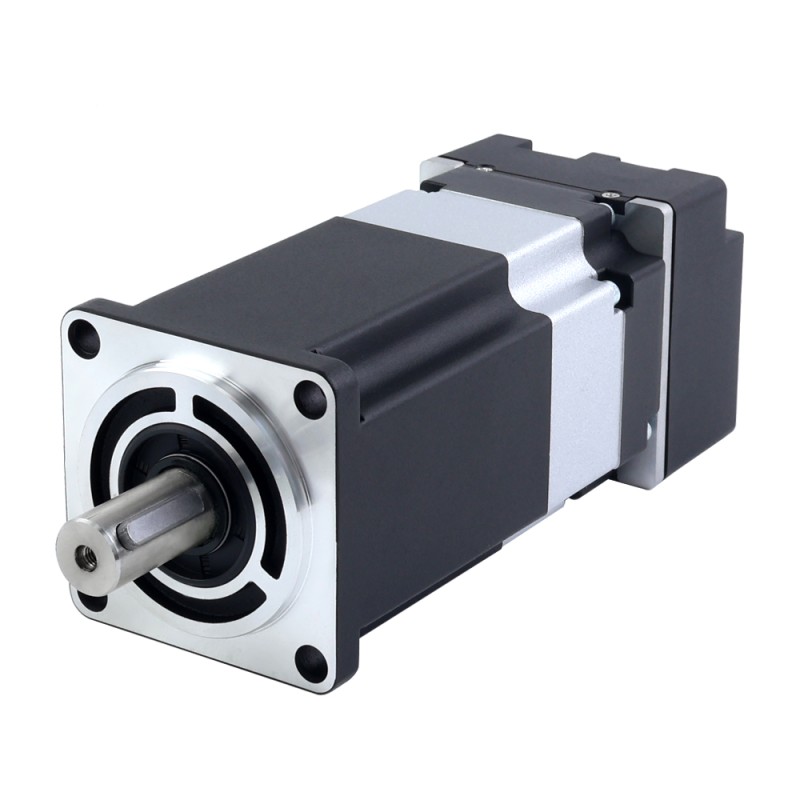

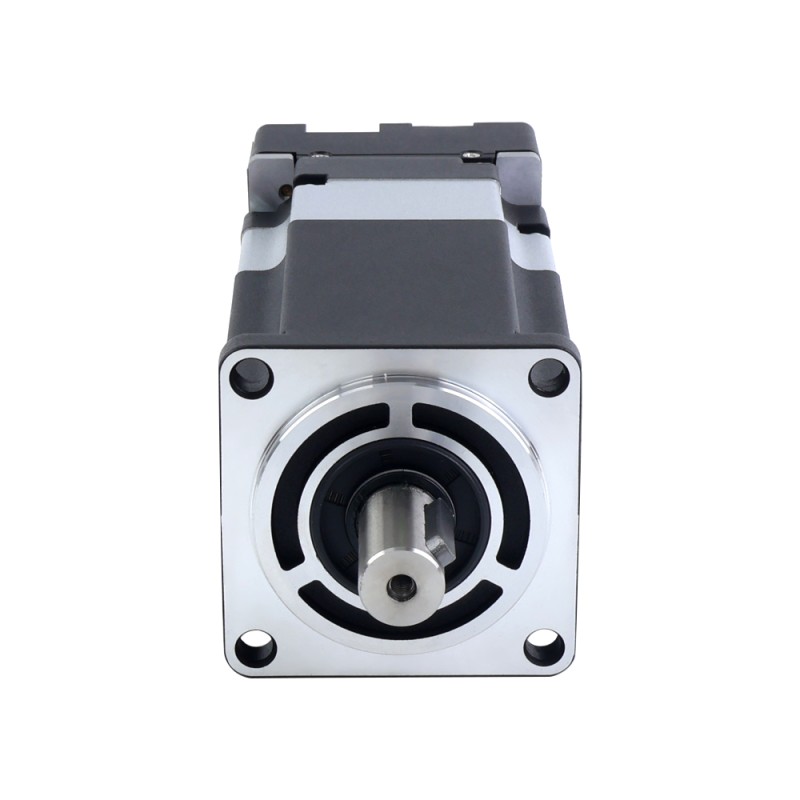

IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder

IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder - IDS-C60BP-48V400W | StepperOnline UK
IDS-C60BP-48V400W
Shaft Diameter(mm)14
Shaft Length(mm)30
Encoder Resolution17bit
Body Length(mm)145
Question

Downloads

IDS_MotorV2.3.edsEDS · 118.26KBDC_Servo_Debugging_Software.zipZIP · 6.75MBIDS_Motor_CanOpen_driver_manual.pdfPDF · 765.71KBIDS-C60BP-48V400W.STEPSTEP · 7.31MBLog in to downloadIDS-C60BP-48V400W_Full_Datasheet.pdfPDF · 148.21KBIDS_Servo_Driver_manual.pdfPDF · 1.06MB
Same series
ModelShaft Diameter(mm)Shaft Length(mm)Encoder ResolutionBody Length(mm)PriceStock
IDS-C60AP-48V400W143017bit108.9£129.24In stock
IDS-C60BP-48V400W143017bit145£155.08In stock
IDS-EC60AP-48V400W143017bit110£157.95In stock
iSV57T-090-SALE83316bit108£48.25In stock
iSV57T-090S82116bit108£60.95In stock
iSV57T-130S82116bit128£64.64In stock
iSV57T-180-SALE83316bit148£62.33In stock
iSV57T-180S82116bit148£69.26In stock
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) with Brake 17-Bit Absolute Encoder
This IDS series 48VDC 400W servo motor features a built-in servo driver, a 24VDC 7.5W brake and supp... Read More
0 reviews • Write a review
from
£155.08
5 + £149.59
10 + £144.48
50 + £139.70
100 + £135.23

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This IDS series 48VDC 400W servo motor features a built-in servo driver, a 24VDC 7.5W brake and supports CANopen/RS485/Pulse communication. Its compact, integrated design saves valuable mounting space and eliminates the need for separate encoder connections and motor wiring, significantly reducing setup time. By minimizing electrical interference, it ensures smoother and more reliable operation.

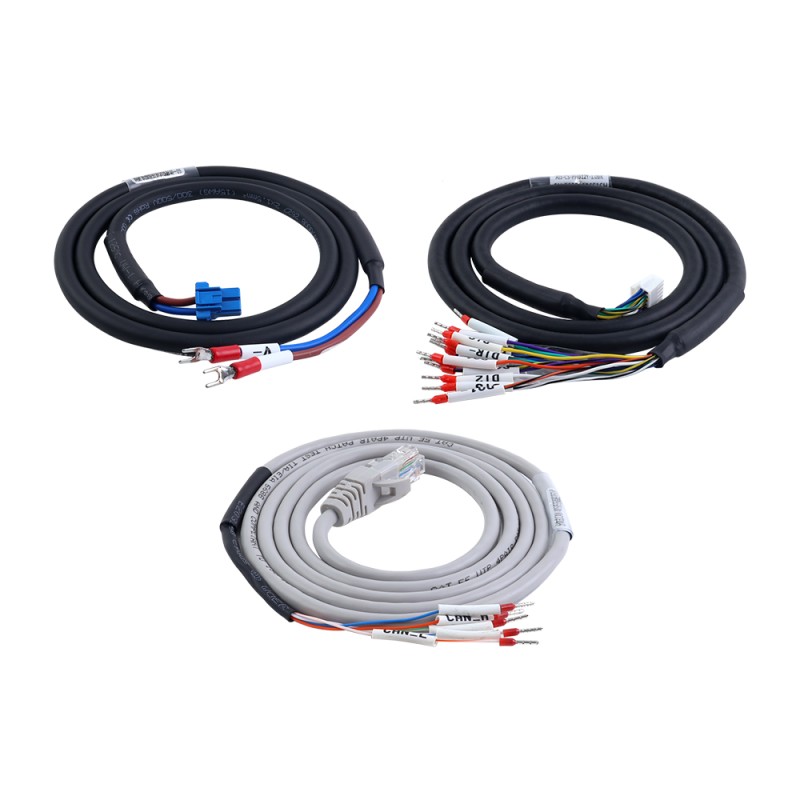

Items in Kit

  • IDS-C60BP-48V400W: IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor with Brake
  • IDS400-1.0M-PW: 1.0m power cable
  • IDS400C-1.0M-IO: 1.0m control signal cable
  • IDS400C-1.5M-RJ45: 1.5m communication cable

Key Features

  • Supports Position, Velocity, and Torque Control Modes
  • 30 - 60VDC Input Voltage, with 48VDC as the Typical Input
  • Supports CANopen, Modbus RS485, and Pulse Control
  • Built-in Multi-Position and Multi-Speed Control, with 13 Homing Modes
  • Supports Software-Based Commissioning and Customizable I/O Functions, including Fault Reset, Emergency Stop, Positioning Complete, and more
  • Powered by a Next-Generation 32-bit ARM Platform, delivering excellent cost performance, smooth operation, and superior noise and vibration performance
  • Comprehensive Protection Against Overvoltage, Undervoltage, Overspeed, Overcurrent, Overload, Position Errors, and Stall Conditions, with 2 x Overload Capacity

Servo Motor Specification

  • Part Number: IDS-C60BP-48V400W
  • Pairs of Poles: 5
  • Rated Power: 400W
  • Rated Torque: 1.27Nm(179.85oz.in)
  • Rated Speed: 3000rpm ± 10%
  • Peak Speed: 3600rpm ± 10%
  • Back EMF Constant: 8.3V/K rpm
  • Rated Voltage: 48VDC
  • Rated Current: 10A
  • Resistance: 0.31Ohms
  • Inductance: 0.49mH
  • Interia: 0.52kg·cm²
  • Torque Coefficient: 0.13Nm/A
  • Electrical Time Constant: 1.58ms
  • Protection Level: IP54(motor part only, driver excluded)
  • Insulation Class: Class F
  • Body Length: 145mm
  • Shaft Length: 30mm
  • Shaft Diameter: 14mm
  • Brake Rated Voltage: 24VDC
  • Brake Rated Power: 7.5W
  • Brake Static Torque: 1.3Nm
  • Brake Max. Allowable Motor Speed: 5000rpm
Product Type
Product Type Integrated Motor
Electrical Specification
Control Modes CANopen/RS485/Pulse
Encoder Resolution 17bit
Encoder Type Magnetic Incremental
Input Voltage(V) 48VDC
Peak Speed(rpm) 3600
Rated Power(W) 400
Rated Speed(rpm) 3000
Rated Torque(Nm) 1.27
With Brake Yes
Physical Specification
Body Length(mm) 145
Frame Size(mm) 60 x 60
Integrated or Not Yes
IP Rating 54
Shaft Diameter(mm) 14
Shaft Length(mm) 30

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview
Nema 24 Bracket for Closed Loop Stepper Motor Alloy Steel Bracket
Nema 24 Bracket for Closed Loop Stepper Motor Alloy Steel Bracket
Manufacturer P/N: ST-M13 It's a new nema 24 size stepper motor bracket, it suit for standard Nema 24 open loop and closed loop stepper motor. Please..
from
£1.30
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 23 Bracket for High Precision Planetary Geared Motor Alloy Steel Bracket
Nema 23 Bracket for High Precision Planetary Geared Motor Alloy Steel Bracket
Manufacturer P/N: ST-M9 The new designed NEMA 23 High Precision Planetary Geared  Motor 57mm Alloy Steel Mounting Bracket, this is the strongest..
from
£1.45
Add to Cart
Add to Wish List Compare this Product
Quickview

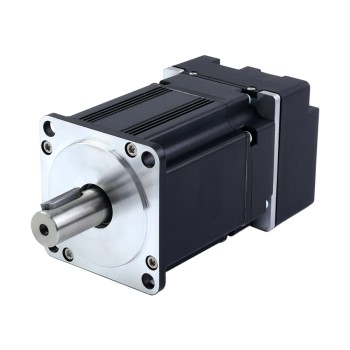

IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder
IDS Series 400W CANopen/RS485/Pulse Integrated DC Servo Motor 1.27Nm(179.85oz.in) 17-Bit Absolute Encoder
This IDS series 48VDC 400W servo motor features a built-in servo drive and supports CANopen/RS485/Pulse communication. Its compact, integrated design ..
from
£129.24
Add to Cart
Add to Wish List Compare this Product
Quickview

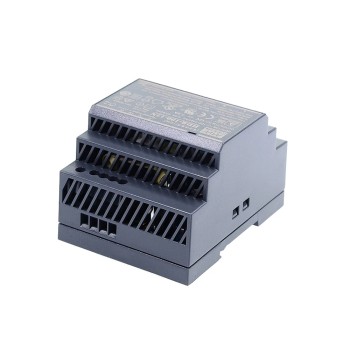

HDR-100-12N MEANWELL 90W 12VDC 7.5A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
Pre-order
HDR-100-12N MEANWELL 90W 12VDC 7.5A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
This is a 90W 12VDC 7.5A power supply. MEAN WELL HDR-100 is one economical ultra slim 100W DIN rail power supply series, adapt to be instaled on TS-3..
from
£21.97
Add to Cart
Add to Wish List Compare this Product
Quickview

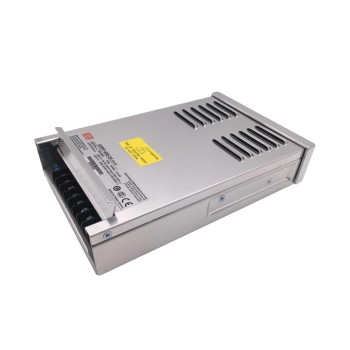

ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply
Pre-order
ERPF-400-24 MEANWELL 400.8W 16.7A 115/232VAC Single Output Switching Power Supply
Features Brand MEANWELL 24V DC 16.7A output AC input voltage range: 180 ~ 264VAC Rated power: 400.8W Universal AC input / Full range(Withstand ..
from
£33.27
Add to Cart
Add to Wish List Compare this Product
Quickview
14mm - 14mm Flexible Double Disc Coupling 32x41mm CNC Stepper Motor Shaft Coupler
14mm - 14mm Flexible Double Disc Coupling 32x41mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MP3241-14-14 Type: Double Disc Rated Torque: 2.8Nm(396.42oz.in) Max. Torque: 5.6Nm(792.84oz.in) ..
from
£6.37
Add to Cart
Add to Wish List Compare this Product
Quickview
HTG Series 60mm 10:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
HTG Series 60mm 10:1 Helical Planetary Gearbox Backlash 5arcmin for Servo Motors IP65
The HTG series helical planetary gearbox features a 10:1 gear ratio with 5arcmin backlash. It is designed for servo motors with a size of 60mm and a s..
from
£50.68
Add to Cart
Add to Wish List Compare this Product
Quickview

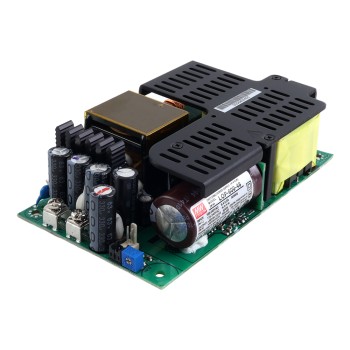

LOP-600-48 MEANWELL 600W 48VDC 12.5A 80-264VAC/113-370VDC Single Output With Remote Sense
