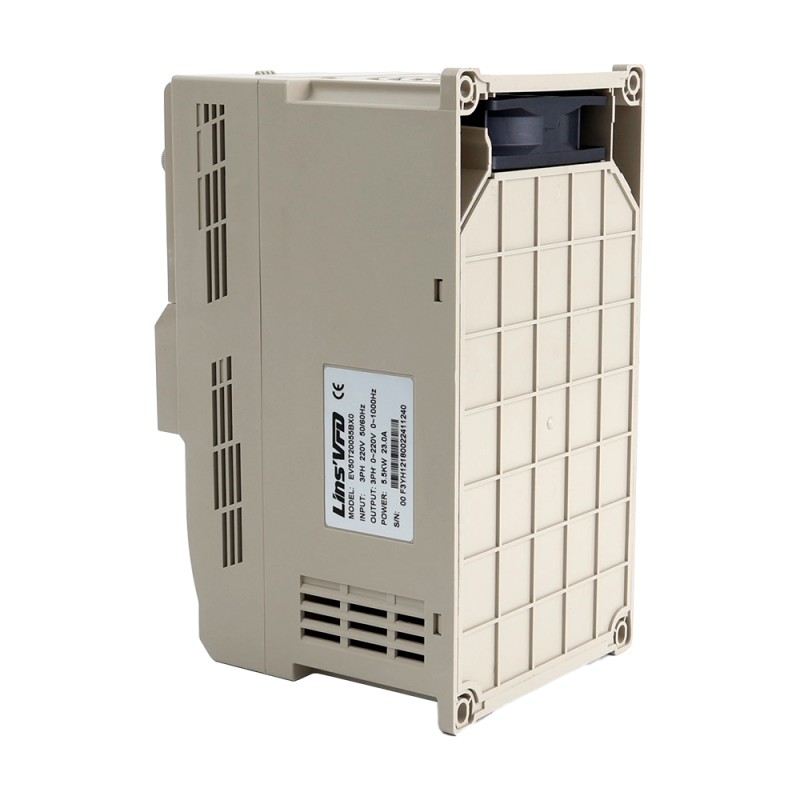

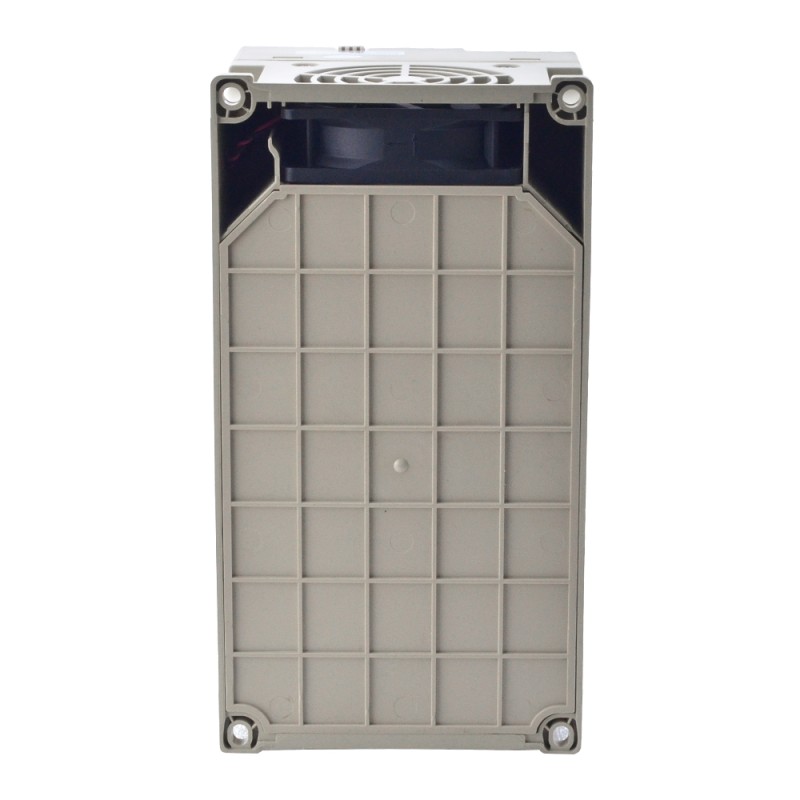

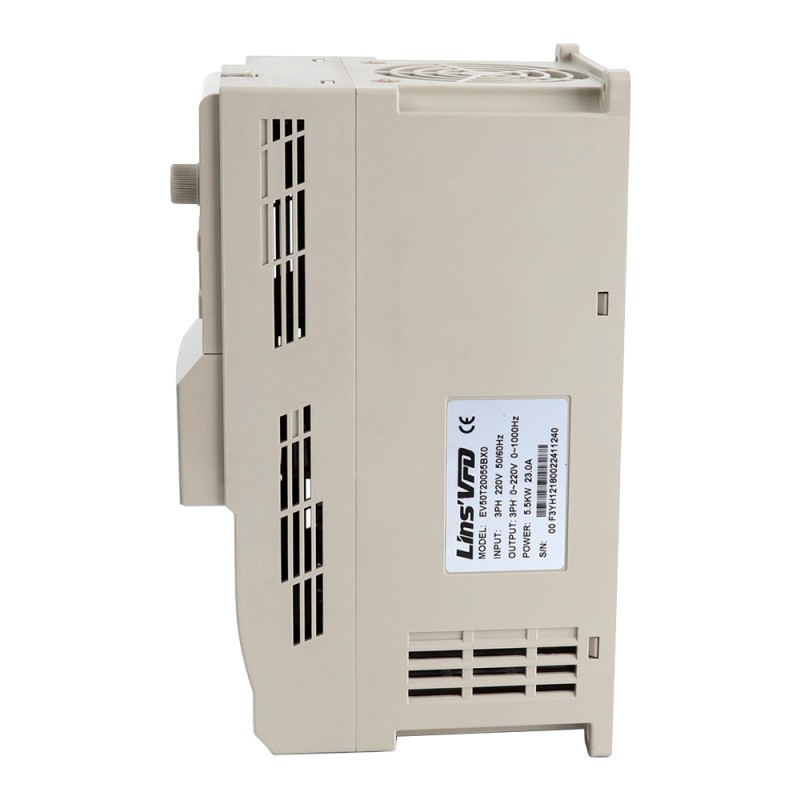

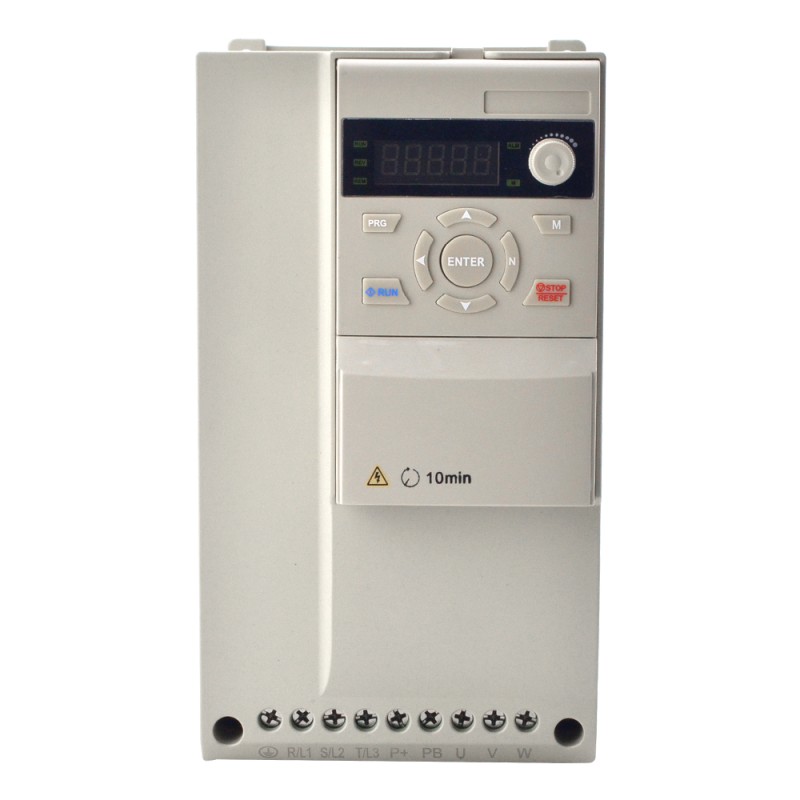

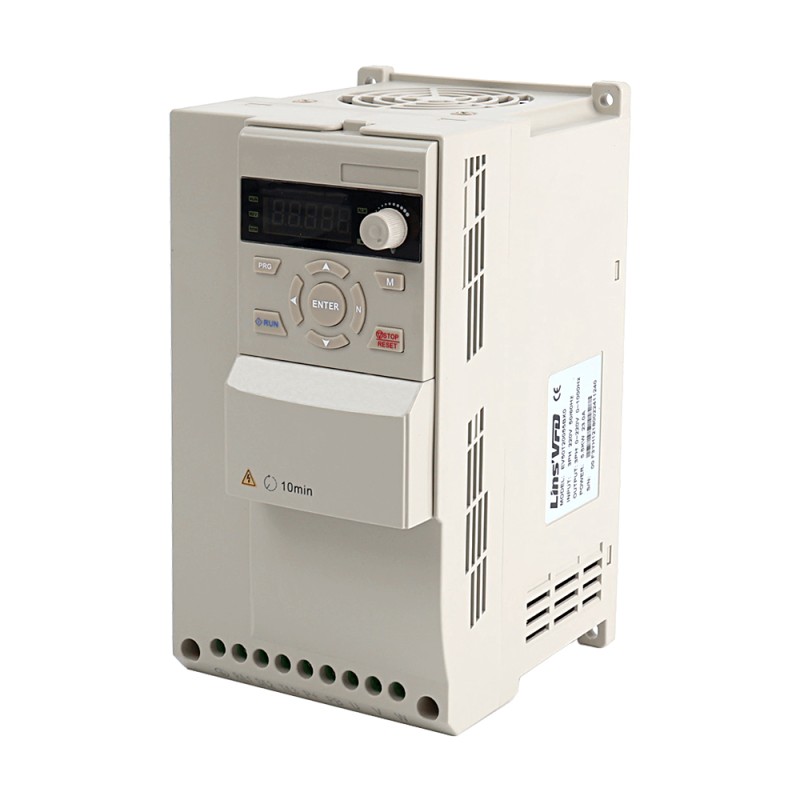

EV50 Series VFD 7.5HP 5.5KW 23A Three Phase 220V Variable Frequency Drive
This VFD with power 7.5HP(5.5KW) and three phase 220V input voltage. The EV50 series is General Va... Read More
from
£90.84
5 + £88.53
10 + £87.41
50 + £86.33
100 + £85.27
Click country for live stock
This product has a minimum quantity of 5
Easy Returns
Return within 30 days of delivery. Contact us first and we'll take it from there.
This VFD with power 7.5HP(5.5KW) and three phase 220V input voltage. The EV50 series is General Variable Frequency Drive(VFD), they are widely used in application of: Textile machines, Packaging machines, Engraving machines, Printing machines, Food machinery, Woodworking machinery, Pump fans, Ceramic machinery, Solar pumps and others.
Key Specification
- Rated Input Voltage: 3-Phase 220V
- Allowed Input Voltage: 180~260VAC
- Input Frequency: 50/60Hz(+/-5%)
- Input Current: 24A
- Power: 7.5HP(5.5KW)
- Output Current: 23A
- Output Voltage: 0~Rated Input Voltage
- Output Frequency: 0~1000Hz
- Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s
| Operating Environment | |
| Humidity | 5%~95%RH, No condensation |
| Store Temperature | -40℃ ~ +70℃ |
| Variable Frequency Drive Specification | |
| Acceleration/Deceleration Curve | Line / S-curve |
| Allowed Input Voltage | 180~260VAC |
| Altitude | Derating use abouve 1000M, derating 10% per 1000M |
| Command Source | Keypad, Terminal, Communication |
| Control Modes | V/F, SVC |
| Environment Temperature | -10℃ ~+40℃ (environment temperature around 40℃~50℃, please derating use) |
| External Keypad | Yes |
| Frequency Accuracy | Digital (Max. Frequency+/-0.01%) / Anolog (Max. Frequency+/-1%) |
| Frequency Resolution | Digital (0.1Hz) / Anolog (Max. Frequency+/-1%) |
| Input Current | 24A(3PH) |
| Input Frequency | 50 - 60Hz |
| Input Voltage | 3PH 220VAC |
| LED Display | Can display: Output frequency, Output voltage, Output current, Bus voltage, Display value 1, Display value 2, Error, Alarm |
| Modulation Mode | SVPWM |
| Motor Type | Asynchronous Motor, Synchronour Motor, Single Phase Motor |
| None-stop When Instantaneous Power Off | None-stop when instantaneous power off, automatic frequency drop |
| Output Capacity | 150% Rated Current 60s, 180% Rated Current 2s |
| Output Current | 23A |
| Output Frequency | 1000HZ |
| Output Power | 7.5HP / 5.5KW |
| Output Voltage | 0 - Rated Input Voltage |
| PID | Support main setting + PID |
| Protection Function | Over-current protection, Over-voltage protection, Under-voltage protection, Overheating protection, Over-load protection, Phase lose protection, Earth leakage, etc |
| Rapid Current Limit | Limit current rapidly within the current protection value, to ensure the safety of the equipment |
| Set Value Source | Digital, Analog, Multi-speed, Communication |
| Speed Range | 1 : 100(SVC) |
| Start Torque | 1Hz / 150% |
| Store Environment | Indoor, away from direct sunlight, no dust, no corrosive gas, no inflammable gas, no oil mist, no vapour, no drip and no salinity, etc |
| Vibration | <5.9M/S (0.6g) |
