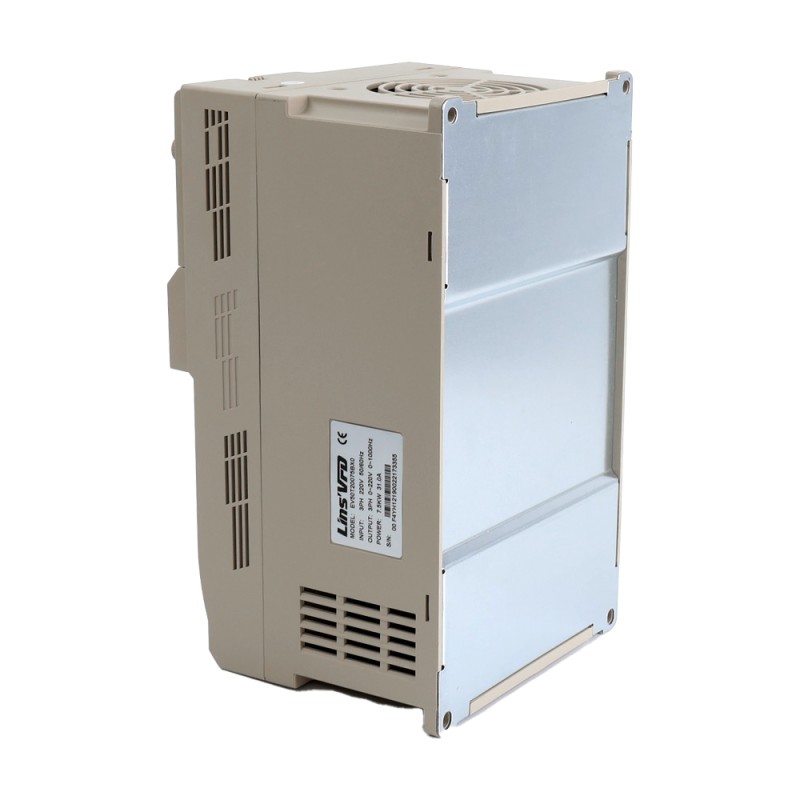

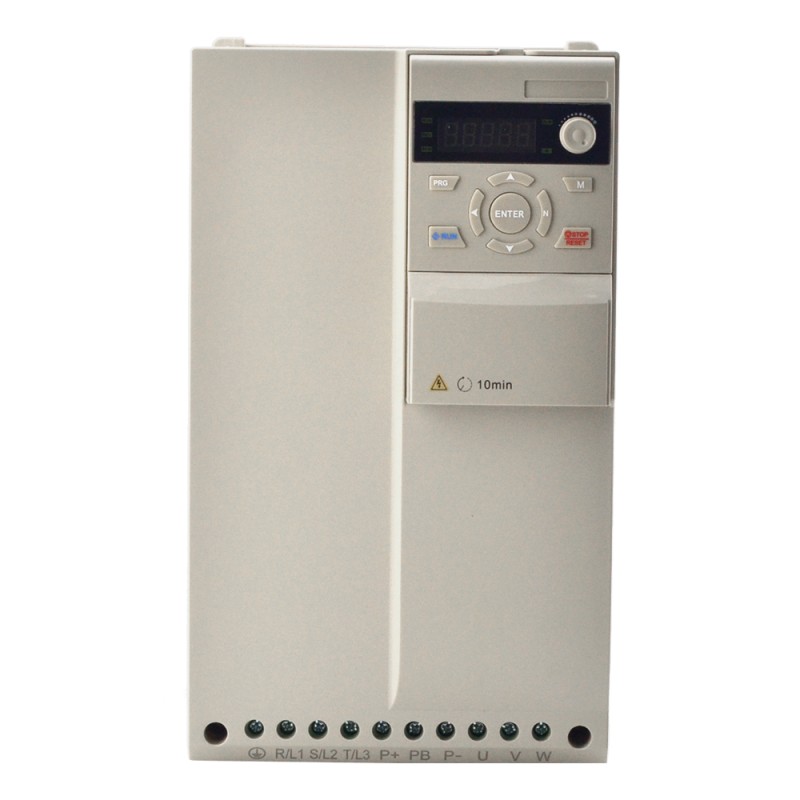

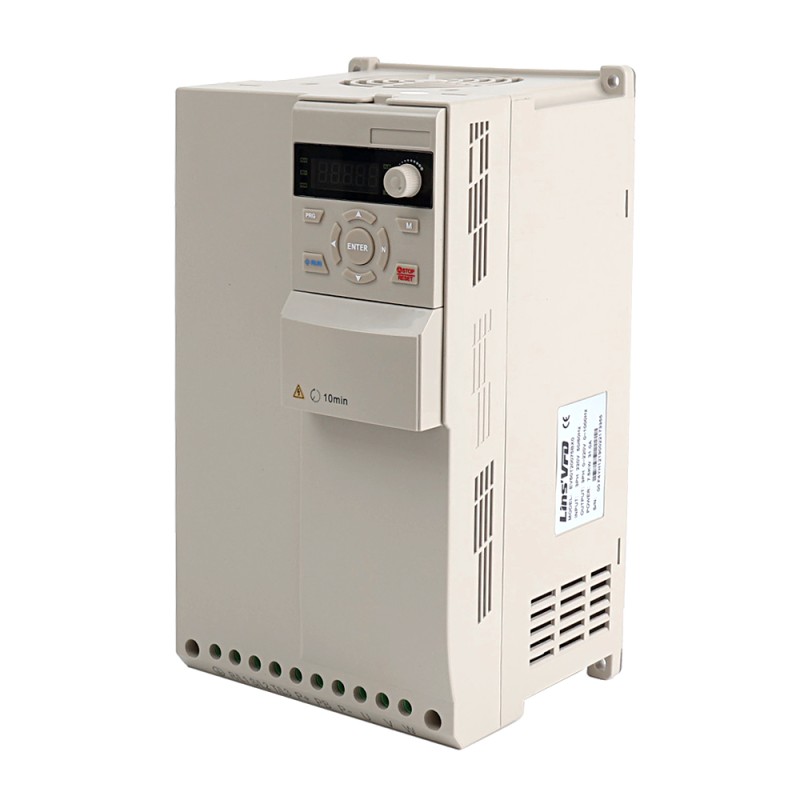

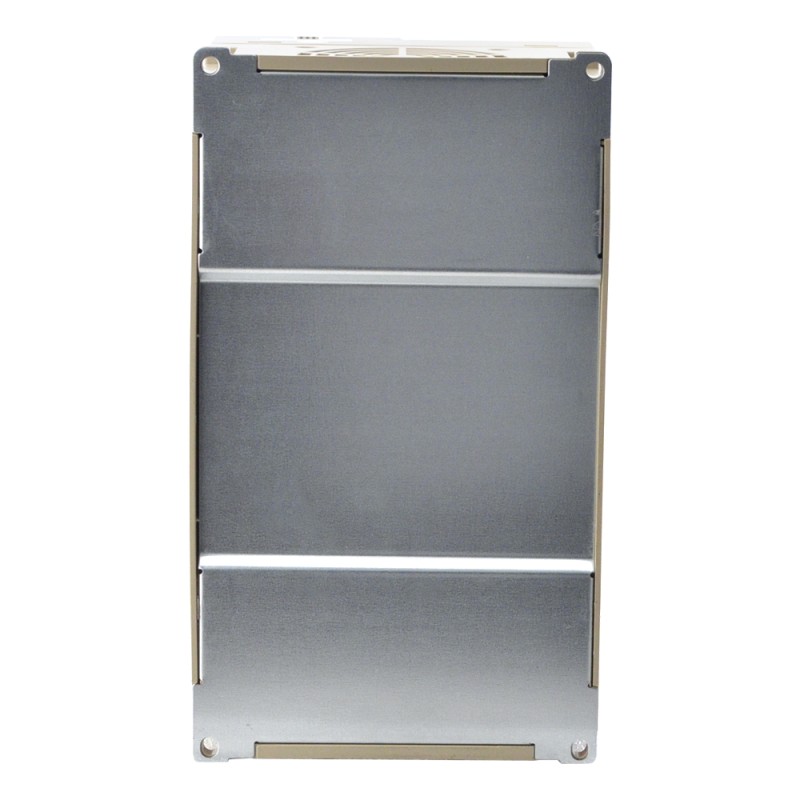

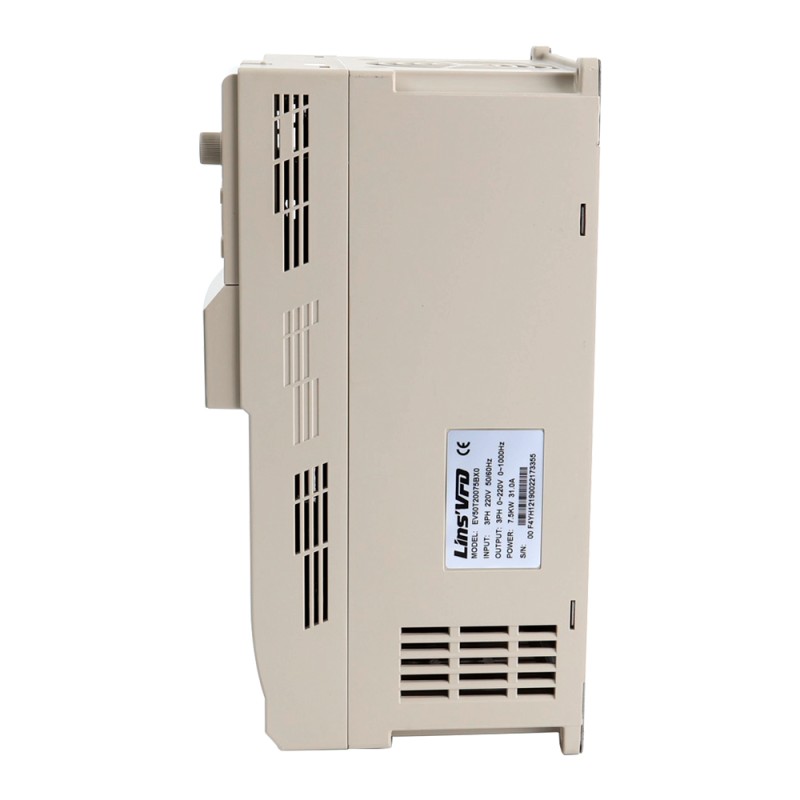

Name: EV50 Series VFD 10HP 7.5KW 31A Three Phase 220V Variable Frequency Drive
Brand: LinsVFD
SKU: EV50T20075BX0
Price: 144.44 GBP
Availability: InStock

EV50 Series VFD 10HP 7.5KW 31A Three Phase 220V Variable Frequency Drive - EV50T20075BX0 | StepperOnline UK

EV50T20075BX0

Input Voltage3PH 220VAC

Output Current31A

Input Current37A(3PH)

Allowed Input Voltage180~260VAC

Question

Downloads

EV50_Series_Inverter_Easy_User_Manual.pdfPDF · 8.49MB EV50_Series_Inverter_Full_User_Manual.pdfPDF · 4.38MB

Same series

Model	Input Voltage	Output Current	Input Current	Allowed Input Voltage	Price	Stock
EV50T20075BX0	3PH 220VAC	31A	37A(3PH)	180~260VAC	£144.44	In stock
EV50T30075BX0	3PH 380VAC	19.0A	21A(3PH)	320 - 460VAC	£106.12	Backorder
EV51T30075BX0	3PH 380VAC	18.0A	21A(3PH)	320 - 460VAC	£106.12	Backorder

EV50 Series VFD 10HP 7.5KW 31A Three Phase 220V Variable Frequency Drive

This VFD with power 10HP(7.5KW) and three phase 220V input voltage. The EV50 series is General Var... Read More

0 reviews • Write a review

from

£144.44

5 + £140.77

10 + £138.99

50 + £137.27

100 + £135.59

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This VFD with power 10HP(7.5KW) and three phase 220V input voltage. The EV50 series is General Variable Frequency Drive(VFD), they are widely used in application of: Textile machines, Packaging machines, Engraving machines, Printing machines, Food machinery, Woodworking machinery, Pump fans, Ceramic machinery, Solar pumps and others.

Key Specification

Rated Input Voltage: 3-Phase 220V
Allowed Input Voltage: 180~260VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 37A
Power: 10HP(7.5KW)
Output Current: 31A
Output Voltage: 0~Rated Input Voltage
Output Frequency: 0~1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s

Operating Environment
Humidity	5%~95%RH, No condensation
Store Temperature	-40℃ ~ +70℃
Variable Frequency Drive Specification
Acceleration/Deceleration Curve	Line / S-curve
Allowed Input Voltage	180~260VAC
Altitude	Derating use abouve 1000M, derating 10% per 1000M
Command Source	Keypad, Terminal, Communication
Control Modes	V/F, SVC
Environment Temperature	-10℃ ~+40℃ (environment temperature around 40℃~50℃, please derating use)
External Keypad	Yes
Frequency Accuracy	Digital (Max. Frequency+/-0.01%) / Anolog (Max. Frequency+/-1%)
Frequency Resolution	Digital (0.1Hz) / Anolog (Max. Frequency+/-1%)
Input Current	37A(3PH)
Input Frequency	50 - 60Hz
Input Voltage	3PH 220VAC
LED Display	Can display: Output frequency, Output voltage, Output current, Bus voltage, Display value 1, Display value 2, Error, Alarm
Modulation Mode	SVPWM
Motor Type	Asynchronous Motor, Synchronour Motor, Single Phase Motor
None-stop When Instantaneous Power Off	None-stop when instantaneous power off, automatic frequency drop
Output Capacity	150% Rated Current 60s, 180% Rated Current 2s
Output Current	31A
Output Frequency	1000HZ
Output Power	10HP / 7.5KW
Output Voltage	0 - Rated Input Voltage
PID	Support main setting + PID
Protection Function	Over-current protection, Over-voltage protection, Under-voltage protection, Overheating protection, Over-load protection, Phase lose protection, Earth leakage, etc
Rapid Current Limit	Limit current rapidly within the current protection value, to ensure the safety of the equipment
Set Value Source	Digital, Analog, Multi-speed, Communication
Speed Range	1 : 100(SVC)
Start Torque	1Hz / 150%
Store Environment	Indoor, away from direct sunlight, no dust, no corrosive gas, no inflammable gas, no oil mist, no vapour, no drip and no salinity, etc
Vibration	<5.9M/S (0.6g)
