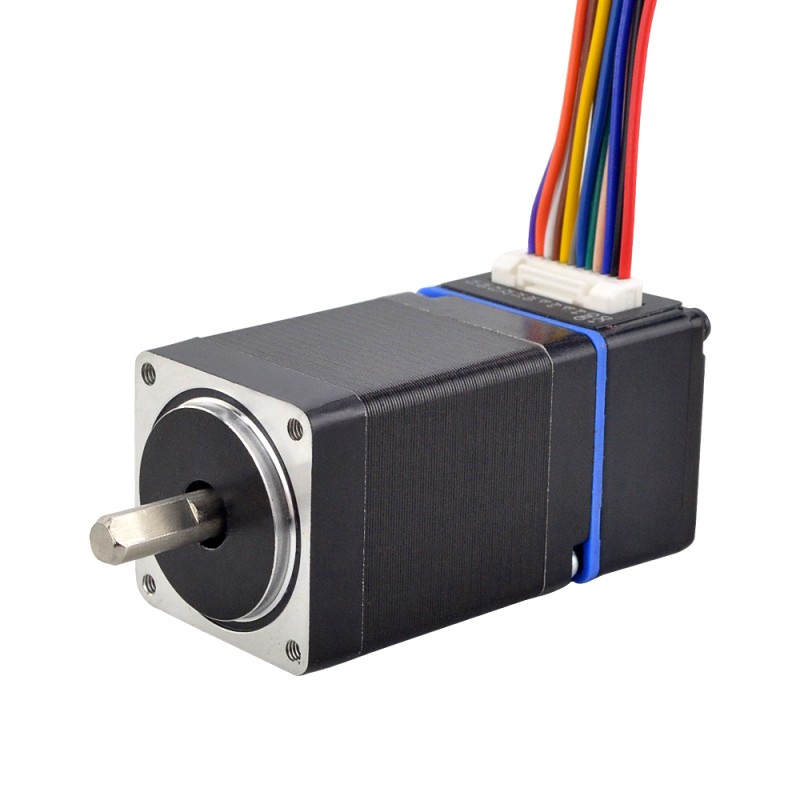

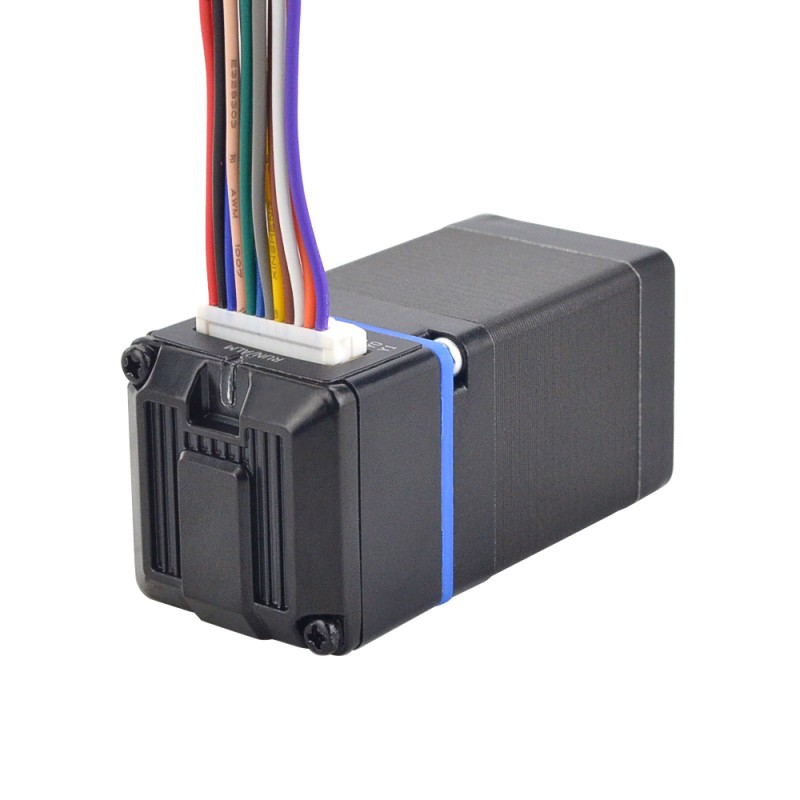

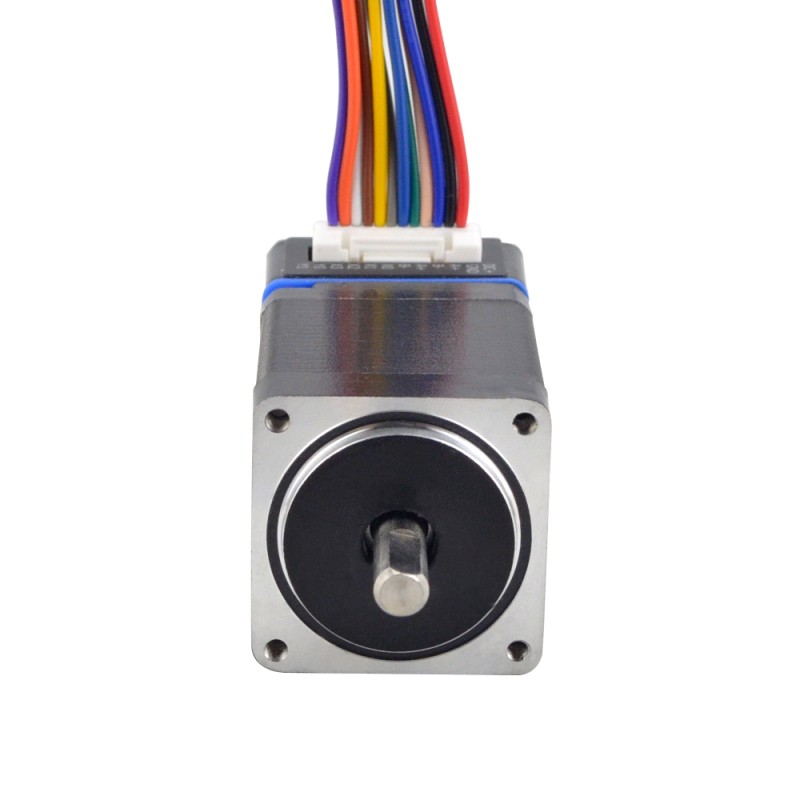

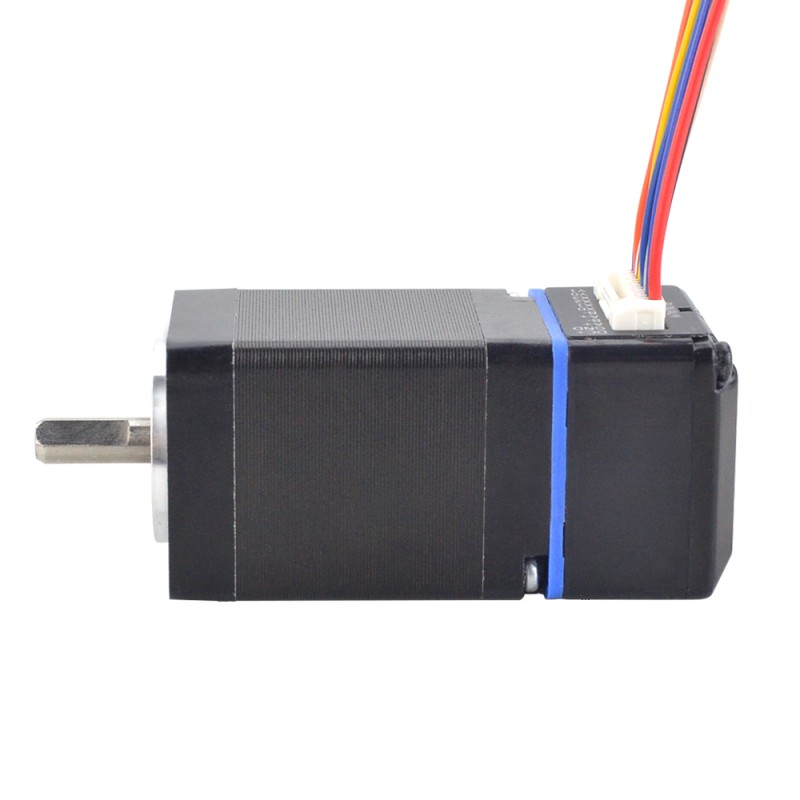

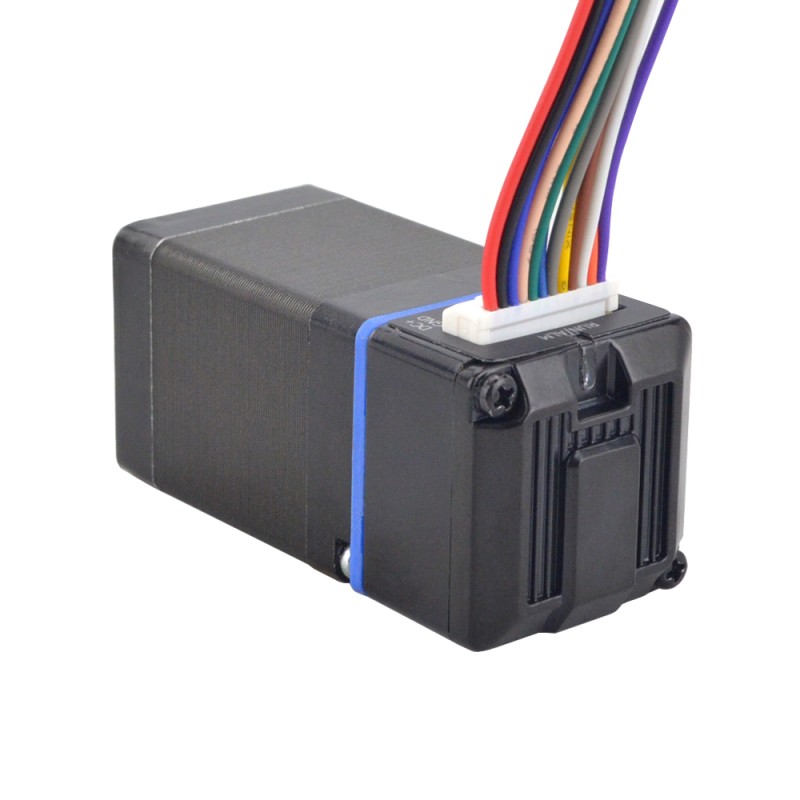

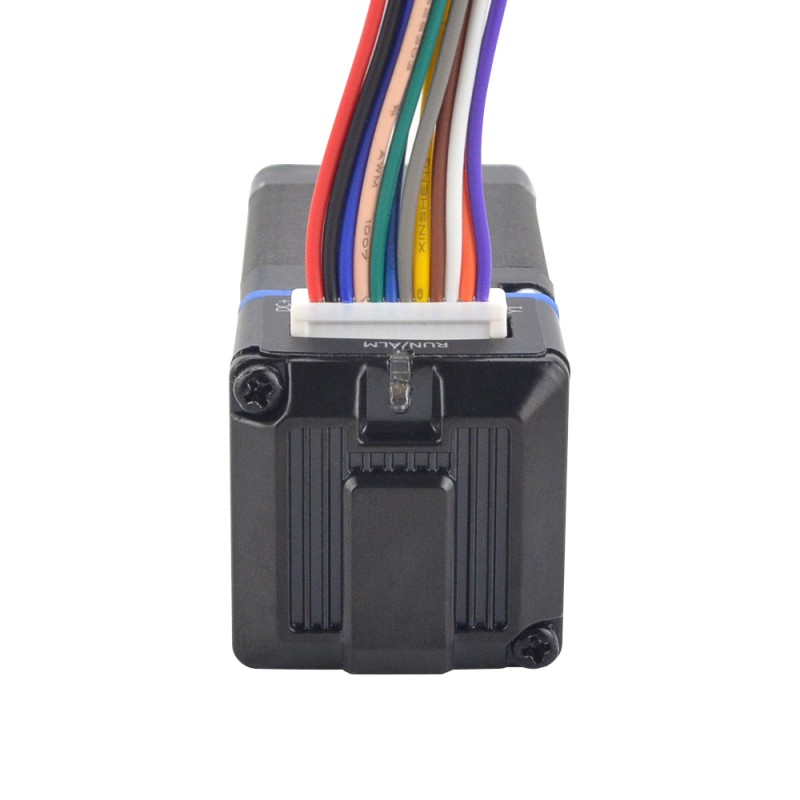

ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated RS-485 Stepper Motor 24VDC 5000CPR
Features Using a new 32-bit motor control, dedicated DSP chip Support standard MODBUS-RS485 prot... Read More
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

Features

  • Using a new 32-bit motor control, dedicated DSP chip
  • Support standard MODBUS-RS485 protocol, RS485 Communication
  • Four input and two output function terminals
  • Small torque attenuation,speed up to 3000rpm
  • Built-in alarm output, for monitoring and controlling
  • Intelligently adjust current, reduce vibration, noise and this can increase efficiency by 35%
  • Voltage range: DC 24V
  • 16 selectable microstep solutions, default microstep resolution: 1000
  • Excellent high speed performance and rigidity, combined with advantages of servo motor and stepper motor
  • Over-voltage, under-voltage and over-current protection
  • Drive and motor integrated, simple wiring

Electrical Specifications:

  • Manufacturer Part Number: ESS11-01PR
  • Holding Torque: 7.4Ncm(10.48oz.in)
  • Input Voltage: 24VDC
  • Insulation Class: B 130°C[266°F]
  • Output Peak Current: 0.6 - 1.2A
  • Logic Input Current: 10mA
  • Logic Input Voltage: 5V
  • Encoder Type: Incremental
  • Encoder Output Type: Differential
  • Encoder Resolution: 4096CPR
  • Encoder Output Signal Channels: 2
  • Isolation Resistance: More than 100MΩ
  • Dielectric strength: 500VAC for 1MIN.

Physical Specifications:

  • Frame Size: 28 x 28mm
  • Body Length: 38.9mm
  • Shaft Diameter: Φ5mm
  • D-cut Shaft Length: 10mm
  • Shaft Length: 15mm

Connector Specification

  • Housing Model: 502380-1200
  • Terminal Model: 5023810000

Connection

+DC
GND
PU+
PU-
DR+
DR-
MF+
MF-
Red
Black
Navy
Pink
Green
Blue
Gray
Yellow
Product Type
Product Type Integrated Stepper Motor
Electrical Specification
Analog Input No
Control Modes Modbus RS485
Encoder Feedback Yes (Closed Loop)
Encoder Resolution 4096
Encoder Type Incremental
Holding Torque(Ncm) 7.4
Holding Torque(oz.in) 10.48
Input Voltage Reference(V) 24 - 36DC
Input Voltage(V) 24DC
Output Signal Channels 2
Physical Specification
Body Length(mm) 38.9
Frame Size(mm) Nema 11 (28 x 28)
IP Rating 40
Shaft Diameter(mm) 5
Shaft Length(mm) 15

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Electrical Specifications Manufacturer Part Number: ESS17-04 Holding Torque: 0.48Nm(68oz.in) Input Voltage: 24 - 36VDCInsulation Class: B 130°C[2..
from
£33.16
Add to Cart
This Y series digital stepper driver 0.3-2.2A DC18V-36V for Nema 14, 17, 23 stepper motor is mainly used in medical equipment, dispensing machines, en..
from
£10.53
Add to Cart
iDM series is stepper motor integrated a digital stepper driver. It implements advanced control algorithm of STEPPERONLINE based on its tens of years'..
from
£42.18
Add to Cart

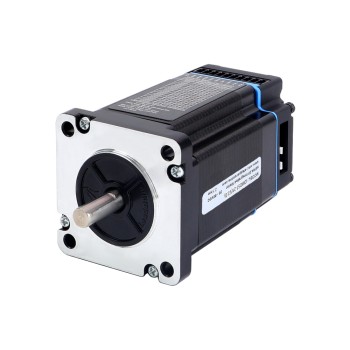

iDM Series NEMA 23 Integrated Stepper Motor 2.1Nm(297.38oz.in) 20-50VDC
Pre-order
This is a Nema 23 integrated stepper motor with a holding torque of 2.1Nm(297.38oz.in) . iDM series is stepper motor integrated a digital stepper driv..
from
£58.44
Add to Cart

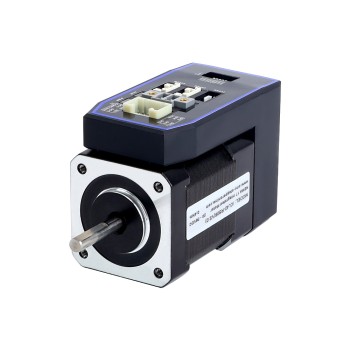

This is a Nema 17 integrated RS485 closed loop stepper motor with a holding torque of 0.4Nm(56.64oz.in) with 14-bit encoder. iCL-RS Series is stepper ..
from
£62.67
Add to Cart

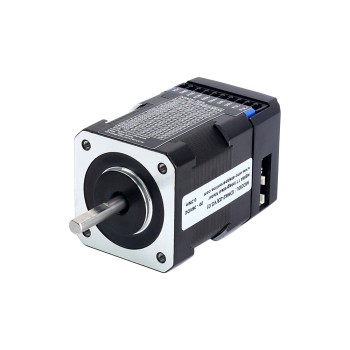

This is a Nema 17 integrated closed loop stepper motor with a holding torque of 0.3Nm(42.48oz.in) with 14-bit encoder. iCL series is stepper motor int..
from
£48.77
Add to Cart

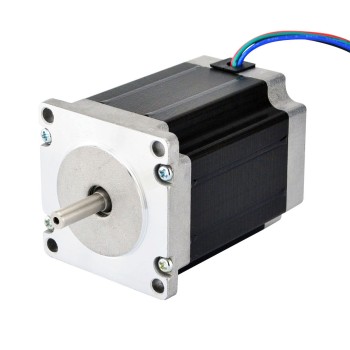

This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x76.5mm. It has 4 wires, each phase draws 2.8A, with ho..
