Name: EG Series Planetary Gearbox Gear Ratio 7:1 Backlash 15arc-min for Nema 17 Stepper Motor
Brand: STEPPERONLINE
SKU: EG17-G7
Price: 22.89 GBP
Availability: InStock

EG Series Planetary Gearbox Gear Ratio 7:1 Backlash 15arc-min for Nema 17 Stepper Motor - EG17-G7 | StepperOnline UK

EG17-G7

Output Shaft TypeKeyway

Gear Ratio(xx:1)7

Backlash at No-load<=15 arcmin

Gearbox Length(mm)55

Question

Downloads

EG17-G7_Full_Datasheet.pdfPDF · 62.93KB

Same series

Model	Output Shaft Type	Gear Ratio(xx:1)	Backlash at No-load	Gearbox Length(mm)	Price	Stock
EG17-G10	Keyway	10	<=15 arcmin	55	£23.12	In stock
EG17-G100	Keyway	100	<=20 arcmin	66	£28.72	In stock
EG17-G20	Keyway	20	<=20 arcmin	67	£28.72	In stock
EG17-G5	Keyway	5	<=15 arcmin	55	£23.12	In stock
EG17-G50	Keyway	50	<=20 arcmin	66	£28.72	In stock
EG17-G7	Keyway	7	<=15 arcmin	55	£22.89	In stock

EG Series Planetary Gearbox Gear Ratio 7:1 Backlash 15arc-min for Nema 17 Stepper Motor

The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This high-precision plane... Read More

0 reviews • Write a review

from

£22.89

5 + £21.95

10 + £21.08

50 + £20.27

100 + £19.53

Click country for live stock

Dispatches from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

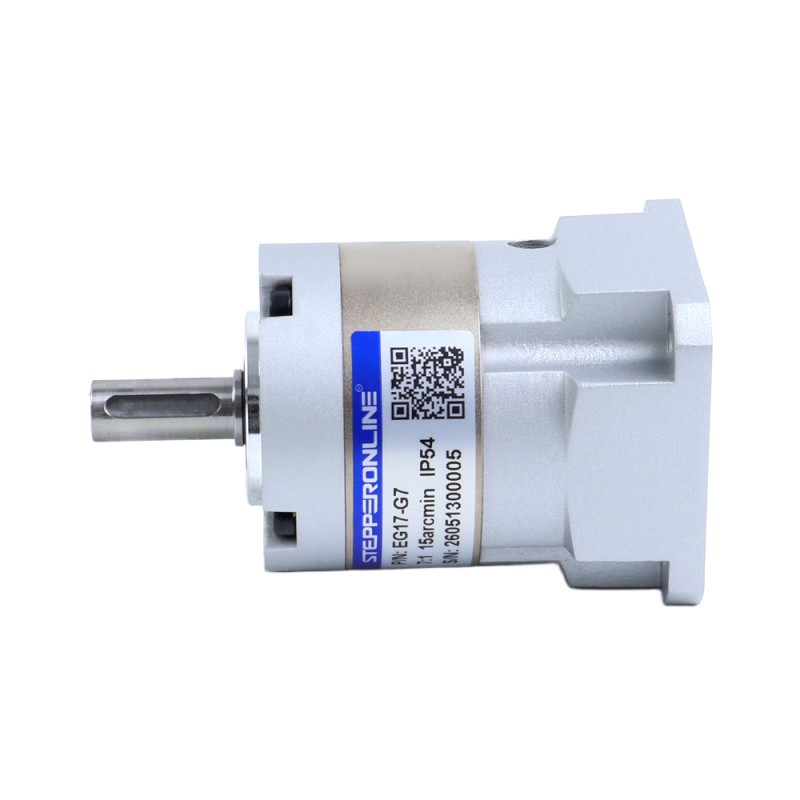

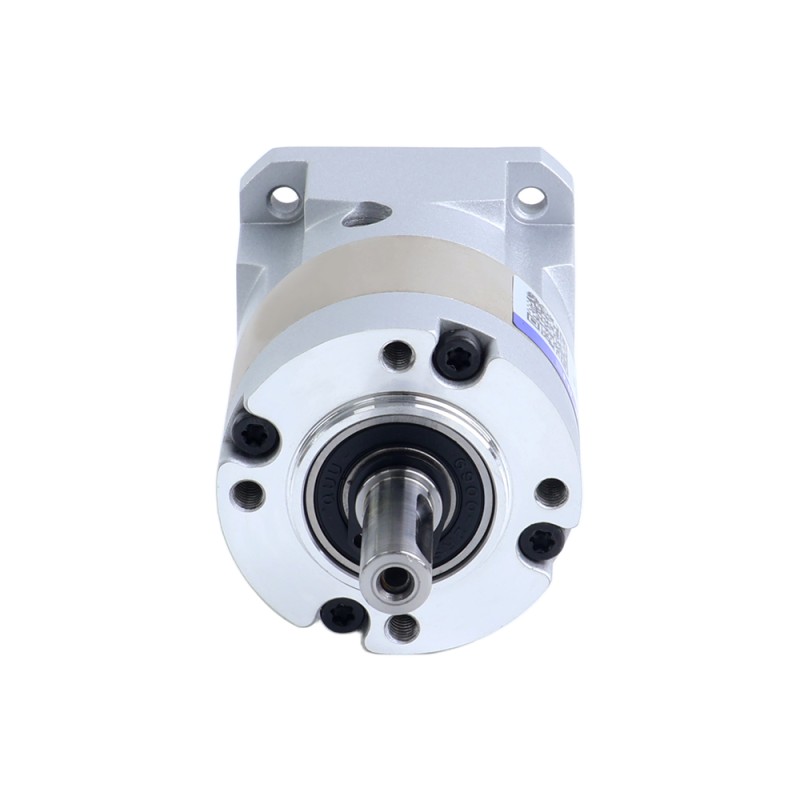

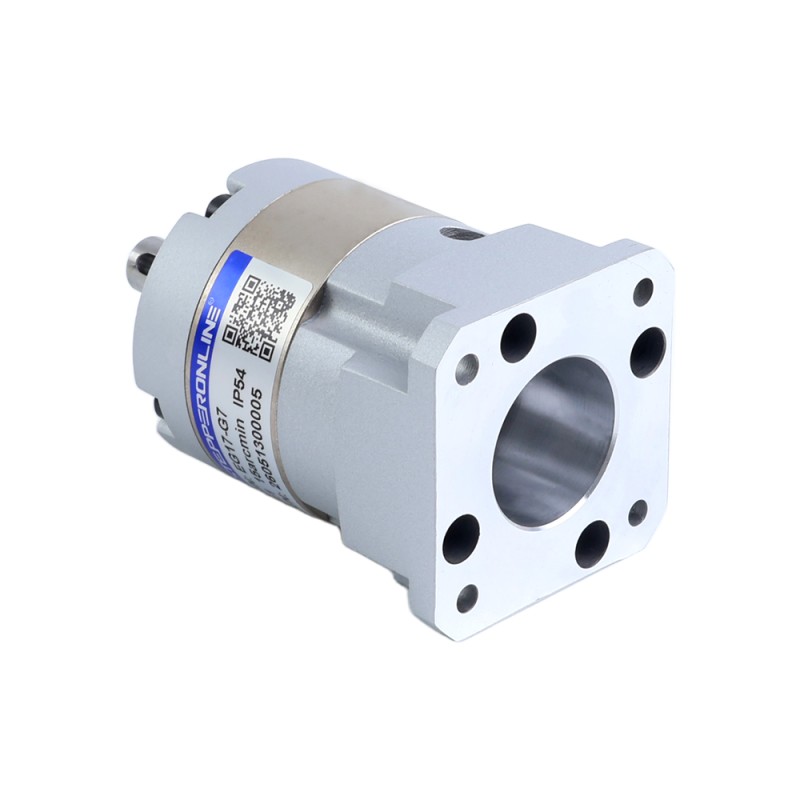

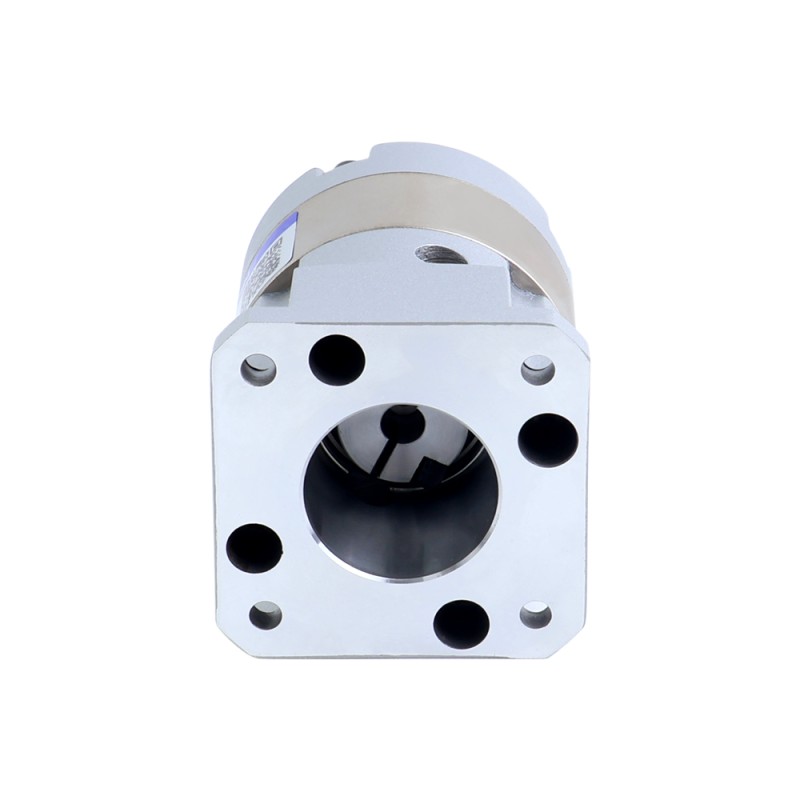

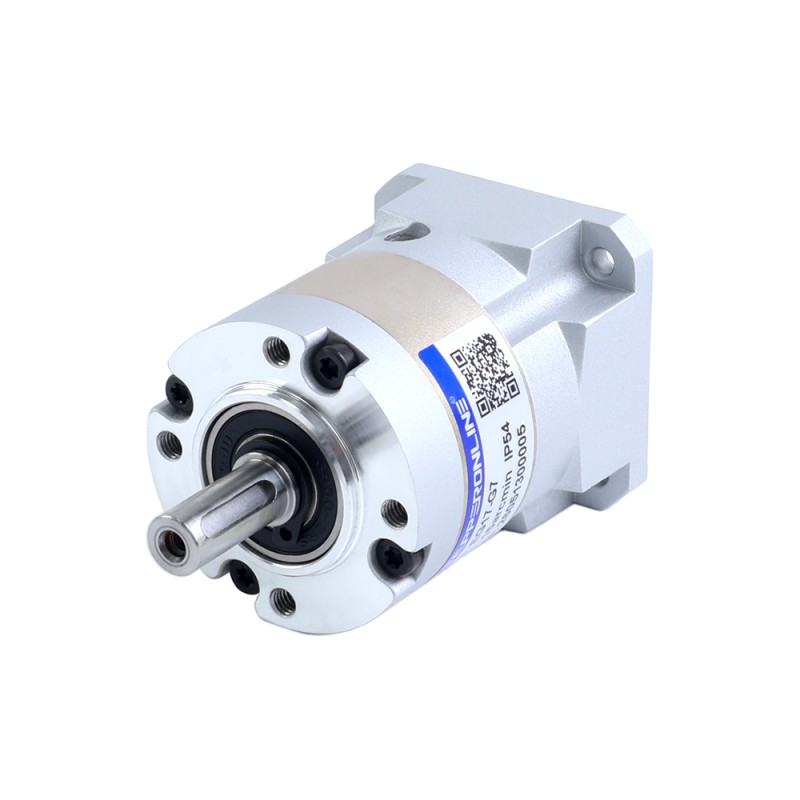

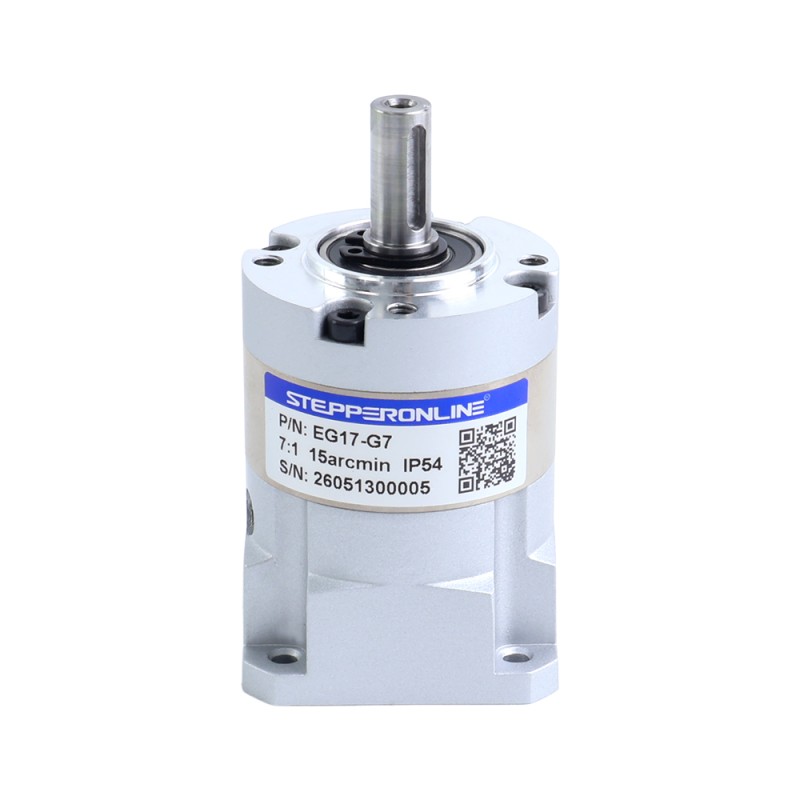

The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 7:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 17 stepper motor and brushless dc motor.

Gearbox Specifications

PN: EG17-G7
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 7:1
Efficiency: 96%
Rotor Inertia: 0.03kg·cm²
Backlash at No-load: <=15arcmin
Max.Permissible Torque: 5Nm(44.25lb-in)
Moment Permissible Torque: 10Nm(88.51lb-in)
Noise: <=65dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 42 x 42mm
Gearbox Length: 55mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 21.5-25mm

Physical Specification
Backlash at No-load	<=15 arcmin
Frame Size(mm)	42 x 42
Gear Material	Alloy Steel
Gear Ratio(xx:1)	7
Gearbox Length(mm)	55
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	5
Input Shaft Length(mm)	21.5 - 25
IP Rating	54
Matching Motor Size	Nema 17 Stepper Motor
Output Shaft Diameter(mm)	8
Output Shaft Length(mm)	21.5
Output Shaft Type	Keyway
Product Series	EG
