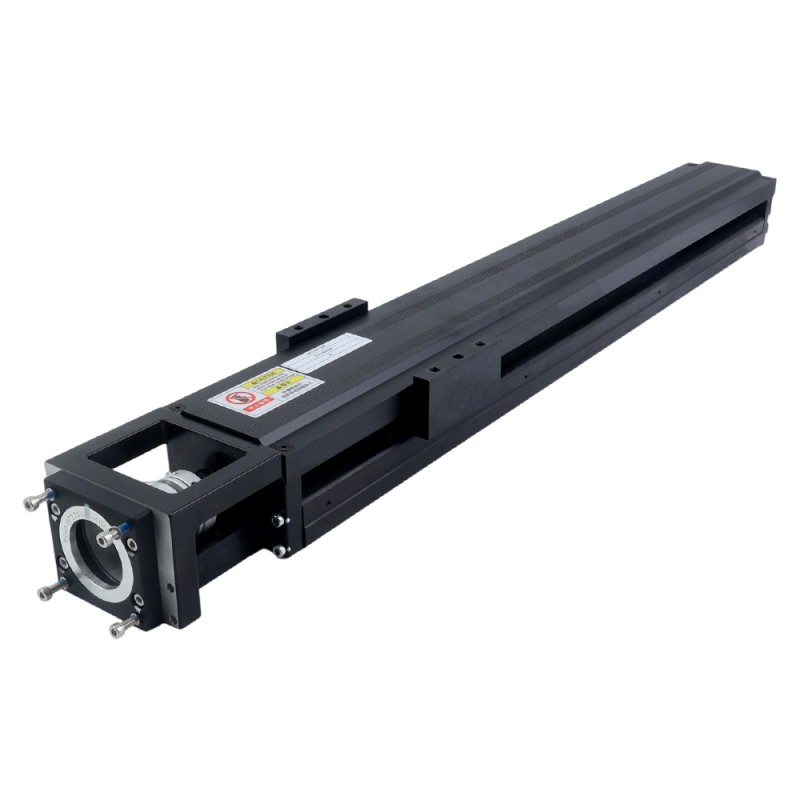

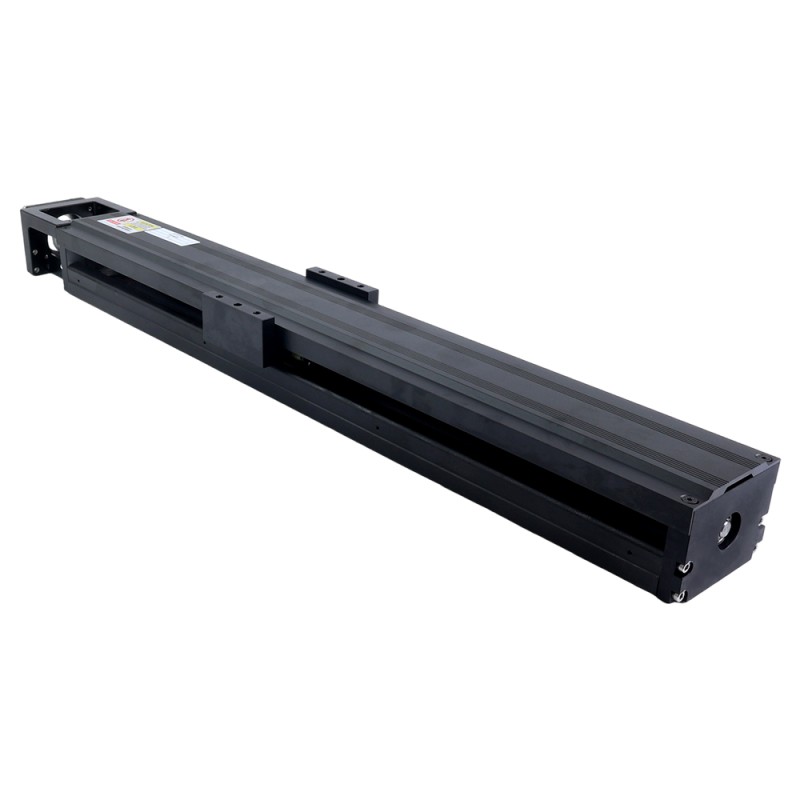

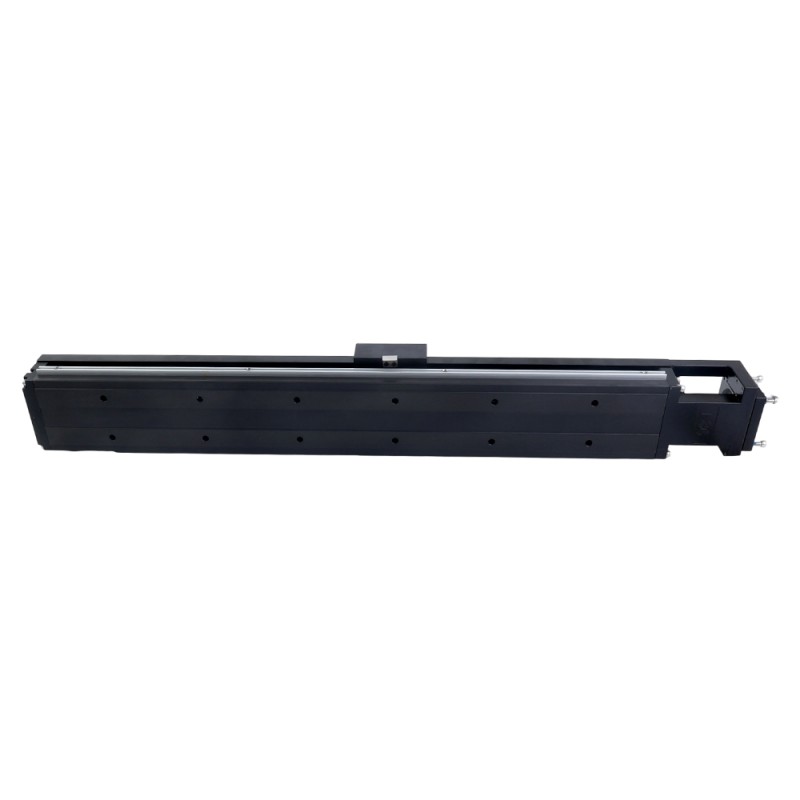

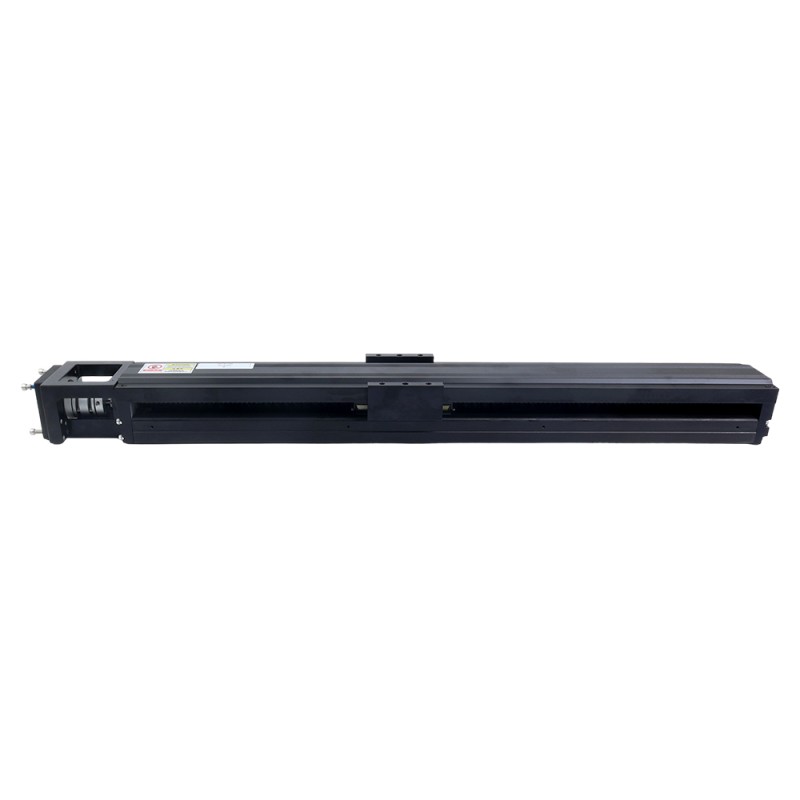

This LK86 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 8kg(17.64lb), a stroke length of 510mm(1.67ft) and maximum speed of 166mm/s(0.54ft/s).

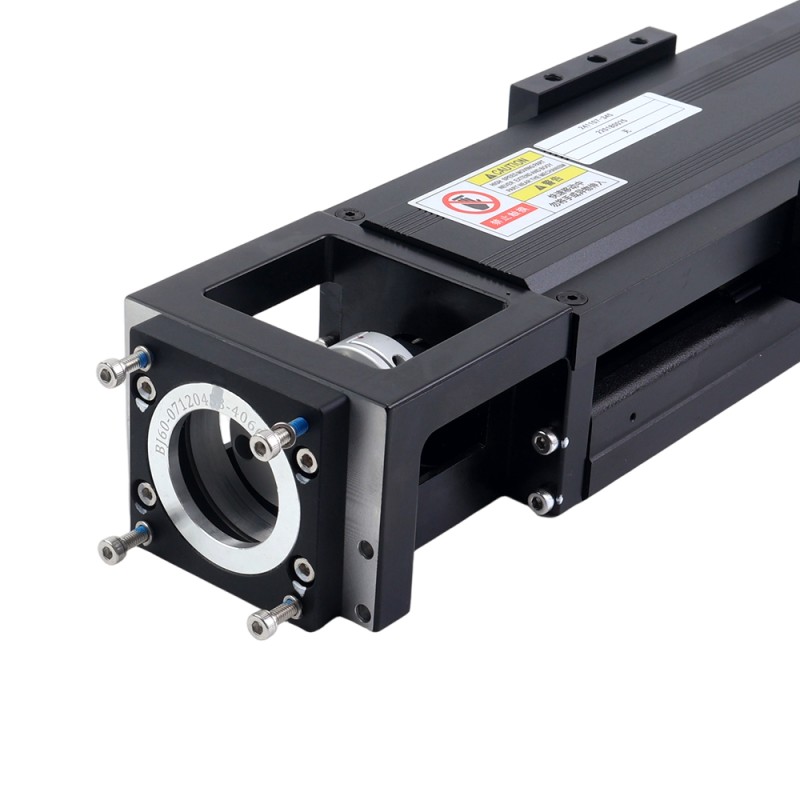

Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

  • Part Number: LK86-24DL103-510
  • Screw Type: Ball Screw
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.033ft)
  • Maximum Speed: 166mm/s(0.54ft/s)
  • Maximum Horizontal Payload: 30kg(66.14lb)
  • Maximum Vertical Payload: 8kg(17.64lb)
  • Rated Thrust: 341N
  • Sensor Type: NPN

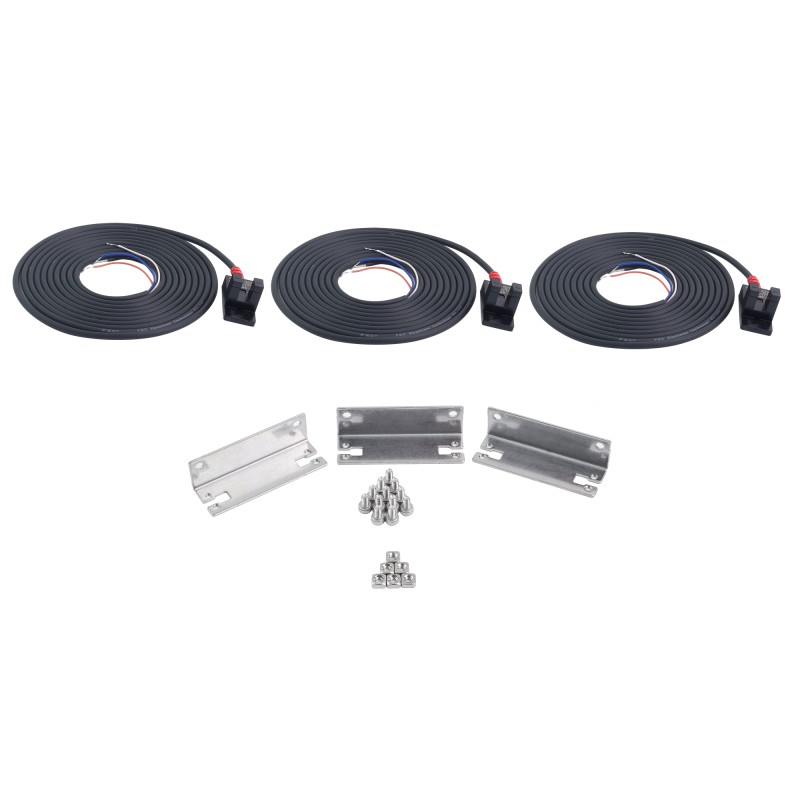

  • Number of Sensors: 3
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ15mm
  • Motor Frame: Nema 24 Closed Loop Stepper Motor
  • Stroke Length: 510mm(1.67ft)
  • Input Shaft Length: 30mm
  • Input Shaft Diameter: 8mm
Physical Specification
Input Shaft Diameter(mm) 8
Input Shaft Length(mm) 30
Lead(mm/ft) 10/0.033
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 30/66.14
Max. Speed(ft/s) 0.54
Max. Speed(mm/s) 166
Max. Vertical Payload(kg/lb) 8/17.64
Motor Mounting Flange Nema 24 Closed Loop Stepper Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 341
Stroke Length(mm/ft) 510/1.67
Transmission Method Ball Screw Driven
