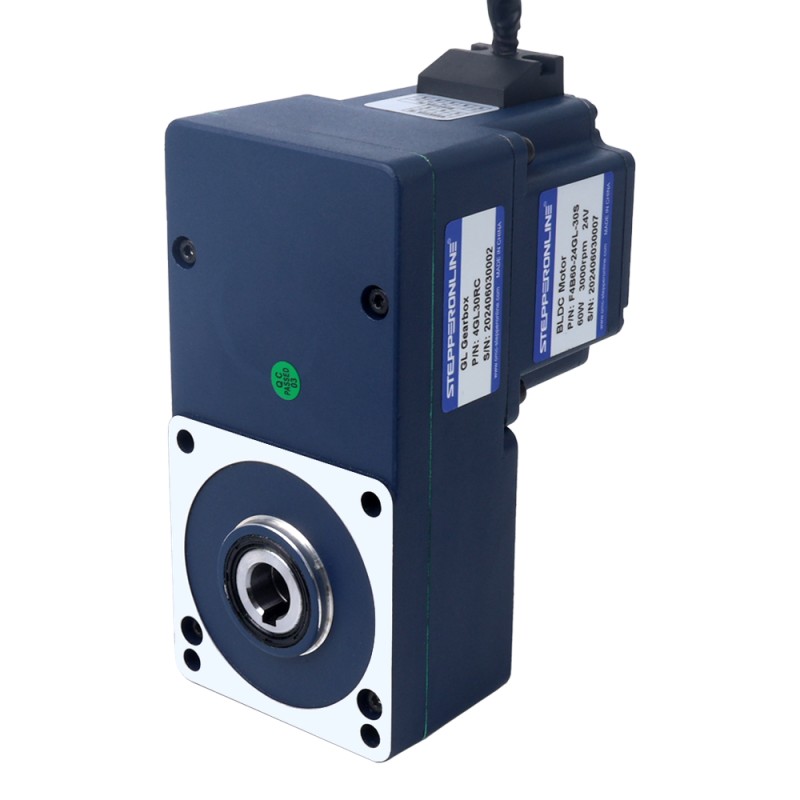

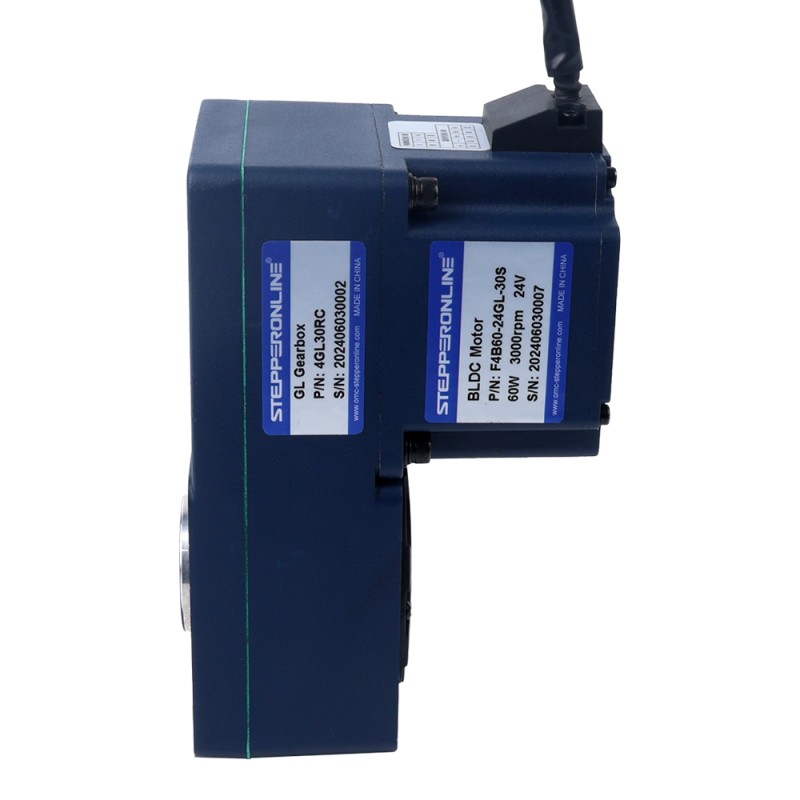

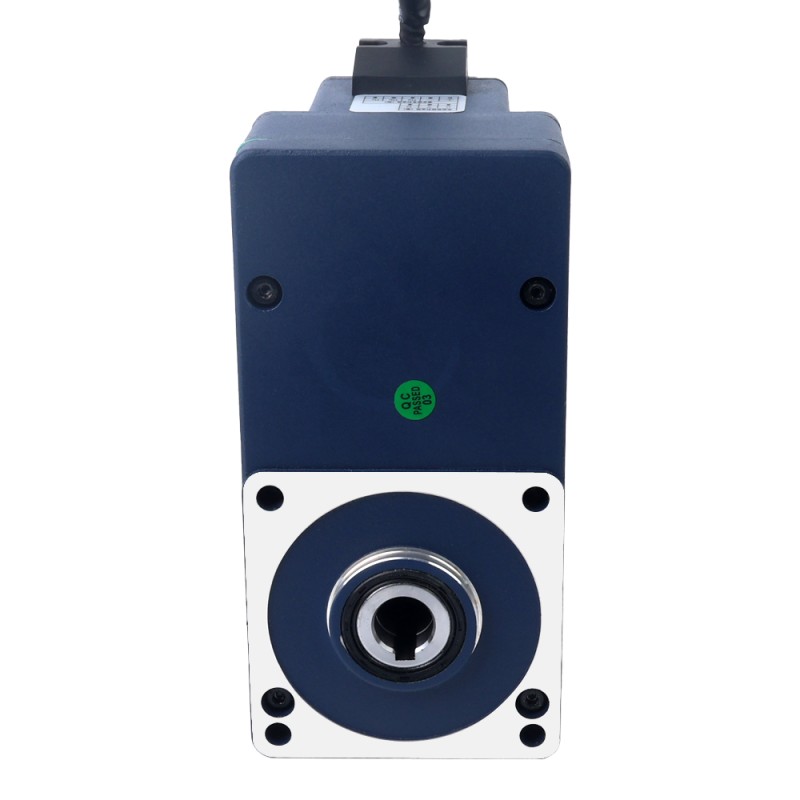

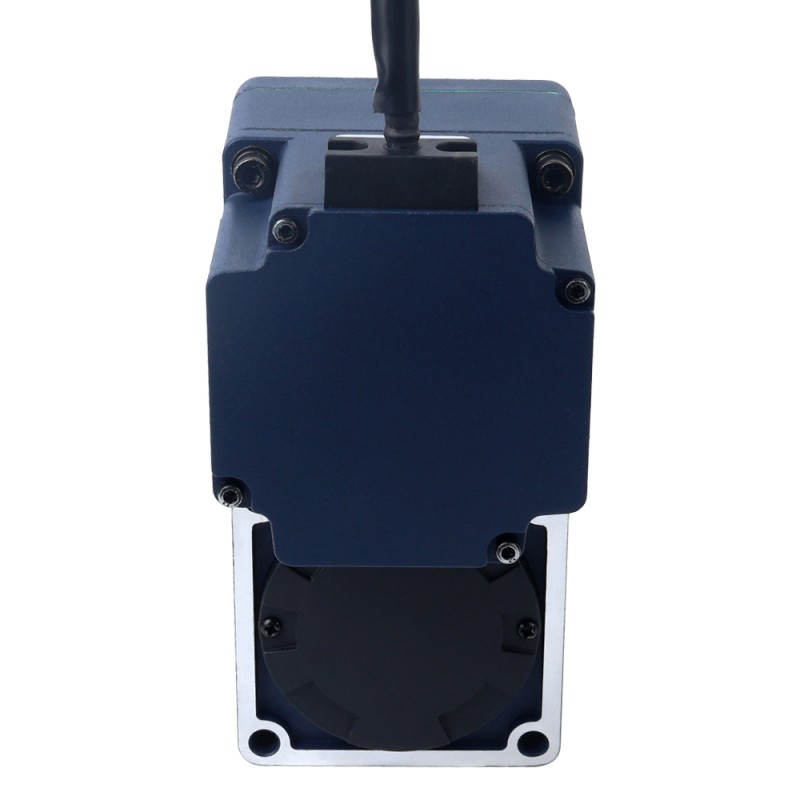

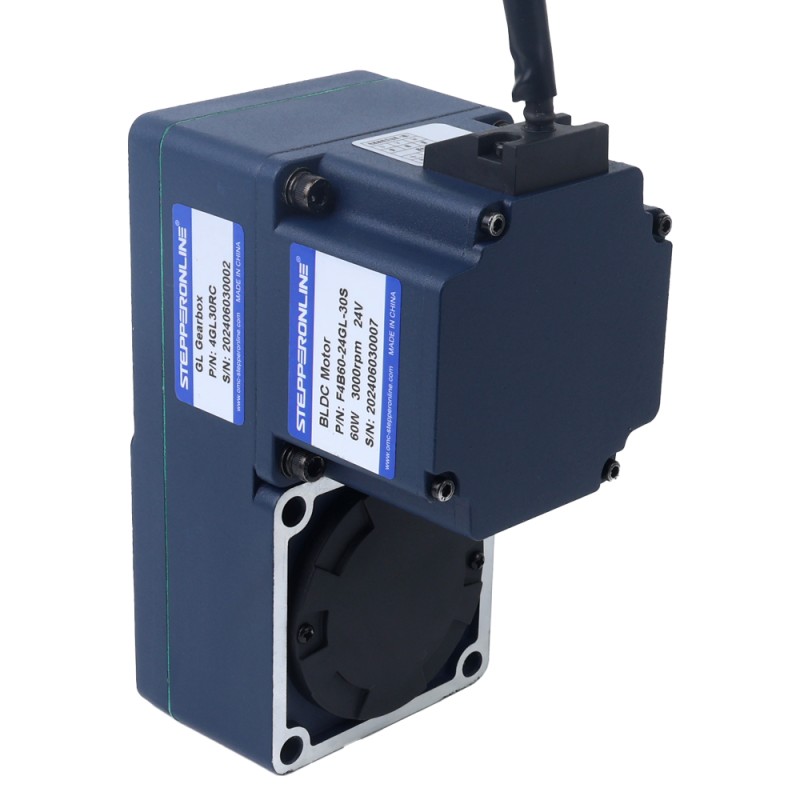

DE On Sale - 24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox

24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox - F4B60-24GL-30S/4GL30RC | StepperOnline UK
F4B60-24GL-30S/4GL30RC-SALE
Output Shaft TypeHollow
Rated Voltage(V)24
Rated Current(A)3.50
Frame Size(mm)80 x 80
Question

Downloads

F4B60-24GL-30S-4GL30RC.STEPSTEP · 2.63MBF4B60-24GL-30S_4GL30RC_Full_Datasheet.pdfPDF · 61.04KB
Same series
ModelOutput Shaft TypeRated Voltage(V)Rated Current(A)Frame Size(mm)PriceStock
57BLR50-24-01-HG10Keyway245.00Nema 23 (57 x 57)£0.00In stock
57BLR70-24-02-HG100Keyway2410.40Nema 23 (57 x 57)£51.71In stock
57BLR90-24-01-HG100Keyway2414.00Nema 23 (57 x 57)£55.40In stock
57BYA74-24-01-PG100Keyway245.70⌀57£54.94In stock
57BYA74-24-01-PG27Keyway245.70⌀57£51.01In stock
F2B15-24GN-30S/2GN100KD241.1060 x 60£22.24In stock
F2B15-24GN-30S/2GN10KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN15KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN200KD241.1060 x 60£22.24In stock
F2B15-24GN-30S/2GN20KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN30KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN3KD241.1060 x 60£20.11In stock
F2B15-24GN-30S/2GN3K-SALED241.1060 x 60£19.92In stock
F2B15-24GN-30S/2GN50KD241.1060 x 60£21.17In stock
F2B15-24GN-30S/2GN50K-SALED241.1060 x 60£20.98In stock
F2B15-24GN-30S/2GN5KD241.1060 x 60£20.11In stock
F2B15-48GN-30S/2GN100KD480.6060 x 60£22.24In stock
F2B15-48GN-30S/2GN10KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN15KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN200KD480.6060 x 60£22.24In stock
F2B15-48GN-30S/2GN20KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN30KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN3KD480.6060 x 60£20.11In stock
F2B15-48GN-30S/2GN50KD480.6060 x 60£21.17In stock
F2B15-48GN-30S/2GN5KD480.6060 x 60£20.11In stock
F2B40-24GL-30S/2GL150RCHollow242.5060 x 60£32.90In stock
F2B40-24GL-30S/2GL30RCHollow242.5060 x 60£32.90In stock
F3B40-24GN-30S/3GN100KKeyway242.5070 x 70£26.65In stock
F3B40-24GN-30S/3GN10KKeyway242.5070 x 70£24.22In stock
F3B40-24GN-30S/3GN15KKeyway242.5070 x 70£24.22In stock
View all in category
DE On Sale - 24V 60W 100RPM 4.20Nm(594.77oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox
This is a 24V 60W BLDC gear motor with a flange of 80x80mm. The built-in 30:1 parallel hollow shaft ... Read More
0 reviews • Write a review
from Save -15%
£41.81
£49.37

Click country for live stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
UK customers: choose the UK warehouse for faster delivery, easier after-sales support and no customs clearance. The China warehouse is open to all countries.

This is a 24V 60W BLDC gear motor with a flange of 80x80mm. The built-in 30:1 parallel hollow shaft gearbox brings speed and torque to 100rpm and 4.20Nm(594.77oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-305S.

Electrical Specifications

  • P/N: F4B60-24GL-30S/4GL30RC
  • Phase: 3
  • Poles: 10
  • Rated Current: 3.50A
  • Rated Voltage: 24V
  • Rated Speed: 100rpm
  • Rated Torque: 4.20Nm(594.77oz.in)
  • No-load Current: 0.60A
  • Rated Power: 60W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 80x80mm
  • Gearbox Type: Parallel Hollow Shaft Gearbox
  • Gearbox Ratio: 30:1
  • Shaft Type: Hollow
  • Bore Diameter: Φ15mm
  • Bore Length: 57mm
  • Bearing: Deep Groove Ball
  • Weight: 2.73kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No-load Current(A) 0.6
No. of Phase 3
Rated Current(A) 3.50
Rated Power(W) 60
Rated Speed(rpm) 100
Rated Torque(Nm) 4.20
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 161.7
Frame Size(mm) 80 x 80
Gear Ratio(xx:1) 30
Gearbox Type Parallel Gearbox
Output Shaft Type Hollow
With Gearbox Yes
